The HDMI® Extender Over Cat6/Cat6A – SKU 006.008.1045 delivers reliable 1080p@60Hz HDMI signal extension up to 50 metres over a single Cat6 or Cat6A network cable. Featuring uncompressed lossless transmission, zero latency, IR passback, EDID passback and transmitter-side-only power, this professional HDMI extender is ideal for residential and commercial AV installations requiring dependable long-distance HDMI connectivity.

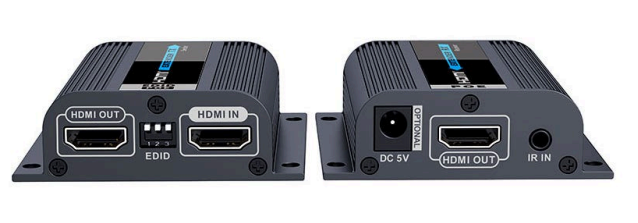

Using cost-effective structured network cabling, the 006.008.1045 HDMI Extender overcomes the practical distance limitations of conventional HDMI cables while maintaining signal integrity. The system includes a transmitter (TX) and receiver (RX) that operate as a matched pair, providing pure hardware-based transmission with automatic cable matching and no software installation required.

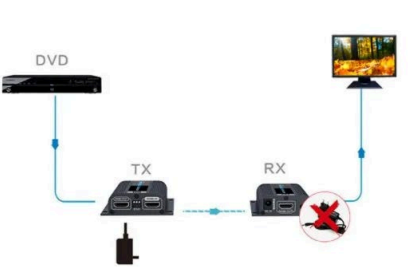

A key installation advantage is Power Over Cable (POC) technology. Only the transmitter requires a power connection, with the receiver powered through the connecting network cable. This reduces cabling and eliminates the need for a separate power outlet at the receiver end.
Built-in IR passback supporting 20–60kHz enables compatible source equipment, such as Blu-ray players and media boxes, to be controlled from the display side. Integrated EDID passback also helps improve compatibility between the HDMI source and connected display.
Important Installation Notes
For UTP solid-core cabling, T568B termination is mandatory. When using S/FTP shielded solid cable, either T568A or T568B is acceptable.
For maximum signal stability, Cat6A shielded patch leads are recommended. Correct cable selection and termination are important for achieving the specified transmission performance.
What's Included in the Box
Main Features
-
HDMI extension up to 50 metres over Cat6/Cat6A
-
Supports resolutions up to 1080p@60Hz
-
Uncompressed, lossless HDMI transmission
-
Zero-latency transmission
-
IR passback from 20–60kHz
-
Built-in EDID passback
-
Power Over Cable (POC)
-
Powered from the transmitter (TX) side only
-
Plug-and-play operation
-
No software installation required
-
Pure hardware transmission
-
Automatic cable matching
-
HDMI 1.3 interface
-
HDCP 1.4 support
-
Durable metal enclosure
-
TX and RX operate as a matched pair
Detailed Specifications
| Specification |
Details |
| SKU / Product Code |
006.008.1045 |
| Product Type |
HDMI Extender over Cat6/Cat6A |
| HDMI Interface |
HDMI 1.3 |
| HDCP |
HDCP 1.4 |
| Maximum Resolution |
1080p@60Hz |
| Maximum Transmission Distance |
Up to 50m |
| Compatible Network Cable |
Cat6 / Cat6A |
| Transmission Type |
Uncompressed, lossless |
| Latency |
Zero latency |
| IR Passback |
20–60kHz |
| EDID Passback |
Yes |
| Power Supply |
DC 5V/1A |
| Power Location |
TX side only |
| Housing |
Metal enclosure |
| UTP Wiring Standard |
T568B only |
| S/FTP Wiring Standard |
T568A or T568B |
| Recommended Patch Lead |
Cat6A shielded |
Practical Use Scenarios
The 006.008.1045 HDMI Extender is suitable for meeting rooms, offices, classrooms, training facilities, retail displays, digital signage and residential AV systems where an HDMI source needs to be located away from the display.
Its 50-metre transmission capability makes it useful where conventional HDMI cable lengths are impractical, while TX-side-only power can simplify wall-mounted display and remote receiver installations where access to a nearby power outlet is limited.
Warranty Information
1-Year Limited Warranty
Warranty coverage is subject to the applicable product warranty terms and conditions.
SKU
006.008.1045
Datasheets & Downloadable Resources
Product Datasheet: HDMI® Extender Over Cat6/6A 50 Metres with IR Passback and Power From TX Side Only.
Excellence for the Australian and New Zealand Market
The 006.008.1045 HDMI Extender is a practical solution for Australian and New Zealand residential, commercial and professional AV installations requiring reliable Full HD signal distribution over structured network cabling.
Its support for Cat6/Cat6A infrastructure, 1080p@60Hz transmission, IR passback and TX-side-only power makes it suitable for a wide range of AV integration projects.
A 1-year limited warranty is specified for this product. No specific Australian or New Zealand regulatory certification or NDSS approval was identified in the supplied product information; therefore, no such certification is claimed.
FAQs
Q: What is the maximum transmission distance of HDMI Extender 006.008.1045?
HDMI Extender 006.008.1045 supports HDMI signal transmission over Cat6 or Cat6A cable for distances of up to 50 metres.
Q: What maximum resolution does HDMI Extender 006.008.1045 support?
HDMI Extender 006.008.1045 supports video resolutions up to 1080p at 60Hz.
Q: Does HDMI Extender 006.008.1045 require power at both ends?
No. HDMI Extender 006.008.1045 uses Power Over Cable technology and requires a power connection at the transmitter (TX) side only.
Q: Does HDMI Extender 006.008.1045 support IR passback?
Yes. HDMI Extender 006.008.1045 supports 20–60kHz IR passback, enabling compatible source devices to be controlled from the display side.
Q: Does HDMI Extender 006.008.1045 have zero-latency transmission?
Yes. HDMI Extender 006.008.1045 is specified for uncompressed, lossless and zero-latency transmission.
Q: Does HDMI Extender 006.008.1045 support EDID passback?
Yes. HDMI Extender 006.008.1045 features built-in EDID passback to assist compatibility between the HDMI source and connected display.
Q: What wiring standard is required for HDMI Extender 006.008.1045?
For HDMI Extender 006.008.1045, UTP solid-core cabling requires T568B termination. With S/FTP shielded solid cable, either T568A or T568B can be used.
Q: What network cable should be used with HDMI Extender 006.008.1045?
HDMI Extender 006.008.1045 supports Cat6 and Cat6A network cabling, with Cat6A shielded patch leads recommended for maximum signal stability.
Q: Does HDMI Extender 006.008.1045 require software?
No. HDMI Extender 006.008.1045 is a plug-and-play hardware solution that does not require software installation.
Q: What warranty is provided with HDMI Extender 006.008.1045?
HDMI Extender 006.008.1045 is specified with a 1-year limited warranty.
