Description

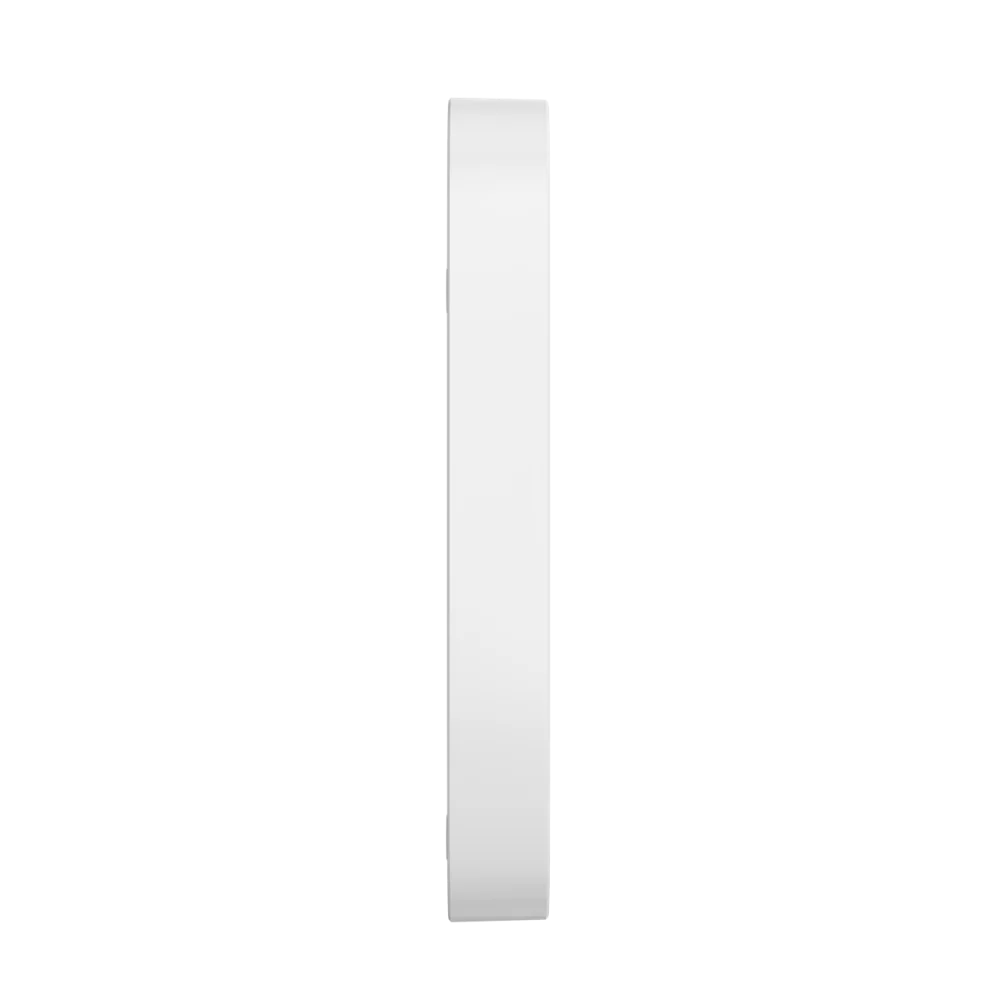

The Ajax KeyPad Jeweller (White) is a compact and reliable wireless touch keypad designed for easy control of Ajax security systems in residential and commercial environments. Using Ajax’s secure Jeweller two-way wireless communication technology, the keypad allows users to arm, disarm, and manage security groups using access codes while maintaining encrypted communication with the Ajax hub. With capacitive touch buttons, LED status indication, tamper protection, and up to 2 years of battery life, the AJAX#30644 keypad offers a simple and secure control interface for professional Ajax alarm installations.
What’s Included in the Box
-
Ajax KeyPad Jeweller (White)
-
SmartBracket mounting panel
-
4 × AAA batteries (pre-installed)
-
Installation kit
-
Quick start guide
Main Features
-
Wireless capacitive touch keypad for Ajax alarm system control
-
Jeweller wireless communication technology with encrypted data transmission
-
Wireless range up to 1,700 m in open space
-
LED indicators for security mode, system faults, and hub communication
-
Functional alarm button with configurable operation modes
-
Supports up to 200 personal access codes
-
Supports up to 200 duress codes
-
Supports up to 99 access codes for unregistered users
-
Anti-code guessing protection with automatic keypad lock
-
Tamper alarm to detect device removal
-
Battery life up to 2 years
-
Indoor installation design
Detailed Specifications
Communication Technology
Jeweller communication technology
-
Proprietary Ajax wireless protocol for commands, alarms, and events
-
Two-way communication between keypad and hub
-
Advanced anti-sabotage protection
-
Block encryption featuring a dynamic key
-
Instant event notifications
-
Remote configuration through Ajax apps
Frequency Bands
-
866.0 – 866.5 MHz
-
868.0 – 868.6 MHz
-
868.7 – 869.2 MHz
-
905.0 – 926.5 MHz
-
915.85 – 926.5 MHz
-
921.0 – 922.0 MHz
(Depends on regional market)
Radio Performance
-
Maximum effective radiated power: up to 20 mW
-
Radio signal modulation: GFSK
-
Communication range: up to 1,700 m in open space
-
Frequency hopping to prevent radio interference and jamming
-
Encrypted communication using dynamic key protection
Control and User Interface
Sensor Type
-
Capacitive touch sensor
Status Indication
When active, the keypad provides LED indication for:
-
Current security mode
-
Detector malfunctions
-
Loss of communication with the hub
Functional Button Modes
The functional button can operate in one of three modes:
-
Alarm – sends alarm signal to monitoring station and activates sirens
-
Mute fire alarm – silences interconnected fire detector alarms
-
Off – disables the functional button
Access Codes
Supported Access Configuration
-
Up to 200 personal user codes
-
1 keypad code per device
-
Up to 200 duress codes
-
Up to 99 codes for unregistered users
Group Security Management
Users can control specific security groups by entering the general keypad code and the group ID.
ACE Type
-
Type B
Sabotage Protection
-
Code guessing protection – keypad locks for 3–180 minutes after three incorrect attempts within one minute
-
Tamper alarm when device is detached from the mounting surface
-
Device authentication to prevent spoofing
-
Communication loss detection after 36 seconds
(Depends on Jeweller or Jeweller/Fibra configuration)
Power Supply
-
Batteries: 4 × AAA (pre-installed)
-
Battery type: Type C
-
Estimated battery life: up to 2 years
Electrical Characteristics
-
Operating voltage range: 1.9–3.3 V⎓
-
Nominal operating voltage: 3 V⎓
-
Quiescent current consumption: 86.5 µA
-
Maximum current consumption: 225 mA
-
Full battery capacity: 2,000 mAh
Battery Status Levels
-
Low battery voltage: 2.15 V
-
Recovery voltage: 2.6 V
-
End-of-life voltage: 1.9 V
-
End-of-life battery capacity: 150 mAh
Battery manufacturer listed: Huiderui
Physical Specifications
-
Dimensions: 150 × 103 × 14 mm
-
Weight: 197 g
-
Operating temperature: −10°C to +40°C
-
Operating humidity: up to 75%
-
Colour: White
-
Installation environment: Indoor use only
Warranty
The Ajax KeyPad Jeweller (AJAX#30644) includes a 24-month manufacturer warranty, providing dependable support and long-term reliability for security installations.
Brand – Ajax Systems
Ajax Systems is a globally recognized developer of professional wireless security systems, known for combining advanced encrypted communication technologies with modern design and easy installation. Ajax solutions are widely used in homes, commercial buildings, and professional security environments worldwide.
SKU
AJAX#30644
Practical Use Scenarios
-
Home security systems requiring simple keypad control
-
Office alarm systems with multiple user access codes
-
Retail stores needing quick system arming and disarming
-
Small commercial premises with group-based alarm control
-
Security installations requiring wireless keypad access
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
The AJAX#30644 KeyPad Jeweller (White) is suitable for professional installations across Australia and New Zealand, supporting regional wireless frequency requirements and modern security system standards. Devices supplied through authorised distributors ensure genuine products, manufacturer-backed warranty coverage, and reliable technical support aligned with regional security industry expectations.
FAQs
What is the AJAX#30644 KeyPad Jeweller used for?
The AJAX#30644 keypad allows users to arm, disarm, and control Ajax alarm systems using access codes.
What wireless technology does AJAX#30644 use?
AJAX#30644 uses Ajax Jeweller wireless communication technology with encrypted two-way communication.
What is the wireless range of AJAX#30644?
The AJAX#30644 keypad can communicate with the Ajax hub at distances of up to 1,700 metres in open space.
How many access codes can AJAX#30644 support?
AJAX#30644 supports up to 200 personal user codes, 200 duress codes, and 99 codes for unregistered users depending on the hub model.
Does AJAX#30644 include a panic alarm feature?
Yes, AJAX#30644 includes a functional button that can be configured to trigger an alarm or mute fire alarms.
Is AJAX#30644 suitable for outdoor use?
No, AJAX#30644 is designed strictly for indoor installations.
What batteries does AJAX#30644 use?
AJAX#30644 uses 4 AAA batteries, which are included pre-installed.
How long does the battery last in AJAX#30644?
The AJAX#30644 KeyPad Jeweller offers an estimated battery life of up to 2 years under normal operating conditions.
What colour is AJAX#30644?
AJAX#30644 is the white version of the Ajax KeyPad Jeweller keypad.
Does AJAX#30644 include mounting hardware?
Yes, AJAX#30644 includes the SmartBracket mounting panel and installation kit for easy installation.
