The DS-KH9570-WTE1/S Hikvision 9 Series Indoor Station is a premium 10.1-inch Android-based video intercom monitor designed for advanced smart security and unified access control management. Featuring a 1920×1200 IPS touchscreen display, Android 14 operating system, Wi-Fi 6 connectivity, and a powerful 4-core processor with 4GB RAM, this indoor station delivers ultra-smooth operation and crystal-clear monitoring. It integrates seamlessly with Hikvision door stations, network cameras, and security systems, allowing users to view visitors, communicate via two-way audio, unlock doors remotely, and monitor alarms—all from a single intuitive interface.

Built for modern residential and commercial environments, the DS-KH9570-WTE1/S supports noise suppression, echo cancellation, SIP communication protocols, and integration with up to 16 IP cameras, making it a versatile and powerful solution for video intercom, access control, and integrated security monitoring.

What’s Included in the Box

• 1 × Hikvision DS-KH9570-WTE1/S Indoor Video Intercom Station


• Power Connector

• User Documentation

Main Features

Large 10.1" Full HD IPS Touchscreen

The indoor station features a 10.1-inch capacitive IPS touchscreen with 1920 × 1200 resolution, delivering vibrant colours and clear video monitoring for door communication and surveillance viewing.

Powerful Android 14 Platform

Powered by Android 14 with a high-performance embedded processor, 4GB RAM, and 8GB ROM, the device ensures fast system responsiveness and smooth operation for integrated security management.

Integrated Smart Security Management

Users can manage video intercom, access control, alarm events, and camera monitoring directly from the indoor station’s interface, providing unified security management on a single screen.

Crystal Clear Two-Way Audio

Built-in dual omnidirectional microphones and dual loudspeakers support advanced audio processing including noise suppression and echo cancellation, ensuring clear communication with visitors.

Advanced Connectivity

The indoor station supports Wi-Fi 6 dual-band connectivity (2.4GHz & 5GHz) and PoE networking, enabling flexible installation in both residential and commercial environments.

Extensive Device Integration

The DS-KH9570-WTE1/S can integrate with:

• Up to 17 door stations

• Up to 15 indoor extensions

• Up to 16 network cameras

This makes it ideal for multi-room or multi-entrance security systems.

Detailed Specifications

Model: DS-KH9570-WTE1/S
SKU: DS-KH9570-WTE1/S

System

• Operating System: Android 14

• Processor: Embedded high-performance processor

• RAM: 4 GB

• ROM: 8 GB

Display

• Screen Size: 10.1 inch

• Display Type: Color IPS Touchscreen

• Operation Method: Capacitive Touch

• Resolution: 1920 × 1200

Audio

• Audio Input: 2 × Built-in omnidirectional microphones

• Audio Output: 2 × Built-in speakers

• Audio Compression: G.711A, G.711U, G.722.1, G726, Opus, AAC, AAC_LD

• Bitrate: 64 Kbps

• Audio Quality: Noise suppression & echo cancellation

Capacity

• Linked Door Stations: 17

• Linked Indoor Extensions: 15

• Linked Network Cameras: 16

• Message Capacity:

  • 200 captured images

  • 200 alarm records

  • 200 unlock records

  • 200 tamper records

Network

• Wi-Fi: Wi-Fi 6 (2.4GHz & 5GHz)

• Bluetooth: BLE 5.0

• Network Interface: 1 × RJ45 (10/100 Mbps)

Network Protocols

• IPv4, SIP, HTTP, HTTPS

• DNS, RTSP, RTP

• TCP, UDP, ICMP, DHCP, ARP

• SIP v1 (RFC2543), SIP v2 (RFC3261)

• DTMF: SIP Info

• SADP, ISAPI, ONVIF

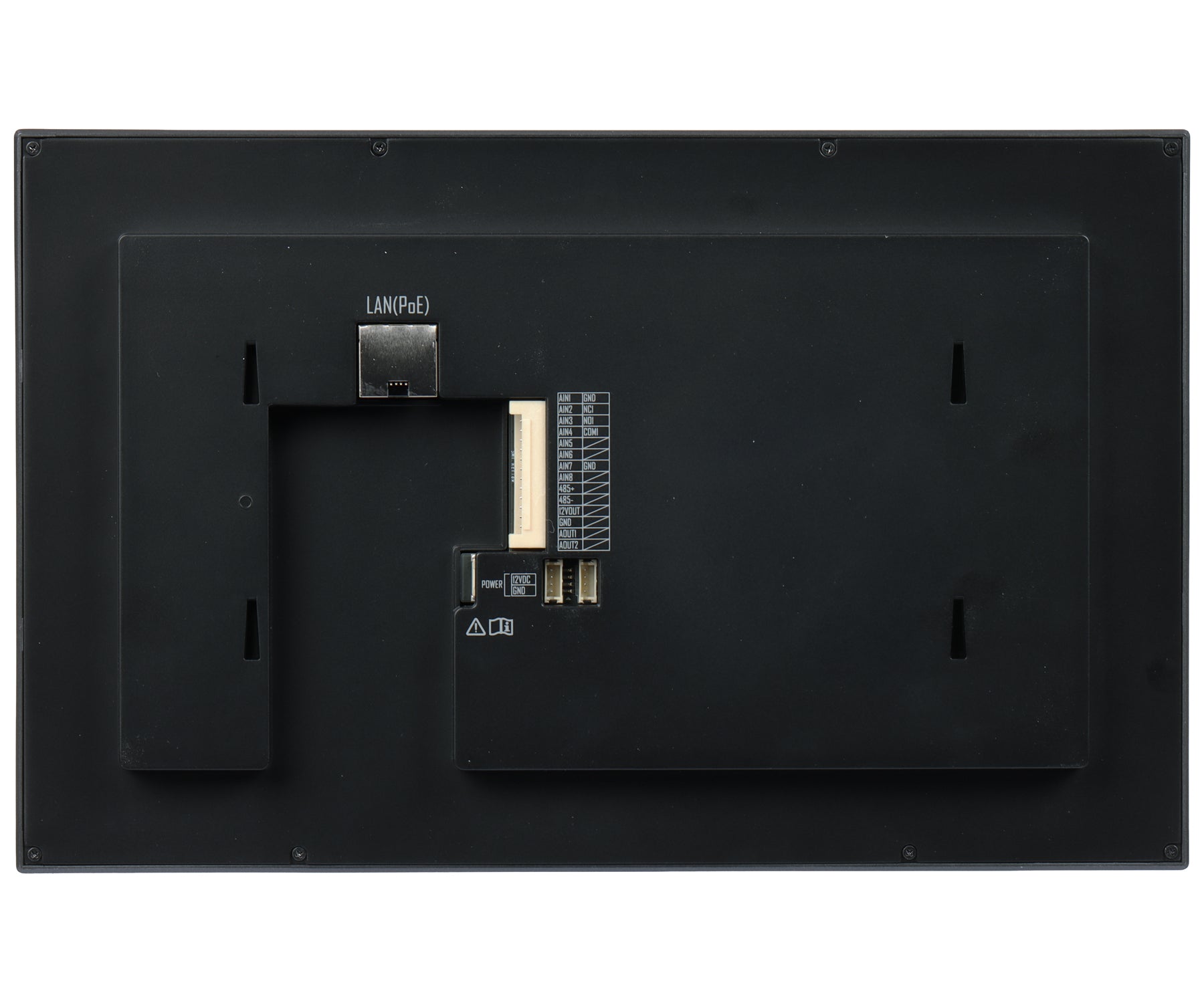

Interfaces

• Alarm Input: 8 (Reserved)

• RS-485: 1 × RS-485 (Half duplex)

• TF Card Slot: Supports up to 256GB

• Relay: 1 (Reserved), Max 30VDC 1A

Power

• Power Supply: 12V DC, 2.5A

• PoE Standard: IEEE 802.3at

• Power Consumption: ≤ 24 W

General

• Installation: Surface Mount

• Application Environment: Indoor

• Operating Temperature: -10°C to 50°C

• Operating Humidity: 10% – 90% (non-condensing)

• Proximity Sensor: 50 cm detection distance

Physical Specifications

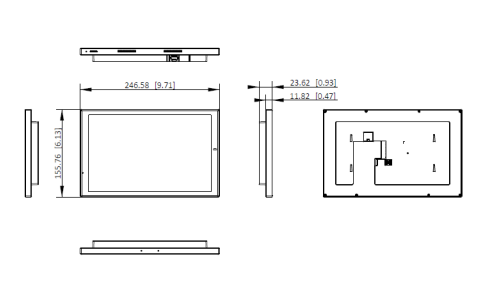

• Dimensions: 246.58 × 155.76 × 23.62 mm

• Weight: 545 g (device only)

• Weight with Package: 639 g

Language Support

Supports multiple languages including English, Spanish, French, German, Italian, Arabic, Portuguese, Turkish, Polish, Russian, and many more.

Practical Use Scenarios

Residential Smart Intercom Systems

Allows homeowners to see and speak with visitors, unlock doors remotely, and monitor security cameras from a single indoor monitor.

Apartment & Multi-Unit Buildings

Supports multiple door stations and indoor extensions, making it ideal for multi-residence intercom deployments.

Office & Commercial Security

Used in offices, clinics, schools, and business facilities to manage entry points and integrate security monitoring.

Integrated Surveillance Monitoring

View up to 16 network cameras directly on the indoor station for quick access to surveillance feeds.

Warranty Information

The DS-KH9570-WTE1/S Indoor Station includes a 3 year manufacturer-backed warranty, ensuring reliable performance and support through authorized distributors.

Brand Overview – Hikvision

Hikvision is one of the world’s leading manufacturers of video surveillance and security technology solutions. Known for innovation, reliability, and advanced security integration, Hikvision products are widely deployed in residential, commercial, and industrial security systems worldwide.

Datasheets / Downloads

• Product Datasheet

• Installation Guide

Excellence for the Australian and New Zealand Market

This product is carefully sourced to ensure full compatibility with the Australian and New Zealand security installation market.

Key benefits include:

• Designed to meet professional security installation standards used in Australia and New Zealand

• Compatible with modern IP-based security and intercom infrastructure

• Sourced through authorized brand representatives ensuring genuine hardware

• Full manufacturer warranty support

• Ideal for professional installers, system integrators, and security providers across AU & NZ

FAQs

What is the DS-KH9570-WTE1/S Hikvision Indoor Station used for?

The DS-KH9570-WTE1/S is a smart indoor video intercom station that allows users to view visitors, communicate through two-way audio, unlock doors, and monitor security cameras.

What screen size does the DS-KH9570-WTE1/S have?

The DS-KH9570-WTE1/S features a 10.1-inch IPS touchscreen display with 1920 × 1200 resolution, providing clear video monitoring and easy control.

Does the DS-KH9570-WTE1/S support Wi-Fi connectivity?

Yes. The DS-KH9570-WTE1/S supports Wi-Fi 6 dual-band connectivity (2.4 GHz and 5 GHz) as well as wired Ethernet networking.

Can the DS-KH9570-WTE1/S connect to security cameras?

Yes. The DS-KH9570-WTE1/S can integrate with up to 16 network cameras, allowing users to monitor surveillance feeds directly from the indoor station.

Does the DS-KH9570-WTE1/S support PoE power?

Yes. The DS-KH9570-WTE1/S supports IEEE 802.3at PoE, enabling both power and data through a single Ethernet cable.

How many door stations can the DS-KH9570-WTE1/S support?

The DS-KH9570-WTE1/S can connect to up to 17 door stations, making it suitable for complex residential or commercial intercom systems.
