The TAKEX Wide-Angle PIR Sensor offers precise, long-range motion detection up to 16.5 metres, engineered for indoor wall-mounted security installations. With a compact design and reliable performance, this unit is ideal for applications requiring accurate perimeter coverage such as hallways, warehouses, and retail spaces.
Powered by multi-voltage DC (including 12VDC), this sensor integrates seamlessly into modern alarm systems via its hardwired configuration. Crafted in durable white plastic, it supports wall mounting at heights up to 2.5 m, ensuring optimized detection angles and secure coverage.
What’s Included in the Box
Main Features
-
Detection Range: Up to 16.5 m wide-angle motion coverage
-
Wall Mount Installation: Ideal for side-entry monitoring or corridor protection
-
Multi-Voltage Support: Operates on 12VDC and compatible multi-voltage systems
-
Reliable Hardwired Connection: No batteries—ensures consistent power and performance
-
Durable Build: ABS plastic housing in white for discrete integration
-
Compact Design: Suitable for commercial or residential environments
-
Secure Mounting Height: Designed for up to 2.5 m installation height
Detailed Specifications
| Specification |
Details |
| Detection Range |
16.5 m |
| Mounting |
Wall Mount (up to 2.5 m) |
| Power Supply |
Multi Voltage, 12VDC |
| Wiring |
Hardwired |
| Material |
Plastic |
| Colour |
White |
| Device Type |
Passive Infrared Sensor (PIR) |
| Installation Height |
Up to 2.5 m |
| Warranty |
5 Years |
Warranty Information
5-Year Manufacturer Warranty – Covers faults in materials and manufacturing under standard usage.
Excellence for the Australian and New Zealand Market
-
Fully compatible with 12VDC systems used in ANZ alarm setups
-
Supplied via authorized TAKEX distribution channels in Australia and New Zealand
-
Compliant with ANZ electrical standards
-
Warranty support locally available for efficient service or replacement
-
Trusted by installers and integrators throughout ANZ for its reliability and build quality
FAQs
Q1: What is the detection range of this sensor?
A1: It detects up to 16.5 metres of motion in wide-angle format.
Q2: Can this unit be mounted on the ceiling?
A2: No, this model is designed for wall mounting only, up to 2.5 m high.
Q3: What power supply does it require?
A3: It operates on 12VDC and supports multi-voltage inputs.
Q4: Is this sensor pet-tolerant?
A4: No, this model is not specified as pet-friendly.
Q5: Does the unit come pre-wired?
A5: No, it's a hardwired sensor that connects to your alarm panel via terminals.
🔹 Product 2: TAKEX 360° PIR Sensor (Black)
Product Title

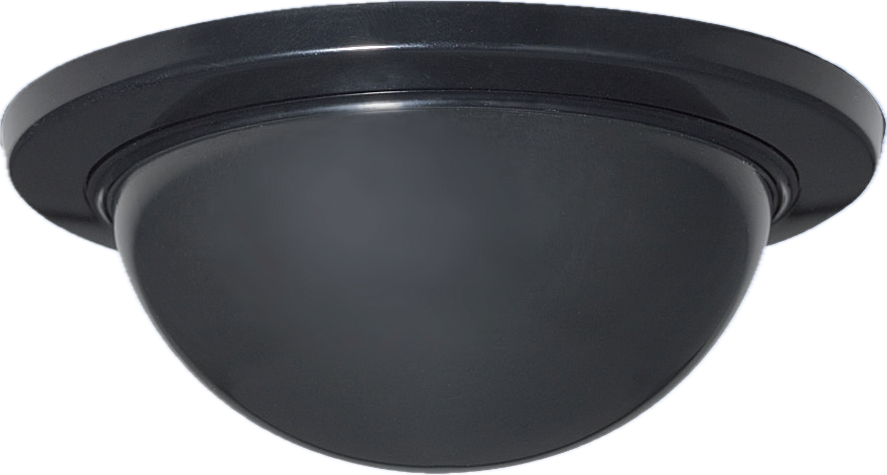

TAKEX 360° PIR Sensor – 15.2m Detection Radius, Ceiling/Wall Mount, Multi-Voltage 12/24VDC, Black Housing
Product Description
The TAKEX 360° PIR Sensor delivers advanced overhead motion detection with a 15.2m omni-directional range, designed for ceiling or wall mounting. Engineered for high-ceiling environments, it offers full 360° coverage, making it ideal for retail centers, warehouses, offices, and public spaces.
This hardwired sensor supports multi-voltage power (12VDC and 24VDC) and is built in durable black plastic for a sleek, low-profile aesthetic. With support for installations up to 4.9m high, the sensor ensures expansive coverage with high reliability, even in large indoor areas.
What’s Included in the Box
Main Features
-
Full 360° Detection Coverage: Radius of 15.2 metres (ideal for ceiling-centre placement)
-
Dual Mounting Option: Supports both ceiling and wall installation
-
Extended Mounting Height: Install up to 4.9 metres high
-
Multi-Voltage Operation: Compatible with both 12VDC and 24VDC systems
-
Hardwired Design: Secure power delivery and direct integration into alarm infrastructure
-
Durable Plastic Housing: Finished in black for commercial and professional interiors
-
Ideal for Wide Spaces: Perfect for foyers, lobbies, large retail stores, and open areas
Detailed Specifications
| Specification |
Details |
| Detection Area |
360° × 15.2 m radius |
| Mounting |
Ceiling or Wall Mount |
| Installation Height |
Up to 4.9 m |
| Power Supply |
Multi Voltage, 12VDC / 24VDC |
| Wiring |
Hardwired |
| Material |
Plastic |
| Colour |
Black |
| Device Type |
Passive Infrared Sensor (PIR) |
| Warranty |
5 Years |
Warranty Information
5-Year Manufacturer Warranty – Protects against factory defects and ensures long-term reliability.
Excellence for the Australian and New Zealand Market
-
Compliant with ANZ security and electrical standards
-
Distributed by authorized TAKEX partners in Australia and New Zealand
-
Compatible with 12/24VDC alarm panels common in the ANZ region
-
Backed by local support and fast warranty servicing
-
Designed for high-ceiling commercial applications common in ANZ environments
FAQs
Q1: What coverage does this sensor offer?
A1: The sensor offers 360° detection with a radius of 15.2 metres.
Q2: Can it be used on both ceilings and walls?
A2: Yes, this unit is designed for both ceiling and wall mounting.
Q3: What voltages does the sensor support?
A3: It supports 12VDC and 24VDC, suitable for most standard alarm systems.
Q4: Is this model suitable for high ceilings?
A4: Yes, it can be mounted up to 4.9 metres high, ideal for large open indoor spaces.
Q5: What colour is the housing?
A5: This sensor comes in black for a discreet, modern appearance in commercial settings.
