The TP-Link TL-SG108 8-Port Gigabit Desktop Switch is a robust and energy-efficient solution designed for seamless network expansion in home offices, small businesses, or digital workspaces. With 8 high-speed 10/100/1000 Mbps ports, this switch delivers non-blocking, wire-speed performance for ultra-fast data transfers.
Housed in a durable steel casing, the TL-SG108 supports both desktop and wall-mount installations, making it flexible to deploy in any environment. The plug-and-play architecture eliminates setup complexities, while IEEE 802.3x flow control ensures stable and reliable data transmission.
Featuring Green Ethernet technology, 802.1p/DSCP QoS, and IGMP Snooping, this switch intelligently prioritizes critical traffic and optimizes power usage, making it a smart and sustainable choice for expanding network infrastructure.
What's in the Box
Main Features

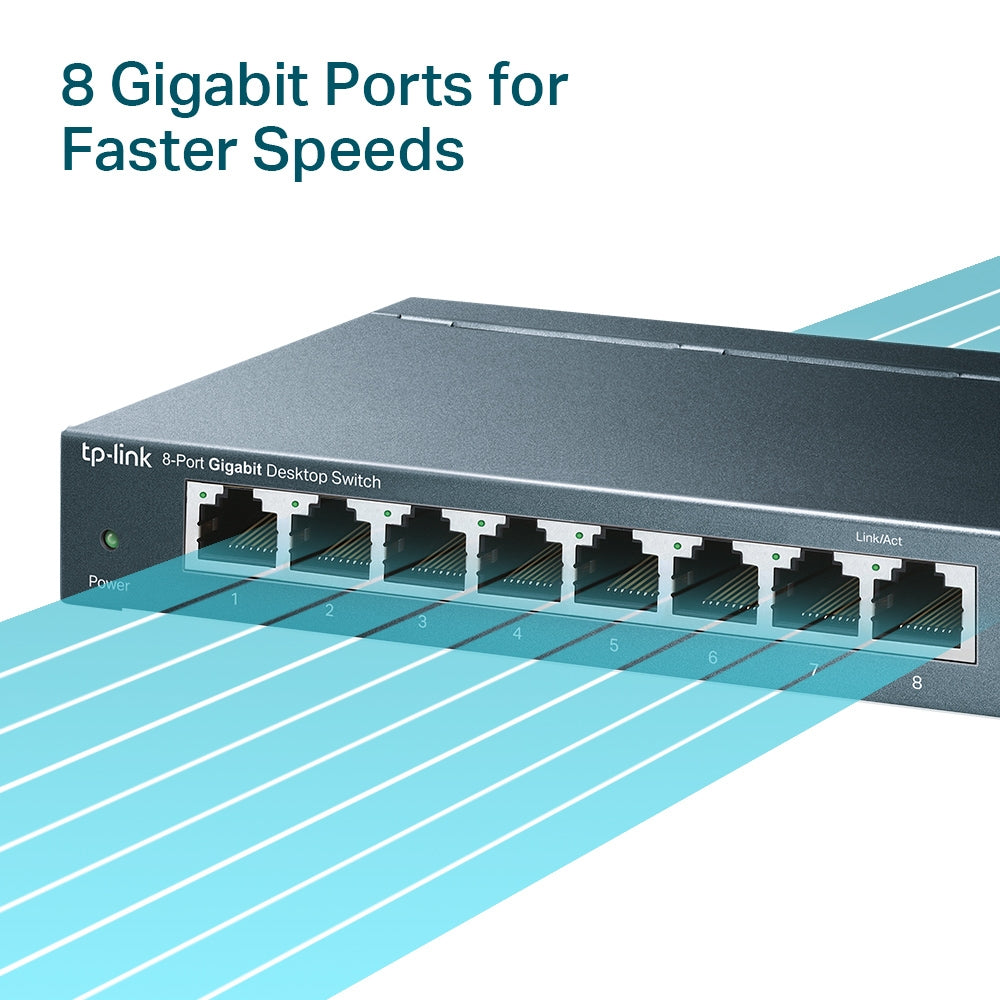

✅ 8× Gigabit Auto-Negotiation Ports – All ports support 10/100/1000 Mbps speeds with auto MDI/MDIX, simplifying cable compatibility.
✅ Green Ethernet Technology – Reduces energy consumption without compromising performance.

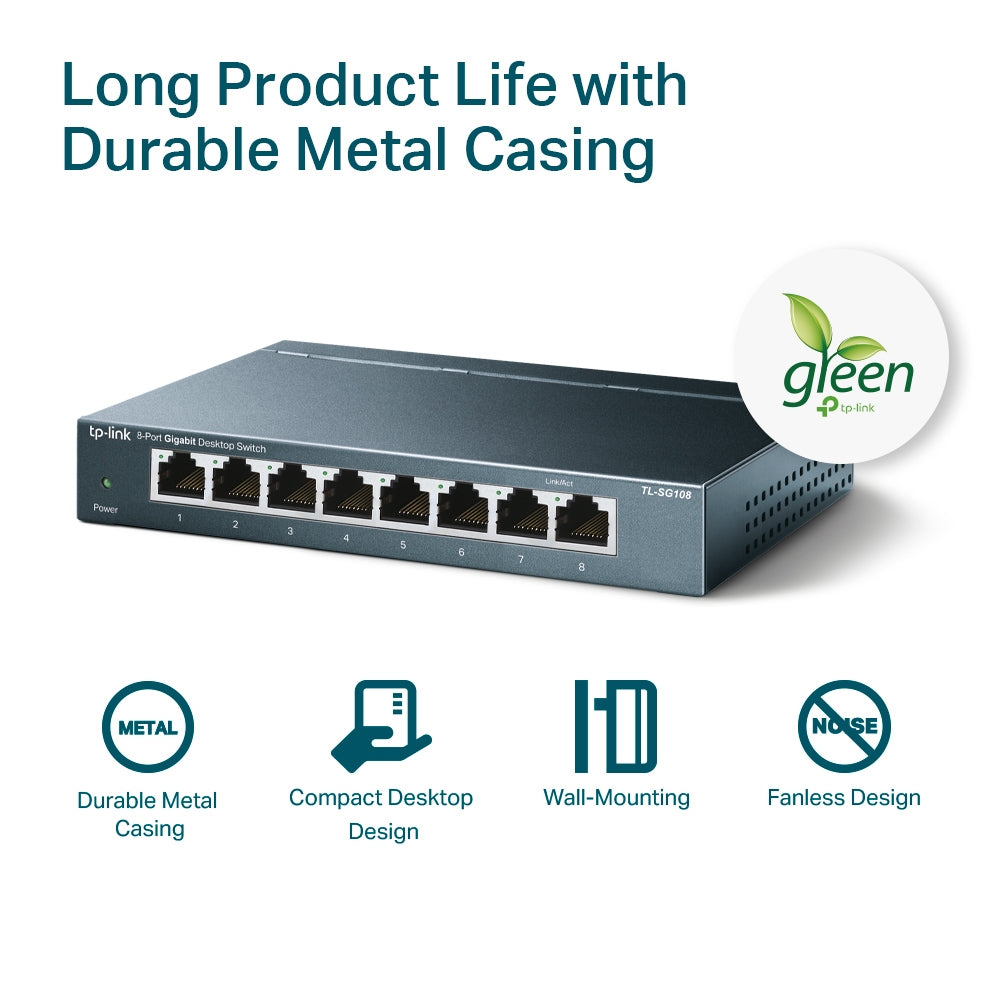

✅ Durable Metal Housing – Compact, fanless steel enclosure ideal for professional or industrial settings.

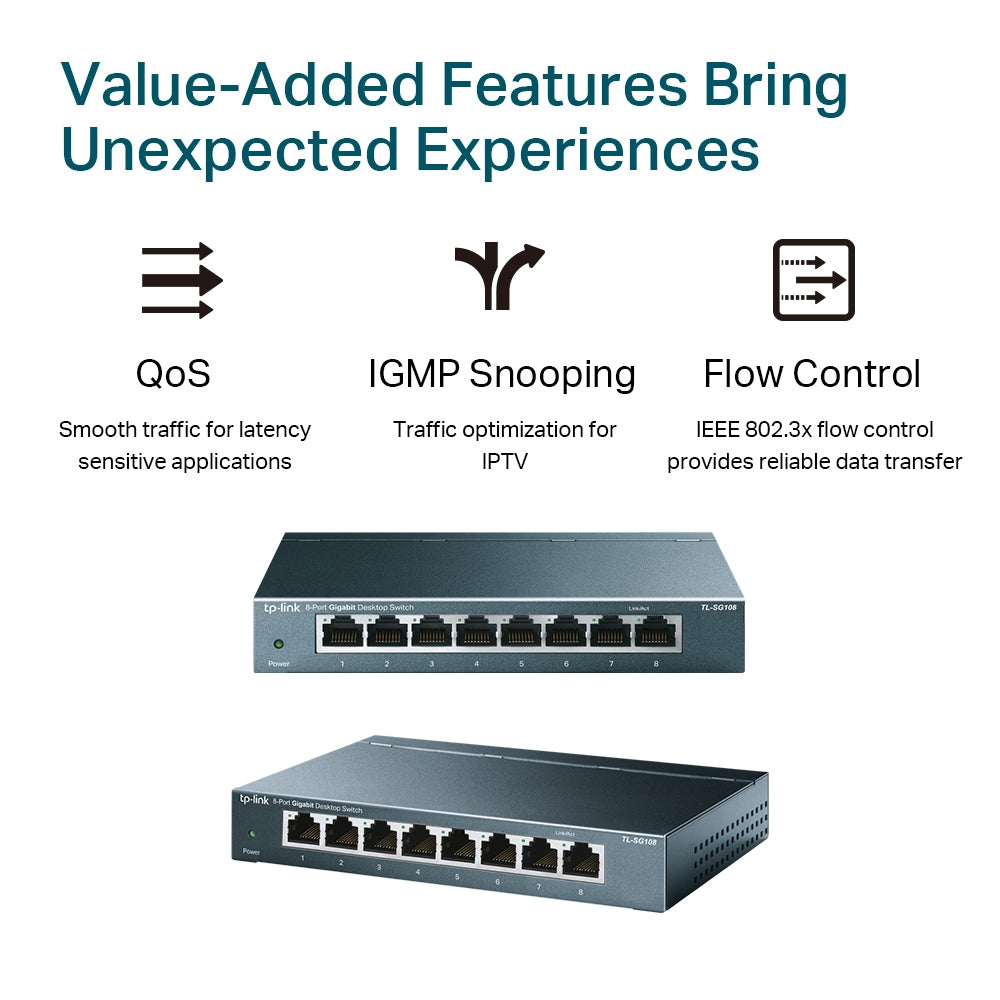

✅ Traffic Optimization – IEEE 802.1p/DSCP QoS and IGMP Snooping enhance multimedia and latency-sensitive application performance.

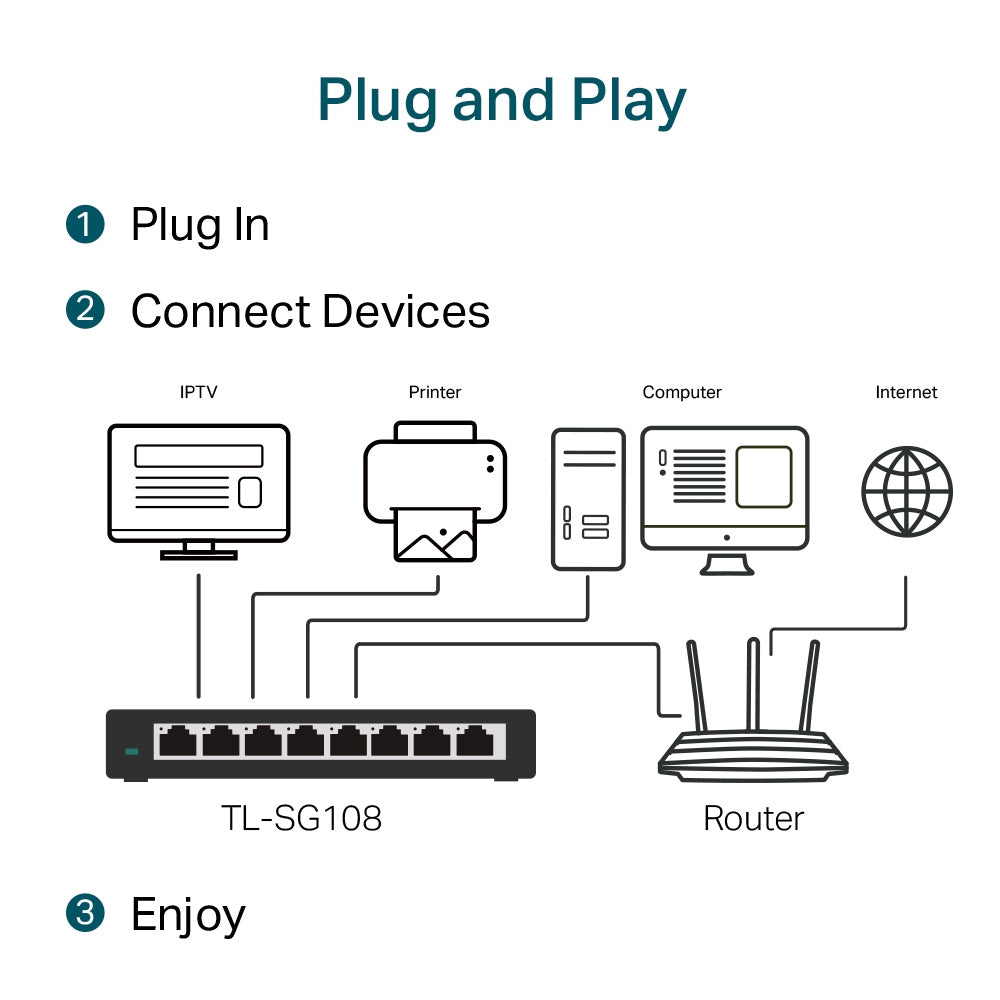

✅ Plug and Play – Instantly connects to your existing network with no configuration required.
Detailed Specifications
Hardware:
-
Ports: 8 × 10/100/1000 Mbps RJ45 (Auto Negotiation, Auto MDI/MDIX)
-
Power Supply: External Adapter (5V DC / 0.6A)
-
LEDs: System Power, Link/Act per port
-
Dimensions: 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
-
Fan Quantity: Fanless
-
Mounting: Desktop or Wall-Mountable
-
Max Power Consumption: 2.77W
-
Max Heat Dissipation: 9.45 BTU/h
Performance:
-
Packet Forwarding Rate: 11.9 Mpps
-
Switching Capacity: 16 Gbps (calculated)
-
MAC Address Table: 4K
-
Buffer Memory: 1.5 Mb
-
Jumbo Frame: 16 KB
-
Transmission Method: Store-and-Forward
Software Features:
-
Energy-Efficient Ethernet (EEE)
-
IEEE 802.3x Flow Control
-
802.1p/DSCP QoS for prioritized traffic
-
IGMP Snooping for optimized multicast traffic
Certifications:
CE, FCC, RoHS
Environment:
-
Operating Temperature: 0°C40°C (32°F104°F)
-
Storage Temperature: -40°C70°C (-40°F158°F)
-
Operating Humidity: 10%~90% RH non-condensing
-
Storage Humidity: 5%~90% RH non-condensing
Warranty Information
The TP-Link TL-SG108 includes a manufacturer-backed limited warranty. Customers in Australia and New Zealand benefit from regional support via authorized distribution partners.
Brand Description
TP-Link is a global leader in networking products, providing innovative, high-performance solutions for both consumer and business users. Known for exceptional reliability and support, TP-Link’s switches are widely trusted by IT professionals worldwide.
SKU
TL-SG108
Practical Use Scenarios
-
Home Office Networking – Add wired ports for desktop PCs, printers, or smart TVs.
-
Small Business Expansion – Connect NAS devices, IP phones, or POS systems.
-
Classroom & Training Labs – Reliable, fanless switch for silent environments.
-
Gaming or Streaming Setups – Stable wired connections for reduced latency.
-
Media Workflows – Transfer large files quickly between workstations or editors.
Datasheets / Downloadable Resources
TL-SG108 Product Page & Downloads – TP-Link Global
Excellence for the Australian and New Zealand Market
The TL-SG108 is certified and compliant with Australian and New Zealand regulatory standards, including CE, FCC, and RoHS certifications. It is exclusively distributed through authorized local channels, ensuring genuine product quality, adherence to NDSS policies, and full access to regional warranty and support services.
FAQs
Q1. Is the TL-SG108 fanless and silent in operation? (TL-SG108)
Yes, the TL-SG108 features a fanless design that ensures completely silent operation, ideal for offices and quiet spaces.
Q2. Does the TL-SG108 require configuration or software to operate? (TL-SG108)
No, it is a plug-and-play switch. Simply connect your devices, and it will function automatically—no configuration needed.
Q3. Can the TL-SG108 be wall-mounted? (TL-SG108)
Yes, its compact steel housing is designed for both desktop and wall-mounted installation options.
Q4. Does the TL-SG108 support QoS for better streaming and voice traffic? (TL-SG108)
Yes, it supports 802.1p/DSCP QoS and IGMP Snooping to ensure optimized performance for voice and video traffic.
Q5. What type of power adapter is included with the TL-SG108? (TL-SG108)
It comes with an external 5VDC / 0.6A power adapter suitable for Australian power outlets.
