Description

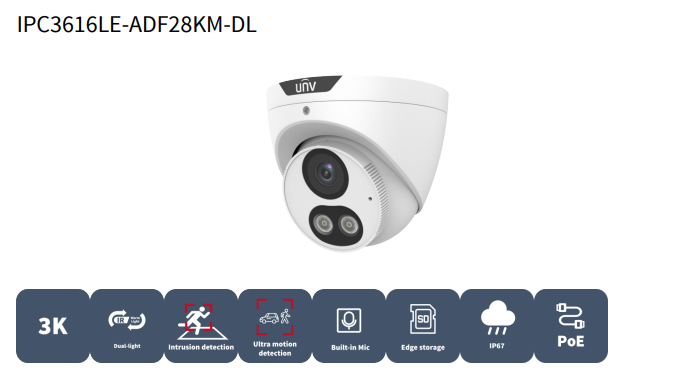

The Uniview IPC3616LE-ADF28KM-DL 6MP Smart Dual-Light Turret Network Camera delivers high-resolution IP surveillance with a wide 2.8mm lens, intelligent human and vehicle motion detection, 30m Smart IR and warm-light illumination, built-in microphone, 120dB WDR, PoE and up to 512GB MicroSD edge storage. Designed for reliable indoor and outdoor CCTV installations, its IP67-rated housing and advanced Ultra 265 compression make it an excellent choice for homes, businesses, retail sites, warehouses and commercial security systems.
Built around a 1/2.4-inch CMOS sensor, the IPC3616LE-ADF28KM-DL captures up to 3200 × 1800 6MP video at 25fps, while lower-resolution streams can operate at up to 30fps. Its fixed 2.8mm F1.6 lens provides a wide 102.73° horizontal field of view, helping cover entrances, driveways, shop floors, offices and other broad monitoring areas with fewer cameras.
Dual-light illumination combines 850nm Smart IR and warm light, both rated for distances of up to 30 metres. Intelligent functions include Ultra Motion Detection with human and vehicle classification, human-based cross-line detection and intrusion detection, helping reduce irrelevant motion events and improve security monitoring efficiency.
The camera supports Ultra 265, H.265, H.264 and MJPEG compression, dual video streams, ONVIF Profiles S/G/T, NAS storage and MicroSD cards up to 512GB. Power can be supplied through IEEE 802.3af PoE or 12V DC, simplifying deployment within new or existing IP CCTV systems.
SKU / Product Code
SKU: IPC3616LE-ADF28KM-DL
Manufacturer: Uniview / UNV
Product Type: 6MP Fixed Dual-Light Turret Network Camera
Main Features
- 6MP high-resolution video up to 3200 × 1800
- 1/2.4" CMOS image sensor
- 2.8mm fixed F1.6 lens
- Wide 102.73° horizontal field of view
- 120dB WDR for challenging high-contrast scenes
- Ultra Motion Detection with human and vehicle detection
- Human-based cross-line detection
- Human-based intrusion detection
- Standard motion, tampering and audio detection
- Smart IR night vision up to 30m
- Warm-light illumination up to 30m
- Built-in microphone
- Ultra 265 / H.265 / H.264 / MJPEG video compression
- Dual video streams
- MicroSD storage up to 512GB
- NAS/NFS and ANR network storage support
- ONVIF Profiles S, G and T
- 1 × RJ45 10/100Mbps Ethernet
- IEEE 802.3af PoE
- 12V DC power option
- IP67 weather protection
- 4kV surge protection
- Three-axis installation adjustment
- Working temperature from -30°C to +60°C
- Metal + plastic construction
- Reset button
These core specifications are also listed on Uniview's current official product page.
Detailed Specifications
Camera
| Specification | Details |
|---|---|
| Model | IPC3616LE-ADF28KM-DL |
| Maximum Resolution | 6MP |
| Image Sensor | 1/2.4" CMOS |
| Minimum Illumination | Colour: 0.003 Lux (F1.6, AGC ON); 0 Lux with light |
| Electronic Shutter | Auto / Manual, 1s to 1/100000s |
| Signal-to-Noise Ratio | >52dB |
| Wide Dynamic Range | 120dB |
| Pan Adjustment | 0°–360° |
| Tilt Adjustment | 0°–80° |
| Rotation | 0°–360° |
Lens
| Specification | Details |
|---|---|
| Lens | Fixed |
| Focal Length | 2.8mm |
| Aperture | F1.6 |
| Horizontal FOV | 102.73° |
| Vertical FOV | 53.95° |
| Diagonal FOV | 106.97° |
DORI Distances
| DORI Classification | Distance |
|---|---|
| Detect | 63.1m |
| Observe | 25.2m |
| Recognise | 12.6m |
| Identify | 6.3m |
DORI figures are reference distances based on the specified 2.8mm lens and should not be interpreted as guaranteed identification performance in every installation environment.
Dual-Light Illumination
| Specification | Details |
|---|---|
| Supplemental Lighting | Dual light |
| Smart IR Distance | Up to 30m |
| Warm Light Distance | Up to 30m |
| IR Wavelength | 850nm |
| Smart Illumination | Supported |
| Smart IR | Supported |
Video
| Specification | Details |
|---|---|
| Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Profiles | Baseline, Main, High |
| Maximum 6MP Frame Rate | 25fps |
| Maximum 4MP Frame Rate | 30fps |
| Maximum 3MP Frame Rate | 30fps |
| Maximum 1080p Frame Rate | 30fps |
| Video Bit Rate | 128Kbps–16Mbps |
| Video Streams | Dual |
| U-Code | Supported |
| OSD | Up to 4 |
| Privacy Masks | Up to 4 areas |
| ROI | Supported |
Image Processing
- Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 and Area white balance
- 2D/3D digital noise reduction
- Vertical, horizontal and 180° image flip
- HLC
- BLC
- Digital defog
Intelligent Detection
- Ultra Motion Detection based on human and vehicle detection
- Cross-line detection based on human-body detection
- Intrusion detection based on human-body detection
- Conventional motion detection
- Tampering alarm
- Audio detection
Audio
| Specification | Details |
|---|---|
| Built-in Microphone | Yes |
| Speaker | No |
| Audio I/O | No |
| Audio Compression | G.711U / G.711A |
| Audio Bitrate | 64Kbps |
| Sampling Rate | 8kHz |
| Two-Way Audio | No |
Storage
| Specification | Details |
|---|---|
| MicroSD | Up to 512GB |
| Network Storage | NAS (NFS) |
| ANR | Supported |
Network & Integration
- IPv4
- TCP / UDP
- DHCP
- RTP / RTSP / RTCP / RTMP
- HTTP / HTTPS
- DNS / DDNS
- NTP
- FTP
- UPnP
- SMTP
- SSL/TLS
- SNMP
- QoS
- IGMP
- ICMP
- ARP
- ONVIF Profile S
- ONVIF Profile G
- ONVIF Profile T
- API and SDK support
- Up to 32 users
- Administrator, operator and common-user access levels
Cybersecurity Functions
- Password protection
- Strong-password support
- HTTPS encryption
- Operation-log export
- RTSP Basic and Digest authentication
- HTTP Digest authentication
- TLS 1.2
- WSSE and Digest authentication for ONVIF
- IP address filtering
- Access policies
- ARP protection
Network Interface
1 × RJ45 10/100Mbps Base-TX Ethernet
Wi-Fi is not supported.
Power
| Specification | Details |
|---|---|
| DC Input | 12V DC ±25% |
| PoE | IEEE 802.3af |
| Maximum Consumption | 5.1W |
| DC Connector | Ø5.5mm coaxial power plug |
Physical & Environmental
| Specification | Details |
|---|---|

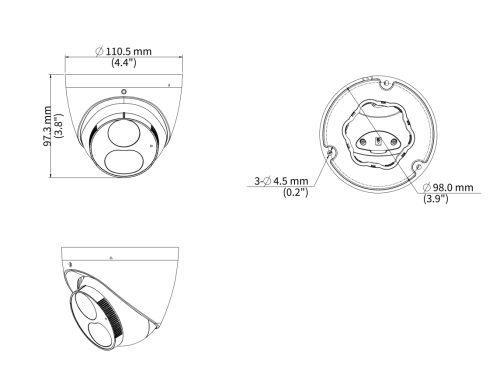

| Dimensions | Ø110.5 × 98.0mm |
| Weight | 0.46kg |
| Construction | Metal + Plastic |
| Protection | IP67 |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | ≤95% RH, non-condensing |
| Storage Temperature | -30°C to +60°C |
| Surge Protection | 4kV |
Uniview officially specifies IP67 protection to IEC 60529 together with the above environmental and electrical characteristics.
Certifications
The manufacturer's documentation lists:
- CE-EMC: EN 55032, EN 61000-3-3, EN IEC 61000-3-2 and EN 50130-4
- CE-LVD: EN 62368-1
- CE-RoHS: 2011/65/EU and (EU) 2015/863
- WEEE: 2012/19/EU
- Ingress Protection: IP67 to IEC 60529
Uniview also currently lists the IPC3616LE-ADF28KM-DL specifically within its “NDAA-ANZ” compliance product list.
Note: NDAA is the relevant term found in Uniview's documentation; this should not be confused with “NDSS”.
What's Included in the Box
- 1 × Uniview IPC3616LE-ADF28KM-DL 6MP Turret Network Camera
Compatible Mounting Accessories
The supplied Uniview datasheet identifies the following compatible accessories:
- TR-JB03-G-IN – Junction box for mini fixed dome/turret installations
- TR-JB07/WM03-G-IN – Wall-mount assembling bracket
- TR-WM03-D-IN – Wall-mount bracket
- TR-UM06-E-IN – Slant mounting bracket
- TR-A01-IN – NPT 3/4" waterproof cable gland
- TR-UP06-IN – Universal pole-mount bracket
- TR-UC08-C – Corner-mount bracket
- TR-SE24-IN – 200mm pendant mounting pole
- TR-SE24-A-IN – 500mm pendant mounting pole
- TR-CM24-IN – Indoor pendant mounting bracket
Accessories are optional unless explicitly supplied as part of a package.
Practical Use Scenarios
The IPC3616LE-ADF28KM-DL is particularly suited to installations requiring wide fixed-camera coverage, high-resolution evidence and intelligent event filtering.
Residential security: Monitor driveways, front entrances, garages, side passages and yards while using human/vehicle classification to reduce unnecessary motion events.
Retail and small business: Cover shop entrances, stock areas, counters and internal sales spaces with 6MP video, built-in audio capture and wide-angle coverage.
Warehouses and commercial premises: Use cross-line and intrusion analytics around entrances, loading areas and restricted zones.
Car parks and building exteriors: IP67 protection, dual illumination and a -30°C to +60°C operating range support exposed installations when installed according to manufacturer requirements.
Standalone or NVR-based systems: Record locally to a MicroSD card up to 512GB, to supported NAS storage, or integrate the camera into compatible Uniview or ONVIF-based network surveillance systems.
Why Choose Dual-Light Surveillance?
Unlike a conventional IR-only camera, the IPC3616LE-ADF28KM-DL incorporates both infrared and warm-light illumination. The system provides Smart IR and warm-light coverage rated to 30 metres, giving installers additional flexibility when configuring night-time surveillance.
Its F1.6 aperture, 0.003 Lux rated colour sensitivity and 120dB WDR also help the camera handle low-light and high-contrast scenes.
Uniview Brand
Uniview (UNV) develops professional IP video surveillance and AIoT products including network cameras, NVRs, video management products, transmission equipment and supporting security technologies. The IPC3616LE-ADF28KM-DL forms part of Uniview's Easy Series network-camera range.
Warranty Information
2 year Manufacturer warranty
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The Uniview IPC3616LE-ADF28KM-DL combines features well suited to professional Australian and New Zealand CCTV deployments, including 6MP resolution, IP67 weather protection, PoE, 30m dual-light illumination, human/vehicle Ultra Motion Detection and a broad -30°C to +60°C operating range. The exact model is also included by Uniview in its current NDAA-ANZ compliance product list.
The manufacturer's published certification information for this SKU includes CE-EMC, CE-LVD, RoHS, WEEE and IEC 60529 IP67.
For Australian or New Zealand commercial listings, RCM/ACMA or New Zealand RSM compliance, authorised-channel sourcing and local warranty arrangements should be separately confirmed with the supplying Uniview representative before those claims are advertised. These items are not established by the supplied product datasheet, so they have intentionally not been presented here as confirmed specifications.
FAQs
Is the Uniview IPC3616LE-ADF28KM-DL a 6MP security camera?
Yes. The IPC3616LE-ADF28KM-DL uses a 1/2.4-inch CMOS sensor and supports a maximum resolution of 3200 × 1800 pixels at up to 25fps.
Does the Uniview IPC3616LE-ADF28KM-DL support colour night surveillance?
The IPC3616LE-ADF28KM-DL incorporates dual supplemental lighting with both Smart IR and warm light, each rated for distances of up to 30 metres.
How far can the Uniview IPC3616LE-ADF28KM-DL see at night?
The IPC3616LE-ADF28KM-DL provides up to 30m Smart IR and up to 30m warm-light illumination, subject to installation conditions and the monitored scene.
Does the Uniview IPC3616LE-ADF28KM-DL detect humans and vehicles?
Yes. The IPC3616LE-ADF28KM-DL supports Ultra Motion Detection based on human and vehicle detection. It also supports human-based cross-line and intrusion detection.
Does the Uniview IPC3616LE-ADF28KM-DL have a built-in microphone?
Yes. The IPC3616LE-ADF28KM-DL includes a built-in microphone and supports G.711U/G.711A audio compression. It does not have a built-in speaker or two-way audio capability.
What size MicroSD card does the Uniview IPC3616LE-ADF28KM-DL support?
The IPC3616LE-ADF28KM-DL supports MicroSD edge storage with capacities of up to 512GB.
Is the Uniview IPC3616LE-ADF28KM-DL compatible with PoE?
Yes. The IPC3616LE-ADF28KM-DL supports IEEE 802.3af Power over Ethernet, allowing network data and power to travel through the Ethernet connection. It can alternatively operate from 12V DC.
Is the Uniview IPC3616LE-ADF28KM-DL suitable for outdoor installation?
The IPC3616LE-ADF28KM-DL carries an IP67 rating to IEC 60529 and has a published operating range of -30°C to +60°C, making it suitable for appropriately installed indoor or outdoor surveillance applications.
What lens does the Uniview IPC3616LE-ADF28KM-DL use?
The IPC3616LE-ADF28KM-DL uses a fixed 2.8mm F1.6 lens providing a horizontal field of view of approximately 102.73°, a vertical field of 53.95° and a diagonal field of 106.97°.
Does the Uniview IPC3616LE-ADF28KM-DL work with ONVIF systems?
Yes. The IPC3616LE-ADF28KM-DL supports ONVIF Profiles S, G and T, as well as API and SDK integration. Compatibility with individual third-party recorders and specific analytics should still be confirmed before deployment.
Is the Uniview IPC3616LE-ADF28KM-DL NDAA compliant for the ANZ market?
Uniview currently lists the exact IPC3616LE-ADF28KM-DL model within its NDAA-ANZ compliance product list.
What video compression does the Uniview IPC3616LE-ADF28KM-DL support?
The IPC3616LE-ADF28KM-DL supports Ultra 265, H.265, H.264 and MJPEG compression, with a configurable video bitrate from 128Kbps to 16Mbps.
