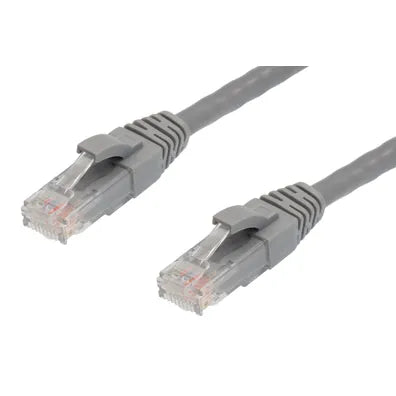

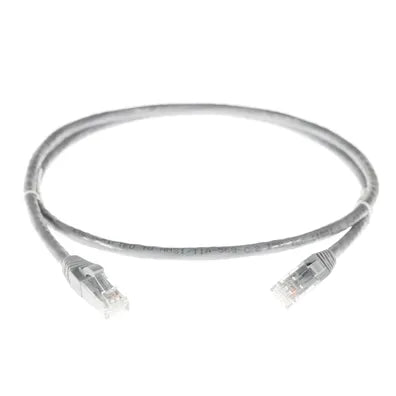

The 4Cabling 20m RJ45 CAT6 Ethernet Network Cable in Grey is designed for fast, reliable, and efficient networking performance. Supporting bandwidths of up to 250MHz, this CAT6 cable reduces crosstalk and signal loss, making it ideal for Gigabit and 10-Gigabit Ethernet applications.

Built with 100% bare copper 24AWG twisted pairs, the cable ensures optimal conductivity and durability. The gold-plated RJ45 connectors provide long-lasting resistance against corrosion and guarantee superior signal integrity. Additionally, the snag-free boots and strain-relief design make installation easier and extend the cable’s service life, even in demanding environments.

Certified to ISO/IEC11801, ANSI/TIA/EIA-568-C.2, EN 50173, and IEC61935-2 standards, this cable is the trusted choice for home, office, and enterprise networking setups.

What’s Included in the Box

• 1 × 20m RJ45 CAT6 Ethernet Cable (Grey)

Main Features

• High-Speed Networking: Supports 10BASE-T, 100BASE-TX, 1000BASE-T, and 10GBASE-T

• 250MHz Bandwidth: Stable and fast data transmission with minimal interference

• Gold-Plated Contacts: Maximum signal integrity and corrosion resistance

• Snag-Free Boots: Prevent cable damage during installation and removal

• Strain Relief Jacket: Flexible PVC for durability under continuous use

• Impedance Matched: Wire and connector pairing reduces echoing and cancellation

Detailed Specifications

• Cable Type: CAT6 Stranded

• Connectors: RJ45–RJ45

• Length: 20m

• Colour: Grey

• Diameter: 6.2mm

• Gauge: 24AWG x 4 Pair, 100% Bare Copper

• Jacket Material: PVC

• Certifications:

  • UL Listed

  • EIA/TIA and RCM Approved

  • ISO/IEC11801:2011 (Ed. 2.2)

  • ANSI/TIA/EIA-568-C.2

  • EN 50173-1:2011 & EN 50173-2:2007 (Amend. A1:2010)

  • IEC61935-2:2010 (Ed. 3.0)

• Package: Single Pack

• Weight: 0.04kg

• SKU: 004.002.9009

• GTIN: 9358148007506

• Warranty: 3 Years

Warranty Information

Backed by a 3-year limited warranty, ensuring performance and peace of mind.

About 4Cabling

4Cabling is Australia’s trusted supplier of structured cabling, racks, power solutions, and data accessories. With ISO 9001 certification and strict compliance to Australian standards, 4Cabling is the go-to choice for IT professionals nationwide.

Excellence for the Australian and New Zealand Market

• Fully compliant with Australian cabling standards

• RCM certified and meets all required safety approvals

• Products sourced exclusively from authorised distribution channels

• Local warranty and support provided directly in Australia & New Zealand

• Trusted by thousands of businesses, from SMBs to enterprise data centres

Datasheet & Resources

📄 Download Product Datasheet – 20m RJ45 CAT6 Ethernet Cable

FAQs about 20m RJ45 CAT6 Ethernet Cable – Grey (SKU: 004.002.9009)

Q1: Is the 20m CAT6 cable (SKU 004.002.9009) suitable for 10-Gigabit Ethernet?
A1: Yes, it supports up to 10GBASE-T Ethernet with 250MHz bandwidth.

Q2: Does the 20m CAT6 Ethernet cable (SKU 004.002.9009) meet Australian standards?
A2: Yes, it is RCM approved and complies with ISO/IEC11801 and AS/CA S008 standards.

Q3: What makes this CAT6 cable (SKU 004.002.9009) more durable than CAT5e cables?
A3: It features gold-plated connectors, PVC jacket, strain-relief boots, and stricter crosstalk specifications for enhanced longevity and reliability.

Q4: Can the 20m CAT6 cable (SKU 004.002.9009) be used for PoE devices?
A4: Yes, it supports PoE and PoE+, suitable for powering IP phones, access points, and CCTV cameras.

Q5: How do I distinguish this CAT6 plug (SKU 004.002.9009) from CAT5e?
A5: CAT6 plugs usually feature wires in two rows (4+4 or 6+2 arrangement), whereas CAT5/5e have all eight wires in a single row.
