CLEARANCE ITEM – WHILE STOCKS LAST

The Aiphone JPS-4AED JP Series Colour Video Intercom Kit is a feature-rich video door entry and access communication system featuring a 7-inch colour touchscreen, built-in video/image memory, wide-angle door camera, digital pan/tilt/zoom control and door-release functionality. Supplied as a complete kit with the JP-4MED master station, JP-DA surface-mount video door station and power supply, the JPS-4AED provides visual visitor identification and two-way communication for residential and commercial entry applications.

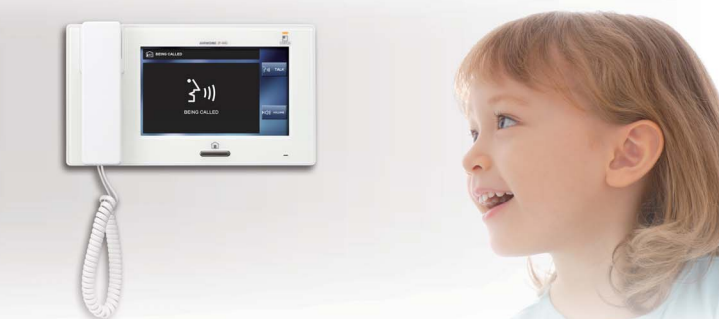

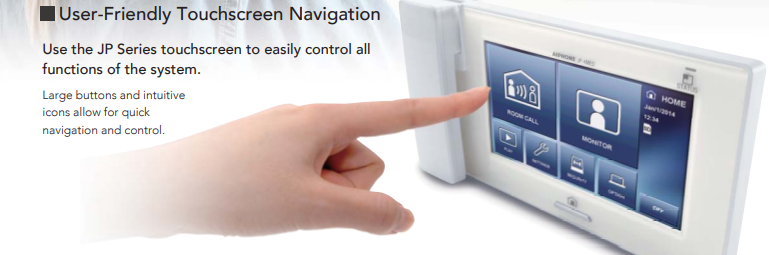

The JP-4MED master station features a 7-inch TFT colour touchscreen LCD and supports both hands-free communication and private handset communication. Users can monitor the entrance, communicate with visitors and operate a compatible door release directly from the indoor station.

Built-in picture memory can record up to 20 calls with 6 images per call, with up to 5 calls protected against overwriting. For applications requiring greater recording capacity, an SD/SDHC memory card can expand storage to up to 1,000 calls with 40 images per call, with up to 100 calls protected from overwriting. Memory card is not included.

The included JP-DA surface-mount door station incorporates a wide-angle camera providing approximately 100° vertical × 170° horizontal viewing, along with digital pan, tilt and zoom control from the master station. LED illumination assists camera operation in low-light conditions.

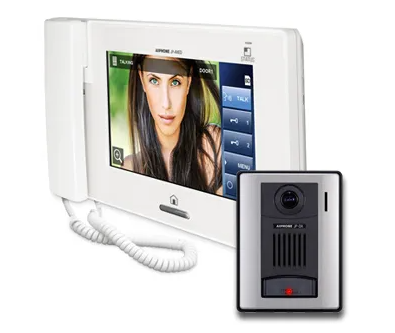

What's Included in the Box

• 1 × JP-4MED 7-inch touchscreen video master station

• 1 × JP-DA surface-mount plastic video door station

• 1 × Power supply

Main Features

• Colour video door intercom system

• Large 7-inch TFT colour touchscreen

• Built-in picture/video call memory

• Expandable recording capacity using SD/SDHC memory

• Hands-free or handset communication

• Wide-angle door-station camera

• Approximately 100° vertical × 170° horizontal viewing area

• Digital pan, tilt and zoom controls

• Automatic low-light LED illumination

• Door-station monitoring

• Selective door-release controls

• Room-to-room calling capability when expanded with compatible stations

• Brightness control

• Eight selectable call tones

• Hearing aid T-Mode compatibility

• Security/alarm inputs on the master station

• Simple 2-conductor wiring between door and master station

• Weather-resistant JP-DA door station

• Surface-mount door-station installation

• Expandable JP Series architecture

Detailed Specifications

Video Memory & Visitor Recording

The JPS-4AED provides useful visitor image recording directly through the JP-4MED master station. Internal memory can retain images from up to 20 calls, helping users review visitors who called while the station was unattended.

For higher-capacity applications, an SD/SDHC memory card can be added to store up to 1,000 calls. This makes the system particularly useful where reviewing previous entrance activity is important.

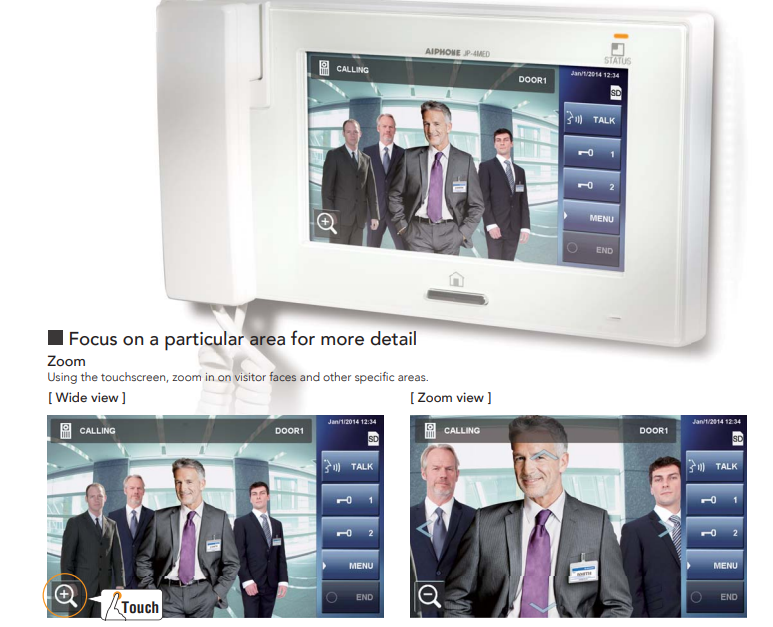

Wide-Angle Camera & Digital PTZ

The JP-DA video door station provides a wide viewing area of approximately 100° vertically and 170° horizontally. Digital pan, tilt and zoom controls allow the user to adjust the displayed area from the JP-4MED master station, helping provide a clearer view of visitors and the surrounding entrance area.

Automatic LED illumination also assists visibility when ambient lighting around the entrance is low.

Practical Use Scenarios

The Aiphone JPS-4AED is suitable for applications requiring visual visitor identification before access is granted. Typical applications include homes, townhouses, offices, reception areas, small businesses, professional premises and controlled building entrances.

The combination of colour video, image memory, two-way audio and door-release control makes it particularly useful for locations where occupants want to identify and communicate with visitors before unlocking an entrance.

Its expandable JP Series architecture can also accommodate more complex installations requiring additional compatible indoor or door stations.

Warranty Information

1 year Warranty

About Aiphone

Aiphone specialises in intercom, video door-entry and access communication systems for residential and commercial environments. The JP Series combines video monitoring, visitor communication, entrance control and system expansion capabilities in a touchscreen-based intercom platform.

Clearance Notice

CLEARANCE ITEM – WHILE STOCKS LAST

The Aiphone JPS-4AED is offered as a clearance product and is available only while remaining stock lasts. Availability may be limited, and restocking should not be assumed.

Excellence for the Australian and New Zealand Market

The Aiphone JPS-4AED JP Series Video Intercom Kit provides a comprehensive door-entry solution for Australian and New Zealand residential and commercial applications requiring colour video, two-way communication, visitor image memory and controlled door access.

Its 2-conductor connection between the door and master station can help simplify cabling, while the wide-angle camera, 7-inch touchscreen and expandable JP Series architecture provide flexibility for a range of installations.

Installation should comply with applicable Australian or New Zealand electrical, cabling, building and access-control requirements. Specific Australian or New Zealand certifications, approvals and warranty arrangements should be confirmed with the authorised supplier or brand representative before making compliance claims.

FAQs

What is included with the Aiphone JPS-4AED video intercom kit?

The Aiphone JPS-4AED includes one JP-4MED 7-inch touchscreen video master station, one JP-DA surface-mount video door station and one power supply.

Does the Aiphone JPS-4AED have video memory?

Yes. The Aiphone JPS-4AED JP-4MED master station includes built-in picture memory capable of recording up to 20 calls with 6 images per call.

Can the Aiphone JPS-4AED memory capacity be expanded?

Yes. The Aiphone JPS-4AED supports an SD/SDHC memory card for expanded recording capacity of up to 1,000 calls with up to 40 images per call. The memory card is not included.

What size screen does the Aiphone JPS-4AED have?

The Aiphone JPS-4AED includes a JP-4MED master station with a 7-inch TFT colour touchscreen LCD.

Does the Aiphone JPS-4AED support hands-free communication?

Yes. The Aiphone JPS-4AED supports hands-free communication as well as private handset communication from the JP-4MED master station.

What viewing angle does the Aiphone JPS-4AED door camera provide?

The Aiphone JPS-4AED JP-DA door station provides an approximately 100° vertical × 170° horizontal viewing area.

Does the Aiphone JPS-4AED have pan, tilt and zoom?

Yes. The Aiphone JPS-4AED supports digital pan, tilt and zoom control from the JP-4MED master station, allowing users to adjust their view of the entrance.

Does the Aiphone JPS-4AED support door release?

Yes. The Aiphone JPS-4AED JP-4MED master station provides a normally open dry-contact door-release output rated at 24V AC/DC, 0.5A.

Can the Aiphone JPS-4AED monitor the entrance without receiving a call?

Yes. The Aiphone JPS-4AED supports door-station monitoring from the JP-4MED master station, allowing the entrance camera to be viewed without first receiving a visitor call.

Is the Aiphone JPS-4AED expandable?

Yes. The Aiphone JPS-4AED JP Series platform can support up to four compatible video door stations and up to eight inside stations when configured with the required compatible components.

Is the Aiphone JPS-4AED suitable for low-light entrances?

The Aiphone JPS-4AED JP-DA door station includes LED illumination that automatically activates in low-light conditions to assist camera visibility.

Is the Aiphone JPS-4AED a clearance product?

Yes. The Aiphone JPS-4AED is listed as a clearance item and is available only while stocks last.
