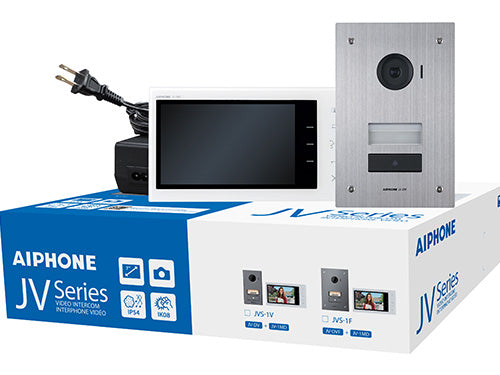

The AIPHONE JV Series Video Intercom Kit (JVS-1F) is a premium, user-friendly entry communication system ideal for residential and commercial installations that require reliable video verification and secure access control. This all-in-one solution includes a JV-DVF vandal-resistant, flush-mounted video door station, a JV-1MD 7" LCD indoor master monitor, and a PS-2420UL 24VDC power supply. Designed for simple two-wire installation, this system supports hands-free or push-to-talk audio communication and features intuitive electrostatic touch buttons for seamless operation. With its sleek aesthetic, robust build quality, and practical features such as image storage and call history, the JV Series enhances security while maintaining user comfort and convenience.

What’s Included in the Box

• 1 x JV-DVF Flush Mount Vandal-Resistant Video Door Station (Silver)

• 1 x JV-1MD 7" LCD Indoor Master Monitor (White)

• 1 x PS-2420UL 24VDC Power Supply

Main Features

• High-resolution 7" TFT LCD monitor with touch buttons for easy control

• Hands-free or push-to-talk communication mode

• Flush-mounted stainless steel door station for durability and tamper resistance

• White LED illuminator ensures visibility in low-light conditions

• Store up to 30 call images for call history review

• Simple 2-conductor wiring between monitor and door station

• Expandable with optional JV-1FD expansion stations

• Designed for surface wall mount using standard 3-gang boxes

Detailed Specifications

JV-1MD Master Monitor

• Power Source: 24V DC (via PS-2420UL)

• Current Consumption: 100mA standby / 780mA max

• Display: 7" WVGA TFT LCD

• Communication: Hands-free (auto-voice actuation) or push-to-talk

• Buttons: Electrostatic touch for monitor, talk, door release, etc.

• Mounting: Surface mount on 3-gang box

• Dimensions: 5-1/8" H x 9-1/16" W x 3/16" D

• Weight: 1.17 lbs (530g)

• Material: Flame-resistant PC + ABS resin

• Operating Temperature: 0–40°C

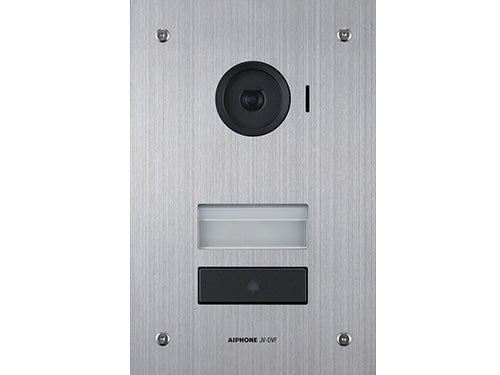

JV-DVF Door Station

• Camera: 1/5" Color CMOS

• Audio: Two-way, hands-free voice communication

• Lighting: White LED for low-light visibility

• Material: Stainless steel front panel

• Mounting: Flush mount (surface mount option available with SBX-DVF)

• Ingress Protection: IP54

• Impact Rating: IK08

• Dimensions: 8-1/4" H x 5-5/16" W

• Weight: 1.26 lbs (main unit), 0.98 lbs (flush box)

• Operating Temperature: -20 to 60°C

Warranty Information

• 36-month manufacturer warranty by AIPHONE

Brand Description

AIPHONE is a globally trusted brand known for its high-quality intercom and communication systems. Renowned for their innovation, durability, and ease of use, AIPHONE products are designed to meet the rigorous demands of security-conscious applications in both residential and commercial environments.

SKU

JVS-1F

Practical Use Scenarios

• Apartment Complexes: Secure visual verification before granting access to tenants or guests

• Offices & Commercial Entrances: Control visitor entry with clear video and audio communication

• Private Homes: Enhanced safety by seeing and speaking to visitors before opening the door

• Schools & Institutions: Limit and monitor access points to improve overall site security

Datasheets / Downloadable Resources

• JV-1F Specification Sheet


Excellence for the Australian and New Zealand Market

The AIPHONE JV Series Video Intercom Kit (JVS-1F) is tailored to meet the specific needs and quality expectations of the Australian and New Zealand markets. Manufactured under stringent quality control, it aligns with relevant regional safety and performance standards. All units are sourced directly from authorized AIPHONE representatives, ensuring full compliance with warranty terms and technical support protocols. While this system does not support mobile app integration, it is an ideal choice for high-security, standalone video intercom installations. Warranty claims and support are handled directly through authorized local AIPHONE channels, ensuring seamless customer service and accountability.

Frequently Asked Questions (FAQs)

Q1: Does the AIPHONE JVS-1F kit support app connectivity or remote access?
A1: No, the JVS-1F kit does not support mobile app integration or remote monitoring—it's designed as a standalone intercom solution.

Q2: What type of cable is recommended for wiring the JVS-1F system?
A2: AIPHONE recommends using 18AWG 2-conductor PE-insulated cable (e.g., Aiphone #871802) for optimal performance with the JVS-1F.

Q3: Can I expand the JVS-1F system with additional monitors?
A3: Yes, the JVS-1F can be expanded with additional JV-1FD sub stations, enhancing indoor communication coverage.

Q4: Is the JV-DVF door station weather-resistant?
A4: Yes, the JV-DVF has an IP54 rating and IK08 impact resistance, making it suitable for outdoor installation.

Q5: How many call images can the JVS-1F store?
A5: The JVS-1F system can store up to 30 still images from previous calls for review.
