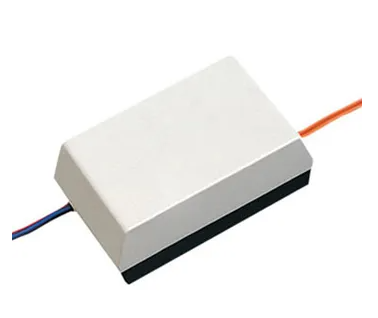

The Aiphone RY-ES External Signalling Relay is an intercom accessory designed to trigger a compatible external device when a call is made from an Aiphone door station. Compatible with specified Aiphone JO, JP, JK and JF Series systems, the RY-ES provides an external signalling output while the call button is being pressed, making it useful for integrating additional notification or signalling equipment with an Aiphone intercom installation.
The RY-ES is particularly useful where the standard intercom call indication needs to be supplemented by an external device. Depending on the overall system design and connected equipment, the relay output can be incorporated into applications requiring an additional signalling response when someone presses the intercom call button.
A key operational characteristic of the Aiphone RY-ES is that it only triggers while the door station call button is being pressed. It should therefore not be treated as a latching or extended-duration call notification output.
Designed as an Aiphone system accessory, the RY-ES provides installers with a straightforward way to add external signalling functionality to compatible JO, JP, JK and JF Series installations.
What's Included in the Box
Main Features
-
External signalling relay for compatible Aiphone intercom systems
-
Triggers an external device when an intercom call is made
-
Output operates while the call button is being pressed
-
Compatible with specified Aiphone JO Series systems
-
Compatible with specified Aiphone JP Series systems
-
Compatible with specified Aiphone JK Series systems
-
Compatible with specified Aiphone JF Series systems
-
Useful for additional external call indication
-
Designed for integration with compatible external signalling equipment
-
Suitable for new installations, upgrades and compatible system modifications
-
Dedicated Aiphone intercom accessory
-
Installation manual available
Detailed Specifications
| Specification |
Details |
| Brand |
Aiphone |
| Product Code |
RY-ES |
| Manufacturer Part Number |
RY-ES |
| Product Type |
External Signalling Relay |
| Primary Function |
External device triggering during an intercom call |
| Trigger Condition |
Door station call button pressed |
| Trigger Duration |
Operates while the call button is being pressed |
| Compatible Series |
JO Series |
| Compatible Series |
JP Series |
| Compatible Series |
JK Series |
| Compatible Series |
JF Series |
| Application |
External signalling integration |
| Installation Type |
Intercom system accessory |
| Compatibility |
Verify against the specific Aiphone system before installation |
External Signalling Function
The Aiphone RY-ES allows a compatible external device to respond when a visitor presses the call button on the connected intercom system.
This can be useful where an additional indication of an incoming visitor call is required beyond the notification provided by the standard indoor intercom station.
The RY-ES should be incorporated into the system according to the required external device, electrical characteristics and Aiphone installation instructions.
Momentary Trigger Operation
An important characteristic of the RY-ES is its momentary operation. The external signalling function is active only for the period during which the intercom call button is physically being pressed.
For example, if a visitor briefly presses and releases the call button, the RY-ES output will correspond to that button-press period. Applications requiring a longer, timed or latched notification may therefore require additional compatible control equipment.
Compatibility
The Aiphone RY-ES is specified for use with compatible systems from the following Aiphone product families:
-
JO Series
-
JP Series
-
JK Series
-
JF Series
Compatibility should always be checked against the exact Aiphone intercom model and system configuration before installation.
Practical Use Scenarios
The Aiphone RY-ES is useful in residential properties where an additional external indication is required when a visitor presses the intercom call button.
In offices, reception areas, workshops, warehouses and other commercial environments, it can assist with integrating an additional signalling device into a compatible Aiphone intercom installation.
The RY-ES can also be considered for environments where the normal intercom call indication may not be sufficient on its own and an additional external signalling response is required.
Because the relay only operates while the call button is pressed, the intended external device and required signalling behaviour should be considered carefully during system design.
Installation Considerations
The RY-ES should be installed according to the Aiphone installation instructions and the electrical requirements of the connected external device.
Before installation, verify:
-
Exact Aiphone intercom system compatibility
-
External device electrical requirements
-
Required relay operation
-
Whether momentary call-button operation is suitable for the application
-
Whether additional relay, timer or control equipment is required
Warranty Information
1 year Warranty
Brand Description
Aiphone specialises in professional intercom, video entry and building communication systems for residential, commercial and security applications. Its range includes video and audio intercoms, door stations, master stations, power supplies, relays and supporting accessories for integrated visitor communication and controlled-entry solutions.
SKU / Product Code
SKU: RY-ES
Manufacturer: Aiphone
Manufacturer Part Number: RY-ES
Product Type: External Signalling Relay
Compatible Series: JO, JP, JK & JF Series
Function: External signalling during call button activation
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The Aiphone RY-ES External Signalling Relay provides a practical accessory for compatible Aiphone intercom installations in Australia and New Zealand where an additional external response to a visitor call is required.
Its compatibility with specified JO, JP, JK and JF Series systems makes it useful for a variety of residential and commercial Aiphone installations. The momentary trigger operation should be considered during system design to ensure it matches the requirements of the connected external signalling equipment.
Installation should be completed in accordance with applicable Australian or New Zealand electrical requirements, Aiphone installation instructions and the specifications of any connected equipment.
FAQs
Q: What is the Aiphone RY-ES external signalling relay?
The RY-ES is an Aiphone external signalling relay designed to trigger a compatible external device when a call is made through a supported Aiphone intercom system.
Q: What does the Aiphone RY-ES do when someone presses the intercom button?
The RY-ES activates its external signalling function while the door station call button is being pressed, allowing a compatible external device to respond to the visitor call.
Q: Which Aiphone intercom series are compatible with the Aiphone RY-ES?
The RY-ES is specified for compatible Aiphone JO, JP, JK and JF Series intercom systems.
Q: Does the Aiphone RY-ES work with the JO Series?
Yes. The RY-ES is specified for use with compatible Aiphone JO Series intercom systems.
Q: Does the Aiphone RY-ES work with the JP Series?
Yes. The RY-ES is specified for use with compatible Aiphone JP Series intercom systems.
Q: Does the Aiphone RY-ES support JK and JF Series intercoms?
Yes. The RY-ES is specified for compatible Aiphone JK and JF Series systems.
Q: Does the Aiphone RY-ES remain activated after the call button is released?
No. The RY-ES only triggers while the call button is being pressed. It should not be considered a latching or persistent call output.
Q: Can the Aiphone RY-ES be used to trigger an external signalling device?
Yes. The RY-ES is specifically intended to provide an external signalling function when a call is made, subject to the compatibility and electrical requirements of the connected device.
Q: Can the Aiphone RY-ES be used for additional visitor call notification?
Yes. The RY-ES can be incorporated into compatible systems where an additional external indication is required when a visitor presses the intercom call button.
Q: Is the Aiphone RY-ES suitable for commercial intercom installations?
The RY-ES can be used in appropriately designed residential or commercial installations using a compatible Aiphone JO, JP, JK or JF Series system.
Q: What should be checked before installing the Aiphone RY-ES?
Before installing the RY-ES, confirm the exact Aiphone system compatibility, the electrical requirements of the external device and whether its momentary trigger behaviour is suitable for the intended application.
