Product Description
The AJAX#124108 Ajax Superior Hub Hybrid (4G) (Without Casing) is a professional hybrid security control panel board designed for installation inside Ajax Case D enclosures. Combining wired Fibra technology, wireless Jeweller communication, Wings photo verification support, Ethernet networking, and dual SIM 4G connectivity, this advanced control panel provides enterprise-level security management for residential, commercial, industrial, and high-security facilities. Supporting up to 100 Ajax devices, extensive video integration, advanced automation scenarios, and encrypted communication, the Superior Hub Hybrid (4G) Board offers unmatched flexibility for custom security system deployments throughout Australia and New Zealand.
What's Included in the Box
-
Superior Hub Hybrid (4G) Main Board
-
Power Cable
-
Screw Terminal Block Adapter (INCERT Compliance)
-
Battery Connection Cable
-
LED Board
-
LED Board Connection Cable
-
Ethernet Cable
-
Eight 120Ω Termination Resistors
-
Quick Start Guide
Note: Case D enclosure and backup battery are sold separately.
Main Features
Designed for Ajax Case D Installation
-
Board-only version for custom installations
-
Designed specifically for Ajax Case D enclosures
-
Flexible mounting options for professional security projects
Hybrid Wired & Wireless Security Platform
Supports:
-
Fibra wired devices
-
Jeweller wireless devices
-
Wings photo verification devices
Ideal for mixed wired and wireless installations.
Supports Up To 100 Ajax Devices
System capacity includes:
-
Up to 100 devices
-
Up to 5 range extenders
-
Up to 10 sirens
-
Up to 50 wired keypads with buzzer support
-
Up to 50 users
-
Up to 50 rooms
-
Up to 9 security groups
Extensive Video Surveillance Integration
Supports:
-
Up to 36 Ajax NVRs
-
Up to 224 Ajax cameras through Ajax NVRs
-
Up to 492 standalone Ajax cameras
-
Up to 224 ONVIF cameras through Ajax NVRs
-
Up to 10 RTSP third-party cameras
Dual Communication Redundancy
Integrated communication channels:
-
Ethernet connection
-
Dual Micro-SIM support
-
2G, 3G, and 4G LTE networks
Automatic failover between all communication methods.
Fibra Wired Technology
Features:
-
Two-way communication
-
Dynamic encryption
-
Instant notifications
-
Remote configuration
-
Advanced sabotage protection
Supports:
-
Up to 2,000m Fibra wiring
-
Beam (Radial)
-
Ring
-
Tree topologies
Jeweller Wireless Technology
Provides:
-
Two-way encrypted communication
-
Anti-jamming protection
-
Frequency hopping
-
Dynamic key encryption
Wireless range:
-
Up to 2,000m in open space
Wings Photo Verification Technology
Supports:
-
Photo by alarm
-
Photo by scenario
-
Photo on demand
-
Photo by schedule
Photo delivery:
-
Up to 9 seconds
-
Up to 640 × 480 resolution
Advanced Automation
Create up to 32 automation scenarios triggered by:
-
Alarms
-
Schedules
-
Arming and disarming
-
Temperature changes
-
Humidity changes
-
CO₂ concentration changes
-
Ajax Button presses
-
Ajax LightSwitch activation
External Antenna Support
-
Dedicated LTE antenna connector
-
Compatible with Ajax ExternalAntenna
-
Automatic antenna fault detection
Detailed Specifications
| Specification | Details |
|---|---|
| Product Code | AJAX#124108 |
| Product Name | Superior Hub Hybrid (4G) (Without Casing) |
| Installation Type | Board for Case D Enclosure |
| Device Capacity | Up to 100 Ajax Devices |
| Users | Up to 50 |
| Rooms | Up to 50 |
| Security Groups | Up to 9 |
| Automation Scenarios | Up to 32 |
| Ajax NVR Support | Up to 36 |
| Ajax Camera Support | Up to 492 Standalone |
| Ajax Camera Support via NVR | Up to 224 |
| Third-Party RTSP Cameras | Up to 10 |
| ONVIF Cameras via NVR | Up to 224 |
| Event Log | 1,000 Events |
| Fibra Lines | 8 |
| Fibra Distance | Up to 2,000 m |
| Wired Device Power Budget | 14.4 W |
| Output Voltage | 23–25.1V DC |
| Fibra Topologies | Beam, Ring, Tree |
| Wireless Technology | Jeweller |
| Photo Verification Technology | Wings |
| Wireless Range (Jeweller) | Up to 2,000 m |
| Wireless Range (Wings) | Up to 1,700 m |
| Ethernet Port | 1 × 8P8C |
| Ethernet Speed | Up to 100 Mbps |
| SIM Slots | 2 × Micro SIM |
| Cellular Networks | 2G / 3G / 4G LTE |
| LTE Bands | B1, B3, B5, B7, B8, B20 |
| External Antenna Connector | Yes |
| Encryption | AES 128 |
| Monitoring Protocols | SIA DC-09, Contact ID, ADEMCO 685 |
| Notification Types | Push, SMS, Calls |
| Main Power | 100–240V AC |
| Power Consumption | Up to 10 W |
| Backup Battery Voltage | 10.5–15V DC |
| Backup Runtime | Up to 60 Hours |

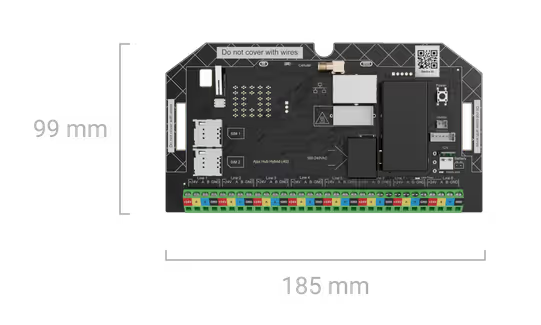

| Dimensions | 185 × 99 × 43 mm |
| Weight | 184 g |
| Operating Temperature | -10°C to +40°C |
| Humidity | Up to 75% |
| Installation Environment | Indoor Only |
Warranty Information
24-Month Manufacturer Warranty
The Ajax Superior Hub Hybrid (4G) Board is covered by a 24-month manufacturer warranty.
About Ajax Systems
Ajax Systems is a globally recognised leader in professional electronic security and smart building technologies. Ajax products combine advanced cybersecurity, intelligent automation, video verification, and reliable communication technologies trusted by millions of users worldwide.
Practical Use Scenarios
Professional Security Installations
-
Commercial alarm systems
-
Enterprise-grade security networks
-
Government facilities
-
Critical infrastructure
Custom Enclosure Projects
-
Case D installations
-
Security cabinet integrations
-
Retrofit alarm upgrades
-
Industrial control panels
Hybrid Wired and Wireless Systems
-
New builds
-
Multi-building facilities
-
Warehouses
-
Retail centres
Video Verification Deployments
-
Integrated surveillance systems
-
Alarm verification applications
-
Monitoring centres
-
Remote security management
Datasheets & Resources
Available documentation includes:
SKU
AJAX#124108
Excellence for the Australian and New Zealand Market
The AJAX#124108 Ajax Superior Hub Hybrid (4G) Without Casing has been engineered for professional installers and integrators requiring a flexible hybrid security platform for custom enclosure installations. Its support for wired Fibra devices, wireless Jeweller devices, video verification technologies, and advanced communication redundancy makes it ideally suited for demanding Australian and New Zealand security environments.
Key benefits include:
-
Genuine Ajax Systems professional security controller
-
Designed for Ajax Case D installation
-
Supports up to 100 security devices
-
Dual SIM 4G LTE communication
-
Ethernet networking with automatic failover
-
Fibra wired communication up to 2,000m
-
Jeweller wireless communication up to 2,000m
-
Wings photo verification support
-
External LTE antenna compatibility
-
Supports up to 492 Ajax cameras
-
Advanced automation and monitoring capabilities
-
AES-128 encrypted communication
-
Professional-grade cybersecurity protection
-
Backed by a 24-month manufacturer warranty
The Superior Hub Hybrid (4G) Board delivers a highly scalable and future-ready foundation for advanced security and automation deployments.
FAQs
What is AJAX#124108 used for?
The AJAX#124108 is a hybrid security control panel board designed for installation in Ajax Case D enclosures and supports wired Fibra and wireless Jeweller security devices.
Does AJAX#124108 include a housing?
No. The AJAX#124108 is supplied without a casing and is designed for installation inside a separately purchased Ajax Case D enclosure.
How many devices can AJAX#124108 support?
The AJAX#124108 supports up to 100 Ajax security devices.
Does AJAX#124108 support dual SIM connectivity?
Yes. The AJAX#124108 includes two Micro-SIM slots and supports 2G, 3G, and 4G LTE communication.
Can AJAX#124108 support Ajax cameras?
Yes. The AJAX#124108 supports up to 492 standalone Ajax cameras and up to 224 cameras through Ajax NVRs.
What is the maximum Fibra cable distance supported by AJAX#124108?
The AJAX#124108 supports Fibra wiring distances of up to 2,000 metres.
Does AJAX#124108 support photo verification?
Yes. The AJAX#124108 supports photo by alarm, photo by scenario, photo on demand, and photo by schedule.
Does AJAX#124108 support external antennas?
Yes. The AJAX#124108 includes a dedicated LTE antenna connector compatible with Ajax ExternalAntenna accessories.
Is AJAX#124108 suitable for professional monitoring?
Yes. The AJAX#124108 supports SIA DC-09, Contact ID, ADEMCO 685, and proprietary monitoring protocols.
Does AJAX#124108 include a warranty?
Yes. The AJAX#124108 is covered by a 24-month manufacturer warranty.
