Product Description

The AJAX#61340 Ajax Superior DoorProtect G3 Fibra is an advanced wired opening detector engineered for high-security residential, commercial, and industrial installations. Combining opening detection, shock detection, tilt monitoring, and magnetic masking protection in a single device, it delivers comprehensive perimeter security against forced entry attempts and tampering.

Unlike traditional magnetic contacts, the Superior DoorProtect G3 Fibra incorporates an accelerometer, magnetic masking sensor, and dual reed switches to detect door and window opening, impacts, vibrations, tilting, and attempts to bypass the detector using fraudulent magnets. Powered by Ajax’s encrypted Fibra communication technology, the detector provides fast alarm transmission, remote configuration, and exceptional reliability over distances of up to 2,000 metres.

Ideal for doors, windows, skylights, roller shutters, safes, and other vulnerable access points, the Superior DoorProtect G3 Fibra offers a professional-grade intrusion detection solution with enhanced protection against sabotage and sophisticated attack methods.

What's Included in the Box

• Superior DoorProtect G3 Fibra Detector

• Magnet

• 2 × Installation Spacers

• Installation Kit

• Quick Start Guide

Main Features

• Opening detector with dual reed switches

• Built-in shock sensor

• Built-in tilt sensor

• Magnetic masking detection

• Advanced anti-sabotage protection

• Fibra encrypted wired communication

• Up to 2,000m communication range

• Additional NC detector input

• Device authentication protection

• Adjustable shock sensitivity

• Adjustable tilt activation threshold

• Chime functionality support

• Remote configuration via Ajax apps

• Tamper protection with dual tampers

• Indoor installation

• Available in White and Black

Detailed Specifications

Detection Features

Sensitive Elements

• 1 × Accelerometer

• 1 × Magnetic Masking Sensor

• 2 × Reed Switches

Opening Detection

• Door monitoring

• Window monitoring

• Roller shutter monitoring

• Restricted access monitoring

• Magnet can be installed on left or right side

Shock Detection

• Adjustable sensitivity levels: 3

• Detection Radius:

  • Framed Glass: Up to 1.2m

  • Wooden Surface: Up to 1.2m

  • Concrete Surface: Up to 0.75m

Tilt Detection

• Adjustable activation threshold:

  • 5° to 25°

Magnetic Masking Detection

• Detects attempts to bypass the detector using fraudulent magnets

• Protects against magnetic masking attacks

Additional Detector Input

• Supports third-party wired detectors

• NC (Normally Closed) contact type

Protection Against Reed Switch Chattering

• Ignores vibrations lasting up to 0.15 seconds

Communication

Fibra Technology

• Proprietary Ajax Fibra Protocol

• Wired Two-Way Communication

• Dynamic Encryption

• Instant Alarm Transmission

• Remote Configuration

Communication Distance

• Up to 2,000m

• Using U/UTP Cat5 Twisted Pair Cable

• 4-Core Connection

Security & Sabotage Protection

Anti-Tamper Features

• Dual Tamper Switches

• Front Lid Opening Detection

• Removal From Surface Detection

• Device Authentication

• Magnetic Masking Detection

• Anti-Spoofing Protection

Holding Screw

• Secure attachment to mounting panel

Power Specifications

• Operating Voltage: 5–30V DC

• Nominal Voltage: 24V DC

• Maximum Power Consumption: 20mW

• Quiescent Current: 120μA

• Maximum Current Consumption: 2mA

Physical Specifications

Detector Dimensions

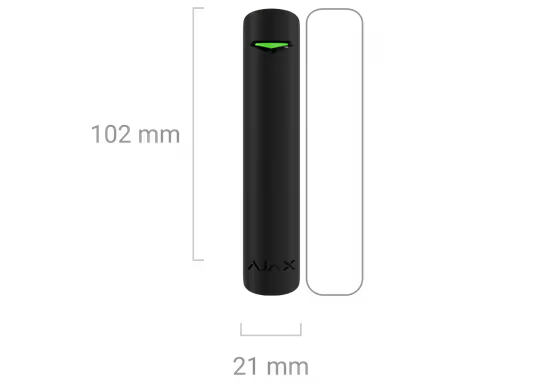

• 102 × 21 × 19.5 mm

Magnet Dimensions

• 102 × 21 × 19.5 mm

Weight

• White: 68g

• Black: 60.7g

Colours

• White

• Black

Environmental Specifications

• Indoor Use Only

• Operating Temperature: -10°C to +40°C

• Humidity: Up to 75%

• Protection Rating: IP30

• Impact Rating: IK04

Warranty Information

• 24-Month Manufacturer Warranty

• Genuine Ajax Systems Product

• Supported by Authorised Ajax Distribution Partners

About Ajax Systems

Ajax Systems is one of the world's leading manufacturers of professional electronic security and smart protection solutions. Ajax products are trusted in millions of homes and businesses worldwide and are recognised for their reliability, encrypted communications, advanced intrusion detection technology, and user-friendly system management.

Practical Use Scenarios

Door Protection

Monitor entry doors for opening, forced entry, vibration, or tampering attempts.

Window Protection

Detect window opening, glass impacts, and attempts to bypass protection using magnets.

Roller Shutters

Protect warehouse roller doors and commercial access points.

Skylights & Roof Windows

Monitor tilting and opening of roof access points.

Safes & Secure Cabinets

Detect movement, vibration, and unauthorised access attempts.

Commercial Premises

Protect offices, retail stores, warehouses, and industrial facilities.

Datasheets & Resources

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet



Excellence for the Australian and New Zealand Market

The AJAX#61340 Superior DoorProtect G3 Fibra is ideally suited to professional security installations throughout Australia and New Zealand. Combining opening, shock, tilt, and magnetic masking detection within a single device, it provides enhanced perimeter protection for commercial, industrial, and residential applications.

Benefits include:

• Genuine Ajax Systems product

• Designed for professional Fibra installations

• Long-distance communication up to 2,000m

• Advanced anti-sabotage and magnetic masking protection

• Suitable for Australian and New Zealand security projects

• Backed by a 24-month manufacturer warranty

• Supported by authorised Ajax partners

• Professional-grade intrusion detection performance

FAQs

What does AJAX#61340 Superior DoorProtect G3 Fibra detect?

AJAX#61340 detects opening events, shock impacts, tilting, vibration, and attempts to bypass the detector using fraudulent magnets.

Does AJAX#61340 include a shock sensor?

Yes. AJAX#61340 features an integrated accelerometer with adjustable shock sensitivity levels.

Can AJAX#61340 detect window impacts?

Yes. AJAX#61340 can detect impacts and vibrations on windows, doors, and other protected surfaces.

What is the tilt detection range of AJAX#61340?

AJAX#61340 allows tilt alarm thresholds to be configured between 5° and 25°.

Does AJAX#61340 support magnetic masking detection?

Yes. AJAX#61340 includes a dedicated magnetic masking sensor to detect fraudulent magnets used to defeat traditional contacts.

Can AJAX#61340 connect to third-party wired detectors?

Yes. AJAX#61340 supports additional NC-type wired detectors.

What communication technology does AJAX#61340 use?

AJAX#61340 uses Ajax Fibra encrypted wired communication technology with a range of up to 2,000 metres.

Is AJAX#61340 suitable for commercial installations?

Yes. AJAX#61340 is designed for professional commercial, industrial, and residential security installations.

What warranty is included with AJAX#61340?

AJAX#61340 includes a 24-month manufacturer warranty.

Why choose AJAX#61340 Superior DoorProtect G3 Fibra?

AJAX#61340 offers advanced perimeter protection by combining opening detection, shock sensing, tilt monitoring, magnetic masking protection, anti-tamper features, and encrypted Fibra communication in a single professional-grade security device.
