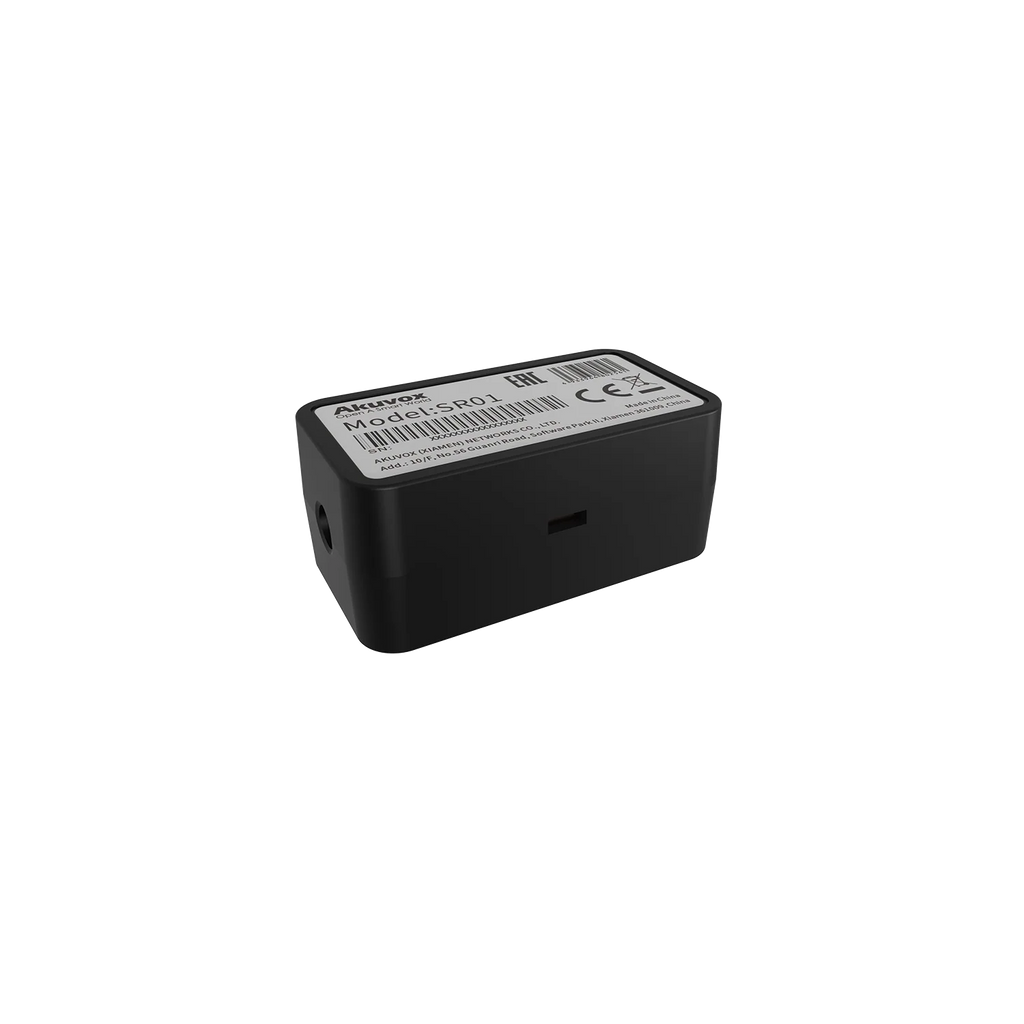

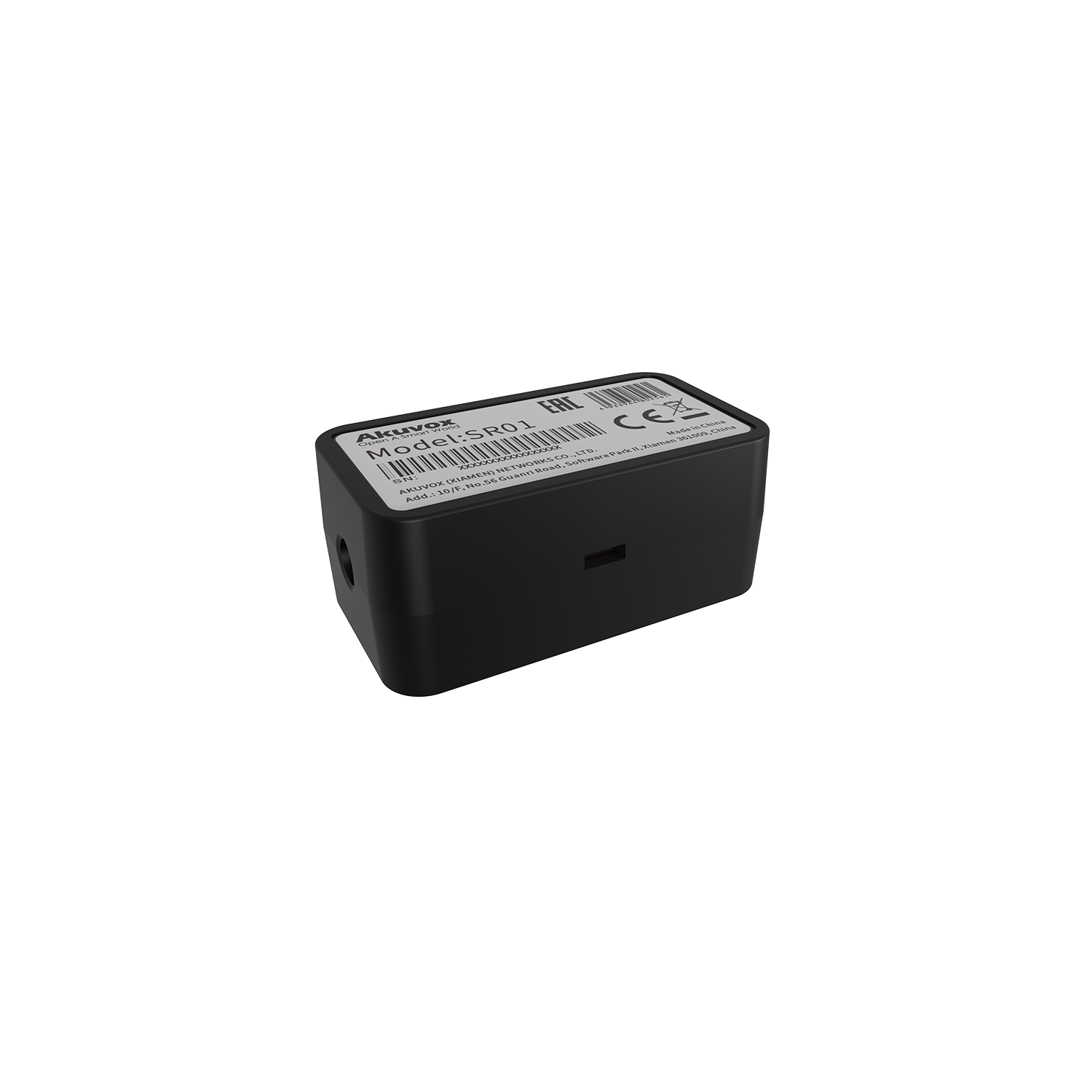

The Akuvox SR01 is a compact, secure single-door I/O module designed to enhance the security of door control systems by placing the unlocking mechanism on the protected side of the door. Engineered for discreet and tamper-resistant installations, this indoor module works in conjunction with Akuvox door phones and access terminals, enabling encrypted control of door strike relays.
Its ultra-compact form factor fits conveniently into most standard installation boxes, allowing seamless integration behind walls or within enclosures. If the external door station is compromised or tampered with, the SR01’s intelligent protection logic ensures the door remains locked by cutting off the strike connection, maintaining site security.
What’s Included in the Box
Main Features
-
Secure Door Control – Handles door release actions internally to prevent tampering from the outside
-
Encrypted Communication – Connects securely with Akuvox door stations using secure protocols
-
Failsafe Protection – Automatically disconnects the door strike when external tampering is detected
-
Ultra-Compact Design – Fits inside standard 86mm electrical wall boxes or junction enclosures
-
Input/Output Support – One button input, one relay output for secure door control
-
Indoor Installation – Designed for mounting on the secure side of the entry point
Detailed Specifications
| Feature |
Specification |
| Inputs |
1 x Input (e.g., push button) |
| Outputs |
1 x Relay Output for Electric Strike |
| Communication |
Encrypted protocol with Akuvox terminals |
| Compatibility |
Works with all compatible Akuvox doorphones |
| Installation Location |
Indoors (secure side of door) |
| Housing Material |
Plastic |
| Dimensions |
Fits in standard 86 x 86 mm boxes |
| Mounting Type |
Wall-mounted (in-box) |
| Operating Temperature |
0°C ~ 45°C |
| Humidity |
10% ~ 90% RH (non-condensing) |
| Power Supply |
Supplied via connected doorphone |
Warranty Information
Manufactures warranty applied.
Brand Overview
Akuvox is a leading provider of intelligent intercom and access control solutions, known for integrating high-level security, user-friendly design, and advanced communication technology into residential and commercial environments.
Practical Use Scenarios
-
Apartment Entry Systems – Prevents tampering from outdoor intercom stations
-
Commercial Buildings – Provides secure internal control for employee entry points
-
Healthcare Facilities – Ensures controlled access for restricted medical zones
-
Warehouses & Logistics – Adds another layer of protection to secure loading areas
-
Educational Institutions – Enhances perimeter access with hidden relay control
Excellence for the Australian and New Zealand Market
The Akuvox SR01 is designed with tamper-resistance and safety in mind, meeting the security needs of modern buildings across Australia and New Zealand. It supports local access control infrastructure and is backed by local distributor support for warranty, compliance, and integration assistance.
Datasheet / Downloads
FAQs (Product Code: SR01)
Q1: What is the main function of the Akuvox SR01 module?
A1: The SR01 is used to securely control a door strike from the protected side of the door, preventing intrusions in case of tampering. (Product Code: SR01)
Q2: Can it be installed outdoors?
A2: No, the SR01 is designed strictly for indoor installation on the secure side of the door. (Product Code: SR01)
Q3: Is it compatible with all Akuvox door stations?
A3: Yes, it is fully compatible with all Akuvox doorphones that support encrypted I/O communication. (Product Code: SR01)
Q4: What happens if the door station is vandalised?
A4: The SR01 will cut power to the door strike, ensuring the door remains locked during a tampering attempt. (Product Code: SR01)
Q5: What installation space is required?
A5: The device fits inside standard 86mm wall mounting boxes, making installation discreet and space-efficient. (Product Code: SR01)
