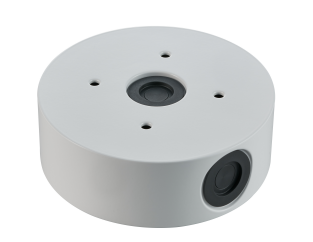

The Bosch NDA-U-CBB Conduit Back Box 148mm is a professional-grade mounting accessory designed to simplify and protect surveillance camera installations in demanding indoor and outdoor environments. Engineered as part of Bosch's modular camera mounting ecosystem, this weather-resistant back box provides a secure housing for cable connections while delivering a clean, professional installation appearance.
Constructed from durable aluminum and finished in Bosch Signal White (RAL 9003), the NDA-U-CBB offers excellent resistance to environmental exposure, vibration, shock, and vandalism. Its IP66-rated design helps protect cable terminations and connection points from dust, moisture, and harsh weather conditions, making it ideal for commercial, industrial, transportation, and public infrastructure surveillance projects.
The NDA-U-CBB is specifically designed for use with the Bosch FLEXIDOME Panoramic 5100i IR and DINION 5100i IR camera series. It can be mounted directly to walls or ceilings and can be adapted for pole or corner mounting using Bosch modular mounting accessories, providing maximum flexibility for professional security installations.
What's Included in the Box
- 1 × Bosch NDA-U-CBB Back Box Base
- 2 × Rubber Caps
- 4 × M4 × 12mm T20 Screws
- 1 × Quick Installation Guide
Main Features
IP66 Weatherproof Protection
Provides secure environmental protection for cable terminations and camera connections.
Designed for Bosch Surveillance Cameras
Optimized for Bosch FLEXIDOME Panoramic 5100i IR and DINION 5100i IR cameras.
Professional Cable Management
Helps conceal and protect wiring while creating a clean installation finish.
Heavy-Duty Aluminum Construction
Durable aluminum housing delivers long-term reliability in demanding environments.
Vandal-Resistant Design
Built to withstand physical impact and public-facing installation conditions.
Flexible Mounting Options
Supports wall and ceiling mounting, with optional pole and corner mounting adapters.
Bosch Modular Accessory System
Seamlessly integrates with Bosch mounting accessories and surveillance infrastructure.
Resistant to Harsh Conditions
Tested for salt mist, vibration, shock, and IK10 impact resistance.
Detailed Specifications
| Specification |
Details |
| Brand |
Bosch |
| Model |
NDA-U-CBB |
| Product Type |
Conduit Back Box |
| Application |
Camera Mounting & Cable Management |
| Compatible Cameras |
FLEXIDOME Panoramic 5100i IR, DINION 5100i IR |
| Material |
Aluminum |
| Colour |
Signal White (RAL 9003) |

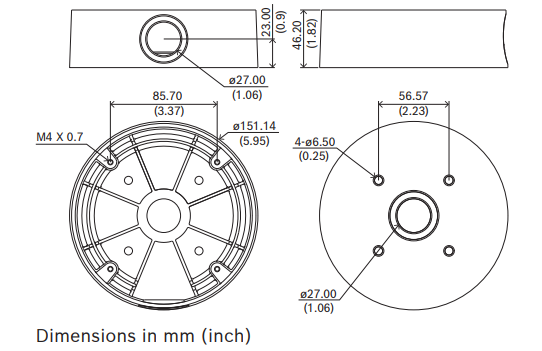

| Diameter |
151.14 mm |
| Height |
46.20 mm |
| Weight |
467 g |
| Conduit Size |
Up to M25 |
| Impact Rating |
IK10 |
| Salt Mist Resistance |
IEC 60068-2-52 |
| Vibration Resistance |
IEC 60068-2-6, NEMA TS2 |
| Shock Resistance |
IEC 60068-2-27, NEMA TS2 |
| Weather Protection |
IP66 |
| Installation Environment |
Indoor & Outdoor |
| Manufacturer Part Number |
NDA-U-CBB |
| Bosch Part Number |
F.01U.394.006 |
Compatible Bosch Accessories
The NDA-U-CBB is compatible with:
- Bosch FLEXIDOME Panoramic 5100i IR Cameras
- Bosch DINION 5100i IR Cameras
- Bosch NDA-U-PMAL Pole Mount Adapter Large
- Bosch NDA-U-CMT Corner Mount Adapter
Warranty Information
Covered by Bosch manufacturer's warranty and support policies when purchased through authorized Bosch distribution channels.
About Bosch
Bosch is a globally recognized leader in security and surveillance technology. Trusted by governments, transportation authorities, industrial operators, educational institutions, and enterprise organizations worldwide, Bosch products deliver exceptional reliability, advanced engineering, and long-term performance for professional security applications.
SKU
SKU / Product Code: NDA-U-CBB
Practical Use Scenarios
- Outdoor CCTV camera installations
- Professional surveillance system deployments
- Commercial building security systems
- Industrial facility monitoring
- Transport and railway surveillance
- Educational campus security
- Utility and infrastructure monitoring
- Pole-mounted camera installations
- Corner-mounted surveillance systems
- Secure cable management applications
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
- Designed for reliable operation in Australia's and New Zealand's demanding outdoor environments.
- IP66 weather protection helps safeguard installations against rain, dust, and environmental exposure.
- IK10-rated impact resistance provides additional protection in public-facing and industrial locations.
- Compatible with Bosch surveillance solutions commonly deployed across government, transport, utilities, education, and commercial sectors throughout ANZ.
- Sourced through authorized Bosch distributors to ensure product authenticity and manufacturer-backed support.
- Ideal for security integrators, installers, councils, infrastructure operators, and enterprise surveillance deployments.
- Built to Bosch's globally trusted standards for durability, reliability, and professional security performance.
FAQs
Q1: What is the NDA-U-CBB used for?
The NDA-U-CBB is a conduit back box designed to protect cable connections and provide a secure mounting base for compatible Bosch surveillance cameras.
Q2: Which cameras are compatible with the NDA-U-CBB?
The NDA-U-CBB is designed for use with Bosch FLEXIDOME Panoramic 5100i IR and DINION 5100i IR camera models.
Q3: Is the NDA-U-CBB suitable for outdoor installations?
Yes. The NDA-U-CBB features an IP66-rated weatherproof design suitable for outdoor environments.
Q4: What material is the NDA-U-CBB made from?
The NDA-U-CBB is manufactured from durable aluminum for strength, corrosion resistance, and long-term performance.
Q5: Does the NDA-U-CBB provide vandal protection?
Yes. The NDA-U-CBB has an IK10 impact resistance rating for enhanced protection against vandalism and physical impacts.
Q6: What are the dimensions of the NDA-U-CBB?
The NDA-U-CBB measures 151.14 mm in diameter and 46.20 mm in height.
Q7: Can the NDA-U-CBB be mounted on poles or corners?
Yes. The NDA-U-CBB can be adapted for pole or corner mounting when used with the NDA-U-PMAL Pole Mount Adapter Large or NDA-U-CMT Corner Mount Adapter.
Q8: What conduit size does the NDA-U-CBB support?
The NDA-U-CBB supports conduit sizes up to M25.
Q9: What colour is the NDA-U-CBB?
The NDA-U-CBB is supplied in Signal White (RAL 9003) to match Bosch camera and mounting accessories.
Q10: Does the NDA-U-CBB include installation hardware?
Yes. The NDA-U-CBB includes mounting screws, rubber caps, and a quick installation guide for installation support.
