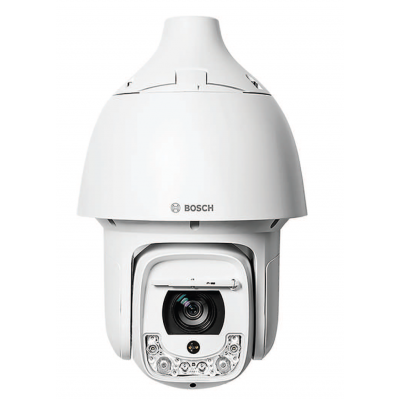

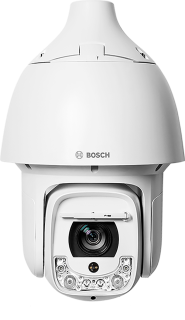

The Bosch NDP-5533-Z30L AUTODOME IP Starlight 5100i IR is a professional-grade outdoor PTZ surveillance camera engineered for critical security environments requiring exceptional image quality, long-range monitoring, and intelligent analytics. Equipped with a high-performance 4MP sensor, 30x optical zoom, HDR X technology, and integrated infrared and white-light illumination, this advanced Bosch PTZ camera delivers crystal-clear surveillance footage day and night while maintaining excellent performance in challenging lighting conditions.
Designed for large-scale commercial, industrial, transportation, government, and critical infrastructure applications, the AUTODOME IP Starlight 5100i IR combines intelligent video analytics, powerful PTZ functionality, superior cybersecurity, and rugged environmental protection to provide comprehensive situational awareness and reliable security monitoring.
What's Included in the Box
- Bosch AUTODOME IP Starlight 5100i IR Camera
- Quick Installation Guide
- Safety Instructions
Main Features
- 4MP High-Definition Video Resolution
- 30x Motorized Optical Zoom
- HDR X Technology with up to 133 dB Dynamic Range
- Bosch Starlight Low-Light Imaging Technology
- 1/1.8" CMOS Sensor
- Integrated Infrared and White Light Illumination
- IR Illumination Range up to 320m
- White Light Illumination Range up to 60m
- Essential Video Analytics (IVA)
- H.265 / H.264 Video Compression
- 360° Continuous Pan Rotation
- Rain-Sensing Automatic Wiper
- Intelligent Dynamic Noise Reduction
- Snap-to-Zoom Functionality
- Intelligent Defog Technology
- 256 Preset Positions
- ONVIF Profile S, G, T, and M Compliant
- Secure TPM-Based Cybersecurity Protection
- IP66 Weatherproof Rating
- IK10 Impact Resistance
- NDAA and TAA Compliant
Detailed Specifications
Imaging
- Sensor: 1/1.8" CMOS
- Resolution: 4MP (2688 × 1520)
- Frame Rate: Up to 60fps
- Low-Light Sensitivity:
- Colour: 0.0101 lux
- Monochrome: 0.0016 lux
- IR Mode: 0 lux
- Dynamic Range: Up to 133 dB (HDR X)
- Day/Night Modes: Auto, Colour, Monochrome
Lens
- Optical Zoom: 30x
- Digital Zoom: 16x
- Focal Length: 6.6 mm – 198 mm
- Aperture: F1.5 – F4.8
- Horizontal Field of View: 58.5° to 2.1°
PTZ Performance
- Continuous Pan: 360°
- Pan Speed: Up to 240°/sec
- Tilt Speed: Up to 100°/sec
- Tilt Range: -90° to +5°
- Presets: 256
- Preset Accuracy: ±0.1°
Illumination
Infrared
- IR LEDs: 4
- Wavelength: 850 nm
- Detection Distance: Up to 320m
White Light
- White LED Quads: 2
- Detection Distance: Up to 60m
- Colour Temperature: 5600K–6300K
Analytics
- Essential Video Analytics Included
- Line Crossing Detection
- Loitering Detection
- Object Classification
- Occupancy Monitoring
- People Counting
- Crowd Density Estimation
- Object Removal Detection
- Route Monitoring
- Similarity Search
Video Compression
Storage
- MicroSDHC Support
- MicroSDXC Support
- Maximum Storage Capacity: 2TB
Audio
- 1 Audio Input
- 1 Audio Output
- AAC, G.711, L16 Support
Network
- 10/100 Ethernet
- IPv4 / IPv6
- HTTPS
- TLS 1.2 / TLS 1.3
- SNMP v1/v3
- ONVIF Profiles S, G, T, M
Environmental
- IP66 Weatherproof
- IK10 Vandal Resistant
- Operating Temperature:
- Humidity:
Physical
- Dimensions: 285 × 456 mm
- Weight: 9.9 kg
- Housing Material: Aluminium
- Colour: Signal White (RAL 9003)
Warranty Information
- Bosch Manufacturer Warranty
- Optional Bosch Extended Warranty Available:
- EWE-AD5HD-IWMP 12-Month Warranty Extension
- Warranty claims are handled according to Bosch warranty policies and procedures.
About Bosch
Bosch Security Systems is a globally recognized leader in professional security, video surveillance, building technologies, and intelligent monitoring solutions. Bosch products are trusted worldwide across government, transportation, healthcare, education, commercial, and critical infrastructure environments for their innovation, reliability, and exceptional engineering quality.
Practical Use Scenarios
Critical Infrastructure Security
Monitor power stations, water treatment facilities, airports, ports, and transportation hubs with long-range surveillance and intelligent analytics.
Industrial Facilities
Secure warehouses, logistics centres, manufacturing plants, and distribution facilities with automated detection and tracking.
Commercial Property Protection
Protect office buildings, shopping centres, campuses, and parking areas with advanced PTZ coverage.
Traffic Monitoring
Capture vehicle movements, roadway incidents, and licence plate recognition applications with high-speed PTZ operation and HDR imaging.
Perimeter Security
Detect and identify intruders at long distances using 30x zoom and 320m IR illumination.
Datasheets & Resources
Excellence for the Australian and New Zealand Market
- Suitable for professional surveillance deployments throughout Australia and New Zealand.
- Compliant with internationally recognised safety and performance standards.
- RCM certified for Australian regulatory requirements.
- NDAA and TAA compliant for government and critical infrastructure projects.
- Optimised for harsh outdoor environments with IP66 weather protection and IK10 impact resistance.
- Sourced through authorised Bosch distribution channels.
- Manufacturer-backed warranty and support structure.
- Designed for integration with enterprise-grade security and video management platforms commonly deployed across Australia and New Zealand.
Frequently Asked Questions (FAQs)
What is the maximum zoom capability of the NDP-5533-Z30L?
The NDP-5533-Z30L features a powerful 30x optical zoom lens and an additional 16x digital zoom for detailed long-range monitoring.
Does the NDP-5533-Z30L support night vision?
Yes. The NDP-5533-Z30L includes integrated infrared illumination capable of detecting objects up to 320 metres away in complete darkness.
Is the NDP-5533-Z30L suitable for outdoor installations?
Yes. The NDP-5533-Z30L is rated IP66 for weather resistance and IK10 for vandal resistance, making it ideal for harsh outdoor environments.
Does the NDP-5533-Z30L support video analytics?
Yes. The NDP-5533-Z30L includes Bosch Essential Video Analytics with features such as line crossing, loitering detection, people counting, occupancy monitoring, and object classification.
Can the NDP-5533-Z30L record locally?
Yes. The NDP-5533-Z30L supports MicroSDHC and MicroSDXC cards with capacities up to 2TB for edge recording.
What cybersecurity features are included in the NDP-5533-Z30L?
The NDP-5533-Z30L incorporates TPM-based security, TLS encryption, signed firmware, secure boot functionality, PKI certificate support, and end-to-end encryption capabilities.
Is the NDP-5533-Z30L NDAA compliant?
Yes. The NDP-5533-Z30L is fully NDAA compliant and suitable for government and critical infrastructure applications.
What industries commonly use the NDP-5533-Z30L?
The NDP-5533-Z30L is commonly deployed in transportation, government facilities, industrial sites, critical infrastructure, commercial buildings, campuses, logistics centres, and perimeter security applications.
