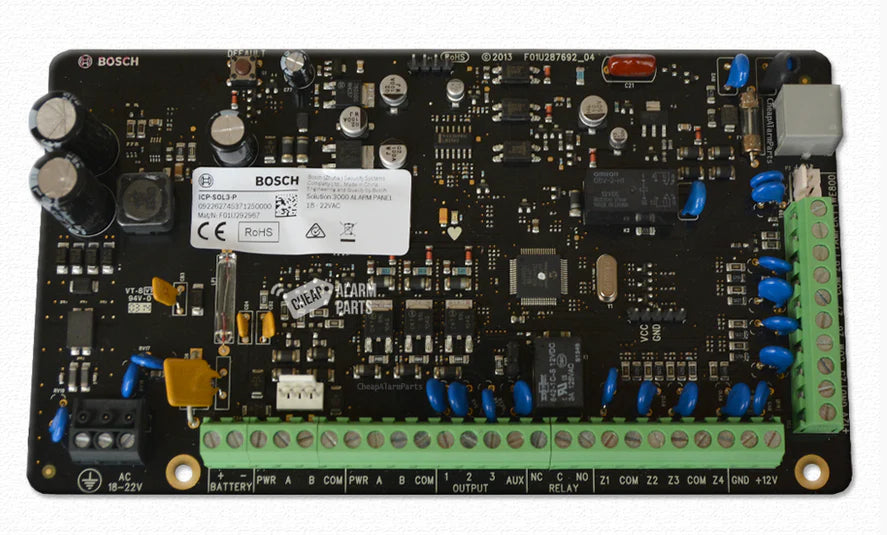

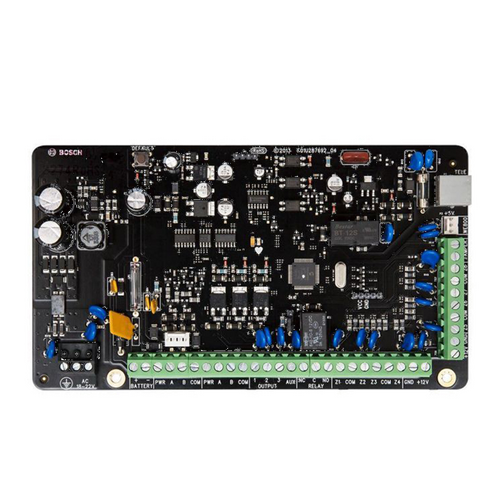

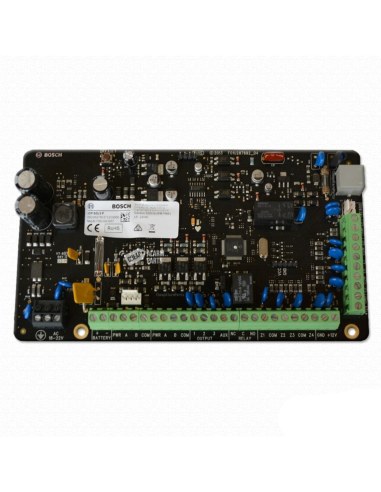

The BOSCH Solution 3000 ICP-SOL3-P Control Panel (PCB Only) is a robust intrusion alarm system engineered for small residential and light commercial environments. Offering 16 fully programmable zones, 2 independent areas, and support for up to 64 users (32 key fobs / 32 PINs), this compact control panel provides exceptional security flexibility. Designed for expandability and mobile control, it ensures you can tailor protection to any application.

Its compatibility with up to 4 codepads, including icon-based, alphanumeric, and touchscreen interfaces, offers a user-friendly setup. The panel supports Bosch’s WE800EV2 and RADION wireless transmitters, enabling cable-free installations and greater versatility. Communication options include Ethernet and cellular via optional modules, and its CSV-IP protocol ensures NBN/fibre-ready compatibility across Australia and New Zealand.
Seamlessly manage your system with Bosch’s Remote Security Control Plus (RSC+) app, enabling remote arming/disarming, device control, and push notification customization—perfect for the modern smart home or business.
What’s Included in the Box

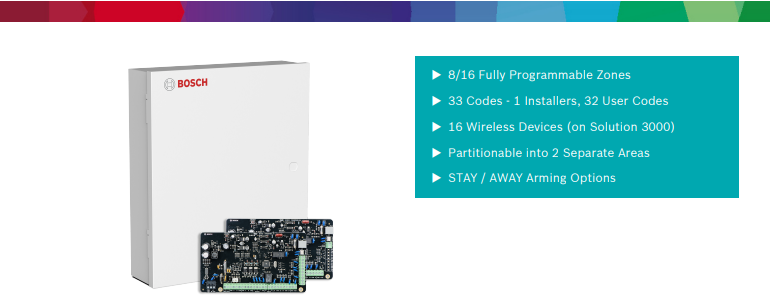

Main Features
-
16 fully programmable zones
-
4 on-board outputs, expandable to 12 outputs
-
Two partitioned areas for flexible zone separation
-
Up to 64 user codes (32 key fobs + 32 PINs)
-
Supports 4 keypads – including LCD Icon, Alphanumeric & Touchscreen
-
Wireless ready – compatible with WE800EV2 and RADION transmitters
-
Ethernet & LTE-ready via optional communication modules
-
Integrated with the Remote Security Control Plus (RSC+) app
-
NBN-ready via CSV-IP communication module
-
Supports STAY/AWAY arming modes

Detailed Specifications
Electrical
Mechanical
Environmental
Communications
-
Protocols: CID, SIA, Email*, Domestic Dialing, CSV-IP, Push Notification*
-
*Requires B426-M or B450-M modules
Warranty Information
Brand Description
Bosch Security Systems stands at the forefront of intrusion detection and smart security technology. Known globally for innovation and quality, the Bosch Solution Series offers scalable, reliable security systems suited for both residential and commercial markets.
SKU
ICP-SOL3-P
Practical Use Scenarios
-
Residential Homes: Customize zoning for garage, backyard, and main entry with wireless convenience.
-
Small Businesses: Partition back-office and customer-facing zones for independent control.
-
Retail Stores: Secure entry points with keypad control and enable remote monitoring via mobile app.
-
Offices: Easily integrate multiple keypads and wireless sensors for efficient access and intrusion control.
-
Rental Properties: Manage security access remotely and allow multiple tenant profiles using unique codes or fobs.
Datasheets & Downloads
Excellence for the Australian and New Zealand Market
-
Fully compliant with RCM (Australia) and Telepermit (New Zealand)
-
Meets AS/CA S002:2010 standards for communication safety
-
Designed for NBN-ready IP connectivity via CSV-IP technology
-
Distributed only via authorized Bosch representatives across ANZ
-
Region-specific power supply support (TF008 Plug Pack)
-
All warranty claims handled through Bosch-authorized service centers
SEO-Optimized FAQs for BOSCH ICP-SOL3-P
Q1: Can the BOSCH ICP-SOL3-P support wireless security sensors?
Yes, the ICP-SOL3-P supports both WE800EV2 and RADION wireless transmitters for enhanced installation flexibility. (Product Code: ICP-SOL3-P)
Q2: How many zones can the BOSCH ICP-SOL3-P manage?
The system supports up to 16 fully programmable zones, ideal for homes and small businesses. (Product Code: ICP-SOL3-P)
Q3: Is the BOSCH ICP-SOL3-P compatible with mobile apps for remote control?
Absolutely. It works seamlessly with the Remote Security Control Plus (RSC+) app for system control and notifications. (Product Code: ICP-SOL3-P)
Q4: Can I connect the BOSCH ICP-SOL3-P to the NBN network?
Yes, the system is NBN-ready using the optional B426-M Ethernet or B450-M cellular communication modules. (Product Code: ICP-SOL3-P)
Q5: What types of keypads can be used with the BOSCH ICP-SOL3-P?
The control panel supports LCD Icon, Alphanumeric, and Touchscreen keypads for user-friendly operation. (Product Code: ICP-SOL3-P)
