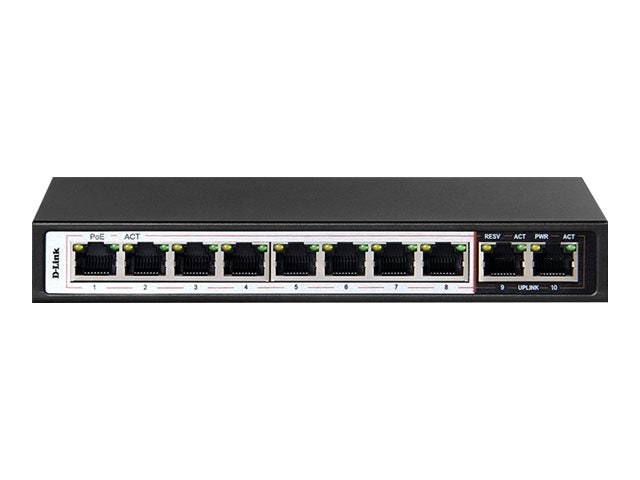

The D-Link DES-F1010P-E Fast Ethernet PoE Switch is a reliable and cost-effective networking solution designed to simplify the deployment of IP surveillance systems, wireless access points, VoIP phones, and other PoE-enabled devices. Featuring 10 Fast Ethernet ports, including 8 PoE ports, a generous 96W total PoE budget, and robust 6kV surge and lightning protection, this unmanaged desktop switch delivers dependable performance for small businesses, offices, retail stores, and security installations.

Its plug-and-play operation requires no configuration, while advanced features such as QoS, VLAN support, Auto MDI/MDI-X, and flow control help ensure stable, efficient, and secure network performance.

What's Included in the Box

• D-Link DES-F1010P-E Fast Ethernet PoE Switch

• Power Adapter

• Power Cable

• Quick Installation Guide

Main Features

10 Fast Ethernet Ports

• 10 × 10/100 Mbps Ethernet ports

• Supports reliable Fast Ethernet connectivity for business and surveillance applications.

8 PoE Ports

• IEEE 802.3af/at compliant PoE

• Supplies both power and data through a single Ethernet cable

• Simplifies installation by eliminating the need for separate power supplies.

96W Total PoE Budget

• Total PoE output of 96 Watts

• Supports multiple PoE-powered devices simultaneously.

Plug-and-Play Installation

• No software or configuration required

• Simply connect devices and begin operation immediately.

Advanced Network Protection

• 6kV Surge Protection

• 6kV Lightning Protection

• Helps protect valuable networking equipment from electrical surges.

Intelligent Traffic Management

• Quality of Service (QoS)

• VLAN Support

• Packet Filtering

• Flow Control

Optimises network traffic for improved performance and stability.

Auto MDI/MDI-X

Automatically detects cable type, eliminating the need for crossover cables.

SKU

DES-F1010P-E

Technical Specifications

Key Benefits

• 8 PoE ports reduce installation costs

• 96W PoE budget for multiple powered devices

• Ideal for CCTV and IP surveillance systems

• Plug-and-play deployment

• Compact desktop form factor

• Built-in surge and lightning protection

• Reliable Fast Ethernet switching

• Supports business and commercial networking environments

Ideal Applications

The DES-F1010P-E is ideal for:

• IP CCTV systems

• Security camera installations

• Small offices

• Retail stores

• Schools

• Hospitality venues

• Wireless Access Points

• VoIP Phone deployments

• Home offices

• Network expansion projects

Warranty Information

Manufacturer Warranty:
Covered by D-Link's standard manufacturer warranty against defects in materials and workmanship. Warranty terms may vary depending on your region and authorised distributor.

About D-Link

D-Link is a globally recognised networking manufacturer delivering reliable switches, wireless networking, surveillance solutions, routers, and enterprise networking products. D-Link products are trusted worldwide for their dependable performance, ease of deployment, and excellent value across commercial and residential networking applications.

Practical Use Scenarios

• Power up to 8 IP security cameras with a single switch.

• Build a small office network with PoE-powered VoIP phones.

• Connect wireless access points without separate power adapters.

• Expand retail store networking infrastructure.

• Deploy surveillance systems with reliable surge protection.

• Install network devices quickly with plug-and-play simplicity.

Datasheets & Downloadable Resources

Available resources include:

• Product Datasheet

Excellence for the Australian and New Zealand Market

The D-Link DES-F1010P-E is an excellent networking solution for Australian and New Zealand businesses seeking dependable PoE connectivity for surveillance, office networking, and wireless infrastructure. Its 96W PoE budget, integrated surge protection, compact desktop design, and support for IEEE 802.3af/at standards make it ideal for commercial deployments across a wide range of industries.

Key advantages include:

• Reliable Fast Ethernet networking

• 8 IEEE 802.3af/at PoE ports

• 96W PoE power budget

• Plug-and-play installation

• QoS and VLAN support

• 6kV surge and lightning protection

• Compact desktop installation

• Ideal for CCTV, VoIP, and wireless networking

• Supplied through authorised distribution channels

• Suitable for Australian and New Zealand commercial environments

FAQs

What is the PoE power budget of the DES-F1010P-E?

The DES-F1010P-E provides a total PoE budget of 96 Watts, allowing multiple PoE devices to operate simultaneously.

How many PoE ports does the DES-F1010P-E have?

The DES-F1010P-E features 8 PoE-enabled Fast Ethernet ports.

Does the DES-F1010P-E support IEEE 802.3at PoE+?

Yes. The DES-F1010P-E supports both IEEE 802.3af and IEEE 802.3at PoE standards.

Is the DES-F1010P-E suitable for CCTV systems?

Yes. The DES-F1010P-E is ideal for powering IP security cameras and surveillance systems using PoE.

Does the DES-F1010P-E require configuration?

No. The DES-F1010P-E is a plug-and-play unmanaged switch requiring no configuration.

Does the DES-F1010P-E support VLAN?

Yes. The DES-F1010P-E includes VLAN support for improved traffic management and network segmentation.

Does the DES-F1010P-E include surge protection?

Yes. The DES-F1010P-E features 6kV surge protection and 6kV lightning protection.

Can the DES-F1010P-E power wireless access points?

Yes. The DES-F1010P-E can power compatible PoE wireless access points and VoIP phones.

What is the switching capacity of the DES-F1010P-E?

The DES-F1010P-E offers a switching capacity of 2 Gbps.

What is the product code for the DES-F1010P-E?

The product code is DES-F1010P-E.
