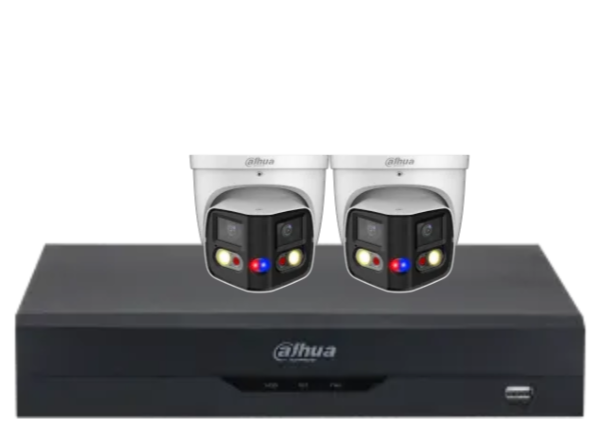

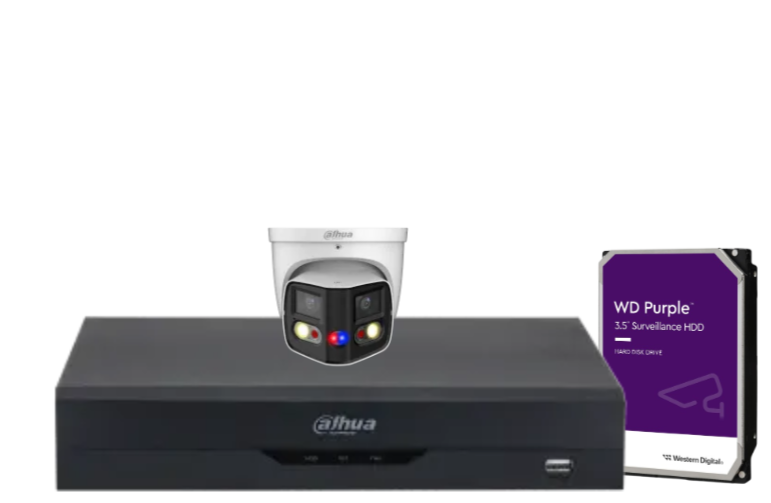

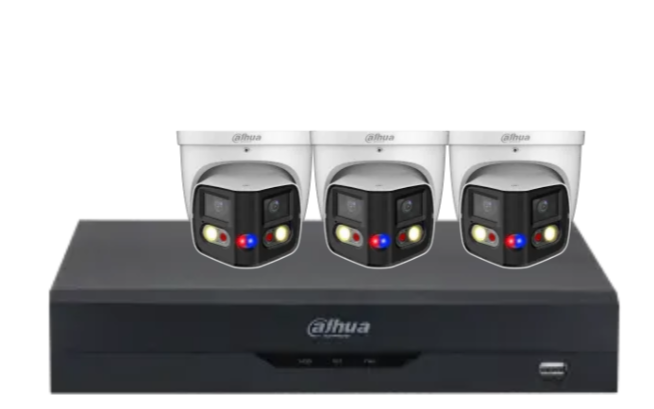

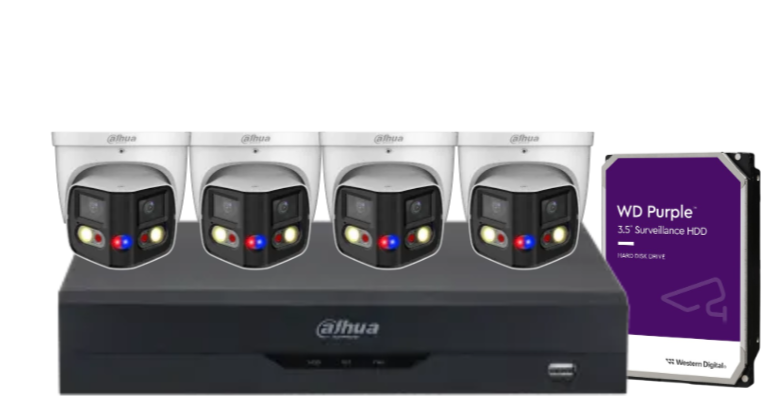

Secure your property with precision and intelligence using the Dahua 2x4MP WizSense Series AI CCTV Kit, combining the panoramic DH-IPC-PDW3849-A180-AS-PV-ANZ dual-lens IP camera with the feature-rich DHI-NVR4104HS-P-AI/ANZ 4-channel PoE recorder. Designed for full-colour clarity, intelligent detection, and wide-angle monitoring, this surveillance solution is ideal for Australian and New Zealand homes, commercial spaces, and industrial sites.

The system offers AI-enhanced surveillance, 180° field of view, TIOC (Three-in-One Camera) functionality with active deterrence, smart LED lighting, built-in microphones, and support for up to 4 camera channels with integrated PoE.

What’s Included in the Box

• 1× Dahua DHI-NVR4104HS-P-AI/ANZ 4-Channel WizSense Network Video Recorder

• Up to 4× Dahua DH-IPC-PDW3849-A180-AS-PV-ANZ Dual-Lens 2x4MP WizSense IP Cameras

• HDD (varies by configuration)

• Power Adapter


• USB Mouse

• Quick Start Guide

Main Features

DH-IPC-PDW3849-A180-AS-PV-ANZ Dual-Lens AI IP Camera

• Dual 4MP CMOS Sensors – Combined output resolution of 4096×1860.

• 180° Panoramic View – Dual fixed 2.8mm lenses with 120 dB WDR for wide, balanced coverage.

• Full-Colour Night Vision – IR + White LED warm lighting up to 25m for enhanced visibility at night.

• AI-Powered Detection – IVS (perimeter protection), SMD 4.0, and Quick Pick features for accurate identification of people and vehicles.

• Audio & Visual Deterrent – Built-in speaker and dual microphones.

• Weather-Resistant – IP67-rated metal casing for outdoor performance.

Dahua DHI-NVR4104HS-P-AI/ANZ WizSense NVR

• Smart AI Features:

  • Face Detection & Recognition (1-channel)

  • Perimeter Protection (2-channel)

  • Smart Motion Detection Plus (4-channel)

  • People Counting, Heat Maps, ANPR (via AI cameras)

• High Efficiency – Smart H.265+/H.264+ compression for optimized storage.

• Multi-Brand Compatibility – ONVIF compliant, works with third-party cameras.

• Remote Access – Via DMSS app (iOS/Android) and web browsers.

• 4× PoE Ports – Direct camera connection with power and data transmission.

Detailed Specifications

Camera – DH-IPC-PDW3849-A180-AS-PV-ANZ

• Image Sensor: Dual 1/2.7” CMOS

• Resolution: 4096 × 1860

• Illumination: 25m IR / 20m warm light

• FOV: 180° (H) / 86° (V)

• AI Detection: Tripwire, intrusion, SMD, EPTZ tracking

• Audio: Built-in dual mic & speaker

• Storage: Supports microSD up to 256GB

• Protection: IP67 weather-resistant metal housing

Recorder – DHI-NVR4104HS-P-AI/ANZ

• Max Decoding: 16 × 1080p @ 30fps

• Supported Resolutions: Up to 16MP

• HDD Capacity: 1× SATA (up to 16TB)

• PoE Ports: 4 × IEEE 802.3af/at

• Video Output: 1× HDMI (4K), 1× VGA

• AI Capabilities: AI search, metadata filtering, Quick Pick

• Cybersecurity: Security Baseline 2.3, trusted boot & execution

Warranty Information

• 3-Year Manufacturer Warranty

• Official service support throughout Australia & New Zealand.

Brand Overview

Dahua Technology is a global innovator in advanced video surveillance, renowned for its WizSense Series that brings intelligent, affordable AI-based security to homes and businesses. Features like human/vehicle recognition, face detection, and active deterrence ensure precise and proactive monitoring.

SKU

DH-IPC-PDW3849-A180-AS-PV-ANZ-1

Practical Use Scenarios

• Residential Monitoring: Cover large entryways, driveways, and backyards with one wide-angle camera.

• Retail Security: Track foot traffic and monitor perimeters with smart detection.

• Warehousing & Loading Docks: Identify vehicles, count staff, and detect unauthorized access.

• Offices & Educational Facilities: Gain situational awareness with audio and full-colour night vision.

Excellence for the Australian and New Zealand Market

• RCM and CE Certified – Meets all safety and electromagnetic compliance standards.

• NDSS and Regulatory Compliant – Supports installations by licensed security professionals.

• Optimized for ANZ Networks – Seamless ISP compatibility and device integration.

• Exclusive Local Distribution – Supplied via authorized Australian and NZ channels only.

• Official Warranty and Service Handling – Hassle-free support via local Dahua partners.

Datasheets & Resources

• Dahua 4CH-NVR Datasheet

•  DH-IPC-PDW3849Datasheet

FAQs – SKU: DH-IPC-PDW3849-A180-AS-PV-ANZ-1

Q1: What is the field of view of the DH-IPC-PDW3849-A180-AS-PV-ANZ-1 camera?
A1: The camera provides a 180° horizontal and 86° vertical field of view using its dual 2.8mm lenses.

Q2: Can the DH-IPC-PDW3849-A180-AS-PV-ANZ-1 camera record in full colour at night?
A2: Yes, it supports full-colour night vision with integrated white LED lighting up to 20 metres.

Q3: Is the DH-IPC-PDW3849-A180-AS-PV-ANZ-1 suitable for outdoor use?
A3: Absolutely. It’s IP67-rated, ensuring durability in dust, rain, and extreme conditions.

Q4: Does the NVR included with DH-IPC-PDW3849-A180-AS-PV-ANZ-1 support third-party cameras?
A4: Yes, the DHI-NVR4104HS-P-AI/ANZ is ONVIF compliant and supports cameras from brands like Axis, Sony, and more.

Q5: How many cameras can I connect to the DH-IPC-PDW3849-A180-AS-PV-ANZ-1 system?
A5: This kit supports up to 4 cameras, all powered via the integrated 4-port PoE NVR.

Q6: Does the DH-IPC-PDW3849-A180-AS-PV-ANZ-1 support audio recording?
A6: Yes, the camera features dual built-in microphones and a speaker for two-way audio communication.

Q7: What mobile app is used to monitor the DH-IPC-PDW3849-A180-AS-PV-ANZ-1 kit remotely?
A7: Use the Dahua DMSS App, available on both iOS and Android, for real-time alerts and viewing.
