The Dahua DH-IPC-HDW3667T-ZS-IL-ANZ 6MP WizSense Smart Dual Light Vari-Focal Eyeball Network Camera is a professional AI-powered IP security camera featuring 6MP high-resolution video, a motorised 2.7–13.5mm vari-focal lens, SMD 4.0 human and vehicle detection, Smart Dual Light, 120dB WDR, built-in microphone, PoE and IP67 weather protection. Designed for flexible indoor and outdoor surveillance, it combines intelligent event detection with adjustable viewing coverage and enhanced night-time monitoring.
Built around a 1/2.7" CMOS sensor, the camera delivers up to 3288 × 1850 resolution at 25/30 fps. Its motorised vari-focal lens provides a 2.7–13.5mm focal range with an F1.4 maximum aperture, allowing installers to adjust the viewing angle from wide-area coverage to tighter observation without physically changing the lens.
Dahua's Smart Dual Light technology combines infrared and warm illumination. IR illumination reaches up to 50 metres, while warm light reaches up to 40 metres. The system can normally operate using infrared at night and activate warm light when a target enters the monitoring area, allowing key events to be captured in colour while reducing unnecessary visible-light operation.
Main Features
-
6MP resolution – up to 3288 × 1850 at 25/30 fps
-
1/2.7" CMOS image sensor
-
2.7–13.5mm motorised vari-focal lens
-
F1.4 maximum aperture
-
Smart Dual Light with IR and warm illumination
-
Up to 50m IR illumination and 40m warm light
-
SMD 4.0 Smart Motion Detection
-
Human and vehicle classification for intrusion and tripwire detection
-
AI SSA scene self-adaptation
-
AcuPick support with compatible back-end devices
-
120dB WDR, BLC, HLC and 3D NR
-
Electronic Image Stabilisation (EIS)
-
Smart H.265+/H.264+ and AI coding
-
Built-in microphone
-
Supports MicroSD cards up to 512GB
-
ONVIF Profiles S, G, T and M
-
12V DC / PoE (802.3af)
-
Metal housing
-
IP67 weather protection
-
Operating temperature from –30°C to +60°C
Detailed Specifications
| Specification |
Details |
| Product Code / Model |
DH-IPC-HDW3667T-ZS-IL-ANZ |
| Camera Type |
Smart Dual Light Vari-Focal Eyeball Network Camera |
| Series |
Dahua WizSense 3 Series |
| Image Sensor |
1/2.7" CMOS |
| Maximum Resolution |
3288 × 1850 |
| Maximum Frame Rate |
6MP @ 25/30 fps |
| Scanning System |
Progressive |
| S/N Ratio |
>56 dB |
| Lens |
Motorised vari-focal |
| Focal Length |
2.7–13.5mm |
| Maximum Aperture |
F1.4 |
| Horizontal FOV |
114°–32° |
| Vertical FOV |
58°–17° |
| Diagonal FOV |
138°–36° |
| Close Focus Distance |
0.1m |
| IR Distance |
Up to 50m |
| Warm Light Distance |
Up to 40m |
| Illuminators |
4 multi-core IR + warm light |
| WDR |
120dB |
| Noise Reduction |
3D NR |
| Image Stabilisation |
Electronic (EIS) |
| Smart Motion Detection |
SMD 4.0 |
| Perimeter Protection |
Intrusion and tripwire with human/vehicle classification |
| AI SSA |
Yes |
| Video Compression |
H.265, H.264, H.264H, H.264B, MJPEG (sub stream) |
| Smart Codec |
Smart H.265+ / Smart H.264+ |
| Streams |
3 |
| Built-in Microphone |
Yes |
| Network Interface |
RJ-45 10/100 Base-T |
| ONVIF |
Profiles S, G, T and M |
| Local Storage |
MicroSD up to 512GB |
| Other Storage |
FTP, SFTP, NAS |
| Power |
12V DC / PoE IEEE 802.3af |
| Maximum Consumption |
8.2W (12V DC) / 9.8W (PoE) |
| Protection Rating |
IP67 |
| Operating Temperature |
–30°C to +60°C |
| Operating Humidity |
≤95% RH, non-condensing |
| Housing |
Metal |

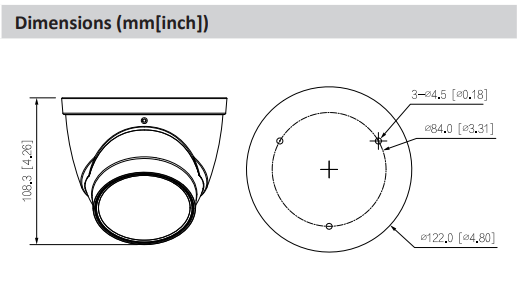

| Dimensions |
108.3mm × Ø122.0mm |
| Net Weight |
690g |
| Gross Weight |
920g |
What's Included in the Box
The supplied material identifies the camera itself but does not provide a definitive retail-box contents list. To avoid overstating inclusions, the confirmed product is:
1 × Dahua DH-IPC-HDW3667T-ZS-IL-ANZ 6MP Smart Dual Light Vari-Focal Eyeball WizSense Network Camera
Mounting accessories, MicroSD card and power adapters listed by Dahua are optional accessories.
Intelligent Security Features
SMD 4.0: Dahua Smart Motion Detection uses intelligent algorithms to classify relevant targets and reduce alarms caused by non-target objects.
Perimeter Protection: Intrusion and tripwire analytics support accurate human and vehicle classification, making the camera suitable for monitoring defined boundaries and restricted areas.
AI SSA: AI Scene Self-adaptation uses deep-learning algorithms to recognise environmental conditions and adjust image parameters accordingly.
AcuPick: The camera supports Dahua's AcuPick functionality with compatible back-end equipment, helping users locate human and motor-vehicle targets within recorded and live video.
Practical Use Scenarios
The DH-IPC-HDW3667T-ZS-IL-ANZ is particularly suitable for residential perimeters, driveways and entrances; retail and commercial premises; warehouses and loading areas; car parks; building entrances; offices and industrial sites; and installations where an adjustable field of view is preferable to a fixed lens.
Its motorised 2.7–13.5mm lens is especially useful where the final viewing angle needs to be fine-tuned during commissioning.
Compatible Optional Accessories

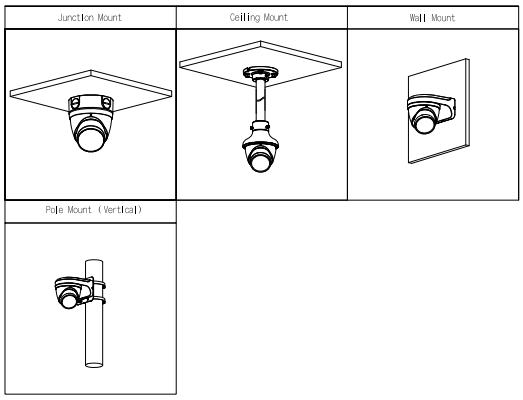

Dahua lists compatible mounting and installation accessories including PFA137 junction box, PFA106 mount adapter, PFA117/PFB220C ceiling mounting options, PFB305W/PFB203W wall mounting options, PFA150/PFA152-E pole mounting options, PFA151 corner mounting, PFM321-series/PFM320D-series power adapters, PFM900-E tester and P100-series MicroSD storage. Compatibility and exact accessory requirements should be checked for the intended installation.
Warranty Information
Warranty: 3 years
About Dahua
Dahua Technology develops video-centric AIoT and security products, including network cameras, network video recorders, access control systems and related surveillance technologies. The DH-IPC-HDW3667T-ZS-IL-ANZ belongs to Dahua's WizSense family of AI-enabled surveillance products.
SKU
DH-IPC-HDW3667T-ZS-IL-ANZ
Datasheets & Downloadable Resources
Official DH-IPC-HDW3667T-ZS-IL-ANZ Datasheet
Excellence for the Australian and New Zealand Market
The DH-IPC-HDW3667T-ZS-IL-ANZ is an ANZ-designated Dahua model listed on Dahua's Australian website. The supplied documentation identifies CE-LVD EN62368-1 and CE-EMC certification; no NDSS approval is stated in the supplied datasheet, so no NDSS claim is made here.
For Australian and New Zealand customers, sourcing through authorised channels helps ensure the supplied product, firmware, support and warranty pathway are appropriate for the intended market. Any claim of authorised-representative sourcing or direct manufacturer warranty handling should be confirmed against the seller's actual supply arrangement before publication.
FAQs
Q: What is the Dahua DH-IPC-HDW3667T-ZS-IL-ANZ security camera?
The DH-IPC-HDW3667T-ZS-IL-ANZ is a Dahua WizSense 6MP Smart Dual Light motorised vari-focal eyeball network camera designed for intelligent IP video surveillance.
Q: What resolution does the Dahua DH-IPC-HDW3667T-ZS-IL-ANZ support?
The DH-IPC-HDW3667T-ZS-IL-ANZ supports a maximum resolution of 3288 × 1850, with the main stream operating at up to 25/30 fps.
Q: What lens does the Dahua DH-IPC-HDW3667T-ZS-IL-ANZ use?
The DH-IPC-HDW3667T-ZS-IL-ANZ features a motorised 2.7–13.5mm vari-focal lens with an F1.4 maximum aperture.
Q: Does the Dahua DH-IPC-HDW3667T-ZS-IL-ANZ have night vision?
Yes. The DH-IPC-HDW3667T-ZS-IL-ANZ provides Smart Dual Light illumination with infrared coverage up to 50m and warm-light coverage up to 40m.
Q: Does the Dahua DH-IPC-HDW3667T-ZS-IL-ANZ detect people and vehicles?
Yes. The DH-IPC-HDW3667T-ZS-IL-ANZ supports SMD 4.0 and human/vehicle classification for supported perimeter-protection functions such as intrusion and tripwire.
Q: Does the Dahua DH-IPC-HDW3667T-ZS-IL-ANZ support PoE?
Yes. The DH-IPC-HDW3667T-ZS-IL-ANZ supports IEEE 802.3af PoE as well as 12V DC power.
Q: Does the Dahua DH-IPC-HDW3667T-ZS-IL-ANZ have a microphone?
Yes. The DH-IPC-HDW3667T-ZS-IL-ANZ has a built-in microphone for audio capture.
Q: Can the Dahua DH-IPC-HDW3667T-ZS-IL-ANZ record to a MicroSD card?
Yes. The DH-IPC-HDW3667T-ZS-IL-ANZ supports MicroSD storage up to 512GB.
Q: Is the Dahua DH-IPC-HDW3667T-ZS-IL-ANZ suitable for outdoor installation?
The DH-IPC-HDW3667T-ZS-IL-ANZ has an IP67-rated metal enclosure and a specified operating range of –30°C to +60°C, making it designed for appropriate outdoor surveillance installations.
Q: Does the Dahua DH-IPC-HDW3667T-ZS-IL-ANZ support ONVIF?
Yes. The DH-IPC-HDW3667T-ZS-IL-ANZ supports ONVIF Profiles S, G, T and M for interoperability with compatible surveillance equipment.
