The Dahua DHI-KTP01L(S)-AUS is an advanced IP video intercom kit designed for modern homes and villas, combining a 2MP full-color camera, 7” indoor touchscreen monitor, and network switch to deliver seamless entry management, two-way communication, and enhanced home security.

Equipped with features like remote unlocking, mobile app integration, PoE support, and two-way audio, this complete system allows users to talk to visitors, view live feeds, and manage access—all from the comfort of the touchscreen monitor or their smartphone.

Certified to IK07 and IP65, the outdoor station is built to withstand both tampering and extreme weather. The system’s built-in H.265/H.264 video compression, wide dynamic range (WDR), and echo suppression ensure sharp visuals and crystal-clear audio communication at all times.

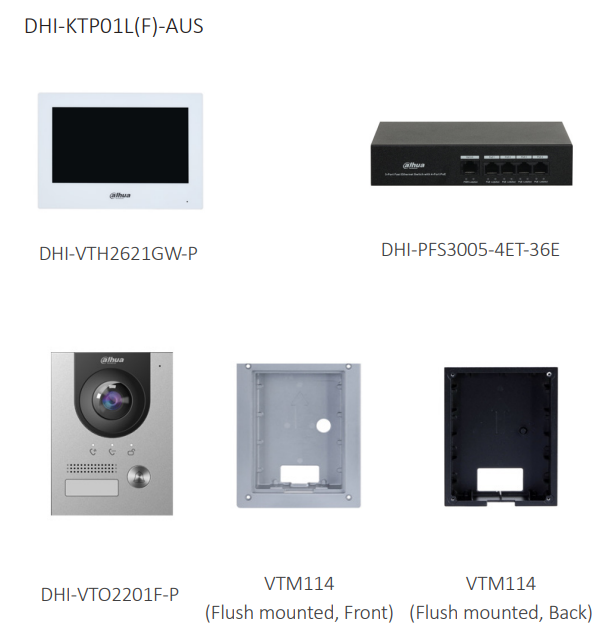

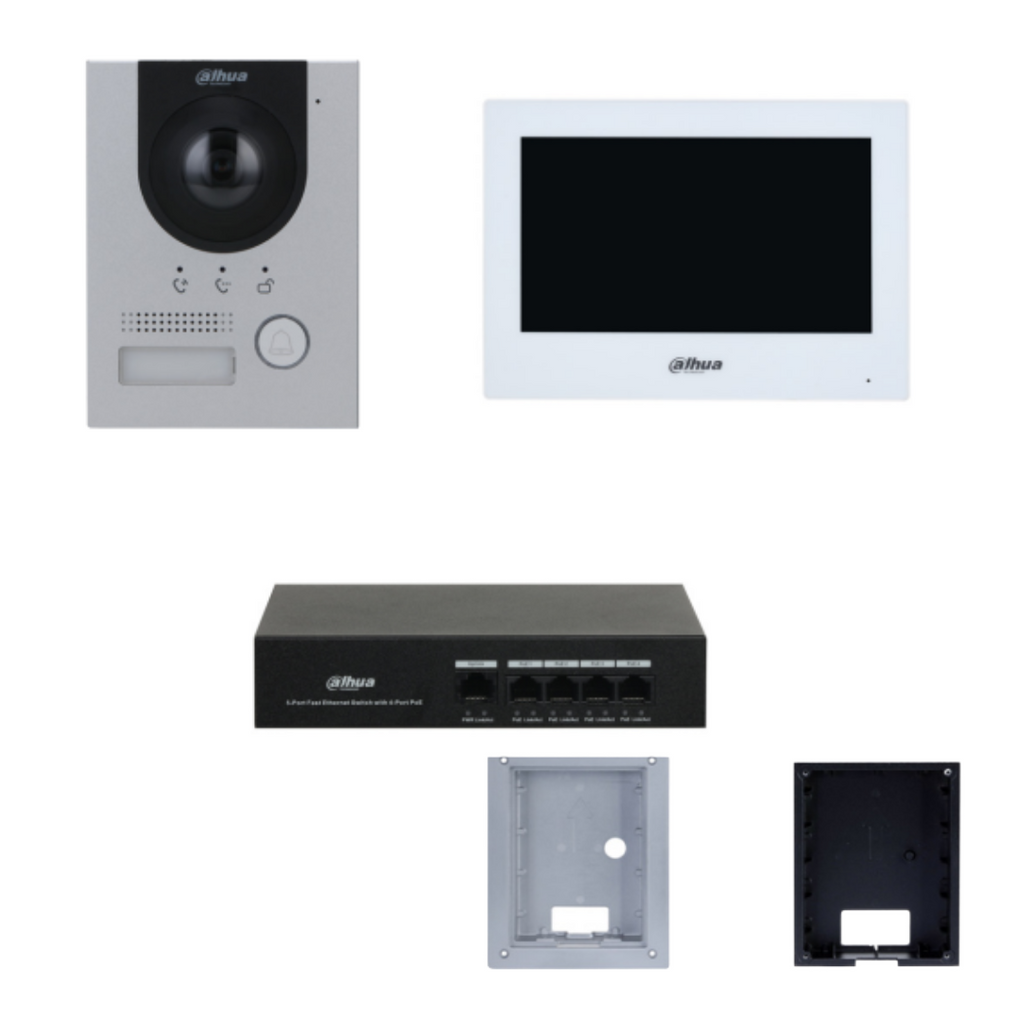

What’s in the Box

• 1 × IP Villa Door Station (Outdoor Unit)

• 1 × IP Indoor Monitor (7" TFT Touchscreen)

• 1 × 4-Port PoE Network Switch

• Mounting Brackets and Accessories

• Alarm Ribbon Cable

• Quick Start Guide and Documentation

Key Features

• 2MP CMOS Camera with 168.6° Ultra-Wide View: Captures sharp video with a large field of view to fully monitor entryways.

• 7" Indoor Monitor: Touchscreen display with 1024×600 resolution for real-time video, door answering, and control.

• Mobile Remote Access: Unlock doors and talk to visitors from your phone via the DMSS app.

• Two-Way Audio: Digital noise reduction and echo suppression for clear conversations.

• IP65 and IK07 Rated: Water-resistant and vandal-resistant outdoor station ensures long-term durability.

• PoE Support: Simplified installation using Power over Ethernet for both door station and indoor monitor.

• MicroSD Support: Up to 256GB storage (requires SD card in monitor or door station) for video recording.

• Multiple Unlock Methods: Includes remote unlock and integration with third-party systems via RS-485 and relay.

• ONVIF Support: Seamless integration with other video surveillance devices.

Technical Specifications

Outdoor Villa Door Station (VTO)

• Camera: 1/2.9” 2MP CMOS, 168.6° H FOV

• Audio: Built-in mic & speaker, 2-way audio with echo suppression

• Compression: H.265 / H.264

• WDR: 120 dB

• Ingress Protection: IP65; Impact Resistance: IK07

• Power: 12VDC, 600mA or PoE (802.3af/at)

• Storage: MicroSD up to 256GB

• Alarm Ports: 1 output, 1 tamper, exit button, lock control, RS-485

• Mounting: Surface mount (mounting kit included)

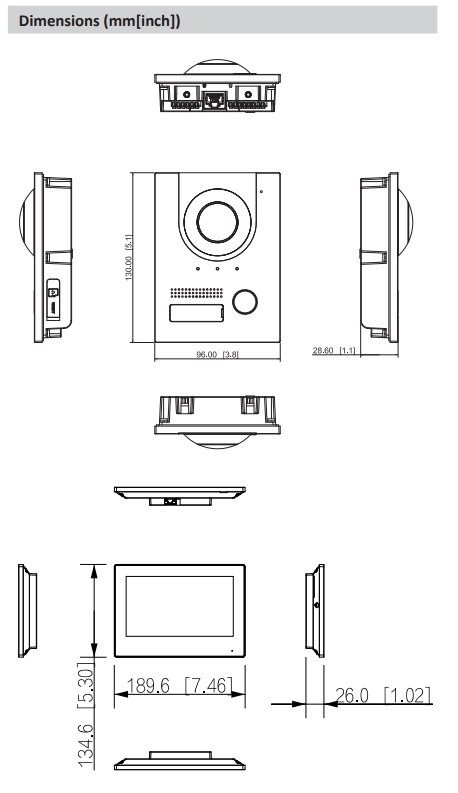

• Dimensions: 130 × 96 × 28.5 mm

• Operating Temp: –30°C to +60°C

Indoor Monitor (VTH)

• Display: 7" TFT Capacitive Touchscreen (1024 × 600)

• Communication: Full digital, two-way audio

• Audio: G.711a/u, PCM; built-in speaker

• Alarm I/O: 6 input / 1 output

• Network: RJ-45 Ethernet port, SIP, RTSP, DNS protocols

• Power: 12VDC, 1A or PoE

• DND Mode: Configurable

• Installation: Surface mount

• Dimensions: 189.6 × 134.6 × 26 mm

• Operating Temp: –10°C to +55°C

PoE Switch

• Ports: 4 × 10/100 Mbps PoE, 2 uplink ports

• Power: 100–240V AC (Built-in PSU)

• Operating Temp: –10°C to +55°C

• Dimensions: 194 × 108.1 × 35 mm

Warranty Information

Backed by a 3-year official Dahua warranty, the DHI-KTP01L(S)-AUS is fully supported by Dahua-authorized Australian distributors. All warranty services are processed directly with the brand to ensure fast and reliable support.

Brand Information

Dahua Technology is a world-renowned provider of advanced video surveillance and security solutions. Their products are known for innovation, reliability, and performance across residential, commercial, and public sectors.

SKU: DHI-KTP01L(S)-AUS

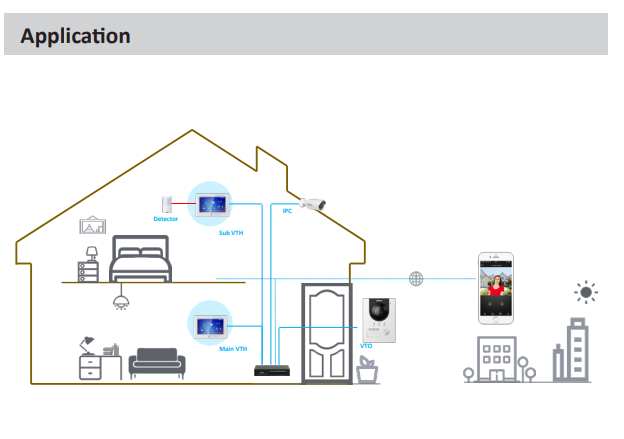

Practical Use Scenarios

• Residential Homes: Manage visitors and deliveries remotely while enhancing perimeter control.

• Villas and Gated Communities: Enable secure visitor access with wide-angle video and intercom communication.

• Small Businesses: Ensure professional front-door interaction and access control.

• Multi-Tenant Buildings: Expandable system with up to 9 extensions per villa and 4 per apartment unit.

• Remote Property Management: View and communicate from anywhere via smartphone using the DMSS app.

Datasheets & Resources

• Downloadable Datasheet PDF


Excellence for the Australian and New Zealand Market

The Dahua DHI-KTP01L(S)-AUS video intercom kit is exclusively optimized for the Australian and New Zealand market. Fully compliant with CE and FCC certifications, it is sourced through authorized local distributors and designed for easy integration into local home automation and surveillance infrastructures. With direct warranty support from Dahua, this product ensures peace of mind, superior quality, and unmatched reliability tailored for Australian and NZ environmental conditions.

FAQs – Dahua DHI-KTP01L(S)-AUS

Q1: Can I use the DHI-KTP01L(S)-AUS to remotely unlock my door from my phone?
A1: Yes, the DHI-KTP01L(S)-AUS allows you to unlock doors remotely via the Dahua DMSS mobile app.

Q2: What type of camera is built into the DHI-KTP01L(S)-AUS outdoor unit?
A2: The door station in the DHI-KTP01L(S)-AUS features a 2MP CMOS camera with a 168.6° wide horizontal viewing angle.

Q3: Does the DHI-KTP01L(S)-AUS support PoE for simplified installation?
A3: Yes, both the indoor monitor and outdoor door station in the DHI-KTP01L(S)-AUS support Power over Ethernet (PoE), minimizing cabling.

Q4: How many monitors can I add to the DHI-KTP01L(S)-AUS system?
A4: The DHI-KTP01L(S)-AUS supports up to 9 indoor extensions for villas and 4 for apartments.

Q5: Is the DHI-KTP01L(S)-AUS suitable for outdoor environments?
A5: Yes, the door station in the DHI-KTP01L(S)-AUS is IP65-rated and IK07 vandal-resistant, making it ideal for outdoor use.

Q6: Can the DHI-KTP01L(S)-AUS record video footage locally?
A6: Yes, the system supports video recording when a MicroSD card (up to 256GB) is installed in the indoor monitor or door station.
