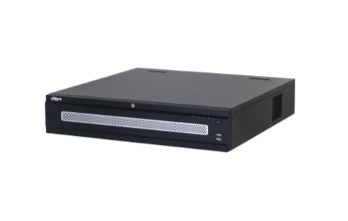

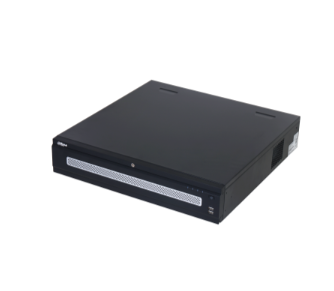

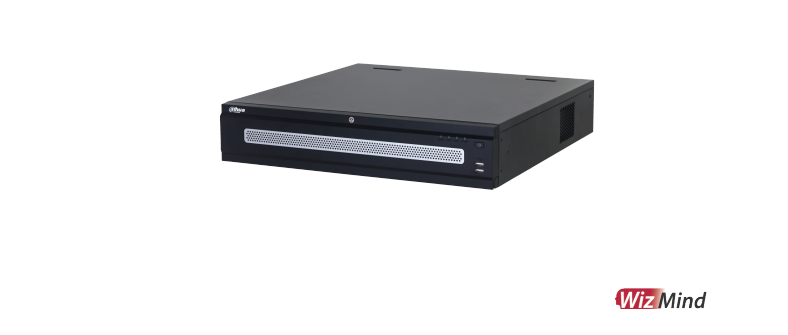

The Dahua DHI-NVR608H-32-AI/ANZ 32 Channel WizMind AI Network Video Recorder is a professional enterprise-grade CCTV recording solution featuring eight SATA HDD bays supporting up to 160TB storage, AcuPick intelligent video search, face recognition, perimeter protection, SMD Plus, RAID storage protection and 8K HDMI output. With up to 1280Mbps incoming bandwidth, support for 32MP IP cameras and advanced AI surveillance analytics, this powerful Dahua NVR is ideal for commercial, industrial and large-scale security installations across Australia and New Zealand.
Designed for demanding IP surveillance environments, the DHI-NVR608H-32-AI/ANZ combines a powerful industrial-grade processor with Dahua's advanced deep-learning algorithms, delivering intelligent video monitoring, efficient event detection and high-performance network recording.
As part of Dahua's professional WizMind series, the recorder supports advanced AI functions including face detection, face recognition, video metadata extraction, intelligent perimeter protection and Smart Motion Detection Plus (SMD Plus). These capabilities help security operators identify important events while reducing unwanted alerts caused by environmental movement.
Dahua's AcuPick intelligent video search technology enables rapid identification of relevant human and vehicle targets across extensive surveillance footage. Supporting up to 32 channels of combined camera and recorder AcuPick functionality, it simplifies video investigation and reduces the time needed to retrieve important recordings.
Main Features and Benefits
32-Channel High-Resolution IP Recording
Supports up to 32 network cameras, including compatible IP cameras with resolutions up to 32MP, for comprehensive professional surveillance coverage.

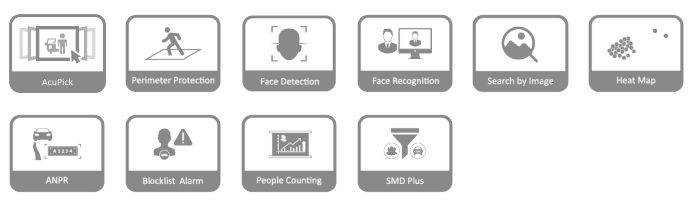

Advanced WizMind AI Analytics
Supports face recognition, human and vehicle metadata, perimeter protection and intelligent motion analysis using Dahua's deep-learning algorithms.
32-Channel AcuPick Intelligent Search
Enables efficient target identification and video investigation with up to 32 channels of camera-and-recorder combined AcuPick support.
Eight HDD Bays and Up to 160TB Raw Capacity
Provides eight SATA interfaces supporting up to 20TB per drive, offering extensive video recording capacity for high-resolution security systems.
RAID Storage and Hot-Swappable Drives
Supports RAID 0/1/5/6/10 and hot-swappable HDD bays for flexible storage configurations, drive servicing and redundancy according to the selected RAID mode.
8K HDMI and Multi-Screen Monitoring
Four HDMI outputs and two VGA outputs support professional monitoring stations, including up to 8K resolution on HDMI3 in simultaneous display mode.
Dual 2.5Gbps Ethernet Connectivity
Features two 10/100/1000/2500Mbps Ethernet ports supporting multi-address configurations, load balancing and network fault-tolerance modes.
High-Capacity Face Recognition
Supports up to 40 face databases containing 300,000 images, enabling sophisticated facial matching applications where legally permitted and properly configured.
Perimeter Protection and SMD Plus
Supports up to 32 channels of recorder-based perimeter protection in simultaneous mode and 32-channel recorder-based SMD Plus to improve event detection accuracy.
Enterprise Storage and System Integration
Supports N+M clustering, iSCSI, eSATA, ONVIF and compatibility with supported third-party IP cameras and video management systems.
Detailed Technical Specifications
System and Recording
|
Specification
|
Details
|
|
Model
|
DHI-NVR608H-32-AI/ANZ
|
|
Product Series
|
Dahua WizMind
|
|
Recorder Type
|
Enterprise Network Video Recorder
|
|
Camera Channels
|
32
|
|
Form Factor
|
2U
|
|
Main Processor
|
Industrial-grade processor
|
|
Operating System
|
Embedded Linux
|
|
User Interface
|
Web, Local GUI
|
|
Maximum Camera Resolution
|
32MP
|
|
Incoming Bandwidth (AI Disabled)
|
1280Mbps
|
|
Recording Bandwidth (AI Disabled)
|
1280Mbps
|
|
Outgoing Bandwidth (AI Disabled)
|
1024Mbps
|
|
Incoming Bandwidth (AI Enabled)
|
640Mbps
|
|
Recording Bandwidth (AI Enabled)
|
640Mbps
|
|
Outgoing Bandwidth (AI Enabled)
|
512Mbps
|
|
Video Compression
|
Smart H.265+, H.265, Smart H.264+, H.264, MPEG4, MJPEG
|
|
Audio Compression
|
G.711a, G.711u, PCM, G.726
|
|
Multi-Channel Playback
|
Up to 16 channels
|
|
Recording Modes
|
Manual, alarm, motion detection, scheduled
|
|
Backup Options
|
USB, network, eSATA disk, portable HDD, burner
|
AI and Intelligent Surveillance
|
Function
|
Capability
|
|
AI Platform
|
Dahua WizMind Deep Learning
|
|
AcuPick
|
Up to 32 channels, combined camera and recorder
|
|
Recorder-Based Face Detection
|
8 channels in simultaneous mode; 5 in heterogeneous mode
|
|
Recorder-Based Face Recognition
|
Supported
|
|
Face Database Capacity
|
Up to 40 databases
|
|
Maximum Face Images
|
300,000
|
|
Face Database Storage
|
48GB
|
|
Recorder-Based Perimeter Protection
|
32 channels simultaneous; 24 heterogeneous
|
|
IVS Rules
|
10 per channel
|
|
SMD Plus by Recorder
|
32 channels
|
|
Video Metadata by Recorder
|
8 channels
|
|
Face Detection by Camera
|
32 channels
|
|
Video Metadata by Camera
|
32 channels
|
|
ANPR by Camera
|
Supported
|
|
People Counting by Camera
|
Supported
|
|
Stereo Analysis by Camera
|
Supported
|
|
Crowd Distribution by Camera
|
Supported
|
|
Vehicle Density by Camera
|
Supported
|
|
Licence Plate Database
|
Up to 20,000 plate numbers
|
|
Plate Management
|
Allowlist and blocklist
|
AI capabilities depend on operating mode, camera compatibility and system configuration.
Video Output and Decoding
|
Specification
|
Details
|
|
HDMI Outputs
|
4
|
|
VGA Outputs
|
2
|
|
HDMI1 and HDMI2
|
Up to 4K UHD
|
|
HDMI3 (Simultaneous Mode)
|
Up to 8K
|
|
HDMI4
|
Up to 1080p
|
|
VGA Outputs
|
Up to 1080p
|
|
Main Screen Display
|
1/4/8/9/16/25/36
|
|
Sub Screen Display
|
1/4/8/9/16/25/36
|
|
Maximum Decoding (AI Disabled)
|
2 × 32MP@30fps or 32 × 1080p@30fps
|
|
Maximum Decoding (AI Enabled)
|
1 × 32MP@30fps or 16 × 1080p@30fps
|
|
Playback
|
Up to 16 channels
|
8K output through HDMI3 applies to simultaneous display mode. Heterogeneous mode supports up to 4K on HDMI1–3.
Storage and Network
|
Specification
|
Details
|
|
SATA HDD Interfaces
|
8
|
|
Maximum Capacity per HDD
|
Up to 20TB
|
|
Maximum Raw Internal Storage
|
Up to 160TB
|
|
Supported RAID Modes
|
RAID 0, 1, 5, 6, 10
|
|
HDD Hot Swapping
|
Supported
|
|
eSATA
|
1
|
|
iSCSI
|
Supported
|
|
N+M Clustering
|
Supported
|
|
Ethernet Ports
|
2 × RJ-45
|
|
Ethernet Speed
|
10/100/1000/2500Mbps
|
|
Network Modes
|
Multi-address, load balance, fault tolerance
|
|
ONVIF Profiles
|
S, T, G
|
|
Integration
|
CGI, SDK
|
|
Remote Access
|
iOS, Android
|
Usable storage depends on drive selection, RAID configuration, formatting and system requirements. Eight 20TB drives provide 160TB raw capacity before any RAID or system overhead.

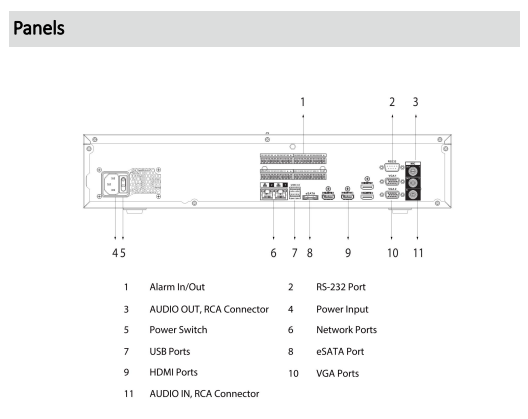

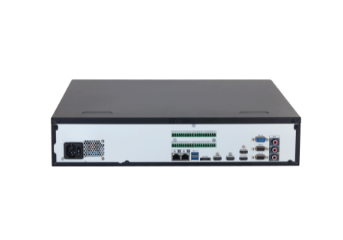

Ports and Alarm Interfaces
|
Specification
|
Details
|
|
USB Ports
|
4
|
|
Front USB
|
2 × USB 2.0
|
|
Rear USB
|
2 × USB 3.0
|
|
HDMI
|
4
|
|
VGA
|
2
|
|
Audio Input
|
1 × RCA
|
|
Audio Outputs
|
2 × RCA
|
|
Alarm Inputs
|
16
|
|
Alarm Outputs
|
8
|
|
RS-232
|
1
|
|
RS-485
|
1 × A/B
|
|
Network Ports
|
2 × 2.5Gbps RJ-45
|
Physical and Environmental
|
Specification
|
Details
|
|

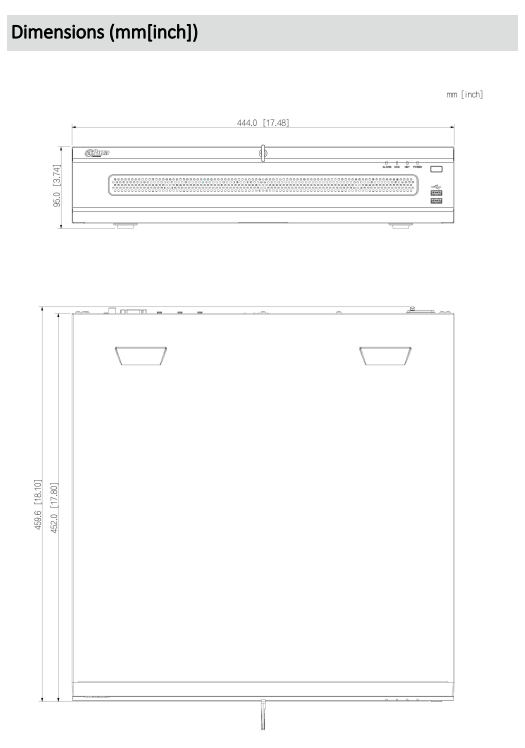

Dimensions (W × D × H)
|
444 × 456.6 × 95mm
|
|
Net Weight (without HDD)
|
6.40kg
|
|
Gross Weight (without HDD)
|
10.35kg
|
|
Power Supply
|
100–240VAC, 50/60Hz
|
|
Power Consumption
|
Less than 18W without HDDs
|
|
Operating Temperature
|
–10°C to +55°C
|
|
Storage Temperature
|
0°C to +40°C
|
|
Operating Humidity
|
10%–93% RH, non-condensing
|
|
Installation
|
Rack or desktop
|
|
Warranty
|
3 Years
|
What's Included in the Box?
- 1 × Dahua DHI-NVR608H-32-AI/ANZ 32 Channel WizMind Network Video Recorder
Important: This product is supplied as a standalone network video recorder.
Not included: Surveillance HDDs, IP cameras, Ethernet cables, HDMI cables, monitors, external networking equipment, rack accessories and other optional installation components. These must be purchased separately.
The manufacturer's datasheet does not confirm any additional standard packaging items.
Practical Applications and Use Scenarios
Large Commercial Buildings and Corporate Offices
Manage surveillance cameras across office buildings, reception areas, entrances, corridors and restricted zones using intelligent recording, video metadata and centralised security monitoring.
Warehouses and Distribution Centres
Record high-resolution footage from loading areas, storage zones, vehicle entrances and critical infrastructure while using AI-assisted perimeter protection to identify relevant events.
Shopping Centres and Retail Complexes
Support wide-ranging security monitoring across entrances, shared areas and retail spaces, with compatible cameras providing advanced analytics such as people counting and crowd distribution.
Industrial and Manufacturing Facilities
Monitor facility entrances, production areas, outdoor boundaries and high-value equipment using professional video recording and intelligent detection capabilities.
Educational Institutions and Campus Security
Support multi-building video surveillance with centralised recording, intelligent analytics and high-capacity storage management.
Car Parks and Transport Facilities
Combine compatible ANPR cameras with vehicle metadata and intelligent video search to assist with vehicle-related surveillance investigations.
Security Control Rooms and Enterprise Monitoring Centres
Use multi-monitor HDMI/VGA output, RAID storage configurations, dual Ethernet connectivity and N+M clustering for professionally managed surveillance environments.
Storage Expansion and Installation
The Dahua DHI-NVR608H-32-AI/ANZ supports flexible storage configuration through:
-
Eight internal SATA HDD bays supporting up to 20TB per compatible drive.
-
RAID 0, 1, 5, 6 and 10 configurations.
-
Hot-swappable hard drive design.
-
External eSATA storage connectivity.
-
iSCSI network storage integration.
-
N+M clustering for compatible system configurations.
Storage drives and accessories are not included.
Warranty Information
3-Year Warranty
The Dahua DHI-NVR608H-32-AI/ANZ is supplied with a 3-year warranty, providing additional confidence for professional and enterprise security installations.
Warranty coverage and claim procedures are subject to the relevant supplier and manufacturer warranty conditions.
Australian customers retain applicable consumer rights under Australian Consumer Law, and New Zealand customers may have additional statutory consumer protections.
About Dahua Technology
Dahua Technology is a global provider of video-centric AIoT technology and professional security surveillance solutions.
Its product portfolio includes network cameras, network video recorders, intelligent video surveillance platforms, AI-powered monitoring technologies and enterprise security management solutions.
The Dahua WizMind series is designed for professional and project-based security applications, providing advanced deep-learning analytics, face recognition, perimeter monitoring and intelligent video metadata analysis.
Datasheets and Downloadable Resources
Excellence for the Australian and New Zealand Market
The Dahua DHI-NVR608H-32-AI/ANZ is an ANZ-designated, enterprise-grade network video recorder designed for professional CCTV surveillance applications across Australia and New Zealand.
Australian and New Zealand Security Applications: With 32-channel recording, advanced WizMind AI capabilities, eight HDD bays and enterprise networking features, this NVR is suited to demanding commercial, industrial and institutional security projects.
Quality Standards and Certifications: The manufacturer's documentation identifies FCC Class A, CE electromagnetic compatibility and EN 62368-1 electrical safety certifications. Australian and New Zealand regulatory compliance, including any applicable RCM requirements, should be verified separately before making specific compliance claims.
Professional Product Sourcing: Globlelink focuses on supplying professional security technology for the Australian and New Zealand markets. Any claims of exclusive sourcing through authorised Dahua representatives should reflect confirmed supplier arrangements.
3-Year Warranty Protection: The DHI-NVR608H-32-AI/ANZ is supplied with a 3-year warranty, with warranty support handled according to the applicable supplier and manufacturer warranty arrangements.
Enterprise Security Integration: Features including RAID storage, hot-swappable HDDs, N+M clustering, dual 2.5Gbps Ethernet and ONVIF interoperability support professional security system integration and long-term scalability.
Frequently Asked Questions (FAQs)
1. How many IP cameras can the Dahua DHI-NVR608H-32-AI/ANZ support?
The Dahua DHI-NVR608H-32-AI/ANZ supports up to 32 compatible IP cameras, including models with resolutions up to 32MP. Camera connectivity depends on the available network infrastructure and recorder bandwidth.
2. What is the maximum storage capacity of the Dahua DHI-NVR608H-32-AI/ANZ?
The DHI-NVR608H-32-AI/ANZ features eight SATA HDD bays supporting up to 20TB per drive, providing up to 160TB of raw internal storage. Actual usable storage depends on the selected RAID configuration and drive compatibility.
3. Are hard drives included with the Dahua DHI-NVR608H-32-AI/ANZ?
No. The DHI-NVR608H-32-AI/ANZ is supplied without hard drives. Compatible surveillance HDDs must be purchased separately.
4. Does the Dahua DHI-NVR608H-32-AI/ANZ support RAID storage?
Yes. The DHI-NVR608H-32-AI/ANZ supports RAID 0, 1, 5, 6 and 10, allowing different storage performance and redundancy configurations to suit professional surveillance requirements.
5. Does the Dahua DHI-NVR608H-32-AI/ANZ support 8K HDMI output?
Yes. The DHI-NVR608H-32-AI/ANZ supports HDMI output up to 8K resolution through HDMI3 when operating in simultaneous display mode.
6. What AI functions are available on the Dahua DHI-NVR608H-32-AI/ANZ?
The DHI-NVR608H-32-AI/ANZ supports face detection, face recognition, video metadata, perimeter protection, SMD Plus and AcuPick. Additional capabilities are available through compatible AI cameras.
7. What is AcuPick technology on the Dahua DHI-NVR608H-32-AI/ANZ?
AcuPick is Dahua's intelligent video search technology that helps security operators locate relevant targets in recorded footage. The DHI-NVR608H-32-AI/ANZ supports up to 32 channels of combined camera-and-recorder AcuPick functionality.
8. Does the Dahua DHI-NVR608H-32-AI/ANZ support face recognition?
Yes. The DHI-NVR608H-32-AI/ANZ supports facial recognition with up to 40 face databases containing a combined maximum of 300,000 face images. Its use must comply with applicable privacy and surveillance regulations.
9. Does the Dahua DHI-NVR608H-32-AI/ANZ have built-in PoE ports?
No. The DHI-NVR608H-32-AI/ANZ does not have integrated PoE camera ports listed in its specifications. Compatible PoE cameras require suitable external PoE switches or other appropriate power arrangements.
10. What is the maximum recording bandwidth of the Dahua DHI-NVR608H-32-AI/ANZ?
The DHI-NVR608H-32-AI/ANZ supports up to 1280Mbps incoming and recording bandwidth when AI is disabled. With AI enabled, incoming and recording bandwidth is up to 640Mbps.
11. Does the Dahua DHI-NVR608H-32-AI/ANZ support hot-swappable hard drives?
Yes. The DHI-NVR608H-32-AI/ANZ includes hot-swappable HDD support through its drawer-style chassis design, simplifying compatible drive maintenance and replacement procedures.
12. Is the Dahua DHI-NVR608H-32-AI/ANZ compatible with third-party IP cameras?
Yes. The DHI-NVR608H-32-AI/ANZ supports ONVIF interoperability and compatible third-party IP camera systems. Available functions depend on camera compatibility.
13. Can the Dahua DHI-NVR608H-32-AI/ANZ be accessed remotely?
Yes. The DHI-NVR608H-32-AI/ANZ supports remote access from compatible iOS and Android devices, subject to network configuration and access permissions.
14. Does the Dahua DHI-NVR608H-32-AI/ANZ support N+M clustering?
Yes. The DHI-NVR608H-32-AI/ANZ supports N+M clustering for compatible enterprise surveillance deployments, providing additional system-level flexibility.
15. Are cameras, cables and installation accessories included with the Dahua DHI-NVR608H-32-AI/ANZ?
No. The DHI-NVR608H-32-AI/ANZ is sold as a standalone NVR. Cameras, network cables, hard drives, monitors and optional installation accessories must be purchased separately.
16. Is the Dahua DHI-NVR608H-32-AI/ANZ suitable for commercial CCTV installations in Australia and New Zealand?
The DHI-NVR608H-32-AI/ANZ is an ANZ-designated model suited to professional commercial and enterprise video surveillance applications. Installers should confirm relevant regulatory, networking and compatibility requirements.
17. What warranty is included with the Dahua DHI-NVR608H-32-AI/ANZ?
The Dahua DHI-NVR608H-32-AI/ANZ comes with a 3-year warranty, subject to applicable supplier and manufacturer terms and conditions.
