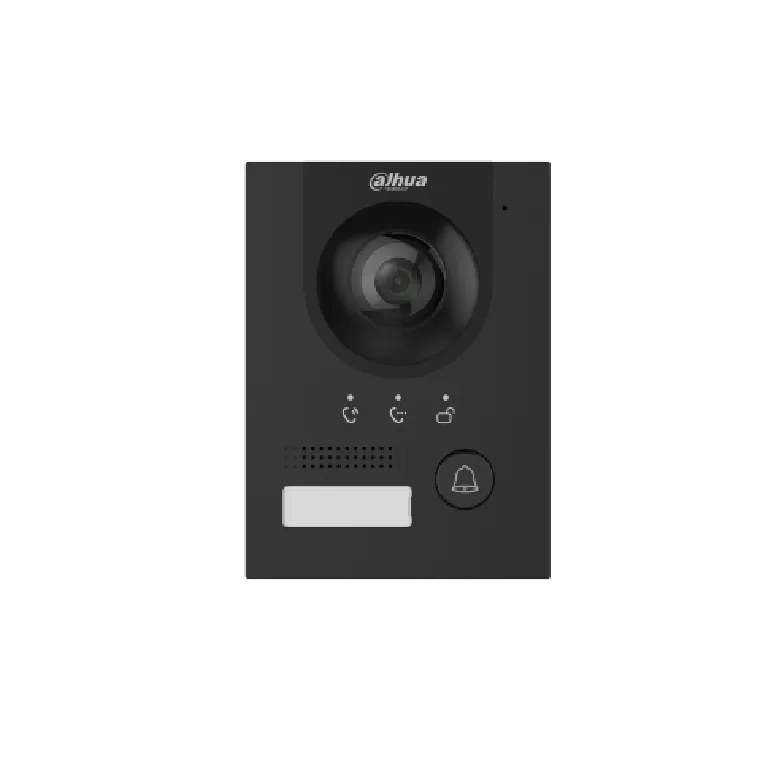

The Dahua DHI-VTO2202FB-P-S3 Black 2-Wire IP Villa Door Station is a professional 2MP video intercom and access control solution featuring an ultra-wide 168.6° camera, two-way audio, remote door unlocking, PoE connectivity and IP65 weather protection. Designed for residential entrances, villas and townhouses, this black Dahua door station combines smart visitor communication with durable outdoor security.

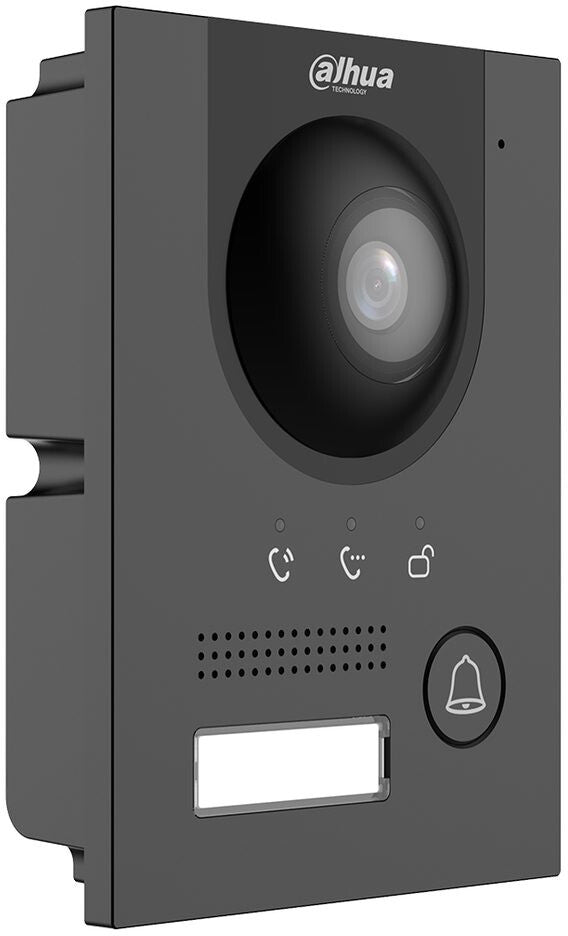

Featuring an elegant black anodised aluminium front panel, the DHI-VTO2202FB-P-S3 provides a modern appearance suitable for contemporary properties. Its 1/2.9-inch 2MP CMOS camera, 120 dB Wide Dynamic Range (WDR) and automatic infrared illumination provide effective doorway monitoring in varying lighting conditions.
With digital 2-wire communication and IP networking capabilities, the door station supports flexible installation in compatible Dahua intercom systems. Visitors can communicate with occupants using the built-in two-way audio system, while supported mobile app functionality enables users to speak with visitors and remotely unlock the door.
The station also features H.265/H.264 video compression, tamper alarm protection, Micro SD card support up to 256 GB and a 12 VDC/600 mA auxiliary power output for compatible access control equipment.
Its IP65 weather protection and IK07 impact resistance, when installed according to Dahua's sealing requirements, make it a practical choice for outdoor residential entrance security in Australia and New Zealand.
Main Features & Benefits
-
2MP HD Camera: Built-in 1/2.9-inch CMOS camera delivers detailed video for visitor identification and doorway monitoring.
-
Ultra-Wide 168.6° Viewing Angle: Provides broad entrance coverage with 168.6° horizontal, 87.1° vertical and 176.7° diagonal fields of view.
-
120 dB Wide Dynamic Range: Improves video detail in challenging lighting conditions, including entrances exposed to strong sunlight or backlighting.
-
Two-Way Audio Communication: Built-in microphone input and speaker allow convenient communication between occupants and visitors.
-
Remote Door Unlocking: Supports remote door release through compatible Dahua intercom systems and mobile app integration.
-
Dahua DMSS Mobile Connectivity: Allows supported remote visitor communication and door unlocking through a connected intercom installation.
-
Digital 2-Wire Communication: Provides integration with compatible Dahua digital 2-wire switches and indoor monitors.
-
PoE Support: Compatible with IEEE 802.3af/at Power over Ethernet for simplified network-based installations.
-
Automatic Infrared Illumination: Improves visibility in low-light conditions and supports automatic day/night operation.
-
H.265 and H.264 Video Compression: Offers efficient video encoding for IP video communication and storage.
-
IP65 Weather Protection: Designed for outdoor environments when installed with the required silicone sealing.
-
IK07 Impact Resistance: Offers protection against mechanical impacts in exposed entrance locations.
-
Premium Black Aluminium Finish: An anodised aluminium front panel combines durability with modern architectural styling.
-
Micro SD Storage Support: Supports Micro SD cards up to 256 GB and visitor video message functionality with compatible storage.
-
Tamper Alarm: Includes an anti-tamper alarm function for additional entrance security monitoring.
-
Access Control Interfaces: Provides lock control, exit button, door status detection, alarm output and RS-485 connectivity.
-
Web Configuration: Supports browser-based configuration for installation and system management.
What's Included in the Box?
Compatible indoor monitors, Dahua 2-wire switches, power adapters, Micro SD cards, rain covers and electric locking hardware are not included and may need to be purchased separately.
Detailed Technical Specifications
System & Network
| Specification |
Details |
| Brand |
Dahua Technology |
| Model / Product Code |
DHI-VTO2202FB-P-S3 |
| Product Type |
2-Wire IP Villa Door Station |
| Main Processor |
Embedded processor |
| Operating System |
Embedded Linux |
| Button Type |
Mechanical |
| Number of Buttons |
1 |
| Interoperability |
ONVIF, CGI |
| Network Protocols |
IPv4, RTSP, UDP, DNS, P2P, UPnP, RTP, TCP, SIP |
| Communication Mode |
Digital 2-wire |
| Network Interface |
1 × RJ-45, 10/100 Mbps |
| Web Configuration |
Supported |
Camera & Video
| Specification |
Details |
| Image Sensor |
1/2.9-inch 2MP CMOS |
| Horizontal Field of View |
168.6° |
| Vertical Field of View |
87.1° |
| Diagonal Field of View |
176.7° |
| Wide Dynamic Range |
120 dB WDR |
| Noise Reduction |
3D NR |
| Video Compression |
H.265, H.264 |
| Main Stream Resolution |
720p, WVGA, D1, CIF |
| Sub Stream Resolution |
1080p, WVGA, D1, QVGA, CIF |
| Video Frame Rate |
25 fps |
| Video Bit Rate |
256 Kbps–8 Mbps |
| Light Compensation |
Automatic infrared (IR) |
| Day/Night Mode |
Auto ICR, colour and black-and-white |
Video stream resolution options are reproduced as specified in Dahua's official datasheet.
Audio & Intercom Functions
| Specification |
Details |
| Audio Communication |
Two-way audio |
| Audio Input |
1 channel |
| Audio Output |
Built-in speaker |
| Audio Compression |
G.711a, G.711u, PCM |
| Audio Enhancement |
Echo suppression, digital noise reduction |
| Audio Specification |
16 kHz, 16-bit |
| Remote Unlocking |
Supported |
| Visitor Video Messages |
Supported with SD card in compatible indoor monitor or door station |
| Storage Capacity |
Micro SD card up to 256 GB |
Access Control & Interfaces
| Specification |
Details |
| RS-485 |
1 |
| Alarm Output |
1 |
| Auxiliary Power Output |
1 × 12 VDC/600 mA |
| Exit Button Interface |
1 |
| Door Status Detection |
1 |
| Lock Control Interface |
1 |
| Tamper Alarm |
Supported |
Power & Installation
| Specification |
Details |
| Power Supply |
Dahua 2-wire switch, 48 VDC/1 A or PoE |
| PoE Standard |
IEEE 802.3af/at |
| Maximum 2-Wire Power Distance |
50 m |
| Standby Power Consumption |
≤4 W |
| Operating Power Consumption |
≤5 W |
| Power Adapter |
Optional |
| Mounting |
Surface mount specified for black model |
| Enclosure Material |
Aluminium |
| Front Panel |
Black anodised aluminium |

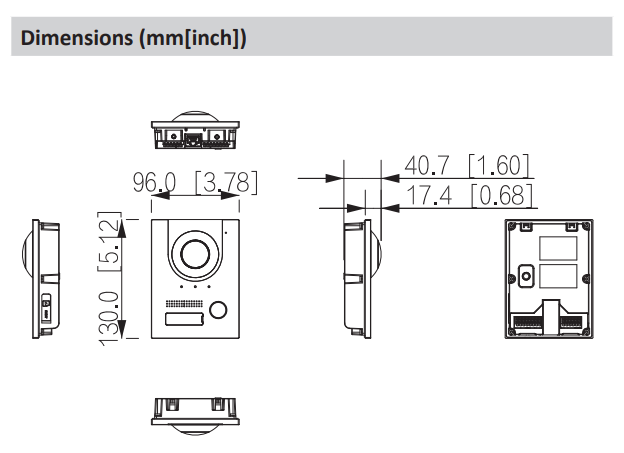

| Product Dimensions |
130 × 96 × 28.5 mm |
| Gross Weight |
0.48 kg |
Environmental & Protection Specifications
| Specification |
Details |
| Colour |
Black |
| Installation Environment |
Outdoor |
| Weather Protection |
IP65 |
| Impact Resistance |
IK07 |
| Operating Temperature |
−30°C to +60°C |
| Operating Humidity |
10%–90% RH, non-condensing |
| Operating Altitude |
0–3,000 m |
| Storage Temperature |
0°C to +40°C |
| Storage Humidity |
30%–75% RH, non-condensing |
| Listed Certification |
CE |

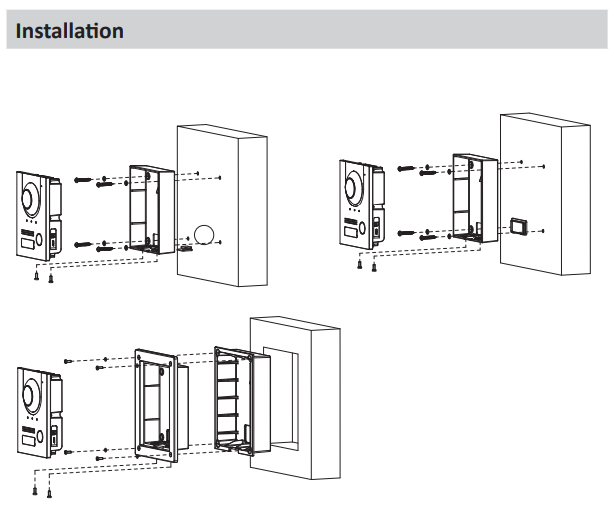

Installation Notes:
-
Dahua specifies silicone sealant for the shell to achieve the stated environmental protection. Refer to the manufacturer's installation instructions.
-
When the 12 VDC output powers an external load, Dahua specifies a PoE sourcing switch compliant with IEEE 802.3at.
-
Dahua's feature summary refers to surface and flush mounting, while the black model's general specifications identify surface mounting. Confirm flush-mount compatibility and required hardware before ordering.
Compatible Accessories & System Components
The DHI-VTO2202FB-P-S3 supports integration with compatible Dahua intercom equipment, including:
| Accessory Model |
Description |
| VTM05RB |
Surface-mounted rain cover |
| DHI-VTNS2003B-2-A |
Dahua 2-wire switch |
| DHI-VTNS1001B-2-A |
Dahua 2-wire switch |
| Compatible Dahua VTH monitors |
Indoor video intercom communication and visitor monitoring |
| Compatible electric door locks |
Controlled door access through the supported lock interface |
Accessories and system component compatibility should be verified against the intended installation configuration.

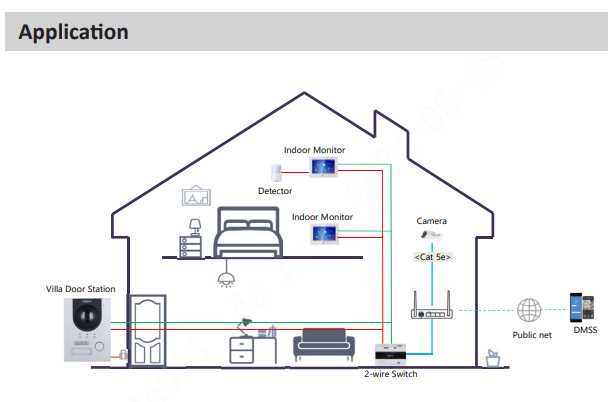

Practical Applications & Use Scenarios
Residential Homes & Villas
Install the Dahua DHI-VTO2202FB-P-S3 at the front entrance to provide visitor video identification, two-way communication and controlled door access through a compatible Dahua intercom system.
Townhouses & Modern Residential Entrances
The compact design and premium black anodised aluminium finish suit contemporary entrance areas where security equipment needs to complement modern architectural finishes.
Residential Security System Upgrades
Digital 2-wire technology provides an option for upgrading supported intercom infrastructure while reducing the need for a dedicated Ethernet cable at the door station. Existing cable condition, topology and compatibility must be assessed.
Remote Visitor Communication
Through a properly configured Dahua mobile-connected intercom system, homeowners can communicate with visitors and remotely release a compatible door lock.
Gated Property Entrances
The station can serve as a video communication and access control point for suitable gated property arrangements, subject to compatible switching, power, locking hardware and installation requirements.
Small Offices & Professional Premises
The video intercom and remote unlocking capabilities can support visitor management at low-traffic office entrances and professional premises.
Warranty Information
The Dahua DHI-VTO2202FB-P-S3 is subject to the applicable manufacturer's warranty and the seller's terms and conditions.
3 year warrenty
About Dahua Technology
Dahua Technology is a global manufacturer of video surveillance, security and smart IoT solutions. Its product portfolio includes IP cameras, network video recorders, video intercoms, access control devices and integrated security technologies.
Dahua's video intercom range provides communication and access control options for residential, commercial and multi-dwelling applications.
The DHI-VTO2202FB-P-S3 is part of Dahua's IP villa door station range, combining digital 2-wire communication, HD video and convenient remote access functionality.
Product Code & Identification
| Field |
Value |
| Brand |
Dahua |
| Manufacturer Model |
DHI-VTO2202FB-P-S3 |
| SKU |
DHI-VTO2202FB-P-S3 |
| Short Model |
VTO2202FB-P-S3 |
| Product Category |
Video Intercom / IP Door Station |
| Product Colour |
Black |
Datasheets & Downloadable Resources
Official Dahua Product Datasheet — DHI-VTO2202FB-P-S3 (PDF)
Excellence for the Australian and New Zealand Market
The Dahua DHI-VTO2202FB-P-S3 Black 2-Wire IP Villa Door Station offers a versatile outdoor entrance security solution for residential and suitable commercial applications across Australia and New Zealand.
Designed for Outdoor Conditions
With its specified −30°C to +60°C operating temperature range, IP65 environmental protection and IK07 impact resistance, the unit provides practical protection characteristics for a wide range of Australian and New Zealand installation environments when correctly installed.
Documented Product Standards
Dahua identifies CE certification and IP65/IK07 protection ratings for this model. Compliance with any additional mandatory Australian or New Zealand product, electrical or telecommunications requirements should be confirmed for the intended installation. Unverified local certifications are not claimed.
Flexible Local System Integration
Support for digital 2-wire communication, PoE and compatible Dahua video intercom components makes this door station suitable for a variety of residential entry system configurations.
Authentic Product Sourcing
For purchase through Globlelink, confirm that the units are supplied through authorised Dahua distribution channels and supported by the appropriate regional product documentation.
Manufacturer Warranty Coordination
Globlelink customers should confirm the applicable manufacturer warranty, authorised service pathway and whether warranty matters can be handled through direct coordination with Dahua.
Frequently Asked Questions (FAQs)
1. What is the Dahua DHI-VTO2202FB-P-S3 Black 2-Wire IP Villa Door Station?
The Dahua DHI-VTO2202FB-P-S3 is a black outdoor video intercom door station featuring a 2MP HD camera, digital 2-wire communication, two-way audio, PoE compatibility and remote door unlocking. It is designed for installation within compatible Dahua video intercom systems.
2. Does the Dahua DHI-VTO2202FB-P-S3 support remote door unlocking using a mobile phone?
Yes. The DHI-VTO2202FB-P-S3 supports remote unlocking through compatible Dahua mobile-connected intercom systems, enabling users to communicate with visitors and control supported electric door locks.
3. What camera resolution does the Dahua DHI-VTO2202FB-P-S3 provide?
The DHI-VTO2202FB-P-S3 features a 1/2.9-inch 2MP CMOS camera with a 168.6° horizontal viewing angle. Dahua specifies multiple video streaming resolutions, including 720p main-stream and 1080p sub-stream options.
4. Is the Dahua DHI-VTO2202FB-P-S3 suitable for outdoor installation?
Yes. The DHI-VTO2202FB-P-S3 is designed for outdoor installation and is rated IP65 for environmental protection and IK07 for impact resistance. Dahua requires appropriate silicone sealing to achieve the specified environmental protection.
5. Does the Dahua DHI-VTO2202FB-P-S3 support Power over Ethernet (PoE)?
Yes. The DHI-VTO2202FB-P-S3 supports IEEE 802.3af/at PoE, allowing network connectivity and power delivery through a compatible Ethernet installation. IEEE 802.3at-compliant power sourcing is specified when powering an external load through its 12 V output.
6. Can the Dahua DHI-VTO2202FB-P-S3 be used with existing 2-wire intercom cabling?
The DHI-VTO2202FB-P-S3 supports digital 2-wire communication and may be suitable for certain system upgrades. Existing cabling, cable condition, supported topology and compatibility with Dahua 2-wire switching equipment must be verified before installation.
7. Does the Dahua DHI-VTO2202FB-P-S3 provide night vision?
Yes. The DHI-VTO2202FB-P-S3 includes automatic infrared light compensation and automatic day/night switching to support video monitoring under low-light conditions.
8. Can the Dahua DHI-VTO2202FB-P-S3 record visitor videos?
Yes. The DHI-VTO2202FB-P-S3 supports visitor video message functionality with suitable SD card storage in the door station or compatible indoor monitor. The manufacturer's specified Micro SD capacity is up to 256 GB.
9. Is the Dahua DHI-VTO2202FB-P-S3 compatible with Dahua indoor monitors?
The DHI-VTO2202FB-P-S3 is designed to work within compatible Dahua video intercom systems. The specific indoor monitor model, firmware and required 2-wire switching configuration should be checked before purchase.
10. What mounting options are available for the Dahua DHI-VTO2202FB-P-S3?
The DHI-VTO2202FB-P-S3 black model is specified for surface mounting. Although Dahua's product feature summary also mentions flush mounting, the required compatible mounting accessories and arrangement should be confirmed before choosing a flush-mount installation.
11. What power supply does the Dahua DHI-VTO2202FB-P-S3 require?
The DHI-VTO2202FB-P-S3 supports compatible Dahua 2-wire switches, 48 VDC/1 A power or IEEE 802.3af/at PoE. The applicable power arrangement depends on the system configuration.
12. Does the Dahua DHI-VTO2202FB-P-S3 support electric door locks?
Yes. The DHI-VTO2202FB-P-S3 includes a lock control interface, exit button connection, door status detection input and 12 VDC/600 mA auxiliary output for compatible access control arrangements.
13. Is the Dahua DHI-VTO2202FB-P-S3 available in black?
Yes. The DHI-VTO2202FB-P-S3 is the black model with an anodised aluminium front panel. The DHI-VTO2202F-P-S3 is the separately identified silver model.
14. What is the warranty for the Dahua DHI-VTO2202FB-P-S3 in Australia and New Zealand?
The DHI-VTO2202FB-P-S3 is subject to applicable manufacturer warranty arrangements and statutory consumer protections. The exact warranty period and claims process should be confirmed with Globlelink at the time of purchase.
