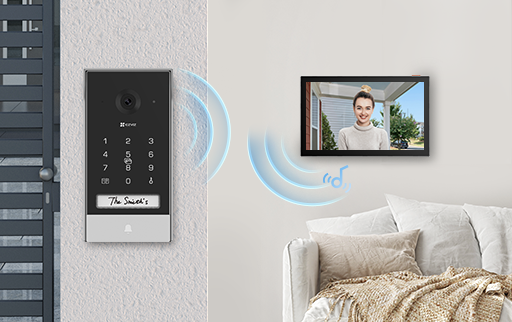

Elevate your home security with the EZVIZ EP7 Smart Home Video Doorphone. This solar-powered intercom system offers cutting-edge technology for seamless communication, robust video quality, and versatile unlocking methods. Equipped with a 2K high-definition camera, wide viewing angle, and night vision, the EP7 ensures you never miss a visitor, even in low-light conditions. Easily manage door access with options like RFID badges, password entry, remote unlocking via app, and more. Designed for durability with IP65 waterproofing, this device is built to withstand the elements, ensuring your security is never compromised. Perfect for modern homes, it integrates effortlessly with your existing smart home setup.

What's Included in the Box:

• EZVIZ EP7 Monitor

• Wall Bracket for Monitor

• Power Adapter for Monitor

• EZVIZ EP7 Intercom Panel (Doorbell) with Weather-proof Shield

• Drill Template for Monitor

• Drill Template for Intercom Panel

• Screwdriver

• Name Cards (×3)

• RFID Badges (×3)

• Screw Kit (×2)

• Pin (×1)

• Wires and Wire Connectors

• Rechargeable Battery for Intercom Panel (×1)

• USB Cable for Battery (×1)

• Power Supply Jack Connector Cable (×1)

• Solar Panel (×1)

• Regulatory Information (×2)

• Quick Start Guide

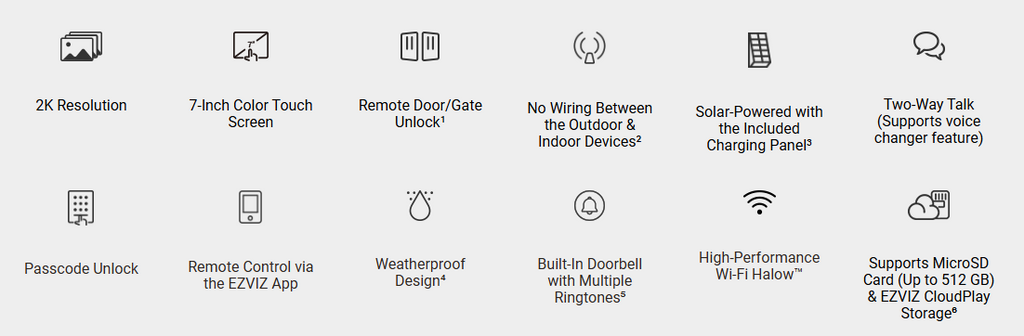

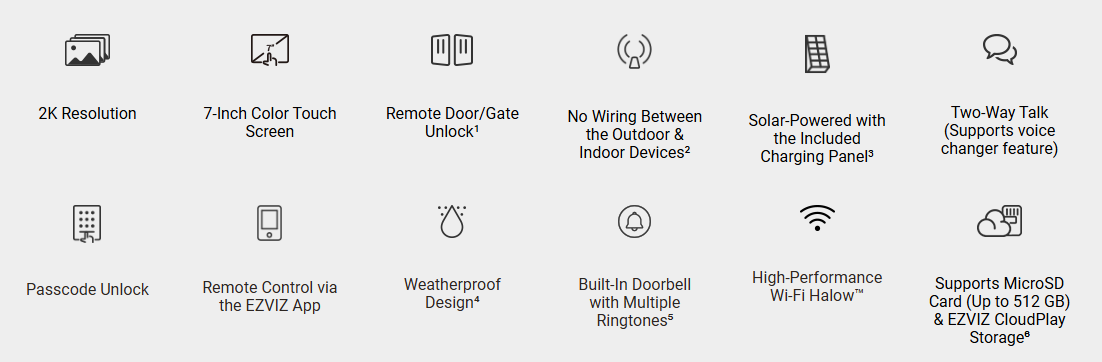

Main Features:

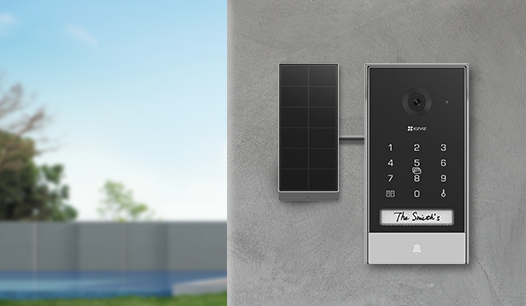

• Solar-Powered: Reduces the need for external power sources, making it eco-friendly and convenient.

• High-Resolution 2K Video: Clear, crisp video quality at 2048 × 1296 resolution.

• Wide 162° Viewing Angle: Capture a broad area for enhanced security.

• Night Vision: Equipped with IR-cut filter and 850nm infrared lights for visibility up to 6 meters.

• Multiple Unlock Methods: Includes RFID, password, app remote, and indoor display unlock options.

• Two-Way Audio: Built-in high-sensitivity microphone and high-power speaker for clear communication.

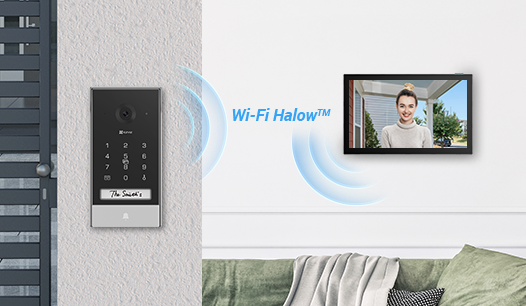

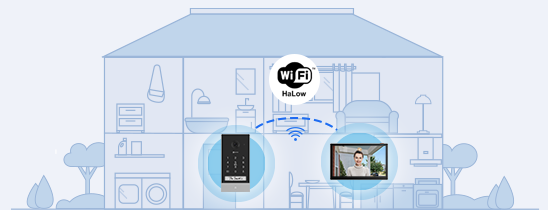

• Wi-Fi Connectivity: Supports IEEE 802.11 AH Wi-Fi standard for seamless connection.

• Waterproof Design (IP65): Ideal for outdoor use in all weather conditions.

• Expandable Storage: Supports microSD cards up to 512GB for video recording.

Detailed Specifications:

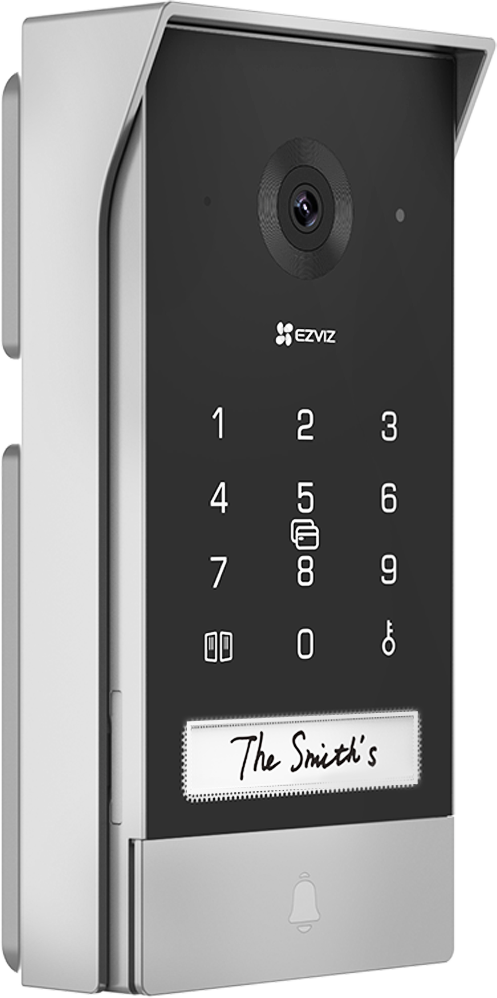

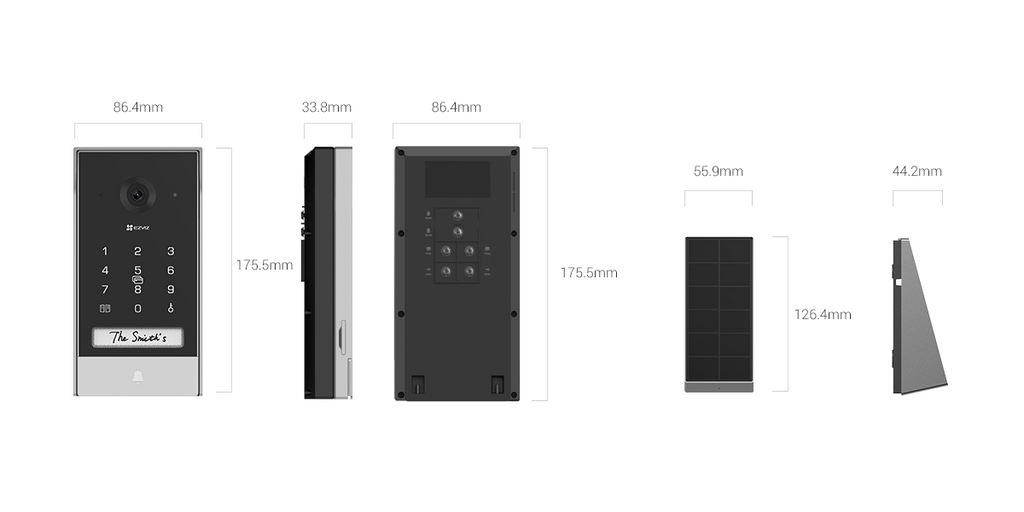

Outdoor Doorbell (Camera):

• Image Sensor: 1/2.7" Progressive Scan CMOS (low light sensitivity)

• Lens: 2.0 mm @ F2.2, viewing angle: 162° (Diagonal)

• Night Vision: IR-cut filter with 850 nm infrared lights (max. 6m)

• Max. Resolution: 2K (2048 × 1296)

• Video Compression: H.265 / H.264

• Frame Rate: Max 15fps, adaptive during network transmission

• Wi-Fi: IEEE 802.11 AH, Frequency Range: 904 M - 928 M (US), 865 M-867 M (EU)

• Power Supply: 7.3V, 2600 mAh rechargeable lithium battery, lasts up to 85 days with typical usage.

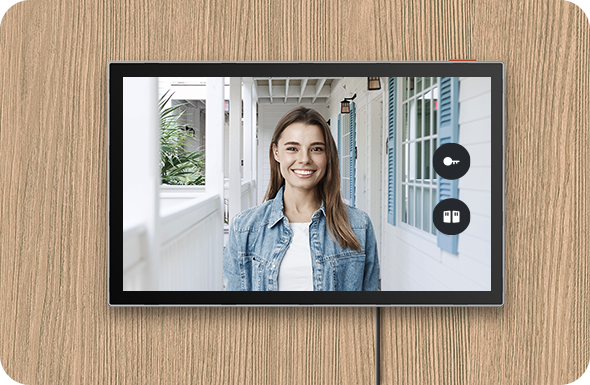

Indoor Display:

• Display Size: 7” touch screen

• Resolution: 1024 × 600

• Wi-Fi Standard: IEEE 802.11b/g/n/ac

• Power Supply: 12-24VDC, 1A (Power adapter included)

• Power Consumption: 8W, Max. 24W

Solar Panel:

• Power Voltage: 8.1V max

• Max. Power: 1.2W

• IP Grade: IP65 (Weather-resistant)

General Information:

• Temperature Range: -20°C to 60°C (Outdoor), -10°C to 45°C (Indoor)

• Certifications: CE, REACH, WEEE, RoHS

• Weight: 675g (net), 1865g (with package)

• Warranty: 1-year manufacturer warranty

Excellence for the Australian and New Zealand Market:

The EZVIZ EP7 Smart Home Video Doorphone meets Australian quality standards and includes all necessary certifications, such as CE, REACH, WEEE, and RoHS, ensuring top-tier performance and compliance with safety regulations. The device is sourced exclusively from authorized brand representatives, providing genuine products and authentic warranties. Warranty services are handled directly with EZVIZ, ensuring customer support and product handling are seamless and reliable.

Datasheetinter

FAQs:

Q1: Does the EZVIZ EP7 (Model: CS-EP7) support remote unlocking via an app?
Yes, the EZVIZ EP7 (Model: CS-EP7) supports remote unlocking via the EZVIZ mobile app, providing convenient and secure access control from anywhere.

Q2: How does the solar panel work with the EZVIZ EP7 (Model: CS-EP7)?
The EZVIZ EP7 (Model: CS-EP7) comes with a solar panel that charges the intercom system, reducing reliance on external power sources. It provides efficient charging, even in less sunny conditions, ensuring that your video doorphone is always powered.

Q3: Can I store videos from the EZVIZ EP7 (Model: CS-EP7) on a microSD card?
Yes, the EZVIZ EP7 (Model: CS-EP7) supports microSD cards up to 512GB, allowing you to record and store videos locally.

Q4: What is the viewing angle of the EZVIZ EP7 (Model: CS-EP7) camera?
The EZVIZ EP7 (Model: CS-EP7) features a wide 162° viewing angle, offering comprehensive coverage of your front door area.

Q5: Is the EZVIZ EP7 (Model: CS-EP7) suitable for outdoor installation?
Yes, the EZVIZ EP7 (Model: CS-EP7) is designed for outdoor use with an IP65 waterproof rating, making it resistant to rain and dust.

Q6: How long does the battery of the EZVIZ EP7 (Model: CS-EP7) last?
The EZVIZ EP7 (Model: CS-EP7) features a 2600mAh rechargeable lithium battery, which can last up to 85 days with typical use, such as 3 minutes of daily operation.

Q7: What warranty is offered with the EZVIZ EP7 (Model: CS-EP7)?
The EZVIZ EP7 (Model: CS-EP7) comes with a 1-year manufacturer warranty, ensuring your device is protected against defects in materials and workmanship.
