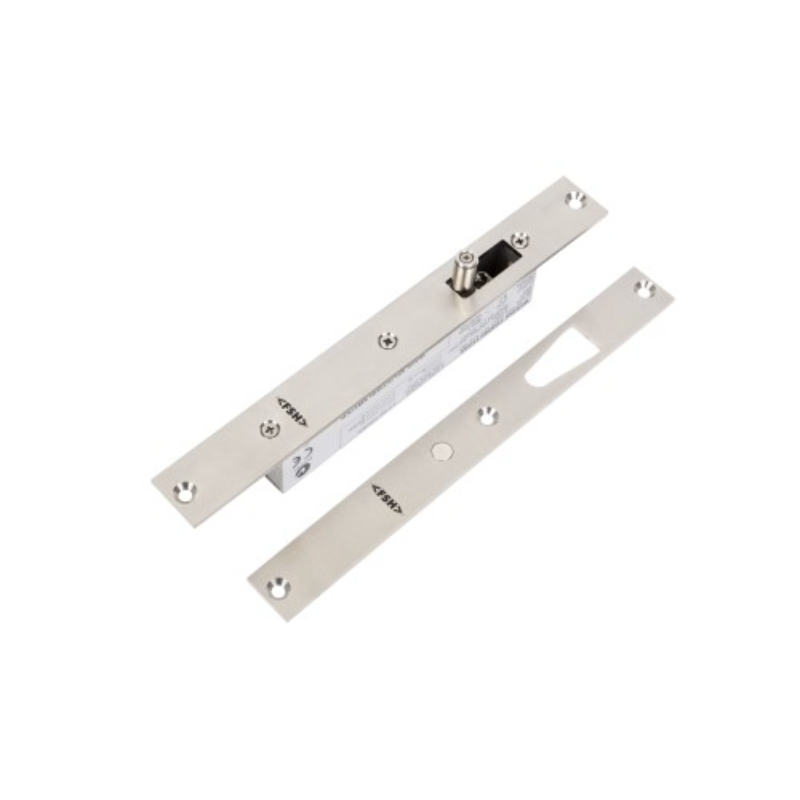

The FSH VE1260 is a premium, patented motorised drop bolt engineered for high-security access control environments. With an impressive pre-load/side-load release tolerance of up to 35 kg, this lock is ideal for swing-through doors and demanding installations. It features low current consumption, multi-voltage support, and advanced monitoring capabilities, including both lock status sensing and door position monitoring via a built-in reed switch.

Installable vertically or horizontally, the VE1260’s symmetrical bolt design makes it perfect for 180° swing-through doors, while optional strike plates allow for misaligned doors up to ±12 mm. Retrofit compatibility with Trimec/PADDE ES8000 (via the VE1260S version) makes it a flexible upgrade path for legacy systems.
What’s Included in the Box
-
1 × FSH VE1260 Eco Drop Bolt
-

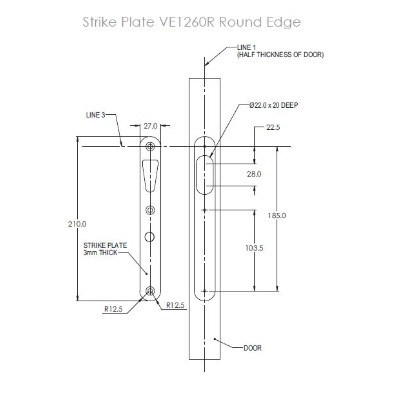

Standard strike plate
-
Mounting hardware
-
Instruction manual
-
Optional accessories sold separately (e.g. misalignment strike plates, surface mount kits)
Main Features
-
Releases under up to 35 kg of pre-load or side-load (3-wire mode)
-
Durability tested to over 400,000 cycles
-
Operates on multi-voltage 11–30 VDC
-
Sleep mode current <15 mA, energy-efficient standby
-
Fully monitored: lock status sensor and reed switch door position monitoring
-
Up to 1000 kg static holding strength
-
4-hour fire rating compliant with AS1905.1:2015
-
Conforms to AS4145.2:1993 Security (S3) and Durability (D3)
-
Retrofit-compatible with Trimec/PADDE ES8000 via VE1260S
-
Backed by a 5-year mechanical and electronic warranty
Detailed Specifications
Specification |
Details |
Model |
VE1260 |
Mounting |
Mortice (vertical or horizontal) |
Function |
Power to Lock (PTL) / Power to Open (PTO), field changeable |
Voltage Input |
11–30 VDC |
Current Draw |
0.29–0.85 A during locking/unlocking (active), <15 mA in sleep mode |
Holding Strength |
Up to 1000 kg |
Pre-load Tolerance |
Up to 35 kg |
Monitoring |
Internal lock status sensor + door status reed switch |
Door Gap |
Max 2 mm (standard strike plate) |
Door Misalignment |
±12 mm (with optional strike plates) |
Operating Temp |
–20 °C to +60 °C |
Durability |
400,000 cycles (AS4145.2-2008 D7) |
Finish |
Satin Stainless Steel (SSS) |
Certifications |
CE, C-Tick, AS1905.1 fire compliant |
Warranty |
5 years (mechanical & electronic) |
Accessories (Sold Separately)
Part No. |
Description |
VE1260-FR |
Glass Door Box (includes adaptor) |
VE1260GL-DO12 |
±12 mm Misalignment Glass Mount Kit |
VE1260S-ST6 |
±6 mm Strike Plate (min. 35 mm door thickness) |
VE1260S-ST9 |
±9 mm Strike Plate (min. 40 mm door thickness) |
VE1260S-ST12 |
±12 mm Strike Plate (min. 50 mm door thickness) |
HL1260-SMK |
Surface Mount Kit for motorised hook lock |
Warranty Information
-
Mechanical Warranty: 5 Years
-
Electronic Warranty: 5 Years
All products are backed by Allegion, providing trusted support and service throughout Australia and New Zealand.
Brand Description
FSH is a division of Allegion, a global leader in security and access control. FSH specialises in high-performance electric locking solutions for commercial and government facilities. Their products are known for reliability, compliance with Australian standards, and engineering excellence.
SKU / Product Code
SKU / Model Code: VE1260
Practical Use Scenarios
-
Commercial Office Doors – Provides secure, high-cycle access control in high-traffic settings.
-
Fire-rated Emergency Exits – AS1905.1-compliant for up to 4 hours.
-
Glass Door Installations – Optional kits support glass mounting and door misalignments.
-
Retrofit Installations – Use VE1260S for drop-in replacement of Trimec/PADDE ES8000 locks.
-
High-Security Residential Access – Compact, monitored, and durable solution for smart homes.
Excellence for the Australian and New Zealand Market
-
AS1905.1 Fire Compliance: Certified for up to 4 hours on compliant fire doors.
-
Standards Certified: Fully conforms to AS4145.2:1993 S3 (Security) and D3 (Durability).
-
Retrofit Compatibility: VE1260S model designed to suit popular drop bolt formats used in ANZ region.
-
Energy Efficiency: Perfect for green building applications with sleep mode draw <15 mA.
-
Locally Supported: Allegion provides product, technical, and warranty support through Australian and New Zealand distribution channels.

Frequently Asked Questions (FAQs)
Q1: What is the holding strength of VE1260?
A1: The VE1260 offers up to 1000 kg of static holding strength.
Q2: Can the VE1260 release under door pressure or pre-load?
A2: Yes, the VE1260 is designed to release under up to 35 kg of pre-load or side-load in 3-wire mode.
Q3: Does VE1260 support both PTL and PTO functions?
A3: Yes, the VE1260 is field-selectable for either Power To Lock (PTL) or Power To Open (PTO) modes.
Q4: Is VE1260 fire rated?
A4: Yes, it is fire rated for up to 4 hours in accordance with AS1905.1:2015.
Q5: What is the sleep mode current draw of VE1260?
A5: After locking/unlocking, the VE1260 consumes less than 15 mA in sleep mode.
Q6: Can VE1260 be used to replace a Trimec ES8000?
A6: Yes, use the VE1260S version, which is retrofit-compatible with the PADDE/TRIMEC ES8000 footprint.
