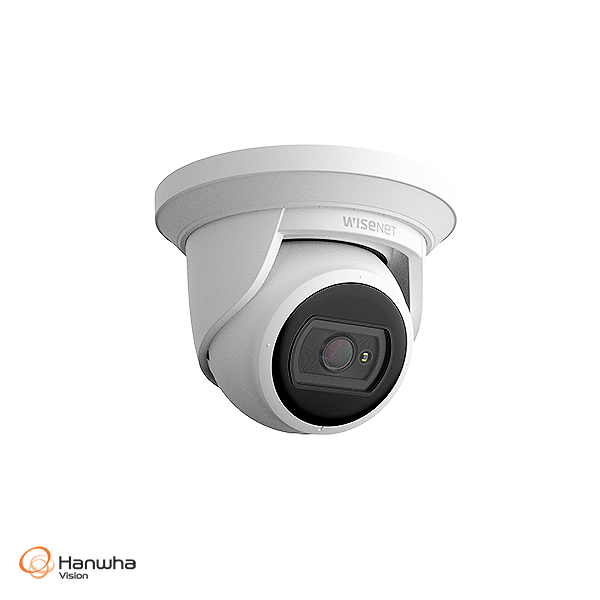

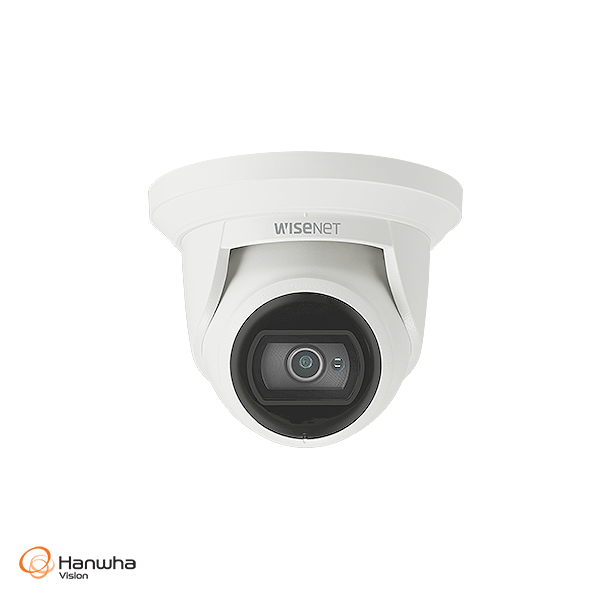

The Hanwha Vision A-Series HV-ANE-L7012R delivers high-performance surveillance in a super-compact flateye form factor, making it a perfect solution for discreet security in small to medium-sized sites such as retail, banking, and commercial applications.
With a 4MP 1/2.8" CMOS sensor and a fixed 3mm lens, this camera captures clear, detailed images with a wide 98.3° horizontal field of view. Its advanced low-light performance enables color imaging down to 0.13 Lux and seamless infrared monitoring in complete darkness up to 20 meters.
The HV-ANE-L7012R supports modern compression formats, including H.265, H.264, and MJPEG, coupled with WiseStream II technology to reduce bandwidth usage without compromising video quality. True Wide Dynamic Range (120dB) ensures balanced images even in scenes with challenging lighting contrasts.
Packed with intelligent analytics, this camera offers motion detection, tampering, defocus detection, and virtual line and area detection, enabling proactive monitoring and faster incident response. The rugged build, with IK10 vandal resistance and IP67 weather protection, guarantees reliable operation in demanding environments.
Compact, feature-rich, and NDAA-compliant, the HV-ANE-L7012R provides exceptional value and performance for modern security applications.
What's Included in the Box
Hanwha Vision HV-ANE-L7012R 4MP IR Flateye Camera
Mounting hardware
Quick installation guide
Warranty documentation
Main Features
4MP resolution (2560 x 1440) for high-definition video
Fixed 3mm lens providing 98.3° horizontal field of view
Excellent low-light performance down to 0.13 Lux in color
Infrared illumination up to 20 meters (65.62 ft)
True Wide Dynamic Range (120dB) for high-contrast environments
Advanced analytics: motion detection, tampering, defocus, virtual area and line detection
IPv4/IPv6, HTTP(S), SNMP, RTSP, ONVIF Profiles S/G/T, and more
Security
HTTPS, digest authentication, IP filtering, 802.1X
Operating Temperature
-30°C ~ +55°C (-22°F ~ +131°F)
Certifications
IP67, IK10, NDAA compliant
Power Consumption
Max. 7.5W, Typical 5.7W
Dimensions
Ø125.0 x 87.4mm (Ø4.92 x 3.44")
Weight
630g (1.39 lb)
Material/Color
White / Plastic & Aluminum (RAL9003)
Warranty Information
The Hanwha Vision HV-ANE-L7012R is backed by a 3-year manufacturer’s warranty, providing dependable support and peace of mind.
Brand Description
Hanwha Vision (formerly Hanwha Techwin) stands as a global leader in cutting-edge video surveillance technology. Trusted across government, commercial, and industrial sectors, Hanwha Vision combines exceptional imaging performance with advanced cybersecurity and intelligent analytics. With a reputation for reliability and innovation, Hanwha Vision solutions protect people and assets worldwide.
SKU
HV-ANE-L7012R
Practical Use Scenarios
Retail Security: Monitor sales floors, entrances, and checkout areas with discreet yet powerful video surveillance.
Banking & Finance: Enhance security in ATM zones, teller areas, and customer service spaces.
Commercial Buildings: Secure lobbies, corridors, and external perimeters with high-resolution detail.
Parking Lots & Facilities: Capture clear imagery even in low-light conditions to ensure safety and deter theft.
Warehouses & Industrial Sites: Oversee inventory zones, loading docks, and logistics areas for loss prevention.
Educational Institutions: Monitor hallways, entrances, and critical campus locations for student safety.
Excellence for the Australian and New Zealand Market
The Hanwha Vision HV-ANE-L7012R complies fully with RCM and AS/NZS standards, making it perfectly suited for installations across Australia and New Zealand. Its IP67 weather protection and IK10 vandal-resistant build ensure reliability in diverse ANZ conditions, from urban environments to outdoor industrial areas.
Hanwha Vision products supplied in the ANZ region are sourced through official distribution channels, guaranteeing authenticity and full warranty support. Customers benefit from localized assistance, ensuring smooth integration and service for Australian and New Zealand projects.
Engineered for durability and advanced functionality, the HV-ANE-L7012R delivers outstanding value for security applications throughout the ANZ market.
FAQs
Q1: What is the IR illumination distance of the Hanwha Vision HV-ANE-L7012R? (SKU: HV-ANE-L7012R) The HV-ANE-L7012R offers infrared illumination up to 20 meters (65.62 feet) for clear surveillance even in total darkness.
Q2: Is the Hanwha Vision HV-ANE-L7012R NDAA compliant? (SKU: HV-ANE-L7012R) Yes, the HV-ANE-L7012R is NDAA compliant, ensuring suitability for government and sensitive infrastructure projects.
Q3: What type of lens does the Hanwha Vision HV-ANE-L7012R use? (SKU: HV-ANE-L7012R) It features a fixed 3mm lens with a wide 98.3° horizontal field of view.
Q4: Does the Hanwha Vision HV-ANE-L7012R support local recording? (SKU: HV-ANE-L7012R) Yes, it supports microSD/SDHC/SDXC cards up to 128GB for edge storage and event recording.
Q5: Can the Hanwha Vision HV-ANE-L7012R withstand outdoor conditions? (SKU: HV-ANE-L7012R) Absolutely. Its IP67 weatherproofing and IK10 impact resistance make it ideal for outdoor and harsh environments.
