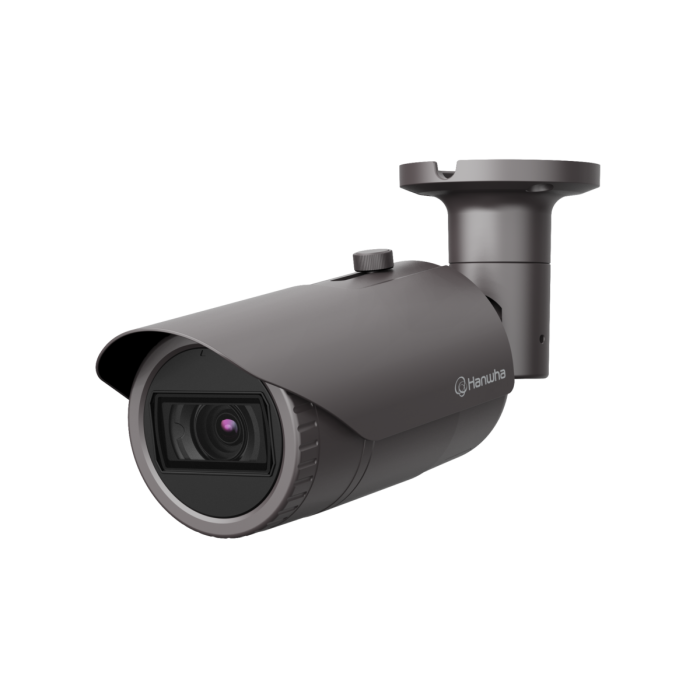

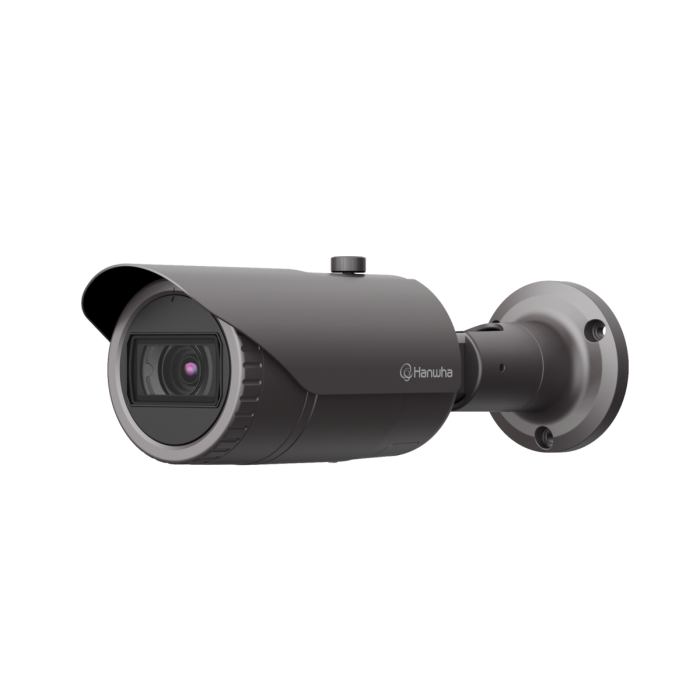

The Hanwha Vision HV-QNO-6082R 2MP H.265 IR Bullet Camera is a professional outdoor surveillance camera designed for clear Full HD security monitoring, flexible scene coverage and reliable day/night performance. Featuring 1920 x 1080 resolution, a 3.2–10mm motorised varifocal lens, 30m IR night vision, H.265/H.264/MJPEG streaming, WiseStream II, IP66 weather resistance, IK10 vandal resistance and PoE/12VDC power, the QNO-6082R is ideal for commercial, retail, warehouse, perimeter and building security applications.
The HV-QNO-6082R belongs to Hanwha Vision’s Q-Series and is designed for installations that need adjustable viewing angles without changing the camera body. Its 3.2–10mm motorised varifocal lens provides a wide-to-telephoto field of view, making it suitable for entrances, car parks, loading bays, corridors and general outdoor monitoring. Official specifications list a horizontal viewing angle of 109° to 33°, vertical viewing angle of 58° to 18° and diagonal viewing angle of 132° to 38°.
For efficient network video performance, the camera supports H.265, H.264 and MJPEG, multiple streaming, and WiseStream II smart codec technology. It also includes motion detection, tampering detection, defocus detection, virtual area events and virtual line analytics for practical security event monitoring.
What’s Included in the Box
- 1 x Hanwha Vision HV-QNO-6082R / QNO-6082R 2MP IR Bullet Camera
- Standard product documentation, depending on distributor package
- Mounting hardware may vary by supplier package
- Power supply, microSD card, network cable and optional mounting accessories are not confirmed as included unless specified by the seller
Main Features
-
2MP Full HD resolution up to 1920 x 1080
-
3.2–10mm motorised varifocal lens with 3.1x optical zoom
-
30m IR viewable range for night surveillance
-
Low-light performance: 0.03 lux colour; 0 lux with IR LED on
-
H.265, H.264 and MJPEG codec support
-
WiseStream II bandwidth-efficient streaming
-
Multiple streaming with up to 3 profiles
-
30fps/25fps at 2MP with WDR off
-
120dB WDR, BLC, SSDR and SSNR image enhancement
- Motion detection, tampering detection and defocus detection
- Virtual line and virtual area analytics
-
Hallway view 90°/270° and lens distortion correction support
- MicroSD/SDHC/SDXC storage up to 128GB
-
IP66 weather resistance, IK10 vandal resistance and NEMA 4X environmental rating
-
PoE IEEE 802.3af Class 3 or 12VDC power input
-
RCM AS/NZS CISPR 32 Class A listed in official certifications for Australia/New Zealand EMC compliance
Detailed Specifications
| Specification |
Details |
| Product Code / SKU |
HV-QNO-6082R |
| Manufacturer Model |
QNO-6082R |
| Brand |
Hanwha Vision, formerly Hanwha Techwin |
| Product Type |
2MP H.265 IR Bullet Camera |
| Camera Series |
Q-Series |
| Image Sensor |
1/2.8" CMOS |
| Maximum Resolution |
1920 x 1080 |
| Supported Resolutions |
1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Maximum Frame Rate |
H.265/H.264: 30fps/25fps at 60Hz/50Hz with WDR off; 15fps/12fps with WDR on |
| MJPEG Frame Rate |
Up to 15fps; maximum 4fps at 2MP |
| Minimum Illumination |
Colour: 0.03 lux; B/W: 0.003 lux in detailed specs; key features list 0 lux with IR LED on |
| Lens |
3.2–10mm motorised varifocal |
| Zoom Ratio |
3.1x optical |
| Aperture |
F1.6 wide to F2.9 tele |
| Field of View |
Horizontal 109°–33°, Vertical 58°–18°, Diagonal 132°–38° |
| Minimum Object Distance |
0.5m |
| Focus Control |
Simple focus, manual |
| Lens Type |
DC auto iris |
| Pan / Tilt / Rotate Range |
Pan 0°–360°, Tilt 0°–100°, Rotate 0°–360° |
| Day & Night |
Auto ICR |
| Wide Dynamic Range |
120dB |
| Backlight Compensation |
BLC, WDR, SSDR |
| Digital Noise Reduction |
SSNR |
| IR Viewable Length |
30m |
| IR Wavelength |
850nm |
| Video Compression |
H.265, H.264, MJPEG |
| Smart Codec |
WiseStream II |
| Streaming |
Unicast up to 6 users, multicast support, multiple streaming up to 3 profiles |
| Analytics Events |
Defocus detection, motion detection, tampering, virtual area intrusion/enter/exit, virtual line crossing/direction |
| Alarm Interface |
1 input, 1 output |
| Audio Input |
Selectable mic in / line in |
| Audio Compression |
G.711 u-law / G.726 selectable |
| Network Interface |
RJ-45 10/100BASE-T |
| API Support |
ONVIF Profile S/G/T, SUNAPI, Hanwha Vision Open Platform |
| Edge Storage |
MicroSD/SDHC/SDXC, maximum 128GB x 1 slot |
| Power Input |
PoE IEEE 802.3af Class 3, 12VDC |
| Power Consumption |
PoE max 7.4W, typical 5.4W; 12VDC max 6.5W, typical 4.8W |
| Operating Temperature |
-30°C to +55°C |
| Operating Humidity |
0–90% RH, non-condensing |
| Weather / Impact Rating |
IP66, IK10, NEMA 250 Type 4X |
| Colour |
Dark grey |
| Material |
Aluminium |
| Dimensions |
Ø78.0 x 259.8mm |
| Weight |
900g |
| Optional Accessories |
SBP-302PM pole mount, SBO-100B1 back box |
| Certifications / Standards |
FCC, ICES, CE/UKCA, VCCI, RCM AS/NZS CISPR 32 Class A, UL 60950-1, IEC 62471, IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 Type 4X |
Specifications are based on Hanwha Vision’s official product page and may vary by region, firmware version or distributor configuration.
Warranty Information
Warranty terms may vary depending on the authorised distributor, region and project supply agreement. For Australian and New Zealand customers, warranty support should be handled through the authorised supplier or Hanwha Vision representative channel. Please confirm the applicable warranty period and claim process at the time of purchase.
Brand Description
Hanwha Vision, formerly known as Hanwha Techwin, is a global video surveillance and vision solutions provider offering network cameras, recording platforms, analytics and security technologies for commercial, enterprise, public safety and infrastructure applications. Hanwha Vision’s official QNO-6082R product page identifies the company as formerly known as Hanwha Techwin.
SKU
HV-QNO-6082R
Practical Use Scenarios
The HV-QNO-6082R is suitable for professional indoor and outdoor surveillance installations requiring Full HD video, adjustable lens coverage and rugged environmental protection.
Ideal applications include:
- Commercial building entrances and exits
- Outdoor perimeters and fence lines
- Retail shopfronts and service areas
- Warehouses, loading bays and dispatch areas
- Car parks, driveways and access roads
- Schools, offices and public facilities
- Corridors using hallway view mode
- Locations requiring weather-resistant and impact-resistant bullet cameras
Datasheets & Downloadable Resources
Hanwha Vision lists downloadable resources for the QNO-6082R, including datasheets, manuals, CAD files, certification documents, brochures, A&E documents, quick guides, BIM/Revit files, online help, open-source licence files, installation guide sheets and firmware. The official product page lists the datasheet DataSheet_QNO-6082R_20250905_EN_194136.pdf and firmware files updated in May 2026.
Excellence for the Australian and New Zealand Market
The HV-QNO-6082R is a strong fit for Australian and New Zealand security projects requiring reliable outdoor surveillance, Full HD imaging, flexible varifocal adjustment and robust installation durability. Official specifications list RCM AS/NZS CISPR 32 Class A, supporting alignment with Australian and New Zealand EMC requirements for professional electronic equipment.
For best project outcomes, the HV-QNO-6082R should be sourced through authorised Hanwha Vision representatives or approved distribution channels. Warranty handling should be managed through the supplying distributor or direct communication with the brand’s authorised support network. No NDSS approval is listed in the verified product information for this camera, so it should not be advertised as NDSS-approved unless separate official documentation is supplied.
FAQs
What is the HV-QNO-6082R used for?
The HV-QNO-6082R is used for professional Full HD security monitoring in outdoor and indoor areas such as entrances, car parks, warehouses, loading bays, retail sites and commercial buildings.
What resolution does the HV-QNO-6082R support?
The HV-QNO-6082R supports up to 2MP Full HD resolution, with a maximum resolution of 1920 x 1080.
Does the HV-QNO-6082R have a varifocal lens?
Yes. The HV-QNO-6082R includes a 3.2–10mm motorised varifocal lens with 3.1x optical zoom, allowing installers to adjust the viewing angle to suit the site.
How far can the HV-QNO-6082R see at night?
The HV-QNO-6082R has a listed IR viewable length of 30m, making it suitable for night-time monitoring of entrances, driveways, perimeter areas and commercial spaces.
Does the HV-QNO-6082R support H.265?
Yes. The HV-QNO-6082R supports H.265, H.264 and MJPEG video compression, helping it integrate with modern IP surveillance systems.
Does the HV-QNO-6082R support WiseStream II?
Yes. The HV-QNO-6082R supports WiseStream II, which helps optimise bandwidth and storage usage.
Is the HV-QNO-6082R weatherproof?
The HV-QNO-6082R is rated IP66, making it suitable for outdoor use when installed correctly.
Is the HV-QNO-6082R vandal resistant?
Yes. The HV-QNO-6082R is rated IK10, providing impact resistance for exposed or higher-risk installation areas.
Does the HV-QNO-6082R support edge recording?
Yes. The HV-QNO-6082R supports MicroSD/SDHC/SDXC edge storage up to 128GB.
What power options does the HV-QNO-6082R support?
The HV-QNO-6082R supports PoE IEEE 802.3af Class 3 and 12VDC power input.
Does the HV-QNO-6082R support hallway view?
Yes. The HV-QNO-6082R supports hallway view at 90°/270°, making it useful for corridors and narrow vertical scenes.
Is the HV-QNO-6082R suitable for Australian and New Zealand installations?
Yes. The HV-QNO-6082R is suitable for professional Australian and New Zealand installations when sourced through authorised channels, and official specifications list **RCM AS/NZS CISPR 32
