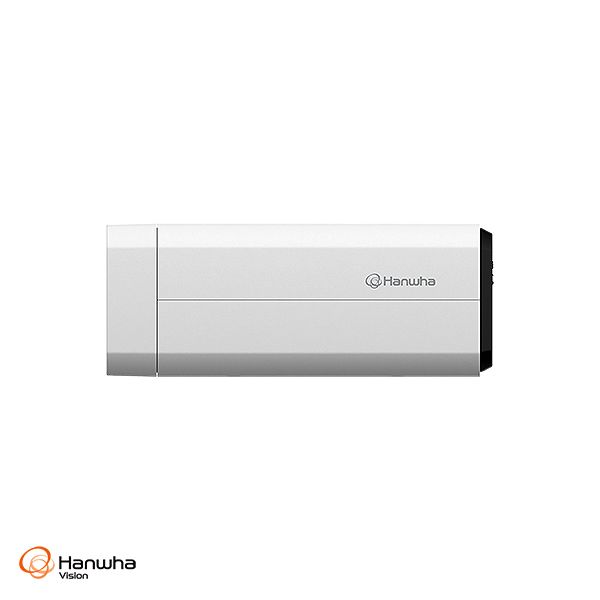

The Hanwha Vision TNM-C3620TDR is a state-of-the-art Bi-Spectrum AI Thermal Camera, designed for precision thermal and visual monitoring in indoor environments. Featuring a powerful 2MP visible CMOS sensor combined with a QVGA thermal imager, this compact bullet camera excels in real-time temperature detection and AI-powered object classification. Ideal for security and safety applications, the TNM-C3620TDR provides detailed thermal imaging and temperature analytics across multiple ROI zones, delivering proactive surveillance capabilities with superior accuracy.
What’s Included
Key Features
-
Bi-Spectrum Monitoring: Combines 2MP visible camera with QVGA thermal sensor for integrated imaging.
-
AI-Powered Detection: Intelligent person and face detection via visible channel.
-
Remote Temperature Monitoring: Detects temperatures from -20°C to +130°C.
-
Multiple ROI Support: Up to 6 quadrangle zones for targeted temperature analytics.
-
Compact Indoor Design: Lightweight aluminum build optimized for interior installations.
-
Advanced WDR: 150dB extremeWDR with multiple backlight and noise reduction technologies.
-
Versatile Mounting: Compatible with SBP-142CMW (ceiling) and SBP-142WMW (wall) mounts.
-
High-Security Architecture: Features FIPS 140-2 level 2 TPM and HTTPS-based secure access.
Detailed Specifications
-
Visible Sensor: 2MP 1/2.8" CMOS, 1920x1080 max resolution
-
Thermal Sensor: Uncooled microbolometer, 320x240
-
Lens: 4mm (visible), 4.7mm (thermal), fixed focus
-
Field of View: Up to 104.5° (visible), 65.3° (thermal)
-
Minimum Illumination: 0.05 lux (Color), 0.005 lux (B/W)
-
Video Compression: H.265, H.264, MJPEG; Multi-streaming
-
Audio Support: In (mic/line), Out (line)
-
Alarm I/O: 1 input / 2 output
-
Network Interface: RJ-45 (10/100BASE-T), ONVIF S/T/M compliant
-
Power: PoE+ or 12V DC, max 17.0W
-
Certifications: UL/CSA 62368-1, KC, EMC Class A, VCCI
-
Operating Conditions: -10°C to +55°C, <95% RH
Warranty
Brand Information
Hanwha Vision (formerly Hanwha Techwin) is a leading provider of innovative video surveillance solutions, known for delivering high-performance imaging technologies and reliable security infrastructure.
SKU
HV-TNM-C3620TDR
Practical Use Scenarios
-
Commercial Building Monitoring: Detect human presence and temperature anomalies.
-
Data Centers: Monitor thermal zones to preempt overheating risks.
-
Healthcare Facilities: Screen for elevated body temperatures at entries.
-
Laboratories: Secure sensitive environments with thermal and visual coverage.
-
Retail: Enhance in-store safety with AI-based person tracking.
Datasheets or Downloadable Resources
Excellence for the Australian and New Zealand Market
The Hanwha Vision TNM-C3620TDR is optimized for indoor surveillance environments in Australia and New Zealand. It adheres to strict international safety and performance standards including EMC and safety certifications applicable within the region. Distributed exclusively via authorized Hanwha Vision partners, this product includes warranty coverage managed directly through the brand’s approved service channels. The design meets the expectations of advanced monitoring solutions required across commercial and government applications in the ANZ region.
FAQs – TNM-C3620TDR
Q: Does the TNM-C3620TDR support remote temperature monitoring?
A: Yes, the TNM-C3620TDR supports remote monitoring in the -20°C to +130°C range. [SKU: HV-TNM-C3620TDR]
Q: What is the resolution of the visible and thermal channels?
A: The visible channel is 2MP (1920x1080) and the thermal sensor offers QVGA resolution (320x240). [SKU: HV-TNM-C3620TDR]
Q: Is the camera AI-capable for object detection?
A: Yes, AI object classification (person/face) is available on the visible channel. [SKU: HV-TNM-C3620TDR]
Q: What power options are available for this camera?
A: It supports both PoE+ (IEEE802.3at) and 12V DC power inputs. [SKU: HV-TNM-C3620TDR]
Q: Can this camera be used outdoors?
A: No, the TNM-C3620TDR is designed specifically for indoor applications. [SKU: HV-TNM-C3620TDR]
