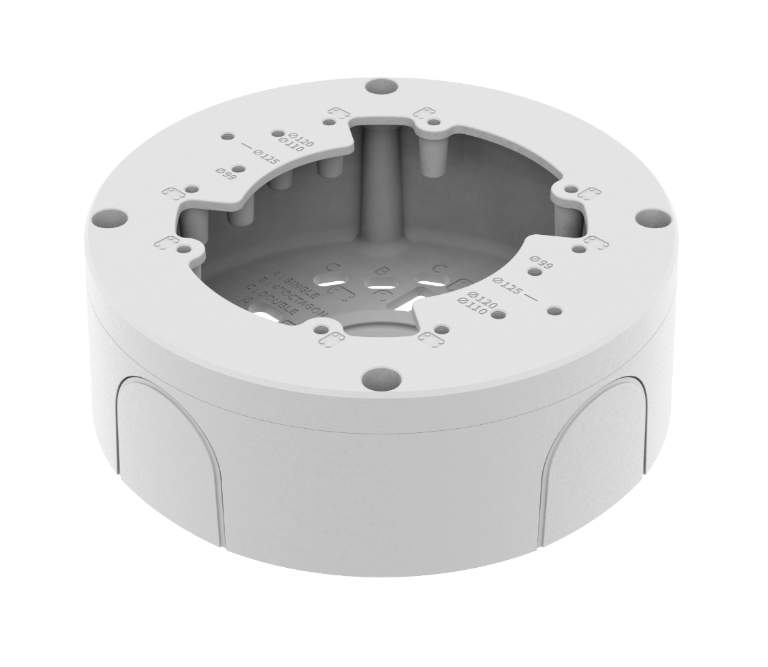

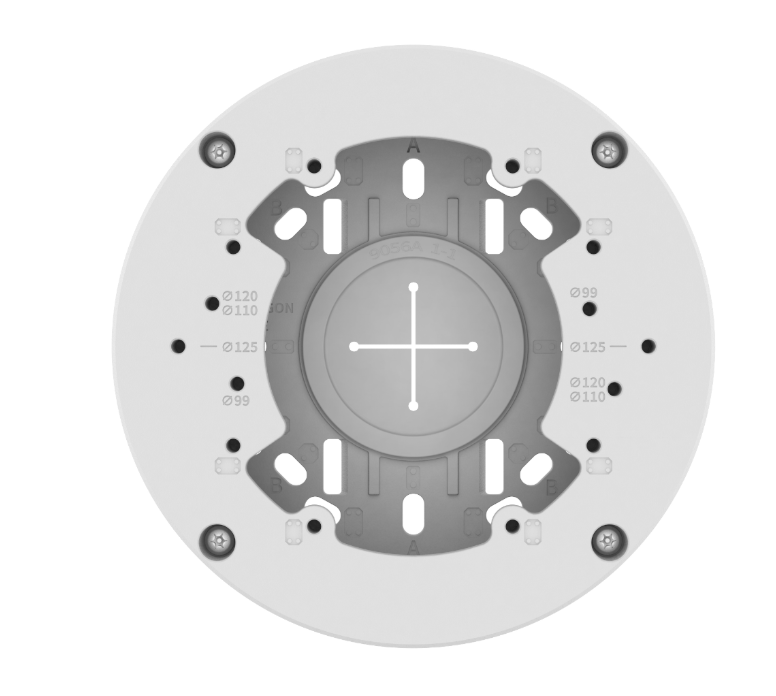

The Hanwha Vision Wisenet SBV-140BW Back Box (SKU: HV-SBV-140BW) is a durable white aluminium mounting accessory designed for compatible Hanwha Vision dome security cameras. Featuring a compact Ø143 × 50.8 mm construction, TR20 mounting screw interface and provision for M25 conduit, the SBV-140BW provides a professional mounting solution for compatible Wisenet and Hanwha Vision surveillance installations.
Designed to support neat, secure camera installations, the SBV-140BW provides additional space behind compatible dome cameras for routing and managing cabling. Its aluminium construction, RAL9003 white finish and 5 kg maximum supported load make it suitable for professional CCTV and IP surveillance projects where a purpose-designed mounting accessory is required.
The SBV-140BW supports a broad selection of Hanwha Vision camera models, including selected ANE, QND, QNE and QNV series cameras. Camera compatibility should always be checked against the specific camera model and current Hanwha Vision installation documentation before installation.
Main Features
-
Genuine Hanwha Vision / Wisenet dome camera back box
-
Manufacturer model: SBV-140BW
-
Store SKU: HV-SBV-140BW
-
White RAL9003 finish
-
Durable aluminium construction
-
Compact Ø143 × 50.8 mm design
-
Weight: 450 g
-
TR20 mount screw size
-
Maximum supported load: 5 kg
-
19.1 mm / 3/4-inch conduit opening
-
Compatible with M25 conduit
-
Designed for compatible Hanwha Vision dome surveillance cameras
-
Provides a professional solution for camera mounting and cable management
Detailed Specifications
| Specification |
Details |
| Brand |
Hanwha Vision / Wisenet |
| Product Type |
Dome Camera Back Box |
| Manufacturer Model |
SBV-140BW |
| SKU |
HV-SBV-140BW |
| Colour |
White |
| RAL Colour Code |
RAL9003 |
| Material |
Aluminium |
| Dimensions |
Ø143 × 50.8 mm |
| Weight |
450 g |
| Mount Screw Size |
TR20 |
| Maximum Load |
5 kg |
| Conduit Hole |
19.1 mm / 3/4 inch |
| Compatible Conduit |
M25 |
| Application |
Mounting compatible Hanwha Vision dome cameras |
Applicable Camera Models
The supplied compatibility information includes:
-
ANE-L6012R
-
ANE-L7012L
-
ANE-L7012R
-
QND-6011
-
QND-6021
-
QND-8011
-
QND-8021
-
QNE-8011R
-
QNE-8021R
-
QNE-C8013RL
-
QNE-C9013RL
-
QND-6012R
-
QND-6022R
-
QND-6082R
-
QND-7012R
-
QND-7022R
-
QND-7032R
-
QND-7082R
-
QNV-C8011R
-
QNV-C8012
-
QNV-C8083R
-
QNV-C9011R
-
QNV-C9083R
Hanwha Vision's current SBV-140BW documentation specifically identifies QNV-C8011R, QNV-C8012, QNV-C8083R, QNV-C9011R and QNV-C9083R and recommends checking its website or installation tools for additional compatible models. Compatibility with other models listed above should be confirmed for the specific installation.
What's Included in the Box
Any camera, conduit, mounting surface hardware or other installation accessories are not included.
Practical Use Scenarios
The HV-SBV-140BW / SBV-140BW is suited to professional CCTV installations where a compatible Hanwha Vision dome camera requires a dedicated mounting back box.
Typical applications include commercial buildings, retail environments, warehouses, offices, schools, apartment complexes and other professional video surveillance installations. The back box can help provide additional installation space for cable routing while maintaining a clean and coordinated appearance with compatible white Hanwha Vision cameras.
Warranty Information
2-year warranty coverage
Brand Description
Hanwha Vision, formerly known as Hanwha Techwin, develops professional video surveillance and security solutions for commercial, enterprise and specialist applications. Its portfolio includes network cameras, recording systems, video management solutions and installation accessories engineered to work together within professional surveillance environments.
Excellence for the Australian and New Zealand Market
The Hanwha Vision SBV-140BW is well suited to professional Australian and New Zealand security installations using compatible Hanwha Vision camera systems. Its purpose-built aluminium construction, cable-management provision and compatibility with a range of dome cameras make it a practical installation accessory for integrators and security professionals.
Where regulatory compliance is required, certification should be assessed at the complete camera/system level. Compatible Hanwha Vision camera models may carry relevant Australian/New Zealand compliance such as RCM where specified by their manufacturer documentation; this should not be interpreted as a separate RCM certification for the passive SBV-140BW back box itself.
NDSS approval is not applicable to this product, as NDSS relates to diabetes products and services rather than CCTV mounting hardware.
For warranty and product support in Australia or New Zealand, purchasers should use an authorised sales channel and confirm the applicable regional Hanwha Vision warranty and support process.
FAQs
What is the HV-SBV-140BW Hanwha Vision back box used for?
The HV-SBV-140BW is a mounting back box for compatible Hanwha Vision and Wisenet dome security cameras. It provides a purpose-designed mounting interface and additional space for organising camera cabling during installation.
Which cameras are compatible with the HV-SBV-140BW?
The HV-SBV-140BW is compatible with selected Hanwha Vision ANE, QND, QNE and QNV series cameras, including QNV-C8011R, QNV-C8012, QNV-C8083R, QNV-C9011R and QNV-C9083R. Compatibility should be confirmed against the exact camera model before installation.
What material is the HV-SBV-140BW manufactured from?
The HV-SBV-140BW is manufactured from aluminium and finished in white with a RAL9003 colour specification.
What are the dimensions of the HV-SBV-140BW?
The HV-SBV-140BW measures approximately Ø143 × 50.8 mm, providing a compact mounting solution for compatible Hanwha Vision dome cameras.
How much does the HV-SBV-140BW weigh?
The HV-SBV-140BW has a manufacturer-specified weight of approximately 450 g.
What mounting screw size does the HV-SBV-140BW use?
The HV-SBV-140BW uses a TR20 mount screw size, according to Hanwha Vision's published specifications.
Does the HV-SBV-140BW support conduit installation?
Yes. The HV-SBV-140BW has a 19.1 mm / 3/4-inch conduit hole designed for M25 conduit, helping installers route cabling into the back box.
What is the maximum load of the HV-SBV-140BW?
The HV-SBV-140BW has a manufacturer-specified maximum load capacity of 5 kg.
Is the HV-SBV-140BW suitable for Australian security camera installations?
The HV-SBV-140BW can be used in Australian installations when paired with a compatible Hanwha Vision camera and installed in accordance with the manufacturer's instructions and applicable installation requirements.
Is the HV-SBV-140BW the same as the SBV-140BW?
Yes. HV-SBV-140BW is the supplied store SKU, while SBV-140BW is the Hanwha Vision manufacturer model number for the back box.
