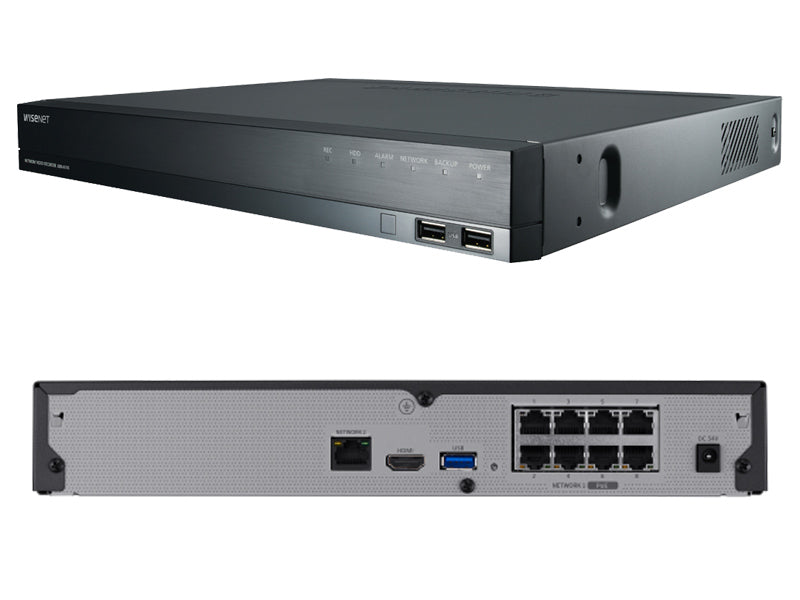

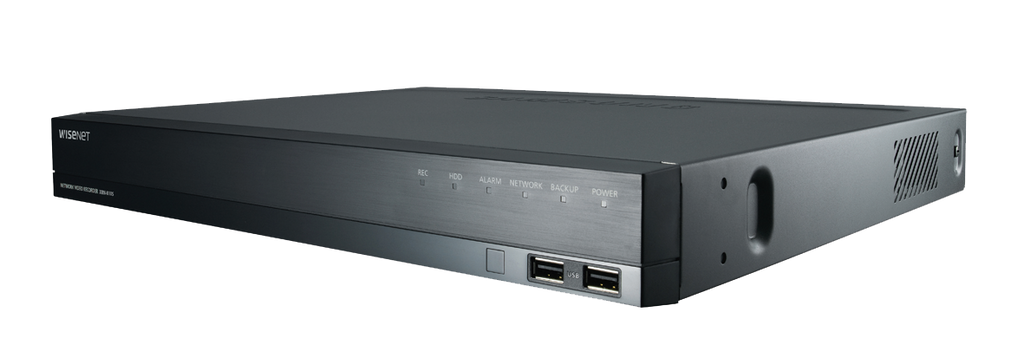

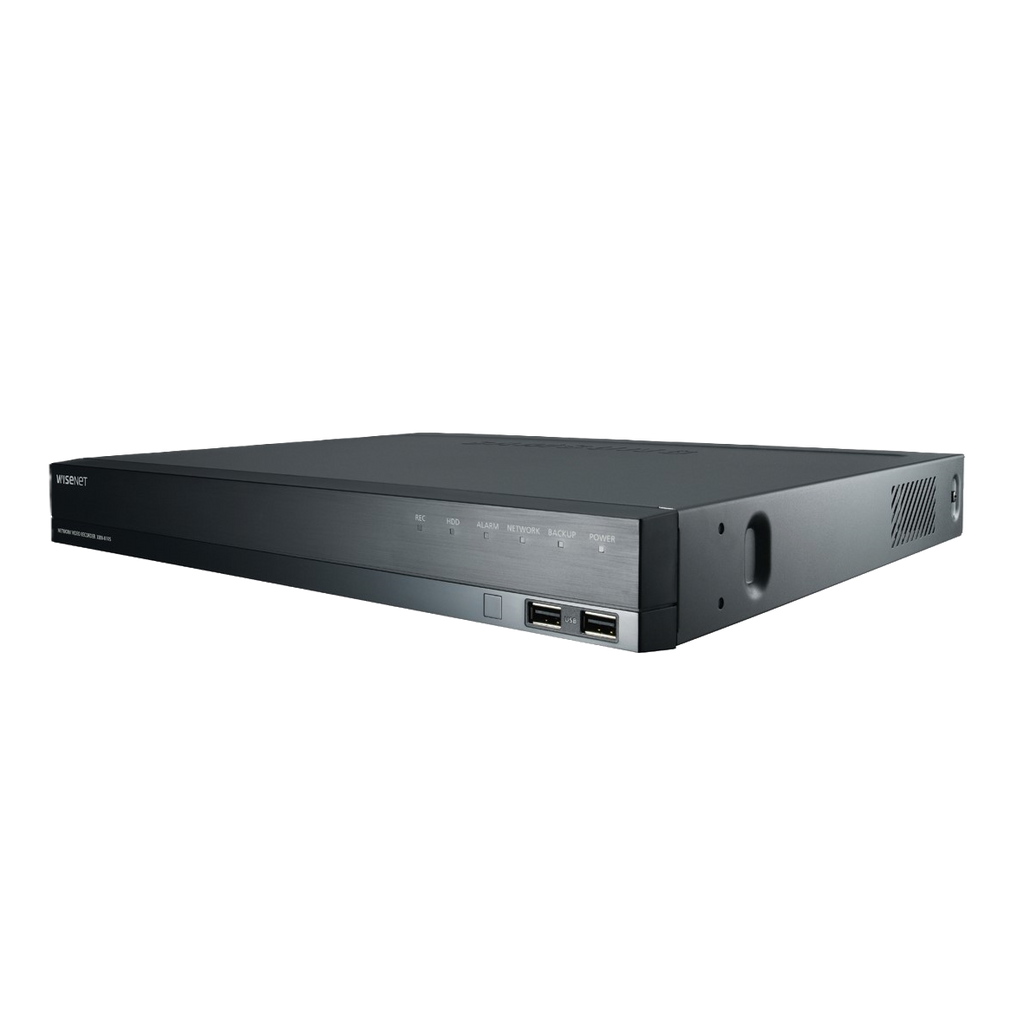

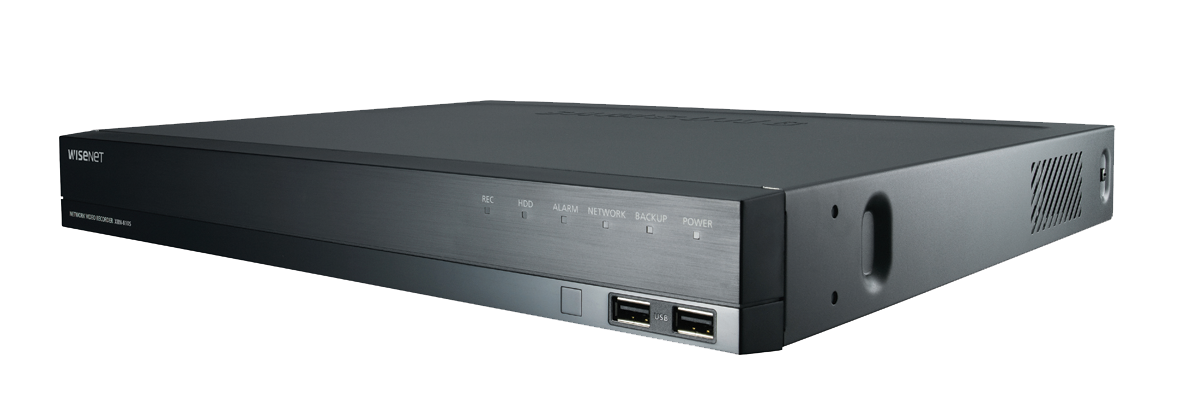

The Hanwha Vision Wisenet XRN-820S is a high-performance 8-channel Network Video Recorder (NVR) designed to deliver professional-grade surveillance for small to medium-sized security systems. Featuring support for up to 32MP resolution cameras, this robust NVR ensures clear, detailed footage with H.265, H.264, and MJPEG codec compatibility. Ideal for users seeking seamless integration and intelligent monitoring, the XRN-820S supports AI search capabilities when paired with Wisenet AI cameras.

With dual monitor output via HDMI and VGA, powerful 120Mbps recording bandwidth, and user-friendly UI/UX, the XRN-820S offers flexibility and intuitive control. Built-in Plug & Play PoE (8 ports) streamlines installation, while robust event management and bookmark features simplify incident review. Supporting two SATA drives (up to 12TB), RAID-1 redundancy, and failover capabilities, this NVR is purpose-built for reliable, uninterrupted performance.

What’s in the Box

• 1x Hanwha Vision XRN-820S 8CH NVR

• 1x Power Cable

• 1x Mouse

• 1x Quick Installation Guide

• Rack Mount Brackets & Screws

Main Features

• 8-Channel NVR with support for up to 32MP cameras

• AI Search compatibility with Wisenet AI cameras

• 8x PoE+ ports for simplified Plug & Play setup

• Supports H.265, H.264, MJPEG compression

• HDMI (4K) and VGA (FHD) dual display output

• 120Mbps max recording & network transmission bandwidth

• 2x SATA HDD slots supporting up to 12TB total storage

• RAID-1 support for storage redundancy

• Dynamic Event support – auto updates for new camera events

• Bookmark management for fast access to important footage

• Secure with 802.1x, IP filtering, signed firmware & device certificate

• Remote access via Wisenet Mobile, WAVE, SSM, Webviewer

• Multilingual support (20+ languages)

Detailed Specifications

Camera & Video Input:

• Max Channels: 8

• Resolution Support: 32MP ~ CIF

• Protocols: SUNAPI, ONVIF

Video Output:

• HDMI: 3840x2160 @30Hz

• VGA: 1920x1080 @60Hz

• Display Modes: Clone, Expand, Virtual Channel, Multi-Screen

Recording:

• Compression: H.265, H.264, MJPEG

• Recording Modes: Continuous, Event, Schedule, Dual Stream

• Bookmark: Up to 100 entries

Storage:

• Drive Bays: 2x SATA

• Max Capacity: 12TB (6TB per drive)

• RAID: RAID-1

Networking:

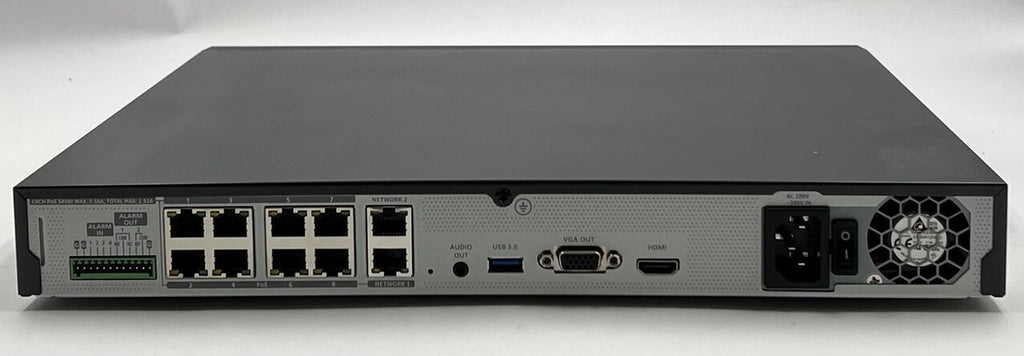

• Ethernet Ports: 2x RJ-45 (1Gbps), 8x PoE+ (LAN 10/100)

• Transmission Bandwidth: Max 120Mbps

• Protocols: IPv4/6, TCP/IP, RTSP, HTTPS, UPnP, etc.

• Remote Access: Up to 10 Live Viewers, 3 Search Users

Audio:

• Input/Output: 8CH IP Audio, 1x 3.5mm Audio Jack Out

• Compression: G.711, G.726, AAC

Control & Interface:

• USB: 2x USB 2.0 (Front), 1x USB 3.0 (Rear)

• Alarm I/O: 4 In, 2 Out

• PTZ Support: 300 Presets via GUI/Web/SPC-2000

• Remote Monitoring: iOS/Android App Support

System & Environment:

• Operating System: Embedded Linux

• Power: 100–240VAC ±10%, Max 160W, PoE Budget 100W

• Dimensions: 370 × 50.7 × 324.3 mm

• Weight: 2.7 kg

• Operating Temperature: 0°C to +40°C

• Humidity: 20%–85% RH

Warranty Information

• 3-Year Manufacturer’s Warranty

• Full support and warranty claims managed via authorized Australian distributor channels

Brand Information

Hanwha Vision, formerly known as Hanwha Techwin, is a leading global provider of innovative video surveillance solutions. With a reputation for reliability, cutting-edge AI integration, and robust cybersecurity, Hanwha Vision products are trusted by governments, businesses, and institutions worldwide.

SKU: XRN-820S

Practical Use Scenarios

• Retail Stores & Small Businesses: Monitor customer activity, deter theft, and analyze foot traffic.

• Corporate Offices: Secure premises with high-resolution AI-assisted surveillance.

• Educational Institutions: Enhance campus security with easy event-based video review.

• Warehouses: Protect assets and monitor logistics operations with high-bandwidth recording.

• Hospitality Venues: Ensure guest safety with multi-channel HD monitoring and remote access.

Datasheets & Downloads

• Hanwha Vision XRN-820S

Excellence for the Australian and New Zealand Market

The Hanwha Vision XRN-820S is fully optimized for compliance with Australian and New Zealand market standards. Featuring local PoE compatibility, NDSS and ONVIF conformance, and region-specific voltage and power design, it ensures seamless deployment across A/NZ environments. Units are exclusively sourced via authorized Hanwha distributors, and all warranty and service issues are handled through direct coordination with Hanwha Vision – ensuring reliable after-sales support and peace of mind for Australian and New Zealand customers.

Frequently Asked Questions (FAQs) – XRN-820S

Q1: Can the XRN-820S record from 4K or 32MP cameras simultaneously? (XRN-820S)
Yes, the XRN-820S supports up to 8 channels of video input with resolutions as high as 32MP, depending on the camera and codec used.

Q2: Does the XRN-820S support AI-powered search? (XRN-820S)
Absolutely. When connected with Hanwha Wisenet AI cameras, the XRN-820S enables intelligent object-attribute-based AI search functionality.

Q3: Is the XRN-820S compatible with third-party cameras? (XRN-820S)
Yes, the NVR is ONVIF-compliant and supports third-party integrations via ONVIF Profile-S and SUNAPI protocols.

Q4: Can I access the XRN-820S remotely via smartphone? (XRN-820S)
Yes, you can use the Wisenet Mobile app on iOS and Android devices to view live feeds, playback footage, and receive event notifications remotely.

Q5: What backup options are available with the XRN-820S? (XRN-820S)
The unit supports backup to USB in BU/Exe/AVI formats via GUI, or JPG/AVI via network, ensuring flexible export options.
