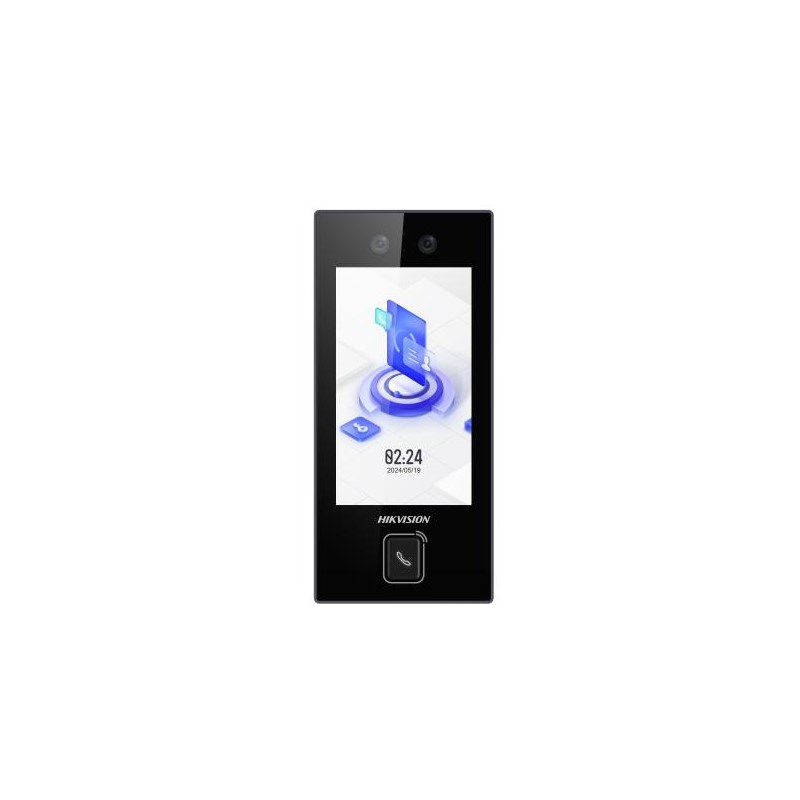

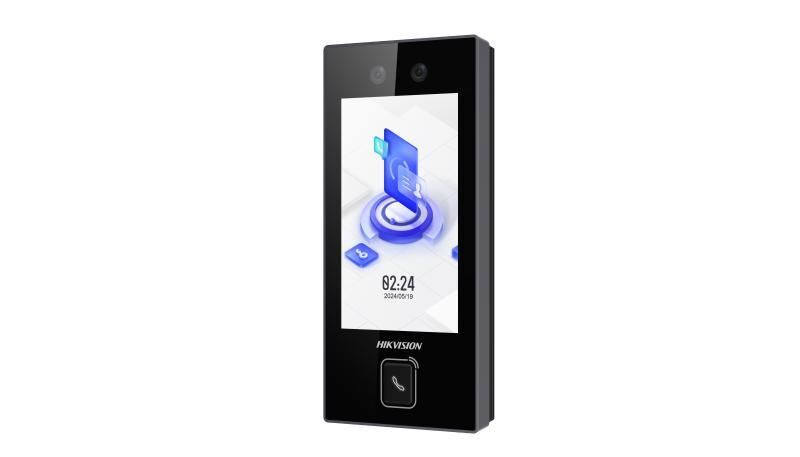

The HIKVISION 4.5″ Touchscreen Face Recognition Access Terminal (DS‑K1T344MBWX‑E1) is a high-performance biometric access control solution designed for secure, convenient, and scalable identity authentication in buildings, enterprises, financial institutions, and other critical facilities. With deep-learning face recognition, a wide-angle 2 MP dual-lens camera, and support for multiple authentication modes (face, card & PIN), this terminal delivers rapid (≤ 0.2 s per user), highly accurate (≥ 99%) and contactless entry — ideal for access control, time attendance, and visitor management applications.

What’s Included in the Box

• HIKVISION DS‑K1T344MBWX‑E1 Face Recognition Terminal

• Wall‑mounting bracket & screws

• Quick Start Guide / Installation Manual

• Power / PoE connector (if required)

• Warranty documentation

Main Features

• 4.5″ capacitive touchscreen LCD — intuitive, user-friendly interface with 480 × 854 resolution

• Dual 2 MP wide-angle lens camera — enables broad face detection range, suitable even for multiple angles

• Fast, accurate face recognition — recognition time < 0.2 s per user, accuracy ≥ 99%, working distance 0.3–1.5 m

• Large capacity storage — up to 3,000 faces, 3,000 cards, and 150,000 event logs

• Multiple authentication modes — supports face, M1 card, PIN, and QR code recognition

• Two-way audio communication — integrates with indoor station or main station and client software for intercom or door-entry dialogue

• Flexible power & networking — supports 12 VDC or standard PoE (IEEE 802.3at), plus powering for door lock

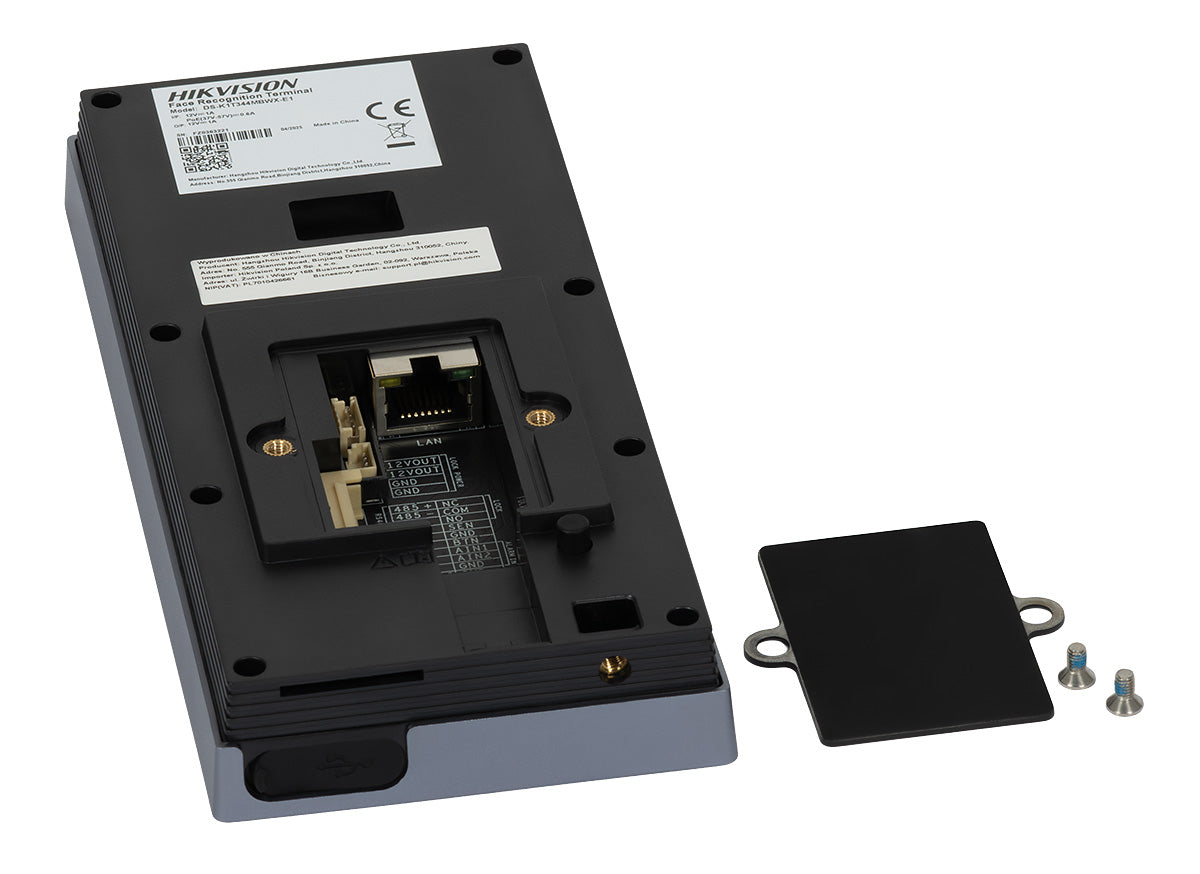

• Comprehensive interface support — includes alarm input/output, RS‑485, Wiegand input (single direction), door control, exit button input, tamper detection, USB, and standard network interface

• Rugged, weather-resistant build — IP65-rated metal housing, operational temperature range −30 °C to 60 °C, humidity 10–90% (non-condensing)

• Multi-language support — suitable for diverse environments (English, Spanish, Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese, Turkish, French, etc.)

Detailed Specifications

Warranty Information

• Standard manufacturer warranty applies (refer to the reseller/distributor documentation for specific terms).

• Device is sold by authorised distributors/resellers; warranty support provided via the brand’s representative network.

Brand Description

HIKVISION is a globally recognized leader in video surveillance and security solutions, offering a comprehensive range of access control, video intercom, and biometric authentication products. Their “MinMoe” Face Recognition Terminals deliver reliable, efficient, and secure authentication solutions for residential, commercial, and enterprise environments.

Datasheet

SKU

DS-K1T344MBWX-E1

Practical Use Scenarios

• Office Buildings & Corporate Facilities — secure and swift employee access, time & attendance logging, preventing unauthorized entry

• Residential & Apartment Complexes — secure entry for residents and authorised visitors with minimal hardware and easy configuration

• Financial Institutions & High-Security Areas — high-accuracy, anti-spoofing biometric authentication for sensitive areas

• Industrial Sites & Warehouses — durable IP65-rated terminal for varied environmental conditions; robust access control for staff

• Schools, Campus & Institutions — manage controlled entry and attendance for staff and students with minimal contact

Compatibility & Integration

• Supports standard networking protocols (TCP/IP, RS‑485, Wiegand) for integration with access control systems

• Can operate as a standalone terminal or integrate with broader door control, video intercom, and building security systems

• Configuration via web (PC) or mobile web; compatible with commonly used management platforms

Excellence for the Australian and New Zealand Market

This HIKVISION terminal is fully compatible with Australian and New Zealand building infrastructure. Its robust IP65-rated housing ensures resilience under harsh weather conditions, while PoE support enables simple, efficient installation. This model is sourced exclusively through authorised brand representatives, ensuring full compliance with local quality standards. Warranty and post-sale service are handled directly via the brand’s regional support network, offering peace of mind for professional installers and end users alike.

FAQs

Q: What is the face storage capacity of DS‑K1T344MBWX‑E1?
A: The DS‑K1T344MBWX‑E1 supports up to 3,000 face templates.

Q: Does DS‑K1T344MBWX‑E1 support card‑based authentication?
A: Yes — it includes a built‑in M1 card reader and supports up to 3,000 cards.

Q: What is the recognition speed and distance for DS‑K1T344MBWX‑E1 face authentication?
A: Recognition takes less than 0.2 s per user at a distance between 0.3 and 1.5 metres.

Q: Can DS‑K1T344MBWX‑E1 power a door lock directly with PoE?
A: Yes — the unit supports PoE (IEEE 802.3at) and can supply power for a door lock (12 V DC, 1 A).

Q: Is DS‑K1T344MBWX‑E1 suitable for outdoor installation?
A: Yes — the terminal is IP65‑rated, metal-housed, and designed for wall‑mount installation, capable of withstanding a wide temperature and humidity range.
