The Hikvision HIK-2CD2T862H2I2 is a high-performance outdoor surveillance camera designed for ultra-clear imaging and intelligent detection. It features an 8MP CMOS sensor delivering 3840 x 2160 resolution, ideal for capturing fine details in large outdoor areas.
This model is ideal for perimeter protection, car parks, warehouses, and other expansive outdoor settings where high-resolution and smart analytics are essential.
What’s Included in the Box:
-

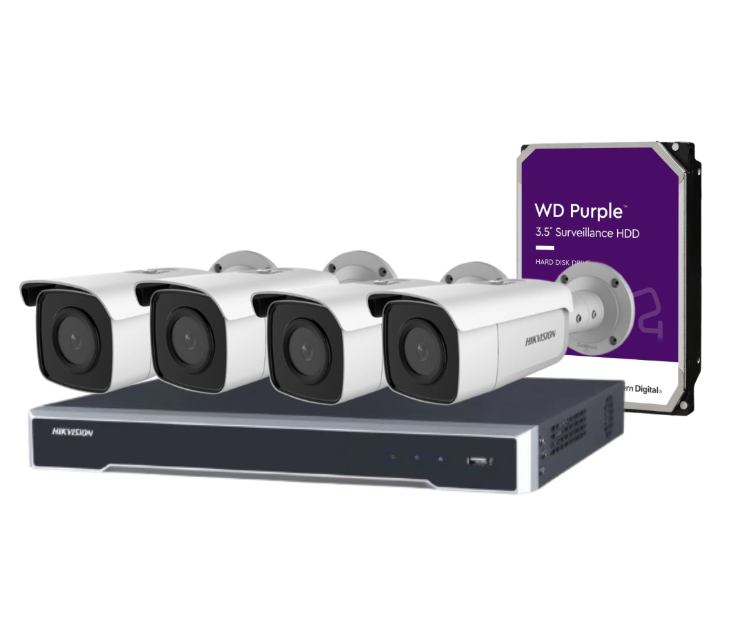

4 × Hikvision DS-2CD2T86G2H-2I
-

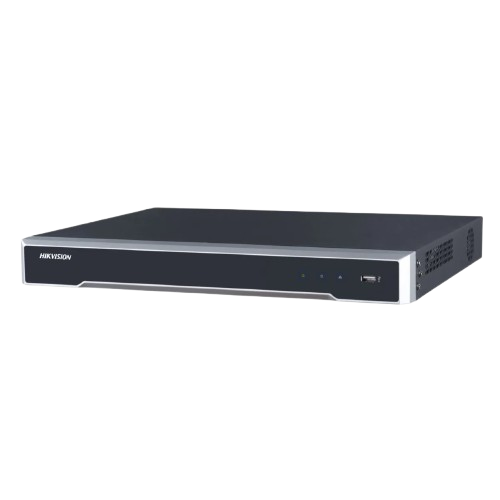

1 × Hikvision DS-7604NI-M1/4P 4-Channel PoE NVR with HDMI/VGA Output
-
1 × HDD for Video Storage (Choose your HDD below)
-
1 × Power Adapter and Accessories
-
1 × Quick Start Guide & Documentation
Key Features:
- High quality imaging with 8MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification based on deep learning
- Water and dust resistant (IP67)
Technical Specifications:

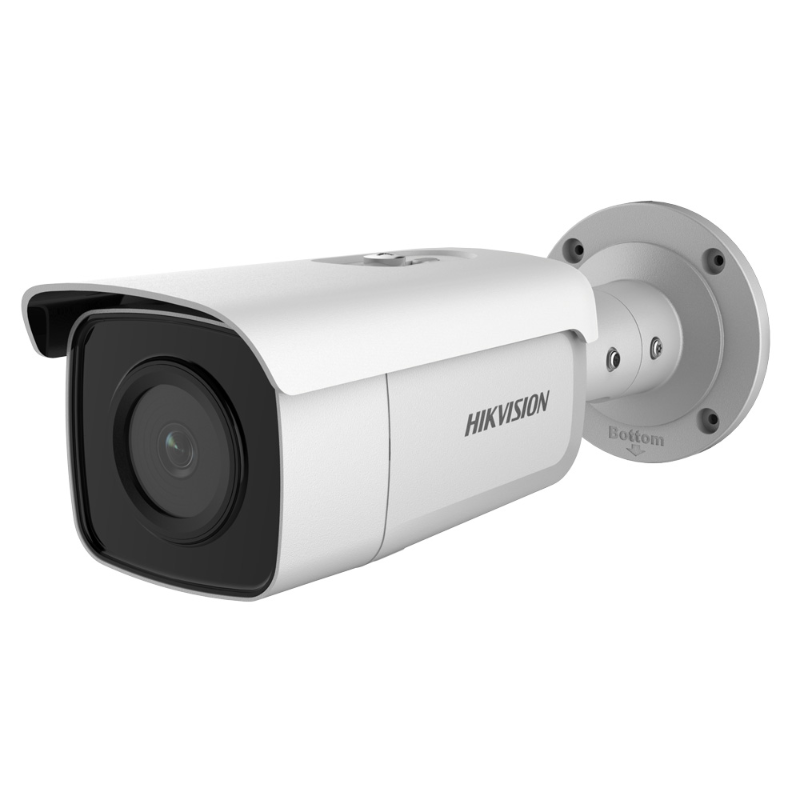

Camera (DS-2CD2T86G2H-2I ):
-
-
Image Sensor1/1.8" Progressive Scan CMOS
-
Max. Resolution3840 × 2160
-
Min. IlluminationColor: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
-
Shutter Time1/3 s to 1/100,000 s
-
Day & NightIR cut filter
-
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360
NVR (DS-7604NI-M1/4P):
-
Video Input: 4 IP Channels
-
Decoding: Up to 4-ch @ 8MP, 8-ch @ 4MP
-
Recording Resolution: Up to 32MP
-
Outputs: HDMI (8K), VGA (1080p)
-
Bandwidth: 40 Mbps Incoming, 80 Mbps Outgoing
-
Storage: 1 SATA Bay, Up to 16TB Capacity
-
PoE: 4 × Ports (IEEE 802.3af/at)
-
Smart Analytics: Motion detection, video tampering, scene change, VCA
-
Remote Viewing: Via Hik-Connect, browser, or client software
-
Lens TypeFixed focal lens, 2.8 and 4 mm optional
-
Focal Length & FOV
2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°
4 mm, horizontal FOV 90.0°, vertical FOV 45.8°, diagonal FOV 109.4°
Warranty Information:
This product comes with a 3-Year Manufacturer Warranty covering the NVR, cameras, and included hard drive. Service and support are managed locally via Hikvision-certified Australian distributors.
Brand Overview:
Hikvision is a global leader in cutting-edge video surveillance technology, offering intelligent and scalable security systems for residential, commercial, and industrial applications. Known for its advanced analytics, robust hardware, and trusted global presence, Hikvision is the preferred choice for professionals seeking long-term security performance.
SKU: HIK-2CD2T862H2I2-4CH-KIT
Practical Use Scenarios:
-
Retail Stores – Monitor entrances, cash registers, and aisles with high-clarity footage
-
Office Buildings – Secure entry points, parking, and lobbies with real-time notifications
-
Homes & Apartments – Guard driveways, backyards, and entrances with smart alerts
-
Warehouses – Oversee loading docks, perimeter fencing, and inventory zones
-
Educational Facilities – Protect school grounds, hallways, and playgrounds
Datasheets and Downloadable Resources:
Excellence for the Australian and New Zealand Market:
-
✅ RCM and CE Certified – Compliant with AU/NZ electrical and security standards
-
✅ AcuSense & DarkFighter Optimized – Ideal for local lighting and environmental conditions
-
✅ Sourced from Official Hikvision Distributors – Authentic products with full local support
-
✅ Warranty Backed by Hikvision AU – Easy and direct warranty servicing
-
✅ Tailored for AU/NZ Installations – Compatible with local network protocols and PoE setups
Frequently Asked Questions (FAQs):
1. What is the difference between the 2I and 4I models? (SKU: DS-2CD2T86G2H-2I/4I-KIT)
The 2I model has up to 50m IR night vision, while the 4I offers 80m IR range, making it ideal for longer outdoor coverage.
2. Does this system support remote viewing? DS-2CD2T86G2H-2I/4I Yes, you can access your footage remotely using the Hik-Connect app or via web browser for full control from anywhere.
3. Are these cameras outdoor-rated? (DS-2CD2T86G2H-2I/4I)
Absolutely. Each bullet camera is IP67-rated, providing full protection against dust, rain, and harsh weather.
4. How much video footage can the NVR store? (DS-2CD2T86G2H-2I/4I)
The included NVR supports up to 16TB of storage with a single SATA HDD, which can be customized depending on your retention needs.
5. Is this system easy to install? (DS-2CD2T86G2H-2I/4I)
Yes. The NVR’s 4 PoE ports allow plug-and-play installation—just one cable per camera for both power and data.
6. Can it record audio? DS-2CD2T86G2H-2I/4I
These specific bullet cameras do not include built-in microphones. For audio capability, consider models with "-U" suffix.
7. Does the kit include all mounting accessories? (DS-2CD2T86G2H-2I/4I)
Yes, basic mounting hardware is included. Optional brackets like pole or corner mounts are available separately.
