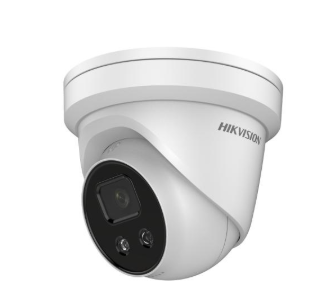

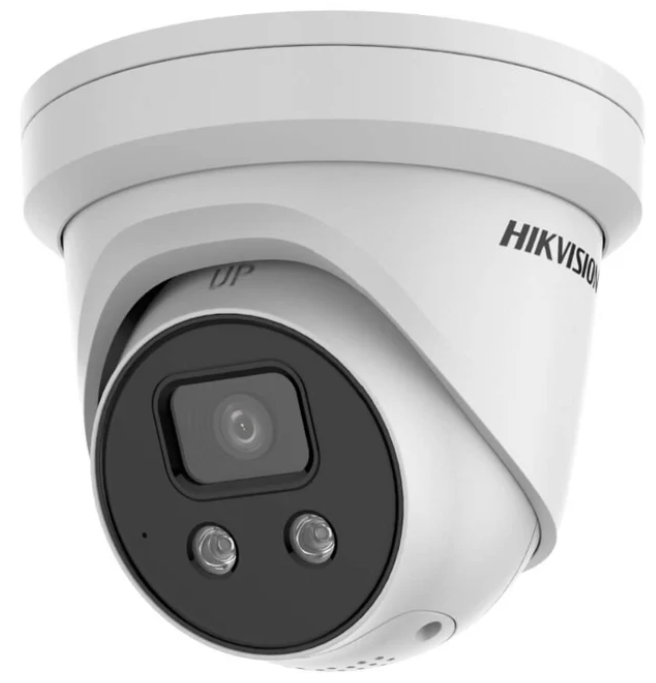

The Hikvision DS-2CD2346G1-I/SL 4MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera is a professional IP security camera featuring 4MP resolution, DarkFighter low-light technology, 120 dB True WDR, H.265+ compression, human and vehicle classification, infrared night vision up to 30 metres, and active strobe light and audio warning functions. Offered as a clearance deal with a 6-month warranty, this discontinued Hikvision AcuSense camera is ideal for compatible CCTV system upgrades, replacements and security installations where this specific model is required.
Designed around Hikvision's AcuSense technology, the DS-2CD2346G1-I/SL uses deep-learning-based human and vehicle target classification to help reduce false alarms associated with conventional motion detection. Smart event functionality includes line-crossing and intrusion detection.
The camera captures video at up to 2688 × 1520 resolution, delivering detailed 4MP surveillance footage. Powered-by-DarkFighter technology and an F1.6 aperture assist in challenging low-light environments, while 120 dB True Wide Dynamic Range improves visibility where bright and dark areas appear in the same scene.
For night surveillance, integrated 850 nm infrared illumination provides a range of up to 30 metres, with an IR-cut filter supporting automatic day/night operation.
The full-metal housing provides a robust physical construction, while its turret-style design allows flexible adjustment during installation.
Clearance Notice: The Hikvision DS-2CD2346G1-I/SL is a discontinued model and is being offered as clearance stock. Availability is limited and replacement stock may not be obtainable once sold out.
Main Features
-
4MP high-resolution network surveillance camera
-
Maximum resolution of 2688 × 1520
-
Hikvision AcuSense human and vehicle target classification
-
Deep-learning-based false alarm reduction
-
Powered-by-DarkFighter low-light technology
-
Minimum illumination of 0.012 Lux at F1.6 with AGC enabled
-
0 Lux operation with infrared illumination
-
Up to 30 m IR night vision
-
850 nm infrared wavelength
-
120 dB True Wide Dynamic Range
-
Strobe light warning functionality
-
Audible alarm for active deterrence
-
Smart line-crossing detection
-
Smart intrusion detection
-
H.265+ and H.264+ compression support
-
Three configurable video streams
-
Built-in MicroSD/SDHC/SDXC slot supporting up to 128 GB
-
NAS storage support
-
Automatic day/night operation with IR-cut filter
-
3D Digital Noise Reduction
-
BLC and HLC image enhancement
-
PoE or 12 VDC power options
-
Robust full-metal construction
-
Flexible 360° pan and rotation adjustment
-
Discontinued model offered as a clearance deal
-
6-month warranty
What's Included in the Box
Important: As this is discontinued clearance stock, additional accessories, mounting hardware, printed documentation or packaging contents have not been specified. Please confirm required accessories before installation.
Detailed Specifications
Camera
| Specification |
Details |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Minimum Illumination |
0.012 Lux @ F1.6, AGC ON |
| IR Illumination |
0 Lux with IR |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Slow Shutter |
Yes |
| Wide Dynamic Range |
120 dB True WDR |
| Day/Night |
IR Cut Filter |
| Pan Adjustment |
0° to 360° |
| Tilt Adjustment |
0° to 75° |
| Rotation Adjustment |
0° to 360° |
Lens
| Specification |
Details |
| Focus |
Fixed |
| Lens Options |
2.8 mm / 4 mm / 6 mm / 8 mm |
| Aperture |
F1.6 |
| Aperture Type |
Fixed |
| Lens Mount |
M12 |
| 2.8 mm FOV |
104° horizontal / 58° vertical / 124° diagonal |
| 4 mm FOV |
83° horizontal / 44° vertical / 99° diagonal |
| 6 mm FOV |
51° horizontal / 28° vertical / 58° diagonal |
| 8 mm FOV |
39° horizontal / 21° vertical / 45° diagonal |
Infrared Illuminator
| Specification |
Details |
| IR Range |
Up to 30 m |
| Wavelength |
850 nm |
Video
| Specification |
Details |
| Maximum Resolution |
2688 × 1520 |
| Main Stream – 50 Hz |
Up to 25 fps |
| Main Stream – 60 Hz |
Up to 30 fps |
| Main Stream Resolutions |
2688 × 1520, 1920 × 1080, 1280 × 720 |
| Sub Stream – 50 Hz |
Up to 25 fps |
| Sub Stream – 60 Hz |
Up to 30 fps |
| Sub Stream Resolutions |
640 × 480, 640 × 360, 320 × 240 |
| Third Stream – 50 Hz |
Up to 25 fps |
| Third Stream – 60 Hz |
Up to 30 fps |
| Third Stream Resolutions |
1280 × 720, 640 × 480, 640 × 360, 320 × 240 |
| Main Stream Compression |
H.265 / H.264 |
| Sub Stream Compression |
H.265 / H.264 / MJPEG |
| Third Stream Compression |
H.265 / H.264 |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Profile |
Main Profile / High Profile |
| H.265 Profile |
Main Profile |
| H.264+ |
Supported on main stream |
| H.265+ |
Supported on main stream |
| SVC |
H.264 and H.265 |
| ROI |
4 fixed regions for main and sub streams separately |
Network
| Specification |
Details |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF Profile S, ONVIF Profile G, ISAPI |
| Users |
Up to 32 |
| User Levels |
Administrator, Operator, User |
| Network Interface |
1 × RJ45 10M/100M self-adaptive Ethernet |
| Storage |
MicroSD/SDHC/SDXC, local storage and NAS |
| NAS |
NFS, SMB/CIFS |
| ANR |
Supported |
| MicroSD Capacity |
Up to 128 GB |
| Clients |
iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 |
Supported Network Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 and Bonjour.
Image Functions
Events and Intelligent Detection
Smart Events
-
Line crossing detection
-
Intrusion detection
Additional Alarm Triggers
-
Motion detection
-
Video tampering
-
Network disconnection
-
IP address conflict
-
Illegal login
-
HDD full
-
HDD error
AcuSense human and vehicle target classification is designed to reduce false alarms by distinguishing relevant human and vehicle targets.
Interface
| Specification |
Details |
| Ethernet |
1 × RJ45 10/100 Mbps |
| On-board Storage |
MicroSD/SDHC/SDXC |
| Maximum Card Capacity |
128 GB |
| Hardware Reset |
Yes |
Power
| Specification |
Details |
| DC Input |
12 VDC ±25% |
| DC Connector |
Φ 5.5 mm coaxial power plug |
| PoE |
IEEE 802.3af, Class 3 |
| DC Consumption |
12 VDC, 0.92 A, maximum 11 W |
| PoE Consumption |
36–57 VDC, 0.34–0.21 A, maximum 12 W |
Environmental Conditions
| Specification |
Details |
| Operating Temperature |
-30°C to +60°C |
| Operating Humidity |
95% or less, non-condensing |
Dimensions and Weight
| Specification |
Details |
| Camera Dimensions |
Φ138.3 × 126.3 mm |
| Packaged Dimensions |
170 × 170 × 150 mm |
| Camera Weight |
430 g |
| Packaged Weight |
733 g |
General Functions
-
One-key reset
-
Anti-flicker
-
Three video streams
-
Heartbeat
-
Mirror
-
Password protection
-
Privacy masking
-
Watermark
-
IP address filtering
Firmware Version Listed: V5.5.72
Practical Use Scenarios
Existing Hikvision CCTV System Replacement
The DS-2CD2346G1-I/SL can be particularly useful where an existing installation already uses this exact discontinued model and a matching replacement or spare camera is required.
Perimeter Monitoring
Line-crossing and intrusion detection combined with human and vehicle classification can help monitor defined boundaries and restricted areas.
Driveways and Vehicle Access Areas
AcuSense classification can assist with distinguishing vehicle activity from unrelated motion events.
Entrances and Building Approaches
The camera's active strobe and audible warning functionality can provide an additional deterrence mechanism when configured events occur.
Warehouses and Commercial Properties
4MP imaging, smart detection, network recording options and active warning capabilities make the camera suitable for compatible commercial CCTV applications.
Low-Light Surveillance
DarkFighter technology, an F1.6 aperture and infrared illumination up to 30 metres help maintain surveillance in challenging lighting conditions.
Warranty Information
This clearance Hikvision DS-2CD2346G1-I/SL includes a 6-month warranty.
Because this product has been discontinued, future replacement availability may be limited. Customers requiring exact compatibility with an existing installation should verify system, firmware, recorder, lens and mounting requirements before purchase.
Brand Description – Hikvision
Hikvision develops video surveillance and security products including network cameras, network video recorders, video management solutions and intelligent security technologies. The DS-2CD2346G1-I/SL forms part of Hikvision's AcuSense generation of IP cameras incorporating human and vehicle classification technology.
SKU
DS-2CD2346G1-I/SL
Clearance & Discontinued Product Notice
This product is discontinued and available as a clearance deal.
Stock is limited and may not be replenished after remaining inventory has been sold. Customers purchasing the camera as a replacement for an existing unit should confirm lens requirements and system compatibility before ordering.
Datasheets & Downloadable Resources
Hikvision DS-2CD2346G1-I/SL Product Datasheet
Excellence for the Australian and New Zealand Market
The Hikvision DS-2CD2346G1-I/SL can be considered for compatible Australian and New Zealand CCTV systems where its electrical, network and system requirements meet the specific installation requirements.
This listing does not claim NDSS approval, Australian certification, New Zealand certification or any other regulatory approval that has not been specifically documented for this product.
For Australian and New Zealand installations, purchasers and installers should confirm applicable electrical, network, installation and regulatory requirements before deployment.
As the DS-2CD2346G1-I/SL is discontinued clearance stock, customers should also confirm compatibility with existing Hikvision NVRs, software, firmware and mounting arrangements prior to purchasing.
The warranty supplied with this clearance product is 6 months.
FAQs
Is the Hikvision DS-2CD2346G1-I/SL discontinued?
Yes. The Hikvision DS-2CD2346G1-I/SL is a discontinued model and this unit is being offered as a clearance deal while remaining stock is available.
What resolution does the Hikvision DS-2CD2346G1-I/SL support?
The Hikvision DS-2CD2346G1-I/SL provides up to 2688 × 1520 resolution, delivering 4MP surveillance video.
Does the Hikvision DS-2CD2346G1-I/SL support AcuSense human and vehicle detection?
Yes. The Hikvision DS-2CD2346G1-I/SL uses deep-learning-based human and vehicle target classification to help reduce false alarms.
Does the Hikvision DS-2CD2346G1-I/SL have night vision?
Yes. The Hikvision DS-2CD2346G1-I/SL uses 850 nm infrared illumination with an IR range of up to 30 metres.
Does the Hikvision DS-2CD2346G1-I/SL have DarkFighter technology?
Yes. The Hikvision DS-2CD2346G1-I/SL features powered-by-DarkFighter low-light technology and has a specified minimum illumination of 0.012 Lux at F1.6 with AGC enabled.
Does the Hikvision DS-2CD2346G1-I/SL have a strobe light and audible warning?
Yes. The Hikvision DS-2CD2346G1-I/SL includes strobe light and audio alarm functionality designed to provide active deterrence when configured security events occur.
Does the Hikvision DS-2CD2346G1-I/SL support H.265+?
Yes. The Hikvision DS-2CD2346G1-I/SL supports H.265+, H.265, H.264+ and H.264 video compression options.
Does the Hikvision DS-2CD2346G1-I/SL support PoE?
Yes. The Hikvision DS-2CD2346G1-I/SL supports IEEE 802.3af Class 3 PoE as well as 12 VDC power.
Does the Hikvision DS-2CD2346G1-I/SL support a MicroSD card?
Yes. The Hikvision DS-2CD2346G1-I/SL has an integrated MicroSD/SDHC/SDXC card slot supporting capacities up to 128 GB.
What lens options are available for the Hikvision DS-2CD2346G1-I/SL?
The supplied specifications for the Hikvision DS-2CD2346G1-I/SL list fixed 2.8 mm, 4 mm, 6 mm and 8 mm lens options. Confirm the lens fitted to the individual clearance unit before ordering.
Does the Hikvision DS-2CD2346G1-I/SL support ONVIF?
Yes. The Hikvision DS-2CD2346G1-I/SL supports ONVIF Profile S and Profile G as well as Hikvision ISAPI.
What smart events are supported by the Hikvision DS-2CD2346G1-I/SL?
The Hikvision DS-2CD2346G1-I/SL supports smart line-crossing and intrusion detection, alongside human and vehicle target classification.
Does the Hikvision DS-2CD2346G1-I/SL support Wide Dynamic Range?
Yes. The Hikvision DS-2CD2346G1-I/SL features 120 dB True WDR to improve imaging where bright and dark areas appear together.
What is the operating temperature of the Hikvision DS-2CD2346G1-I/SL?
The Hikvision DS-2CD2346G1-I/SL has a specified operating temperature range of -30°C to +60°C with humidity of 95% or less, non-condensing.
What warranty comes with the Hikvision DS-2CD2346G1-I/SL clearance deal?
The Hikvision DS-2CD2346G1-I/SL clearance product comes with a 6-month warranty.
Should I check compatibility before buying the Hikvision DS-2CD2346G1-I/SL?
Yes. Because the Hikvision DS-2CD2346G1-I/SL is discontinued clearance stock, confirm compatibility with your recorder, firmware, lens requirement, network setup and mounting arrangement before ordering.
