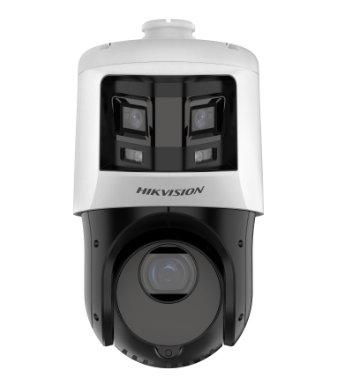

The Hikvision DS-2SE4C425MWG-E/26(F0) TandemVu Network Speed Dome Camera combines a 6 MP panoramic channel with a 4 MP PTZ detail channel, providing simultaneous wide-area situational awareness and powerful close-up surveillance. Featuring 25× optical zoom, 16× digital zoom, ColorVu, powered-by-DarkFighter technology, deep-learning human and vehicle classification, up to 100 m IR illumination, 30 m white light, PoE+ and IP66 protection, this professional IP PTZ camera is designed for demanding large-area security applications.
Hikvision's TandemVu architecture enables the camera to maintain a panoramic overview while the PTZ channel pans, tilts and zooms onto areas requiring closer inspection. The panoramic bullet channel uses a 1/2.5" progressive scan CMOS sensor with up to 3632 × 1632 resolution, while the PTZ channel uses a 1/2.8" progressive scan CMOS sensor with up to 2560 × 1440 resolution.
For long-range surveillance, the PTZ channel incorporates a 4.8–120 mm motorised lens with 25× optical zoom plus 16× digital zoom. The camera supports 360° pan movement, –15° to 90° tilt with auto flip, 300 presets, patrols, pattern scans and multiple automated PTZ actions.
Low-light surveillance is enhanced through ColorVu technology on the panoramic channel and powered-by-DarkFighter technology on the PTZ channel. The panoramic channel provides up to 30 metres of white-light illumination, while the PTZ channel delivers infrared illumination at distances up to 100 metres.
Deep-learning functionality adds intelligent human and vehicle target classification, while additional analytics include face capture, regional people counting, line crossing, intrusion detection, region entrance and region exiting detection.
With H.265+, H.264+, onboard Micro SD storage up to 256 GB, ONVIF support, Hik-Connect compatibility, PoE+, 12 VDC power and an IP66-rated housing, the DS-2SE4C425MWG-E/26(F0) provides a comprehensive solution for large outdoor surveillance environments.
What's Included in the Box
Main Features
-
TandemVu panoramic and PTZ surveillance in one camera
-
6 MP panoramic imaging
-
4 MP PTZ detail imaging
-
1/2.5" progressive scan CMOS panoramic sensor
-
1/2.8" progressive scan CMOS PTZ sensor
-
25× optical zoom
-
16× digital zoom
-
4.8–120 mm PTZ focal length
-
Ultra-wide panoramic view
-
ColorVu technology
-
Powered-by-DarkFighter low-light technology
-
Up to 100 m PTZ infrared illumination
-
Up to 30 m panoramic white-light illumination
-
Human and vehicle target classification based on deep learning
-
Face capture
-
Regional people counting
-
Smart panorama-to-PTZ linkage
-
360° pan movement
-
300 PTZ presets
-
H.265+, H.265, H.264+, H.264 and MJPEG compression
-
120 dB WDR on PTZ channel
-
Electronic image stabilisation
-
Digital defog
-
3D DNR
-
BLC and HLC
-
Micro SD/SDHC/SDXC storage up to 256 GB
-
Audio input and output
-
Alarm input and output
-
ONVIF interoperability
-
Hik-Connect and iVMS-4200 compatibility
-
12 VDC or PoE+ power
-
IP66 weather protection
-
6000 V lightning protection
-
Surge and voltage transient protection
Detailed Specifications
Camera
| Specification |
Details |
| Product Code |
DS-2SE4C425MWG-E/26(F0) |
| Camera Type |
TandemVu Network Speed Dome |
| Panoramic Sensor |
1/2.5" Progressive Scan CMOS |
| PTZ Sensor |
1/2.8" Progressive Scan CMOS |
| Panoramic Max. Resolution |
3632 × 1632 |
| PTZ Max. Resolution |
2560 × 1440 |
| Panoramic Minimum Illumination |
0.0005 Lux @ F1.0, AGC ON; 0 Lux with light |
| PTZ Minimum Illumination |
Colour: 0.005 Lux @ F1.6; B/W: 0.001 Lux @ F1.6; 0 Lux with IR |
| Shutter Speed |
1 s to 1/30,000 s |
| Slow Shutter |
Yes |
| Day/Night |
ICR |
| PTZ Optical Zoom |
25× |
| Digital Zoom |
16× |
Lens
| Specification |
Details |
| Panoramic Focal Length |
2.8 mm |
| PTZ Focal Length |
4.8–120 mm |
| Optical Zoom |
25× |
| PTZ Zoom Speed |
Approx. 3.6 seconds |
| Panoramic Horizontal FOV |
180° ±10° |
| Panoramic Vertical FOV |
80° ±5° |
| PTZ Horizontal FOV |
55° to 2.4° |
| PTZ Vertical FOV |
33° to 1.4° |
| PTZ Diagonal FOV |
61.5° to 2.8° |
| Focus |
Semi-auto / Manual / Auto |
| Panoramic Aperture |
F1.0 |
| PTZ Aperture |
F1.6 |
Illumination
| Specification |
Details |
| PTZ Supplement Light |
IR |
| Panoramic Supplement Light |
White Light |
| Smart Supplement Light |
Yes |
| PTZ IR Range |
Up to 100 m |
| Panoramic White-Light Range |
Up to 30 m |
PTZ Performance
| Specification |
Details |
| Pan Range |
360° |
| Tilt Range |
–15° to 90°, auto flip |
| Pan Speed |
0.1° to 80°/s |
| Preset Pan Speed |
80°/s |
| Tilt Speed |
0.1° to 80°/s |
| Preset Tilt Speed |
80°/s |
| Proportional Zoom |
Yes |
| Presets |
300 |
| Patrols |
8 |
| Presets per Patrol |
Up to 32 |
| Pattern Scans |
4 |
| Power-Off Memory |
Yes |
| 3D Positioning |
Yes |
| PTZ Status Display |
Yes |
| Preset Freezing |
Yes |
Park actions and scheduled PTZ functions include presets, pattern scans, patrol scans, auto scan, tilt scan, random scan, frame scan and panorama scan.
Video
| Specification |
Details |
| Video Compression |
H.265, H.264, MJPEG |
| H.265+ |
Yes |
| H.264+ |
Yes |
| Video Bit Rate |
32 Kbps–16,384 Kbps |
| H.264 Profiles |
Baseline, Main, High |
| H.265 Profile |
Main |
| SVC |
Yes |
| ROI |
8 fixed regions per stream |
| Panoramic Main Stream |
Up to 3632 × 1632 at 25 fps (50 Hz) / 30 fps (60 Hz) |
| PTZ Main Stream |
Up to 2560 × 1440 at 25 fps (50 Hz) / 30 fps (60 Hz) |
| PTZ Third Stream |
Up to 1920 × 1080 |
Image Enhancement
| Specification |
Details |
| PTZ WDR |
120 dB |
| Panoramic WDR |
Digital WDR |
| SNR |
≥52 dB |
| Defog |
Digital |
| Image Stabilisation |
EIS |
| Noise Reduction |
3D DNR |
| Backlight Compensation |
BLC |
| Highlight Compensation |
HLC |
| Regional Focus |
Yes |
| Regional Exposure |
Yes |
| Day/Night Switching |
Day / Night / Auto / Scheduled |
| Image Settings |
Sharpness, saturation, brightness, contrast |
Privacy Masking
The panoramic channel supports 8 programmable polygon privacy masks, while the PTZ channel supports 24 programmable polygon privacy masks, with configurable mask colour or mosaic functionality.
Audio
| Specification |
Details |
| Audio Compression |
G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3 |
| Environment Noise Filtering |
Yes |
| Audio Input |
1 |
| Audio Output |
1 |
| Audio Input Level |
2.0–2.4 Vp-p, 1 kΩ ±10% |
| Audio Output Impedance |
600 Ω |
Smart Analytics & Deep Learning
The DS-2SE4C425MWG-E/26(F0) provides intelligent video analytics for advanced surveillance applications.
Supported functionality includes:
-
Human and vehicle target classification
-
Face capture
-
Detection of up to 5 faces simultaneously
-
Face detection and tracking
-
Face capture and grading
-
Best-face image selection
-
Regional people counting
-
Line crossing detection
-
Intrusion detection
-
Region entrance detection
-
Region exiting detection
-
Audio exception detection
-
Motion detection
-
Video tampering alarm
-
Smart panorama linkage
-
Dual-VCA
-
ANR
Network
| Specification |
Details |
| Ethernet |
RJ45, 10/100 Mbps self-adaptive |
| API |
ISAPI, SDK, ISUP, ONVIF |
| Simultaneous Live View |
Up to 20 |
| Users/Hosts |
Up to 32 |
| Network Storage |
NAS, NFS, SMB/CIFS |
| Client Software |
iVMS-4200, Hik-Connect |
Supported protocols include IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets and SRTP.
Security measures include authenticated username and password access, MAC address binding, HTTPS encryption, 802.1X authenticated access and IP address filtering.
Storage & Interfaces
| Specification |
Details |
| Onboard Storage |
Micro SD / Micro SDHC / Micro SDXC |
| Maximum Card Capacity |
256 GB |
| Alarm Input |
1 |
| Alarm Output |
1 |
| Audio Input |
1 |
| Audio Output |
1 |
| Reset |
Yes |
| Network Port |
RJ45 10/100 Mbps |
General Specifications
| Specification |
Details |
| Power Supply |
12 VDC / PoE+ |
| Maximum Power Consumption |
24 W |
| Operating Temperature |
–30°C to +65°C |
| Operating Humidity |
Below 90% RH |
| Demist |
Heating glass demist |
| Material |
ADC12 |

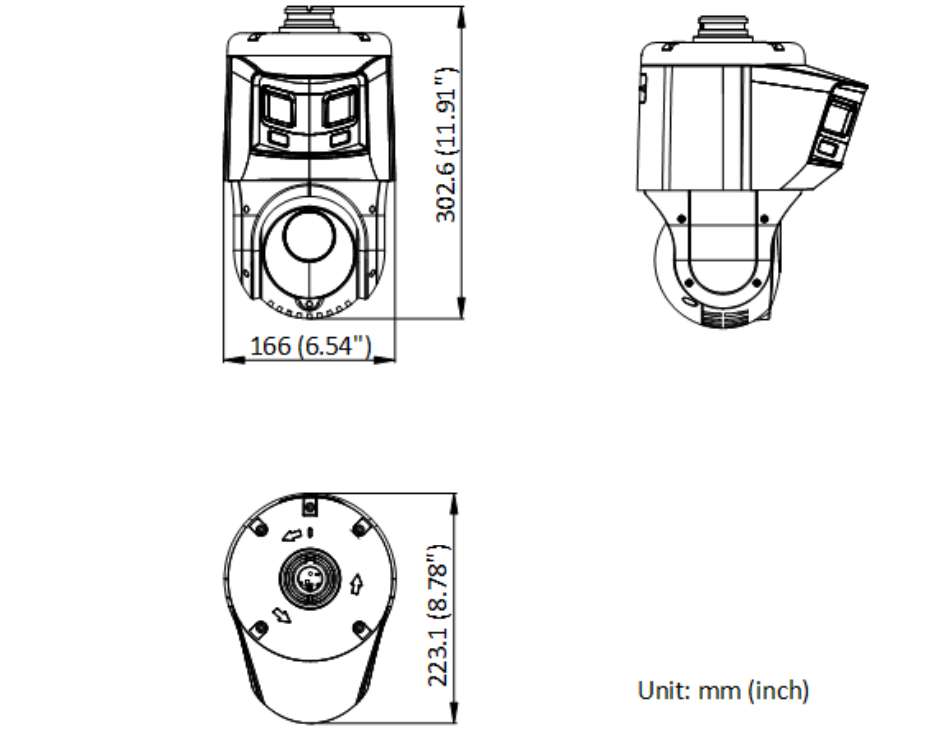

| Dimensions |
Ø166 × 302.6 mm |
| Weight |
Approx. 2.4 kg |
| Protection Rating |
IP66 |
| Lightning Protection |
6000 V |
| Surge Protection |
Yes |
| Voltage Transient Protection |
Yes |
DORI Distances
DORI values provide a general indication of the distance at which the camera can detect, observe, recognise or identify a target under the specified criteria.
| DORI Level |
Pixel Density |
Tele Distance |
| Detect |
25 px/m |
2200 m |
| Observe |
63 px/m |
873 m |
| Recognise |
125 px/m |
440 m |
| Identify |
250 px/m |
220 m |
DORI figures are calculated values based on camera specifications and should not be interpreted as guaranteed identification performance under every real-world installation or environmental condition.
Compatible Mounting Accessories
Included Mount:
Optional Accessories:
-
DS-1604ZJ-BOX-CORNER – Wall Mount
-
DS-1604ZJ-BOX – Wall Mount
-
DS-1604ZJ – Wall Mount
-
DS-1660ZJ – Wall Mount
-
DS-1661ZJ – Pendant Mount
-
DS-1662ZJ – Pendant Mount
-
DS-1667ZJ – Pendant Mount
-
DS-1673ZJ – Vertical Pole Mount
-
DS-1604ZJ-BOX-POLE – Vertical Pole Mount
-
DS-1684ZJ – Vertical Pole Mount
-
DS-1604ZJ-POLE – Vertical Pole Mount
-
DS-1663ZJ – In-Ceiling Mount
-
DS-1604ZJ-CORNER – Corner Mount
-
DS-1619ZJ – Other Mounting Accessory
-
DS-1602ZJ – Wall Mount
-
DS-1674ZJ – Junction Box
-
DS-4650ZJ-WC – Vertical Pole Mount
-
DS-4660ZJ-WC – Corner Mount
Compatibility should be confirmed for the intended mounting configuration before ordering accessories.
Practical Use Scenarios
Large Commercial Sites: The simultaneous panoramic and PTZ channels make the DS-2SE4C425MWG-E/26(F0) suitable for monitoring large facilities where operators require both an overall view and close-up details.
Roads and Transport Infrastructure: The 25× optical zoom, long-range PTZ capability and intelligent analytics can support surveillance of roads, rail infrastructure and other expansive transport environments.
Parks and Public Spaces: Wide panoramic coverage helps maintain situational awareness while the PTZ channel can investigate specific activity without sacrificing the overall view.
Industrial and Infrastructure Sites: IP66 protection, wide operating-temperature range and surge protection support demanding outdoor deployments.
Large Perimeters: Human and vehicle classification, line crossing, intrusion detection and long-range optical zoom make the camera suitable for perimeter-monitoring applications.
Car Parks and Open Areas: The panoramic channel provides broad coverage while smart linkage can assist operators in obtaining detailed PTZ views of activity within the monitored environment.
Warranty Information
3 year Warranty
Brand Description
Hikvision develops professional video security and AIoT solutions, including network cameras, PTZ cameras, video recorders, access control, intercom, alarm, networking and video-management technologies for residential, commercial, industrial and infrastructure applications.
SKU / Product Code
SKU: DS-2SE4C425MWG-E/26(F0)
Manufacturer Product Code: DS-2SE4C425MWG-E/26(F0)
Brand: Hikvision
Series: TandemVu
Product Type: Panoramic & PTZ Network Speed Dome
Panoramic Resolution: 6 MP
PTZ Resolution: 4 MP
Optical Zoom: 25×
Protection: IP66
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The Hikvision DS-2SE4C425MWG-E/26(F0) provides characteristics suited to demanding Australian and New Zealand surveillance installations, including an IP66-rated enclosure, –30°C to +65°C operating range, 6000 V lightning protection, surge protection, PoE+ support and wide-area outdoor surveillance capability.
Hikvision Australia & New Zealand includes this model within its TandemVu PTZ product materials. Its combination of panoramic imaging and long-range PTZ coverage can be particularly useful for expansive outdoor environments where reducing surveillance blind spots and maintaining both overview and detail are important.
FAQs
What is the Hikvision DS-2SE4C425MWG-E/26(F0)?
The DS-2SE4C425MWG-E/26(F0) is a Hikvision TandemVu network speed dome combining a 6 MP panoramic channel with a 4 MP PTZ detail channel, allowing wide-area monitoring and detailed PTZ surveillance from one camera system.
Does the Hikvision DS-2SE4C425MWG-E/26(F0) have 25× optical zoom?
Yes. The DS-2SE4C425MWG-E/26(F0) PTZ channel has a 4.8–120 mm lens providing 25× optical zoom, together with up to 16× digital zoom.
What resolution does the Hikvision DS-2SE4C425MWG-E/26(F0) support?
The DS-2SE4C425MWG-E/26(F0) provides panoramic imaging up to 3632 × 1632 and PTZ detail imaging up to 2560 × 1440.
How far can the Hikvision DS-2SE4C425MWG-E/26(F0) see at night?
The DS-2SE4C425MWG-E/26(F0) PTZ channel provides infrared illumination up to 100 metres, while the panoramic channel provides white-light illumination up to 30 metres.
Does the Hikvision DS-2SE4C425MWG-E/26(F0) support ColorVu and DarkFighter?
Yes. The DS-2SE4C425MWG-E/26(F0) combines Hikvision ColorVu technology for its panoramic imaging channel with powered-by-DarkFighter technology for enhanced PTZ low-light performance.
Does the Hikvision DS-2SE4C425MWG-E/26(F0) detect humans and vehicles?
Yes. The DS-2SE4C425MWG-E/26(F0) supports deep-learning-based human and vehicle target classification, along with multiple smart event detection functions.
Does the Hikvision DS-2SE4C425MWG-E/26(F0) support face capture?
Yes. The DS-2SE4C425MWG-E/26(F0) supports face capture and can detect up to five faces simultaneously, with functions for tracking, capturing, grading and selecting face images.
Is the Hikvision DS-2SE4C425MWG-E/26(F0) weatherproof?
The DS-2SE4C425MWG-E/26(F0) is specified with IP66 protection and is designed to operate between –30°C and +65°C, making it suitable for appropriately installed outdoor surveillance applications.
Does the Hikvision DS-2SE4C425MWG-E/26(F0) support PoE?
Yes. The DS-2SE4C425MWG-E/26(F0) supports PoE+ as well as 12 VDC power.
Does the Hikvision DS-2SE4C425MWG-E/26(F0) support Micro SD storage?
Yes. The DS-2SE4C425MWG-E/26(F0) has an onboard memory-card slot supporting Micro SD, Micro SDHC and Micro SDXC cards with capacities up to 256 GB.
Does the Hikvision DS-2SE4C425MWG-E/26(F0) work with Hik-Connect?
Yes. The DS-2SE4C425MWG-E/26(F0) lists Hik-Connect and iVMS-4200 among its supported client platforms.
What applications is the Hikvision DS-2SE4C425MWG-E/26(F0) suitable for?
The DS-2SE4C425MWG-E/26(F0) is designed for wide-area video surveillance and can be used in environments such as roads, railways, parks, public spaces, industrial facilities, large commercial sites and other expansive locations requiring simultaneous panoramic awareness and detailed PTZ monitoring.
What mount is included with the Hikvision DS-2SE4C425MWG-E/26(F0)?
The DS-2SE4C425MWG-E/26(F0) product information specifies the DS-1618ZJ wall mount as the included mounting accessory.
Does the Hikvision DS-2SE4C425MWG-E/26(F0) support ONVIF?
Yes. The DS-2SE4C425MWG-E/26(F0) supports ONVIF along with Hikvision ISAPI, SDK and ISUP interfaces for compatible system integration.
