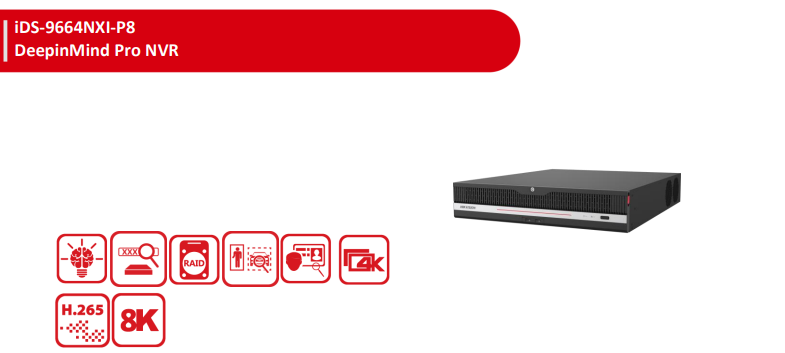

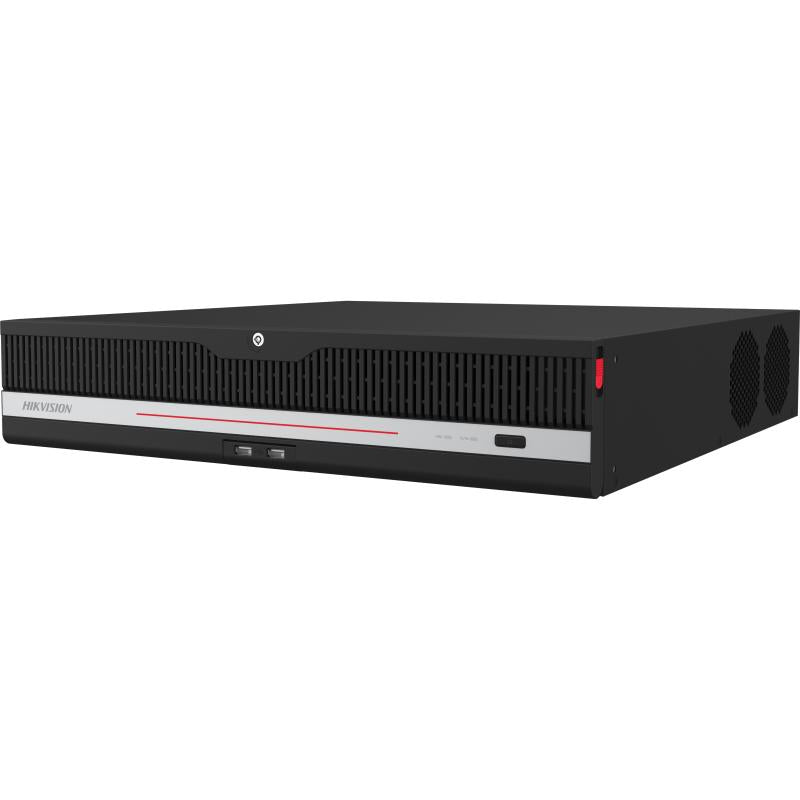

The Hikvision iDS-9664NXI-P8 DeepinMind Pro NVR is a powerful 64-channel AI network video recorder designed for high-performance IP surveillance, intelligent video analytics, advanced forensic search and enterprise-grade security monitoring. With support for up to 32MP IP camera input, H.265+/H.265/H.264+/H.264 video compression, AcuSeek, AcuSearch, facial recognition, perimeter protection and video structuralisation, this Hikvision AI NVR is built for demanding commercial, industrial and large-scale security environments.
Engineered as part of Hikvision’s DeepinMind Pro range, the iDS-9664NXI-P8 supports up to 64 IP cameras, 400 Mbps incoming and outgoing bandwidth, and advanced analytics based on Guanlan Large-Scale AI Models. Hikvision’s official AU/NZ product page also lists the model as a DeepinMind Pro NVR with AcuSearch, AcuSeek and intelligent analytics capabilities.
This recorder is ideal for organisations that need fast video search, intelligent detection, facial comparison, perimeter event analysis and high-resolution recording in one centralised system. With 8 SATA HDD interfaces, RAID support, dual HDMI outputs including up to 8K HDMI output, dual network interfaces and multiple alarm inputs/outputs, the iDS-9664NXI-P8 provides a robust foundation for scalable surveillance deployments.
What’s Included in the Box
Included:
Hikvision iDS-9664NXI-P8 DeepinMind Pro NVR unit
Main Features
-
64-channel IP camera input with up to 32MP resolution support
- Up to 400 Mbps incoming and outgoing bandwidth
-
H.265+, H.265, H.264+ and H.264 video compression support
-
AcuSeek and AcuSearch support for intelligent video search
- Up to 36-channel perimeter protection
- Up to 24-channel facial recognition for video streams
- Up to 64-channel facial recognition for face pictures
- Up to 24-channel video structuralisation
-
8 SATA interfaces, supporting up to 20TB per HDD
-
RAID 0, 1, 5, 6 and 10 storage configuration support
-
Dual HDMI and dual VGA outputs, including up to 8K HDMI 1 output
- 16 alarm inputs and 9 alarm outputs
-
4 GPU smart engine unit with 8GB module memory
- Certified with CE, IC, CB, RoHS, REACH, WEEE, RCM, UKCA and LOA as listed in the provided datasheet information
Detailed Specifications
| Specification |
Details |
| Product Code / Model |
iDS-9664NXI-P8 |
| Product Type |
DeepinMind Pro Network Video Recorder |
| IP Camera Input |
64 channels |
| Maximum Camera Resolution |
Up to 32MP |
| Incoming Bandwidth |
400 Mbps |
| Outgoing Bandwidth |
400 Mbps |
| Video Formats |
H.265+, H.265, H.264+, H.264 |
| Decoding Capability |
Up to 2-ch @ 32MP, 2-ch @ 24MP, 4-ch @ 16MP, 8-ch @ 8MP, 16-ch @ 4MP, or 32-ch @ 2MP |
| Synchronous Playback |
16 channels |
| Recording Resolutions |
32MP, 24MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Facial Recognition |
Up to 24-ch video stream or up to 64-ch face picture comparison |
| Face Picture Library |
Up to 32 libraries; up to 100,000 face pictures |
| AcuSearch by NVR |
Up to 32-ch 2MP / 16-ch 4MP / 8-ch 8MP normal IP camera access |
| AcuSeek |
Up to 32-ch 2MP / 16-ch 4MP / 8-ch 8MP normal IP camera access |
| Perimeter Protection by NVR |
Up to 36-ch 2MP / 24-ch 4MP / 12-ch 8MP without Large Model |
| Video Structuralisation |
24-ch 2MP, 18-ch 4MP, or 9-ch 8MP |
| ANPR by Camera |
All channels, camera dependent |
| HDMI 1 Output |
Up to 8K 7680 × 4320 @ 30Hz |
| HDMI 2 Output |
Up to 4K 3840 × 2160 @ 60Hz |
| VGA Outputs |
2 × VGA, up to 1920 × 1080 @ 60Hz |
| Audio Output |
2-ch RCA |
| Two-Way Audio |
1-ch RCA |
| Network Interfaces |
2 × RJ-45 10/100/1000 Mbps Ethernet |
| Protocols |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF, OTAP |
| API Support |
ONVIF Profile S/G, SDK, ISAPI |
| Storage Interfaces |
8 × SATA, 1 × eSATA |
| Maximum HDD Capacity |
Up to 20TB per HDD |
| RAID Support |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| USB Interfaces |
Front: 2 × USB 2.0; Rear: 2 × USB 3.0 |
| Serial Interfaces |
1 × RS-232, 1 × RS-485 full-duplex |
| Alarm Input/Output |
16 inputs / 9 outputs |
| Power Supply |
100 to 240 VAC, 50 to 60Hz |
| Power Consumption |
≤ 50W without HDD |
| Operating Temperature |
-10°C to 55°C |
| Operating Humidity |
10% to 90% |

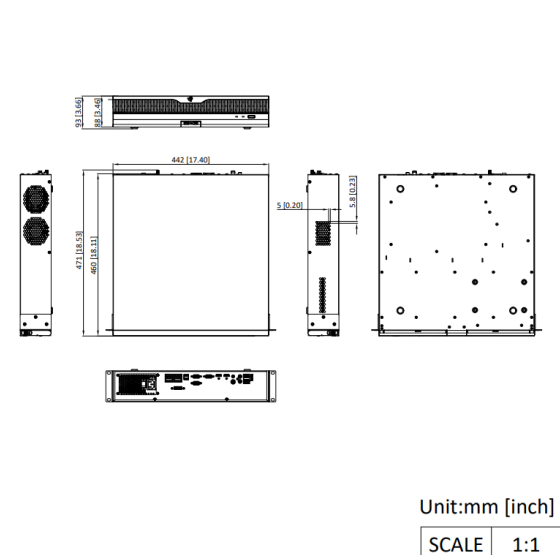

| Dimensions |
442 × 498 × 146 mm |
| Weight |
≤ 8kg without HDD |
| Smart Engine Unit |
4 GPU engines, 8GB module memory |
| Available Models |
iDS-9664NXI-P8(STD), iDS-9664NXI-P8(NEU) |
Warranty Information
3 year Warranty
Brand Description
Hikvision is a global security technology brand focused on integrated security, AIoT and scenario-based digitalisation. Hikvision’s Australia and New Zealand presence supports a wide range of security products and solutions for commercial, industrial and public-sector environments.
SKU
iDS-9664NXI-P8
Practical Use Scenarios
The Hikvision iDS-9664NXI-P8 is suitable for:
Commercial buildings requiring centralised 64-channel IP camera recording and monitoring.
Warehouses, logistics centres and distribution facilities needing perimeter protection and advanced event review.
Retail centres and shopping complexes requiring facial recognition, people analytics and video search capabilities where legally permitted.
Industrial sites, transport facilities and campuses needing high-bandwidth recording, RAID storage support and scalable multi-camera surveillance.
Security control rooms requiring high-resolution display output, including up to 8K output via HDMI 1.
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The Hikvision iDS-9664NXI-P8 is designed for professional surveillance deployments across Australia and New Zealand, supporting high-resolution IP camera recording, intelligent analytics, large-scale video search and enterprise-grade storage configurations.
The provided product information lists RCM certification, along with CE, IC, CB, RoHS, REACH, WEEE, UKCA and LOA certifications, supporting suitability for regulated professional security environments.
This product should be sourced through authorised Hikvision brand representatives or approved distribution channels to ensure correct regional model supply, firmware suitability, after-sales support and warranty handling. NDSS approval is not applicable to this type of security product and was not listed in the provided product information.
FAQs
1. What is the Hikvision iDS-9664NXI-P8 used for?
The Hikvision iDS-9664NXI-P8 is used for professional IP surveillance recording, AI video analytics, facial recognition, perimeter protection, AcuSearch, AcuSeek and centralised management of up to 64 IP cameras.
2. How many cameras does the Hikvision iDS-9664NXI-P8 support?
The Hikvision iDS-9664NXI-P8 supports up to 64 IP camera channels, with camera input resolution up to 32MP.
3. Does the Hikvision iDS-9664NXI-P8 support AcuSearch and AcuSeek?
Yes, the Hikvision iDS-9664NXI-P8 supports both AcuSearch and AcuSeek, enabling advanced intelligent video search and target modelling functions depending on camera and system configuration.
4. What video compression formats does the Hikvision iDS-9664NXI-P8 support?
The Hikvision iDS-9664NXI-P8 supports H.265+, H.265, H.264+ and H.264, helping optimise storage use and bandwidth efficiency.
5. How many hard drives can the Hikvision iDS-9664NXI-P8 support?
The Hikvision iDS-9664NXI-P8 includes 8 SATA interfaces and supports up to 20TB per HDD, based on the supplied specification.
6. Does the Hikvision iDS-9664NXI-P8 include hard drives?
The provided information for the Hikvision iDS-9664NXI-P8 does not confirm included hard drives. It should be treated as an NVR unit unless HDD inclusion is confirmed by the supplier.
7. Does the Hikvision iDS-9664NXI-P8 support RAID storage?
Yes, the Hikvision iDS-9664NXI-P8 supports RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10.
8. What is the maximum decoding capability of the Hikvision iDS-9664NXI-P8?
The Hikvision iDS-9664NXI-P8 supports decoding up to 2 channels at 32MP, 8 channels at 8MP, 16 channels at 4MP or 32 channels at 2MP, depending on configuration.
9. Is the Hikvision iDS-9664NXI-P8 suitable for Australia and New Zealand?
The Hikvision iDS-9664NXI-P8 includes RCM certification in the provided specifications, and Hikvision has official Australia and New Zealand product and support channels.
10. What certifications are listed for the Hikvision iDS-9664NXI-P8?
The Hikvision iDS-9664NXI-P8 is listed with CE, IC, CB, RoHS, REACH, WEEE, RCM, UKCA and LOA certifications in the provided product information.
