Strengthen your security infrastructure with the HiLook 4-Channel CCTV Kit, a professional-grade surveillance solution built for expansive coverage and reliability. This comprehensive kit includes up to four HiLook IPC-T289PH-MU/SL 8MP 4K Panoramic Turret Cameras and a high-performance 4-channel HiLook 4K PoE NVR with pre-installed storage, ensuring exceptional video clarity, motion-triggered detection, and intelligent deterrence features.

The IPC-T289PH-MU/SL camera boasts a dual-lens configuration for 180° horizontal coverage, integrated smart hybrid lighting for superior low-light visibility, and IP67-rated weatherproof construction for demanding outdoor conditions. With built-in microphone and speaker, it allows for real-time two-way audio communication and strobe/siren deterrents to proactively respond to threats.

Combined with the HiLook 4-ch Mini 1U 4 PoE 4K NVR, this system is ideal for residential properties, retail stores, and small business surveillance—offering simplified setup with PoE support, 4K resolution, and advanced compression for bandwidth savings.

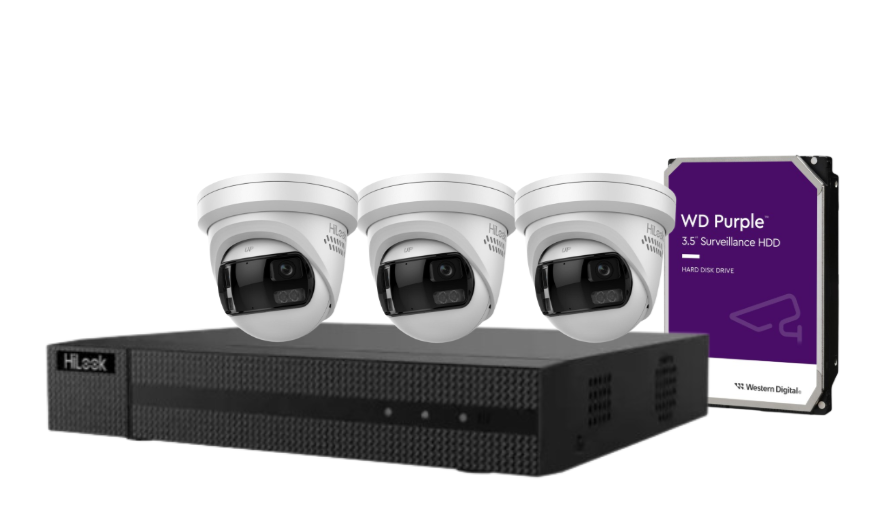

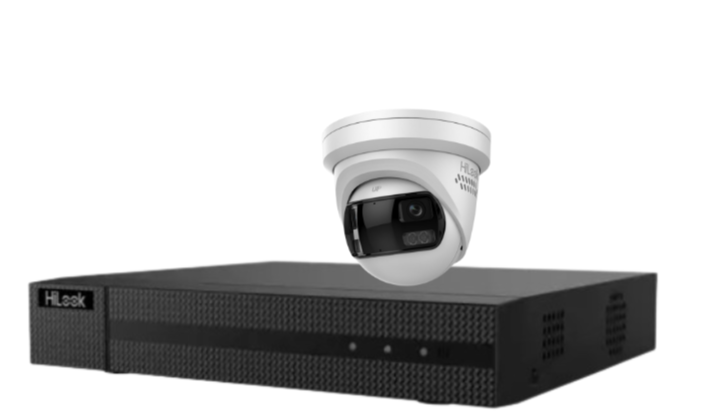

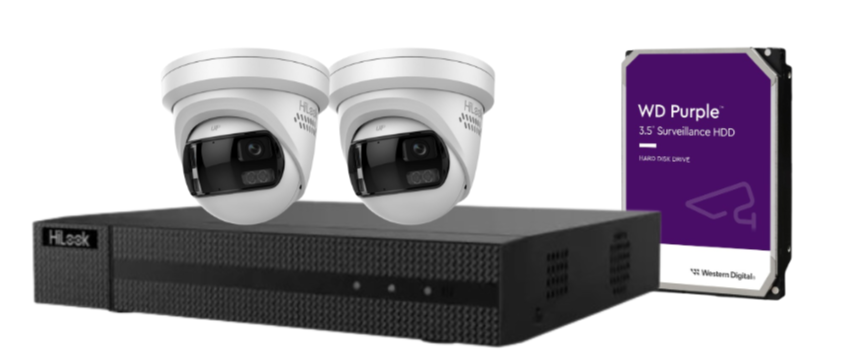

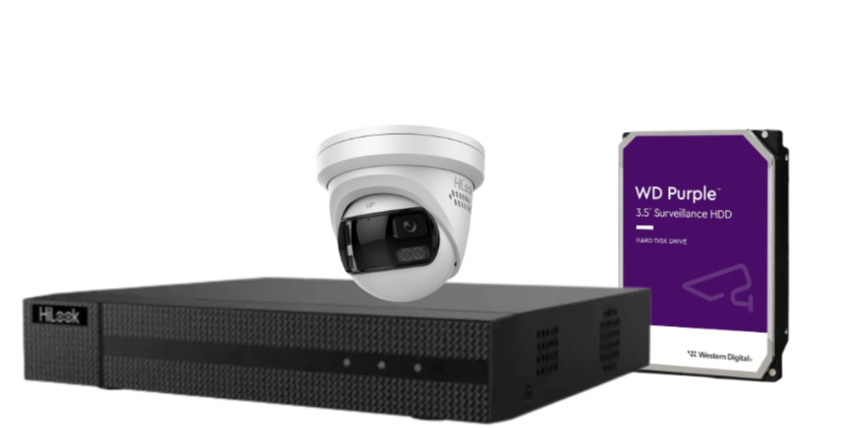

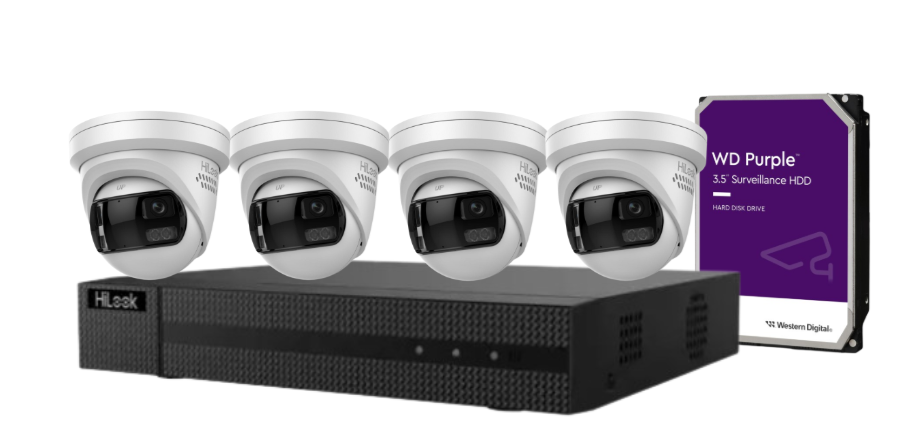

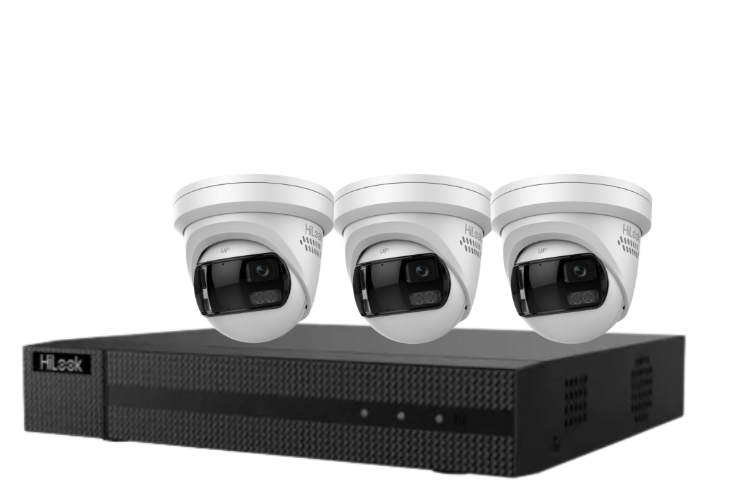

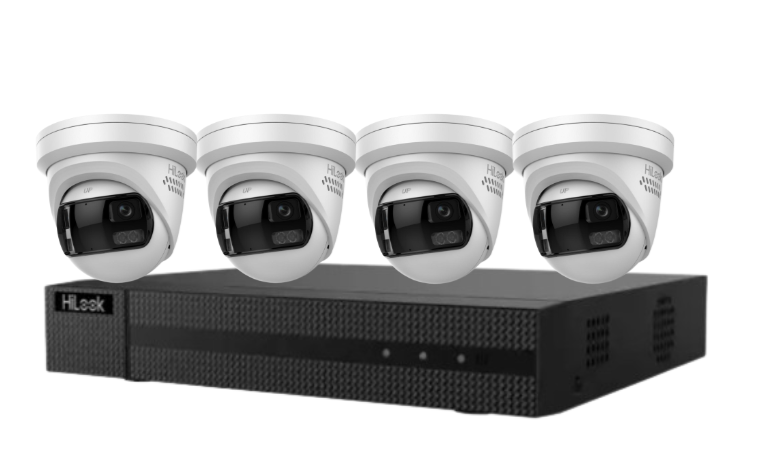

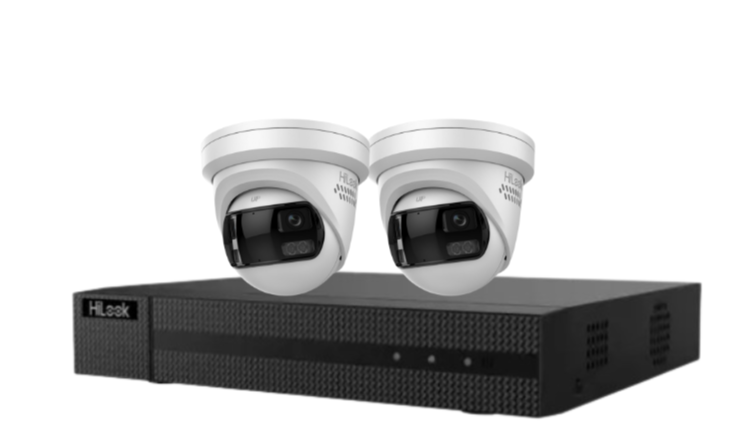

What’s Included in the Box:

• 1 × HiLook 4-ch Mini 1U 4 PoE 4K NVR

• Up to 4 × HiLook IPC-T289PH-MU/SL 8MP Panoramic Turret Cameras

• 1 × Surveillance HDD (capacity per selection)

• 1 × Power Adapter for NVR

• 1 × Quick Start Guide (NVR + Camera)

• 1 × Mounting Template per Camera


• 1 × Installation Kit per Camera

Main Features:

• 8MP Dual-Lens Camera: Wide-angle 180° panoramic imaging with 4256 × 1888 resolution

• Smart Hybrid IR & White Light: Enhanced visibility up to 30 metres

• Two-Way Audio: Built-in mic and speaker for direct communication

• Person & Vehicle Detection: Motion analytics with reduced false alerts

• Active Deterrence: Red & blue strobe lights and built-in speaker for alerts

• PoE Integration: Power and data over a single Ethernet cable

• 4K Ultra HD NVR: Supports H.265+/H.265/H.264+/H.264 formats for optimized recording

• Mobile Viewing: Remote access via Hik-Connect and iVMS-4200 apps

• MicroSD Support: Up to 512GB storage per camera

• Compact NVR Design: Space-saving 1U enclosure

Detailed Specifications – HiLook IPC-T289PH-MU/SL:

• Sensor: 1/2.4" Progressive Scan CMOS

• Lens: 2mm Fixed, F1.6, M12 Mount

• Resolution: 4256 × 1888 (8MP)

• Field of View: 180° (Horizontal) / 77° (Vertical)

• Illumination Range: Up to 30m (IR & White Light)

• Audio Compression: G.711, AAC-LC, MP2L2, PCM

• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG

• Audio Bit Rate: 16–160 Kbps

• Network Protocols: ONVIF, RTSP, HTTP, HTTPS, TCP/IP, and more

• Operating Conditions: -30°C to 60°C, ≤95% RH (non-condensing)

• Power: PoE or 12VDC, Max. 11.5W

• Storage: Supports up to 512GB microSD

• Weight: Approx. 790g

• Housing: IP67-rated metal

Specifications – HiLook 4CH NVR:

• Inputs: 4 IP Camera Channels

• Decoding Capacity: 1 × 8MP / 3 × 4MP / 6 × 1080p

• Video Formats: H.265+/H.265/H.264+/H.264

• Incoming Bandwidth: Up to 40 Mbps

• PoE Ports: 4

• Resolution: Up to 4K Output

• Form Factor: Compact 1U Design

Warranty Information:
This CCTV kit includes a 3-year warranty on both the HiLook cameras and NVR. All warranty and support services are provided by authorized HiLook distributors in your region.

Brand Description:
HiLook by Hikvision is renowned for delivering cost-effective, reliable, and high-performance video surveillance systems. With global R&D and strong market presence, HiLook solutions are ideal for both entry-level and professional security deployments.

SKU: IPC-T289PH-MU/SL-KIT-4CH

Practical Use Scenarios:

• Residential security for front/back yards and driveways

• Small office or retail shop surveillance

• Monitoring of visitor activity in reception or entry points

• Outdoor café, restaurant, or courtyard observation

• Car park and small warehouse security

Datasheets & Downloads:

• HiLook IPC-T289PH-MU/SL Camera Datasheet – PDF

• HiLook 4CH PoE NVR Datasheet – PDF

Excellence for the Australian and New Zealand Market:
The HiLook IPC-T289PH-MU/SL CCTV Kit is purpose-built for Australian and New Zealand conditions. Featuring IP67 certification, this system withstands extreme weather, and is distributed through authorized ANZ partners. It is compliant with CE, RoHS, and EMC standards, ensuring full compatibility with regional safety regulations. Warranty claims and technical support are managed locally, providing fast and reliable service throughout Australia and New Zealand.

FAQs (Product Code IPC-T289PH-MU/SL):

Q1: How many cameras can I connect to the NVR included in this kit?
A1: The 4-channel NVR supports up to 4 HiLook IPC-T289PH-MU/SL cameras simultaneously. (IPC-T289PH-MU/SL)

Q2: Does the IPC-T289PH-MU/SL camera have audio capabilities?
A2: Yes, it supports real-time two-way audio with an integrated mic and speaker. (IPC-T289PH-MU/SL)

Q3: Is installation complicated?
A3: No, the system is PoE-enabled, so each camera requires just one Ethernet cable for power and data. (IPC-T289PH-MU/SL)

Q4: Can I monitor my CCTV system remotely?
A4: Absolutely. Use the Hik-Connect or iVMS-4200 app for live view and playback from anywhere. (IPC-T289PH-MU/SL)

Q5: What type of storage is included in the kit?
A5: A surveillance-grade hard disk drive (HDD) is pre-installed in the NVR. Capacity depends on the selected configuration. (IPC-T289PH-MU/SL)

Q6: Does the IPC-T289PH-MU/SL camera support NDAA compliance?
A6: It is commonly used in commercial environments, but please confirm NDAA compliance with your organization. (IPC-T289PH-MU/SL)

Q7: Are additional mounts needed for installation?
A7: Each camera includes a mounting template and basic installation kit. For specialized installations, optional mounts are available. (IPC-T289PH-MU/SL)

Q8: What environmental conditions can the cameras withstand?
A8: The IPC-T289PH-MU/SL is rated IP67 and can operate from -30°C to 60°C in up to 95% humidity. (IPC-T289PH-MU/SL)
