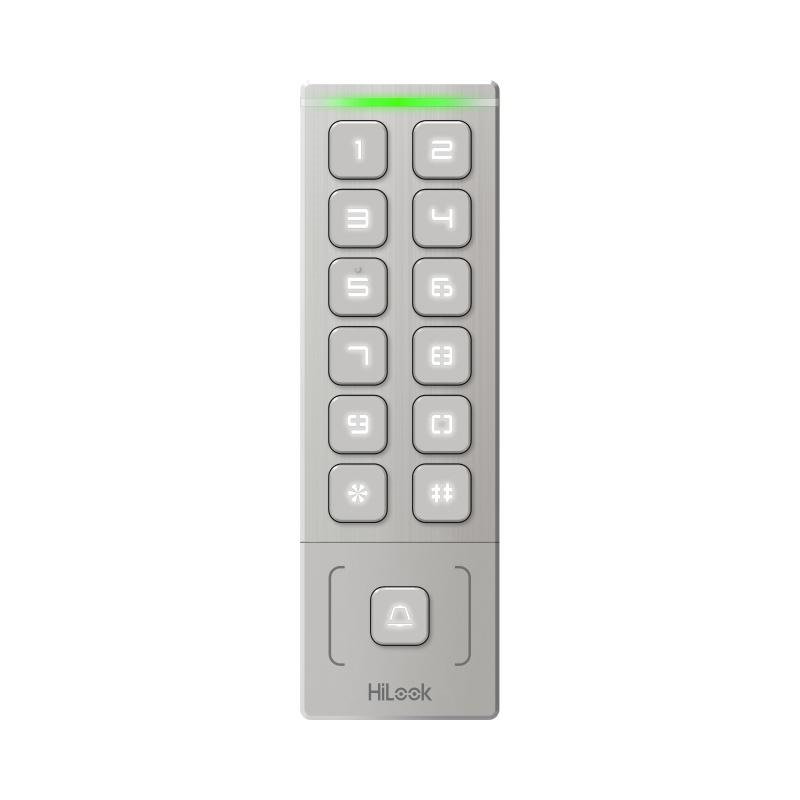

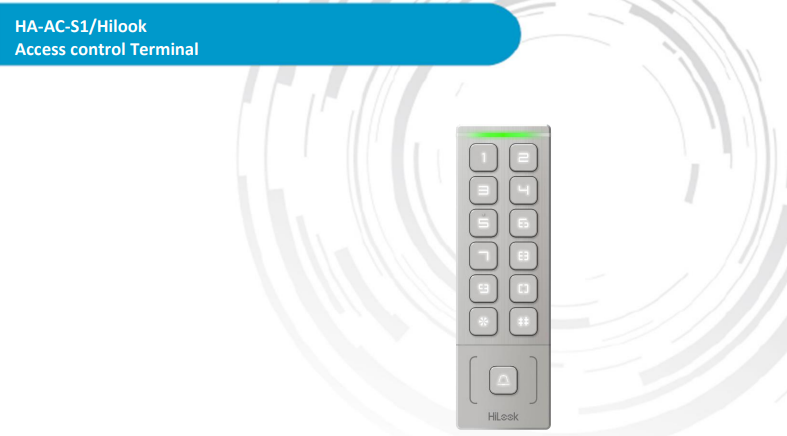

The HiLook HA-AC-S1/Hilook Access Control Terminal is a compact and durable outdoor access control keypad and card reader designed for secure door entry management. With support for up to 1000 users, 1000 M1 cards, card and PIN authentication, Wiegand output, and an IP65-rated housing, it is ideal for residential, commercial, office, warehouse, and small business access control applications.
Built with a slim metal design, the HA-AC-S1/Hilook offers flexible installation in areas where space is limited while maintaining a professional and robust appearance. It supports M1 card reading with a reading distance of up to 3 cm and provides quick authentication with a card reading duration of approximately 1 second.
The terminal includes essential access control interfaces such as lock control, exit button input, door contact input, alarm output, and Wiegand 26/34 output, making it suitable for integration into a variety of standalone or connected access control systems. Its wide operating temperature range of -40 °C to 65 °C supports reliable performance in demanding outdoor environments.
What’s Included in the Box
- 1 × HiLook HA-AC-S1/Hilook Access Control Terminal
- Standard manufacturer packaging
Note: Power supply, lock, exit button, cards, and additional access control accessories may vary by supplier or installation requirements.
Main Features
- Slim and flexible metal design
- Supports up to 1000 users
- Supports up to 1000 cards
- Built-in card reader for M1 card reading
- Supports card and PIN authentication
- Suitable for outdoor use with IP65 protection
-
Physical button keypad for PIN entry
- Built-in indicator support
-
Wiegand output supporting Wiegand 26/34
- Includes lock control interface
- Supports exit button connection
- Supports door contact input
- Includes alarm output interface
- Wide operating temperature range from -40 °C to 65 °C
- Compact body: 151 mm × 48 mm × 21.5 mm
Detailed Specifications
System
| Specification |
Details |
| Product Code |
HA-AC-S1/Hilook |
| Product Type |
Access Control Terminal |
| ROM |
64 K |
| RAM |
8 K |
| Processor |
GD32E230K8 |
Audio
| Specification |
Details |
| Power Output |
6 W |
Interface
| Specification |
Details |
| Lock Control |
1 |
| Exit Button |
1 |
| Door Contact Input |
1 |
| Alarm Output |
1 |
| Wiegand |
Wiegand output |
| Wiegand Support |
Wiegand 26/34 |
Capacity
| Specification |
Details |
| User Capacity |
1000 |
| Card Capacity |
1000 |
Authentication
| Specification |
Details |
| Authentication Types |
Card, PIN |
| Card Type |
M1 card |
| Card Reading Distance |
3 cm |
| Card Reading Duration |
1 second |
General
| Specification |
Details |
| Button Type |
Physical buttons |
| Indicator |
Supported |
| Power Supply |
12 VDC, 1 A |
| Working Temperature |
-40 °C to 65 °C |
| Working Humidity |
0% to 90%, non-condensing |
| Protective Level |
IP65 |

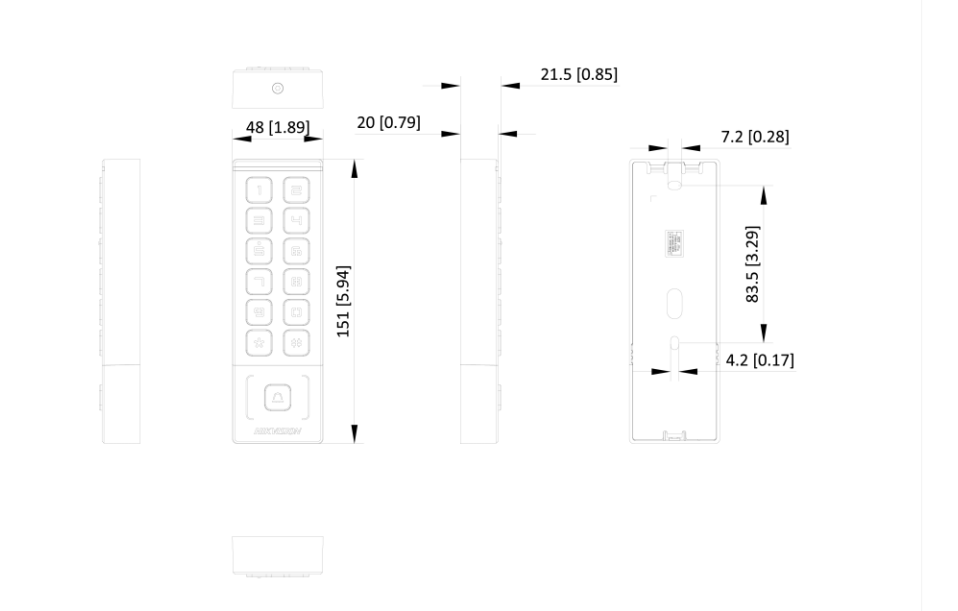

| Dimensions |
151 mm × 48 mm × 21.5 mm |
| Net Weight |
220.3 g |
| Gross Weight |
352 g |
Warranty Information
Warranty terms may vary depending on supplier, region, and authorised distribution channel. For Australian and New Zealand customers, warranty coverage should be confirmed at the time of purchase and handled through the authorised HiLook or Hikvision supply channel where applicable.
Brand Description
HiLook is a value-focused security brand associated with Hikvision, offering practical surveillance and access control solutions for homes, small businesses, offices, and commercial environments. HiLook products are designed to provide reliable security functionality with straightforward installation and everyday usability.
SKU
HA-AC-S1/Hilook
Practical Use Scenarios
- Office door access control
- Staff entrance management
- Residential gate or doorway access
- Small business entry control
- Warehouse access points
- Storage room access management
- Apartment common area entry
- Outdoor access points requiring IP65 protection
- PIN and card-based user authentication
- Integration with compatible Wiegand access control systems
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The HiLook HA-AC-S1/Hilook Access Control Terminal is suitable for Australian and New Zealand access control projects requiring compact design, outdoor protection, card and PIN authentication, and simple integration with compatible access control systems.
Its IP65 protective rating supports outdoor installation where protection against dust and water ingress is required. The wide working temperature range of -40 °C to 65 °C also makes it suitable for varied environmental conditions across Australia and New Zealand.
NDSS approval is not applicable to this access control terminal category. For best results, source this product through authorised HiLook or Hikvision representatives to ensure genuine supply, correct regional support, and warranty handling through the appropriate brand channel.
FAQs
What is the HiLook HA-AC-S1/Hilook used for?
The HiLook HA-AC-S1/Hilook is used for secure access control at doors, gates, offices, warehouses, residential entrances, and commercial entry points.
How many users does the HiLook HA-AC-S1/Hilook support?
The HiLook HA-AC-S1/Hilook supports up to 1000 users, making it suitable for small to medium access control applications.
How many cards can the HiLook HA-AC-S1/Hilook store?
The HiLook HA-AC-S1/Hilook supports up to 1000 M1 cards for card-based access authentication.
Does the HiLook HA-AC-S1/Hilook support PIN access?
Yes, the HiLook HA-AC-S1/Hilook supports PIN authentication using its physical button keypad.
What card type does the HiLook HA-AC-S1/Hilook support?
The HiLook HA-AC-S1/Hilook supports M1 cards through its built-in card reader.
Is the HiLook HA-AC-S1/Hilook suitable for outdoor use?
Yes, the HiLook HA-AC-S1/Hilook has an IP65 protective rating, making it suitable for outdoor access control installations.
Does the HiLook HA-AC-S1/Hilook support Wiegand output?
Yes, the HiLook HA-AC-S1/Hilook supports Wiegand output, including Wiegand 26/34.
What power supply does the HiLook HA-AC-S1/Hilook require?
The HiLook HA-AC-S1/Hilook requires a 12 VDC, 1 A power supply.
What is the card reading distance of the HiLook HA-AC-S1/Hilook?
The HiLook HA-AC-S1/Hilook has a card reading distance of approximately 3 cm.
What are the dimensions of the HiLook HA-AC-S1/Hilook?
The HiLook HA-AC-S1/Hilook measures 151 mm × 48 mm × 21.5 mm, making it a slim and space-efficient access control terminal.
