For large-scale surveillance with industry-leading clarity and intelligent detection, the HiLook IPC-T581H-MU 4K CCTV Kit delivers unmatched performance. Supporting up to 16 IP cameras and powered by the robust NVR-216MH-C/16P (D) 16-Channel PoE Recorder, this complete kit is ideal for commercial properties, apartment complexes, warehouses, schools, or retail environments requiring high-definition, 24/7 surveillance.

Each included HiLook IPC-T581H-MU camera features Hi-Color night vision, F1.0 super-aperture lenses, real-time audio recording, and deep learning analytics—providing full-colour visibility, even in low light. The 16-channel NVR supports 4K HDMI output, smart video playback, and local or remote access via the HiLookVision app, all with plug-and-play simplicity thanks to integrated PoE.

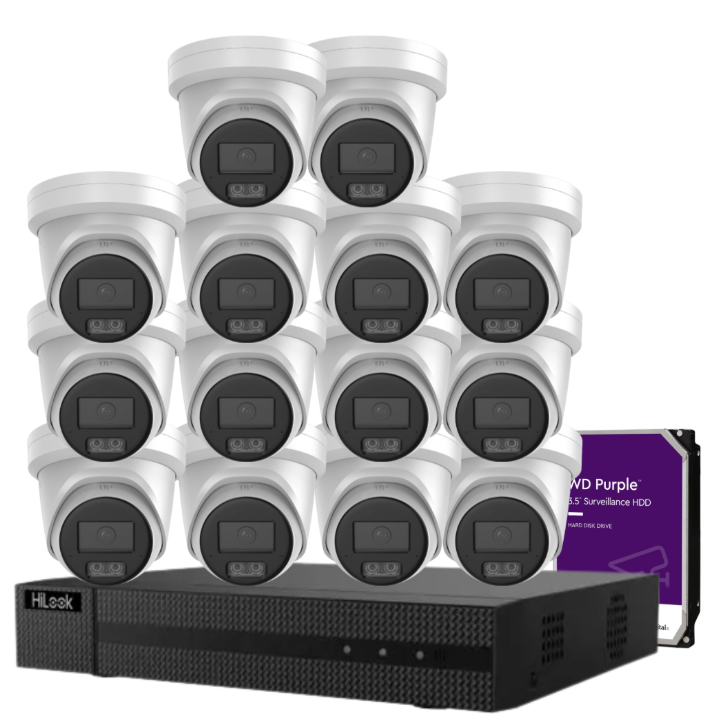

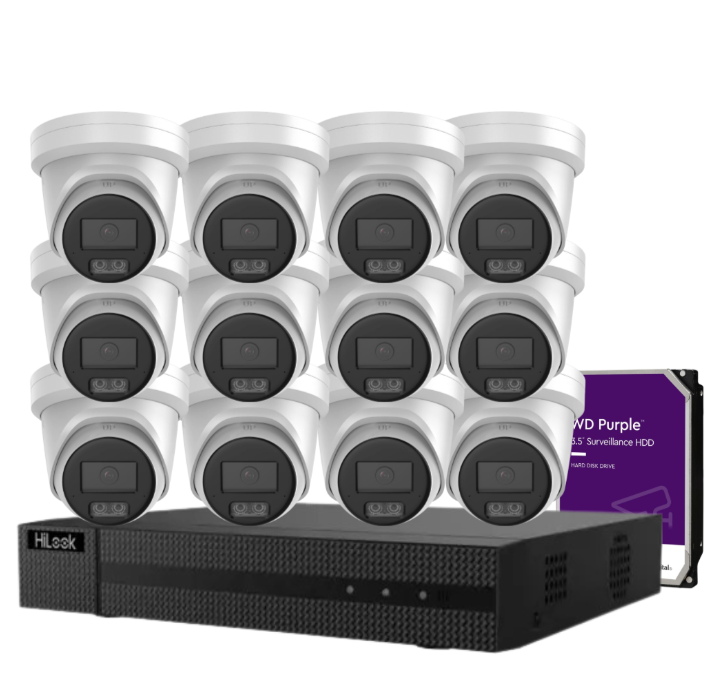

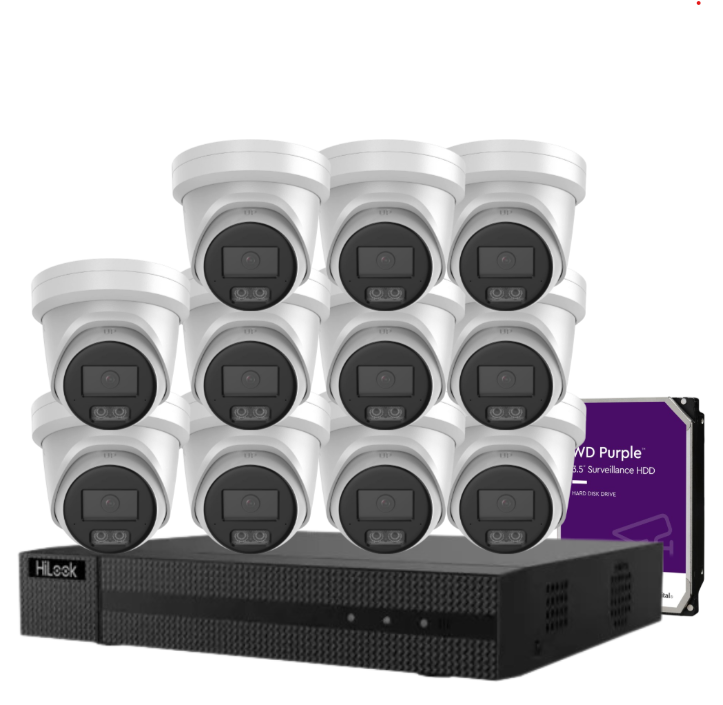

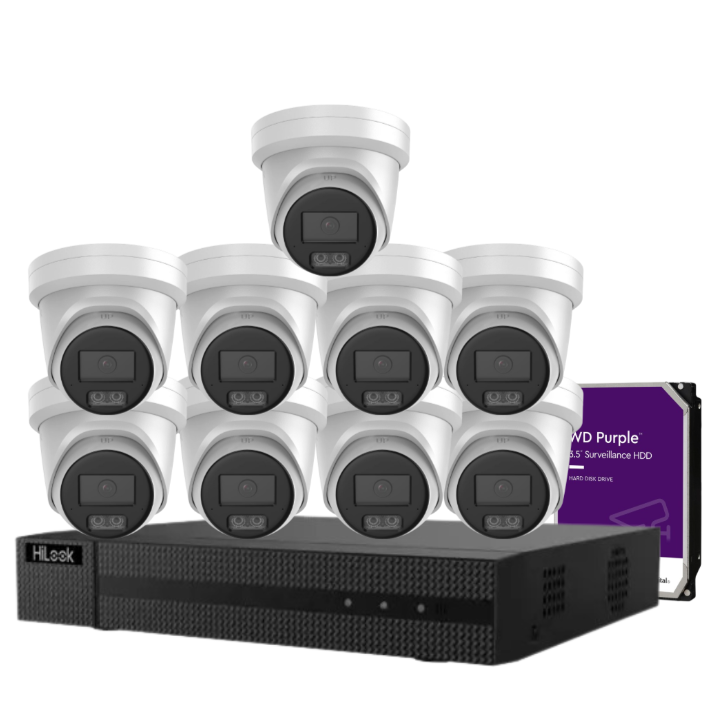

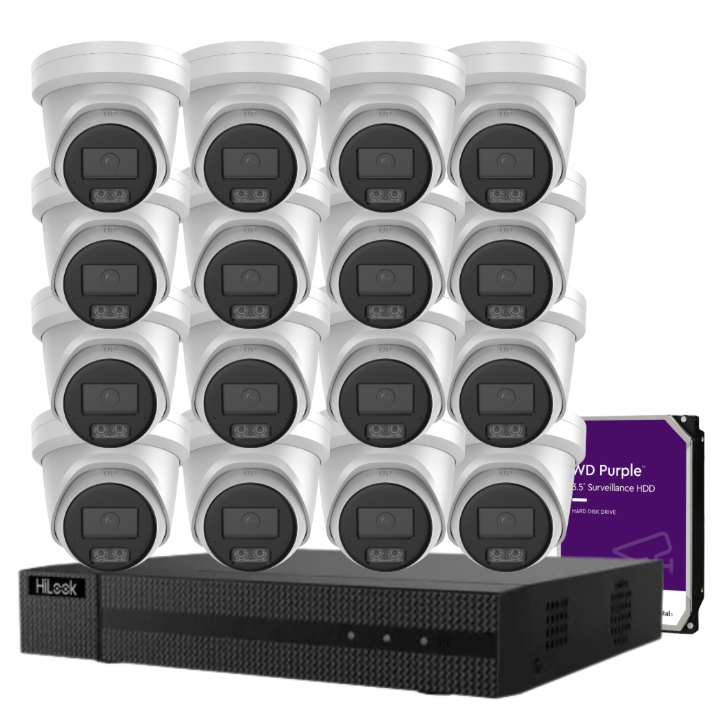

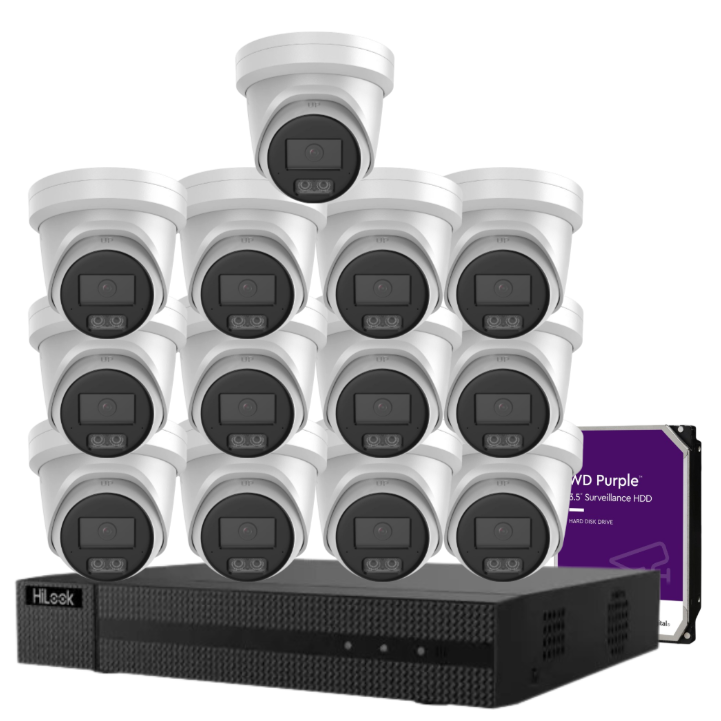

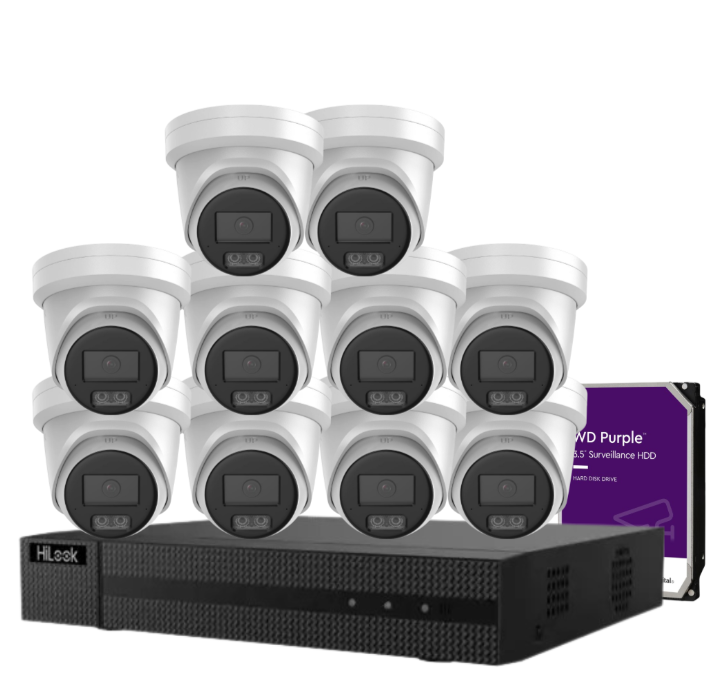

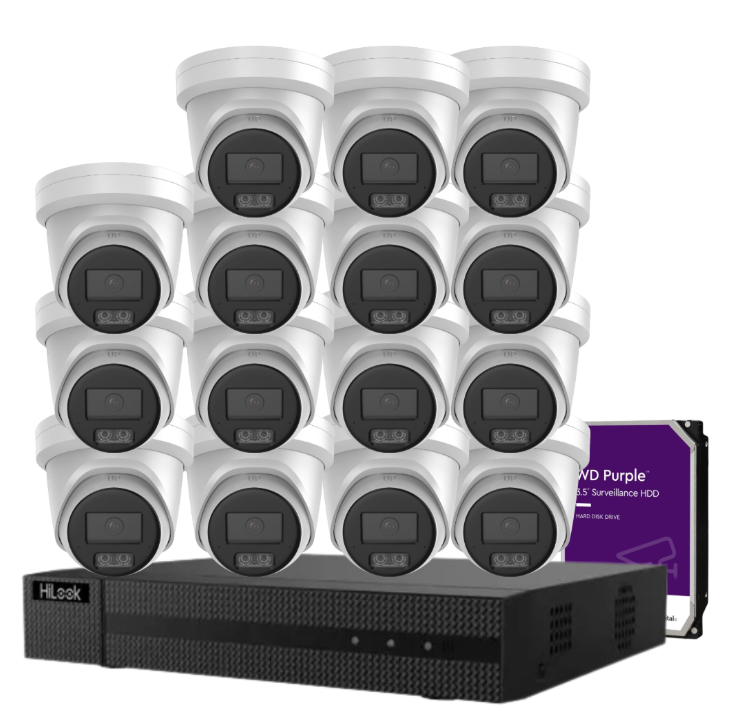

What’s Included in the Box

• Up to 16x HiLook IPC-T581H-MU 4K Hi-Color Fixed Turret Cameras (2.8mm or 4mm lenses)

• 1x HiLook NVR-216MH-C/16P (D) 16-Channel PoE Network Video Recorder

• 1x Surveillance-grade  HDD (custom capacity available)

• Power adapter, PoE cabling, and mounting accessories

• Quick start guide and setup manual

Main Features

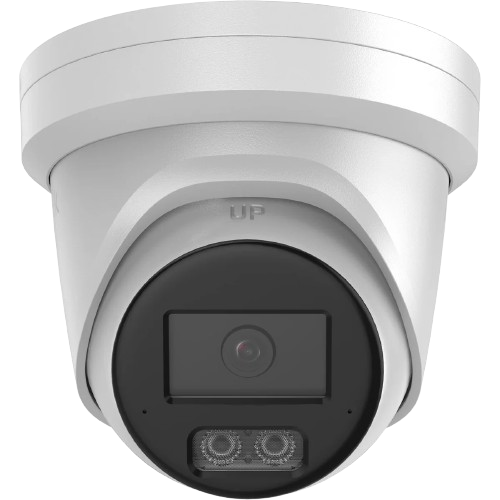

IPC-T581H-MU Camera Highlights

• 4K Ultra HD (3840 × 2160) resolution for razor-sharp video capture

• Hi-Color Night Imaging with full-colour visibility in low light using F1.0 lens

• Built-in Dual Microphone array for mono audio capture

• Advanced Person/Vehicle Detection powered by deep learning

• White Supplement Light up to 30m for true-colour night recording

• 130 dB Wide Dynamic Range, 3D DNR, and EIS image enhancement

• Onboard microSD support up to 512 GB

• IP67 Weatherproof Rated for demanding outdoor environments

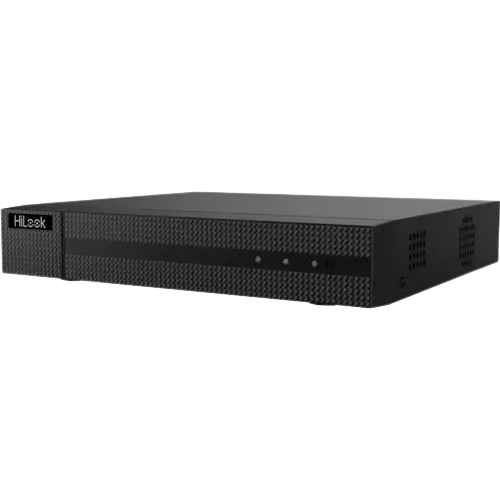

NVR-216MH-C/16P (D) Recorder Highlights

• 16 Independent PoE Ports for seamless plug-and-play camera integration

• H.265+/H.265/H.264+/H.264 video compression for efficient storage use

• Supports Up to 1-ch@8MP / 3-ch@4MP / 6-ch@1080p Decoding

• Up to 160 Mbps Incoming Bandwidth

• HDMI and VGA Outputs (HDMI up to 4K UHD)

• Smart Search & Smart Playback with Motion Detection 2.0 and VCA analytics

• Dual SATA HDD bays supporting up to 16TB total storage

• HiLookVision App and browser support for remote management

Technical Specifications

IPC-T581H-MU Camera

• Image Sensor: 1/1.8” Progressive Scan CMOS

• Lens Options: 2.8mm (108.8° HFOV) or 4mm (93.3° HFOV)

• DORI (2.8mm): Detect 89m, Recognize 17m, Identify 8m

• Compression: H.265+/H.265/H.264+/H.264, MJPEG

• Audio: Built-in dual-mic, multiple codec support

• Storage: microSD up to 512GB

• Operating Temp: -30°C to 60°C

• Power: 12VDC or PoE, Max. 11W

• Material: Metal housing, vandal-resistant

NVR-216MH-C/16P (D)

• Channels: 16 IP inputs with PoE

• Decoding: 1@8MP, 3@4MP, 6@1080p

• Video Output: HDMI (up to 4K), VGA

• Two-Way Audio: RCA input/output

• Storage: 2x SATA, each up to 8TB

• Remote Users: Up to 32

• Power Supply: 100–240VAC

• Network Interface: 1x 10/100/1000 Mbps RJ-45

• PoE Power Budget: ≤150W

• Dimensions: 385 × 315 × 52 mm

Warranty Information

• 3-Year Manufacturer Warranty on all system components

• Warranty managed through official Hikvision/HiLook Australian partners

• Local support for repairs, replacements, and technical assistance

About the Brand – HiLook by Hikvision

HiLook is Hikvision’s trusted sub-brand, delivering dependable surveillance systems for professional and residential use. With its combination of affordability and performance, HiLook is the ideal solution for scalable, full-featured security installations that require reliability and clarity day and night.

SKU: IPC-T581H-MU-16KIT

Practical Use Scenarios

• Large commercial or retail buildings requiring high-resolution monitoring

• Educational institutions needing 24/7, multi-zone video coverage

• Apartment complexes and residential estates with perimeter and entry-point surveillance

• Industrial sites or logistics hubs with wide-area visibility needs

• Government and community facilities requiring secure, scalable solutions

Downloadable Resources

• HiLook IPC-T581H-MU Camera Datasheet (PDF)

• NVR-216MH-C/16P (D) Recorder Datasheet (PDF)

Excellence for the Australian and New Zealand Market

This surveillance kit is built to exceed performance and compliance expectations in Australia and New Zealand:

• RCM Certified in accordance with AS/NZS standards

• Engineered for extreme weather conditions with IP67-rated cameras

• Sold and supported through authorized Hikvision/HiLook distributors

• Warranty service handled locally for seamless post-sale support

• Privacy-conscious and NDSS-ready, suitable for sensitive applications

FAQs – IPC-T581H-MU-16KIT

Q1: How many cameras can be connected in the IPC-T581H-MU-16KIT?
A1: This kit supports up to 16 cameras, each powered via PoE through the included 16-channel NVR.

Q2: Is the IPC-T581H-MU-16KIT capable of 4K recording?
A2: Yes, each IPC-T581H-MU camera supports 3840 × 2160 4K UHD video, providing high-precision detail.

Q3: Does the IPC-T581H-MU-16KIT record in colour at night?
A3: Yes. It uses Hi-Color technology and white light illumination for full-colour video, even in darkness.

Q4: Can I access the IPC-T581H-MU-16KIT remotely?
A4: Absolutely. Use the HiLookVision mobile app or a compatible browser for live view and playback anywhere.

Q5: What’s the maximum storage capacity for the IPC-T581H-MU-16KIT?
A5: The NVR supports 2 SATA drives up to 8TB each, for a total of 16TB capacity.

Q6: Is this system suitable for outdoor installation?
A6: Yes. The cameras are IP67-rated, ensuring full resistance against water, dust, and temperature extremes.
