Capture your environment in stunning 4K detail with the HiLook IPC-T581H-MU CCTV Kit, designed for small businesses, large residential properties, or commercial installations requiring expanded coverage. This professional surveillance system features up to eight 6MP/4K Hi-Color fixed turret cameras and an advanced HiLook 8-Channel PoE NVR with 4K HDMI output, pre-installed HDD, and smart analytics support.

At the core are the HiLook IPC-T581H-MU cameras, engineered for 24/7 full-colour surveillance even in low-light environments. Enhanced with F1.0 super-aperture lenses, dual-microphone audio capture, and deep learning analytics, these cameras ensure every critical moment is captured and classified with clarity and precision. Paired with the NVR-108MH-C/8P recorder, you get unmatched performance, plug-and-play PoE integration, and scalable network video storage.

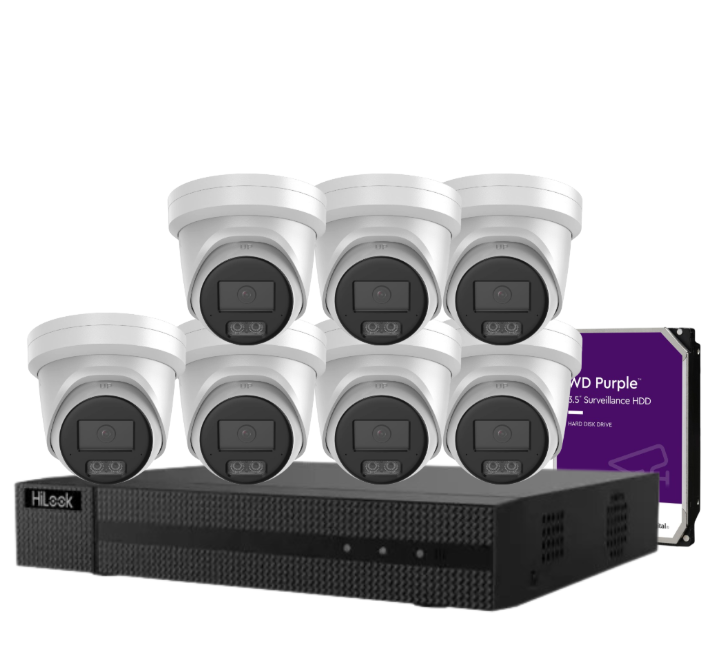

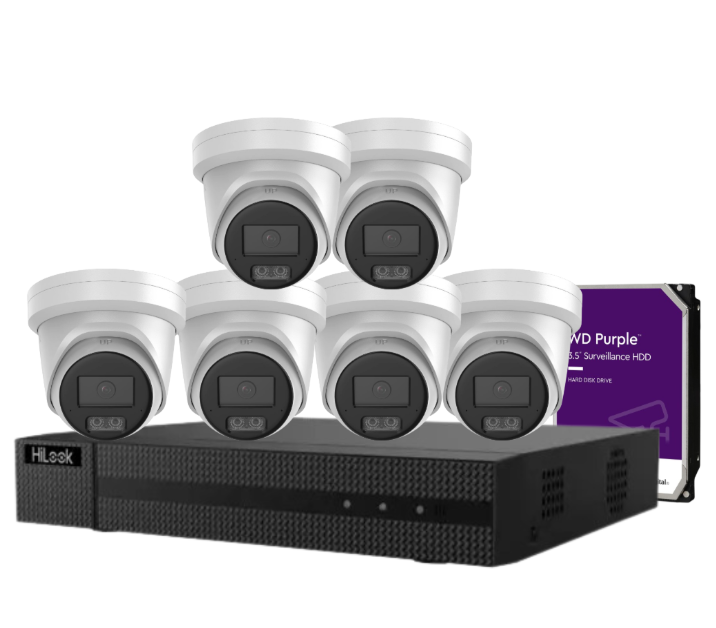

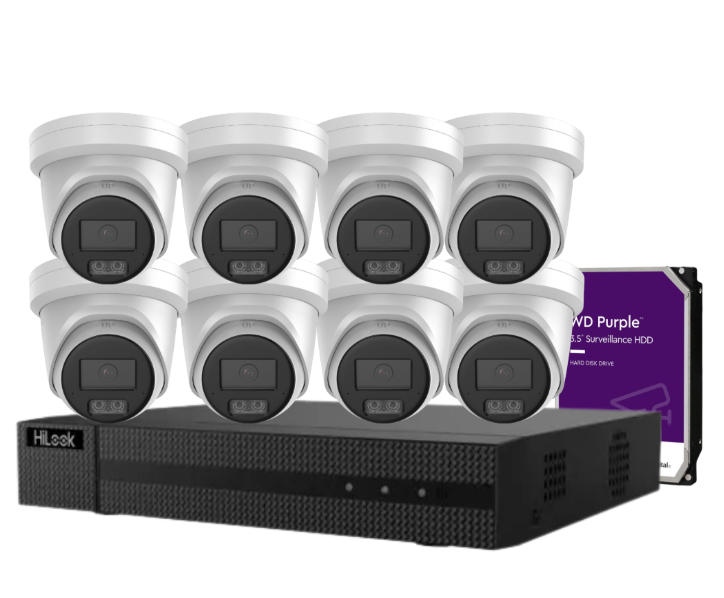

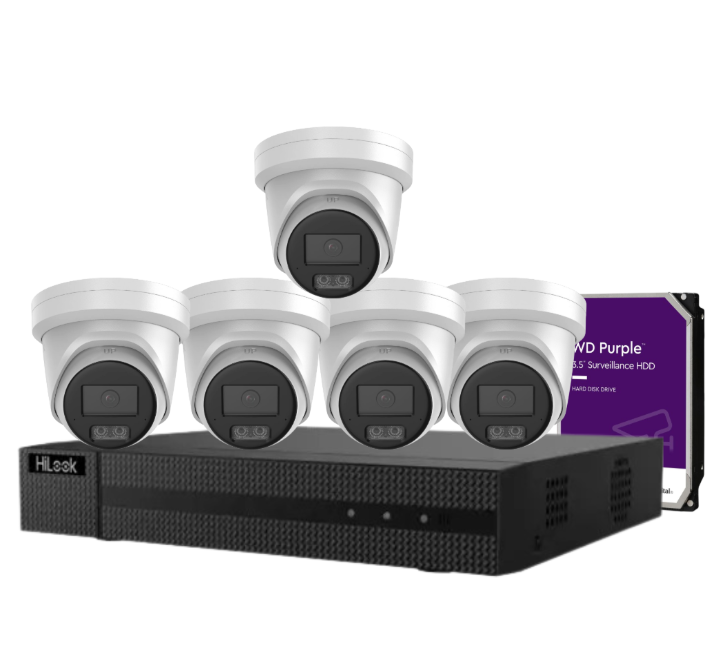

What’s Included in the Box

• Up to 8x HiLook IPC-T581H-MU 4K Hi-Color Fixed Turret Cameras (2.8mm or 4mm lens)

• 1x HiLook NVR-108MH-C/8P 8-Channel PoE Network Video Recorder

• 1x Surveillance-Grade HDD (Custom capacity available)

• Power adapter and PoE cables

• Mounting accessories and installation guide

Main Features

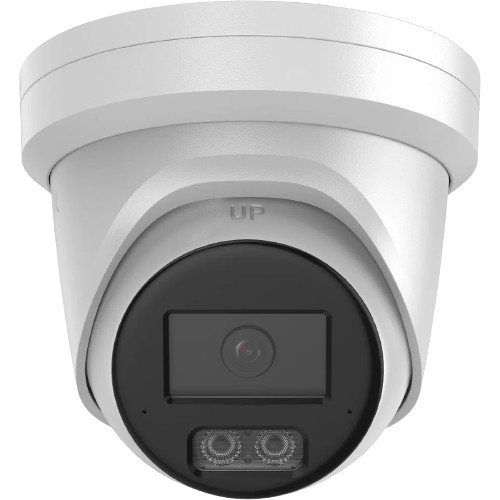

IPC-T581H-MU Camera Highlights

• 4K Resolution (3840 × 2160) for ultra-clear imagery

• Hi-Color Night Vision with F1.0 super-aperture lens for 24/7 full-colour video

• Built-in Dual Microphone Array for real-time, high-quality mono audio

• Deep Learning Algorithms for person/vehicle classification and face detection

• White Light Illumination up to 30 metres for colour recording at night

• Scene-Adaptive 130dB WDR, EIS, 3D DNR, and Defog

• microSD Storage Support up to 512GB

• IP67 Rated Metal Housing for harsh outdoor conditions

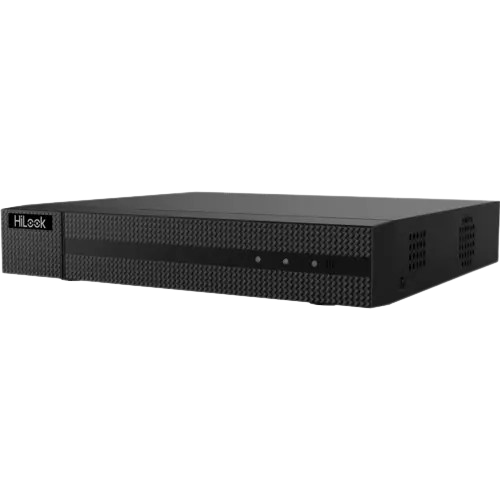

NVR-108MH-C/8P Recorder Highlights

• Supports up to 8 IP Cameras with independent PoE ports

• Up to 1-ch@8MP / 3-ch@4MP / 6-ch@1080p Decoding

• H.265+/H.264+ Compression for up to 75% storage savings

• 80 Mbps Incoming Bandwidth for smooth multi-camera operation

• HDMI Output at up to 4K UHD Resolution

• Smart Playback & Search, motion analytics, and intelligent VCA events

• User-Friendly Remote Access via HiLookVision mobile or browser interface

Technical Specifications

IPC-T581H-MU Camera

• Lens: 2.8mm (HFOV 108.8°), 4mm (HFOV 93.3°)

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Bitrate: 32 Kbps to 16 Mbps

• Compression: H.265+/H.265/H.264+/H.264

• White Light Range: Up to 30m

• Audio: Built-in dual microphone, multiple codec support

• Storage: microSD/microSDHC/microSDXC up to 512GB

• Power Supply: 12VDC or PoE (Max 11W)

• Weather Rating: IP67

NVR-108MH-C/8P

• Channels: 8 PoE camera inputs

• Incoming Bandwidth: 80 Mbps

• Decoding Capability: 1-ch@8MP, 3-ch@4MP, 6-ch@1080p

• Output Ports: HDMI (up to 4K), VGA

• HDD Support: 1x SATA up to 8TB

• Two-Way Audio: RCA interface

• USB Ports: 2x USB 2.0

• Chassis: 1U compact

• Network Interface: 1x RJ45 10/100 Mbps

Warranty Information

• 3-Year Manufacturer Warranty for cameras and NVR

• Local support provided by authorized HiLook distributors in Australia

• Streamlined warranty claims via official Hikvision channels

About the Brand – HiLook by Hikvision

HiLook is a sub-brand of global surveillance leader Hikvision, offering robust, budget-friendly video surveillance systems without sacrificing essential performance. HiLook products are trusted for residential, SMB, and commercial projects worldwide, providing modern AI-driven features at an excellent price point.

SKU: IPC-T581H-MU-8KIT

Practical Use Scenarios

• Retail Environments needing detailed video coverage and audio logging

• Larger Residential Sites with driveways, yards, and multiple building zones

• Warehouse Facilities monitoring goods, docks, and perimeters

• Offices and Commercial Buildings requiring smart detection and colour night vision

• Parking Structures or Garages needing reliable 24/7 surveillance and deterrence

Downloadable Resources

• IPC-T581H-MU Camera Datasheet (PDF)

• HiLook NVR-108MH-C/8P Datasheet (PDF)

Excellence for the Australian and New Zealand Market

This CCTV system has been optimized for the Australian and New Zealand surveillance industry:

• Fully RCM Certified for AS/NZS compliance

• Built to withstand harsh ANZ climate conditions with IP67 weatherproofing

• Supplied via authorized ANZ Hikvision/HiLook partners

• All warranty and service requests are handled locally

• Meets local expectations for cybersecurity, data storage, and video integrity

FAQs – IPC-T581H-MU-8KIT

Q1: Does the IPC-T581H-MU-8KIT support 4K video recording?
A1: Yes, each IPC-T581H-MU camera captures footage in 3840 × 2160 (4K UHD) resolution.

Q2: Can I record in colour even at night with the IPC-T581H-MU-8KIT?
A2: Absolutely. The cameras use Hi-Color technology with F1.0 lenses and white light LED for full-colour night imaging.

Q3: Does the IPC-T581H-MU-8KIT support real-time audio?
A3: Yes, every camera includes dual-microphone audio, and the NVR supports two-way audio communication.

Q4: How many cameras can I connect with this kit?
A4: The included NVR supports up to 8 PoE IP cameras, powered directly via Ethernet.

Q5: What’s the maximum recording storage capacity for the IPC-T581H-MU-8KIT?
A5: The NVR supports 1x HDD up to 8TB, and each camera supports up to 512GB microSD for local storage.

Q6: Is this kit suitable for outdoor installations?
A6: Yes, the IPC-T581H-MU cameras are IP67-rated, built to resist water, dust, and extreme weather.
