Protect your home, business or commercial premises with the HiLook Pro Series 6MP Smart Hybrid Light CCTV Kit, combining up to four IPC-T363H-MU 6MP turret IP cameras with the NVR-104MH-K/4P 4-channel PoE 4K network video recorder. Featuring intelligent human and vehicle detection, Smart Hybrid Light colour event imaging, up to 30 metres of supplementary illumination, built-in camera microphones, H.265+ compression and convenient PoE connectivity, this system provides a powerful IP surveillance solution for Australian and New Zealand properties.
The IPC-T363H-MU uses a 1/2.4" Progressive Scan CMOS sensor and records at up to 3200 × 1800 resolution. Its large F1.2 aperture and low-light sensitivity of 0.001 Lux help retain useful image detail in challenging lighting conditions.
At night, the camera combines 850 nm infrared illumination and white supplementary light through HiLook Smart Hybrid Light technology. The system can provide conventional infrared monitoring and use white light to deliver colour imagery when relevant events occur, with a supplementary light range of up to 30 metres.
Intelligent detection allows the camera to distinguish specified human and vehicle targets, helping reduce unnecessary alarms from irrelevant movement. Supported intelligent events include motion detection, line crossing and intrusion detection.
Each camera also features a built-in microphone, allowing compatible NVR recordings to include both video and audio for greater context during incident review.
The included NVR-104MH-K/4P provides four independent PoE camera ports, allowing compatible cameras to receive both network connectivity and power through a single Ethernet cable. The recorder supports up to four IP camera inputs, up to 40 Mbps incoming bandwidth, H.265+ compression, 4K HDMI output and four-channel synchronous playback.
Choose Your Camera Quantity
Configure the system according to your surveillance requirements:

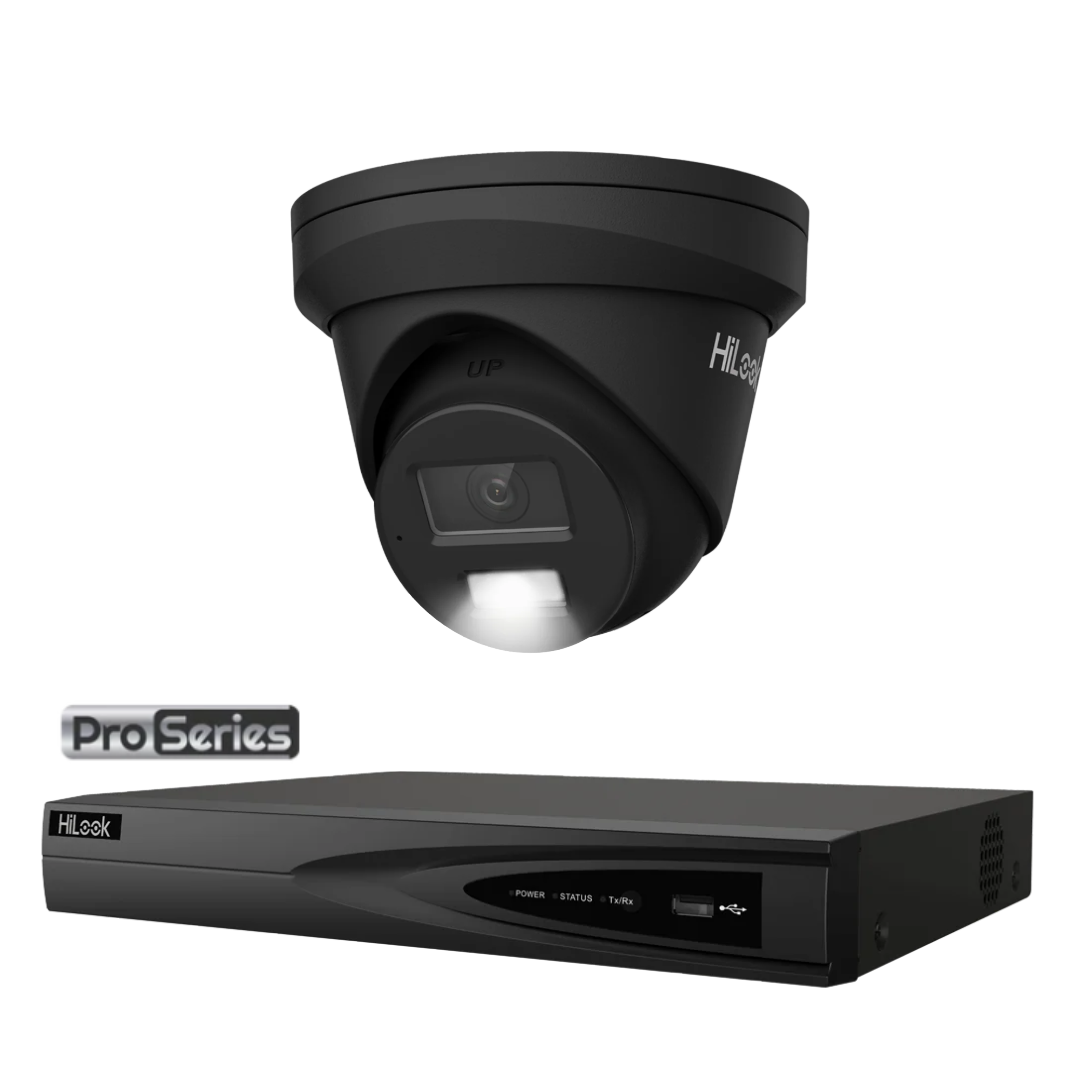

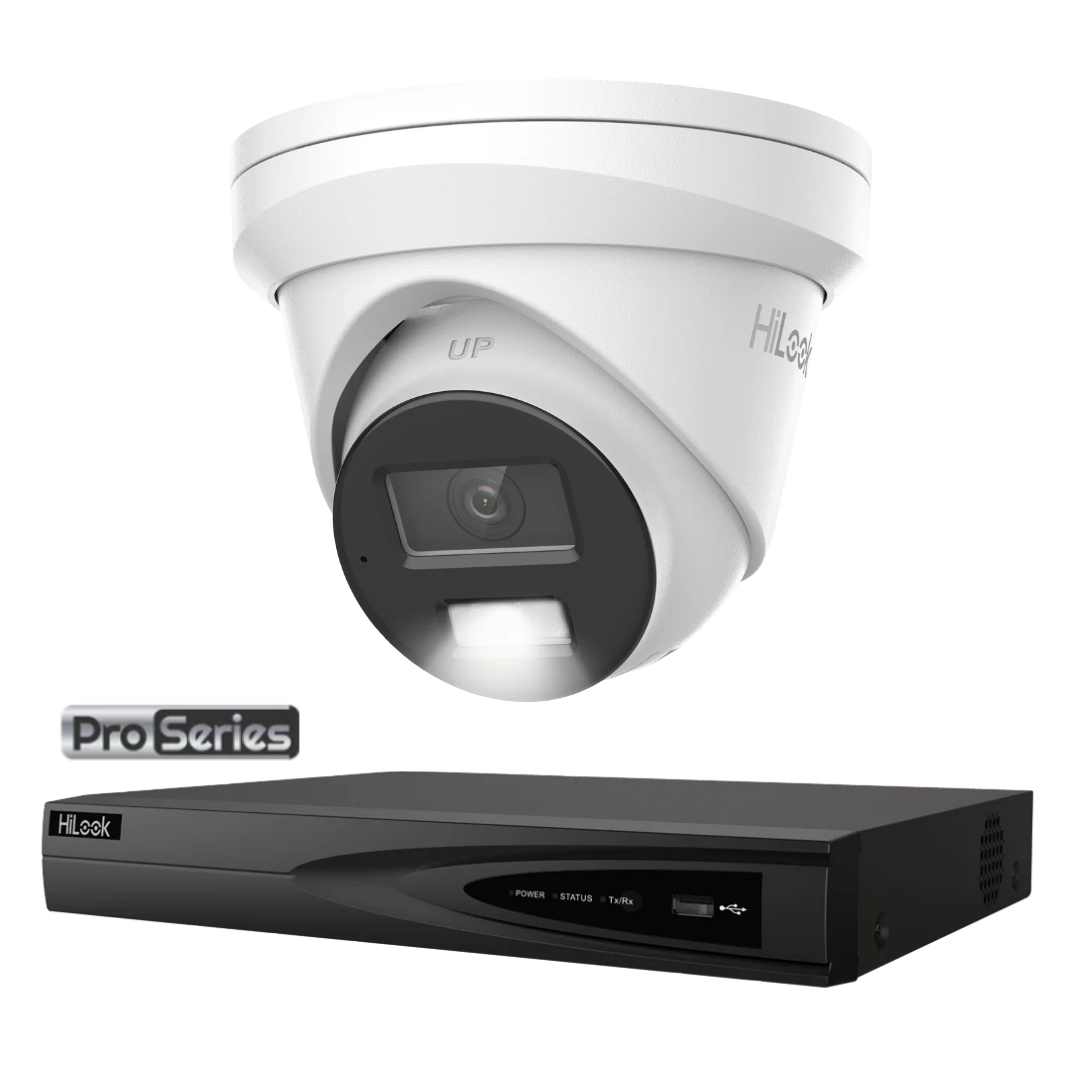

- 1 Camera Kit – 1 × IPC-T363H-MU + 1 × NVR-104MH-K/4P

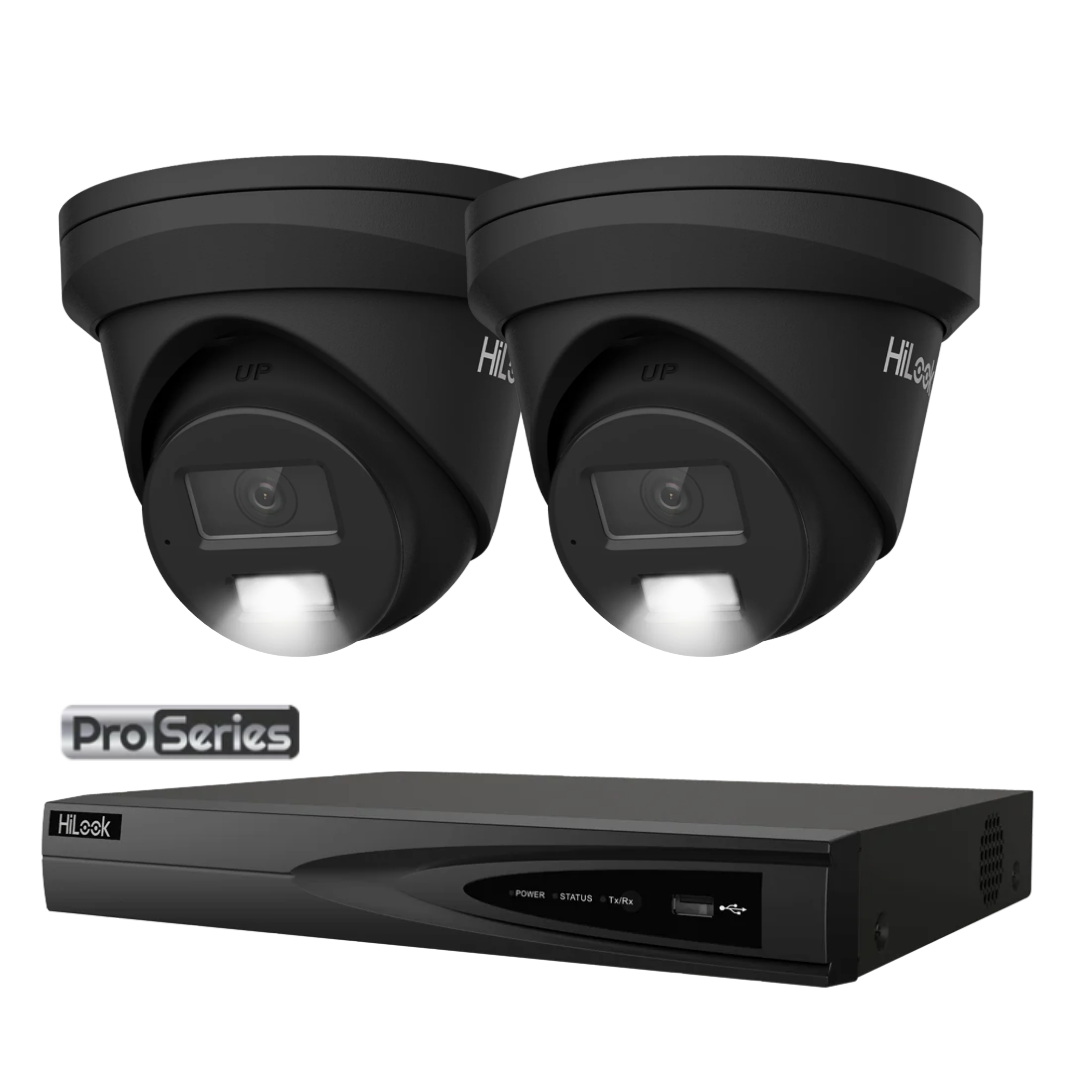

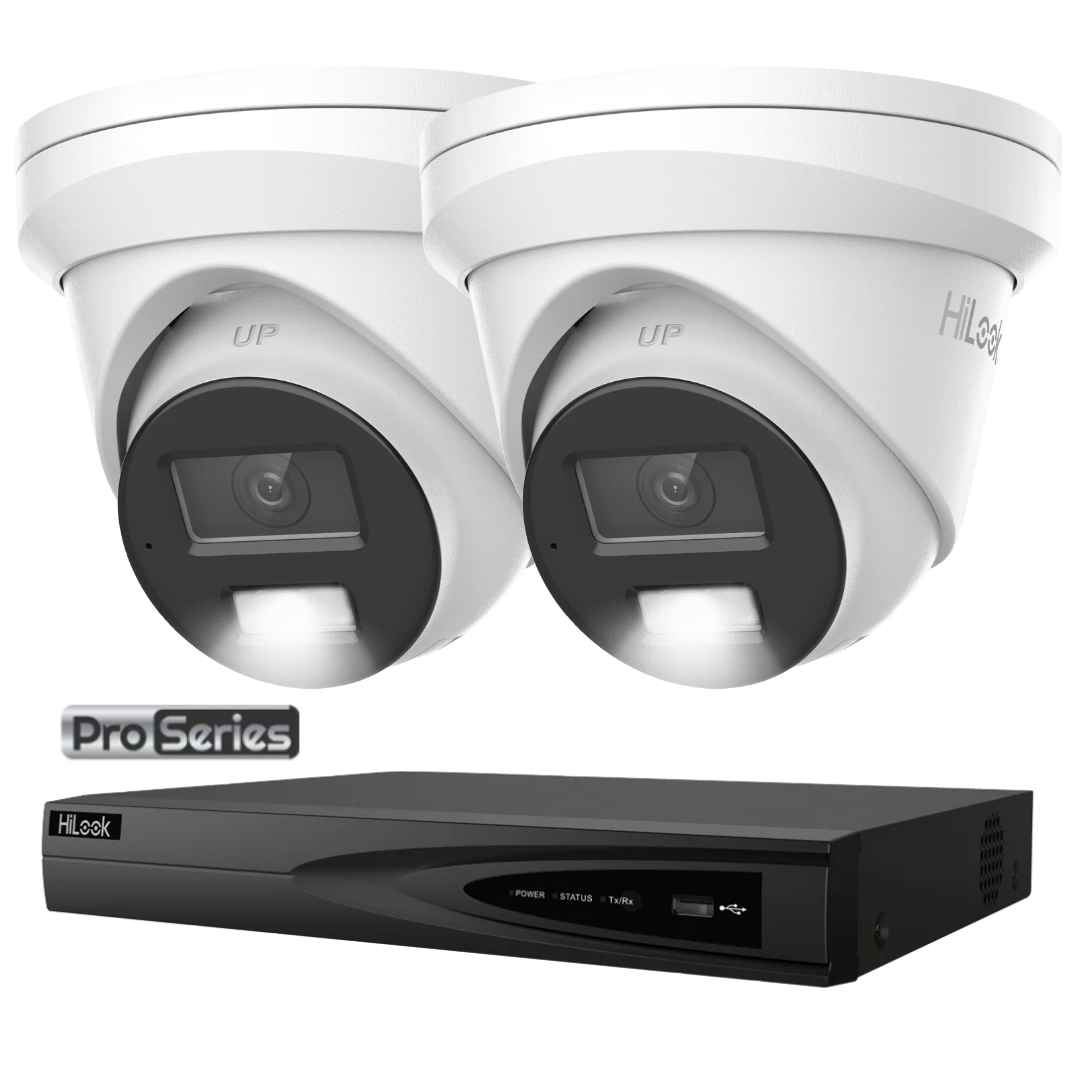

- 2 Camera Kit – 2 × IPC-T363H-MU + 1 × NVR-104MH-K/4P

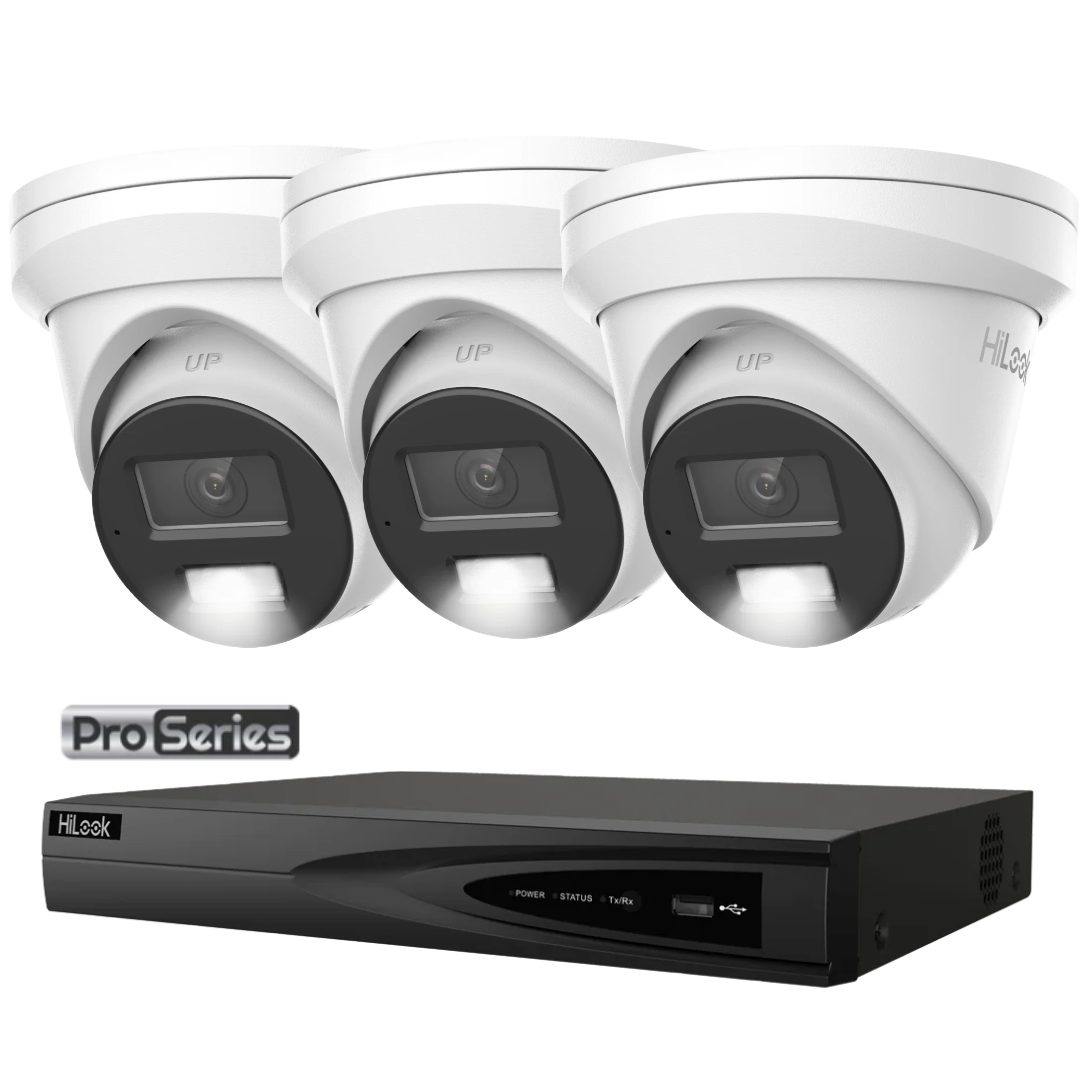

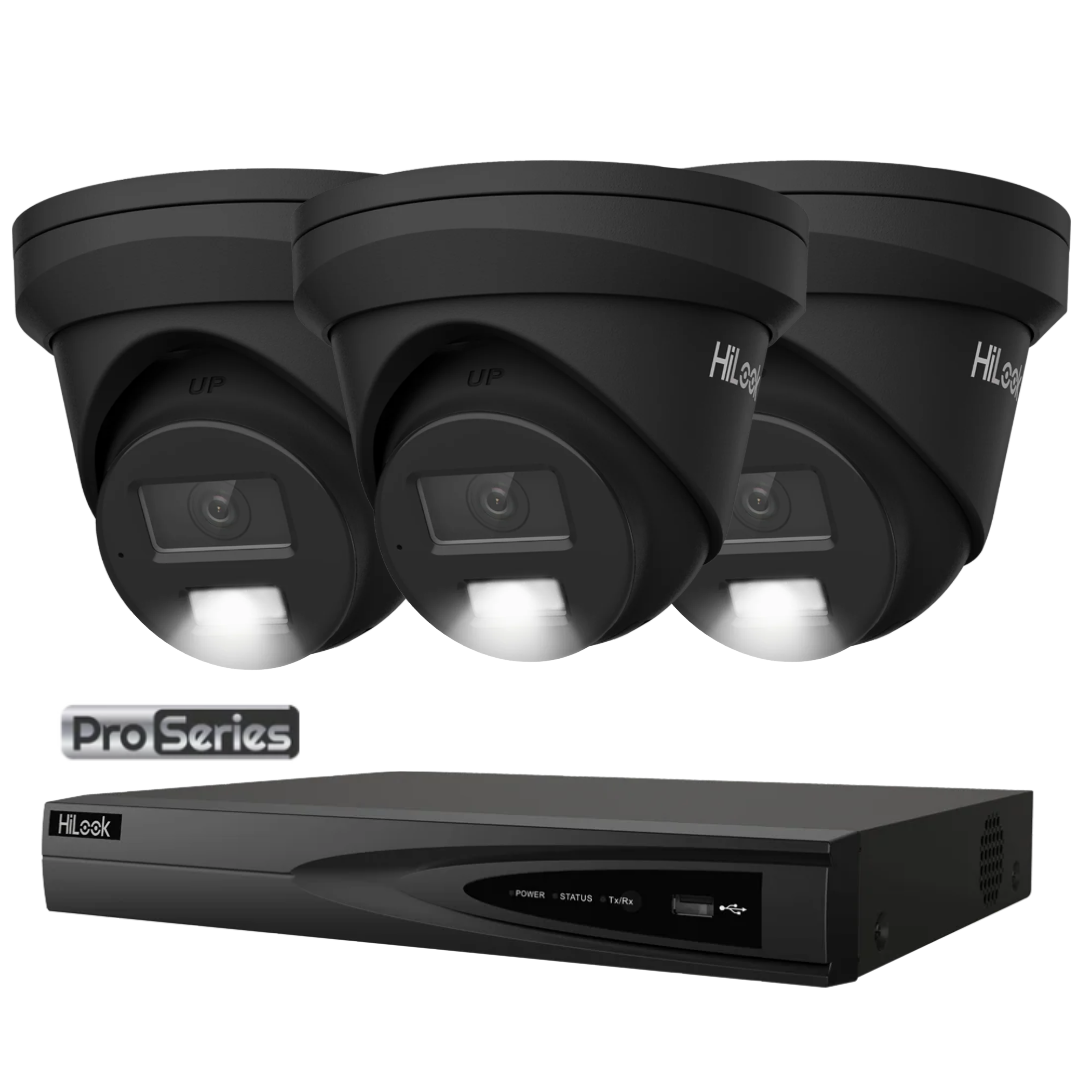

- 3 Camera Kit – 3 × IPC-T363H-MU + 1 × NVR-104MH-K/4P

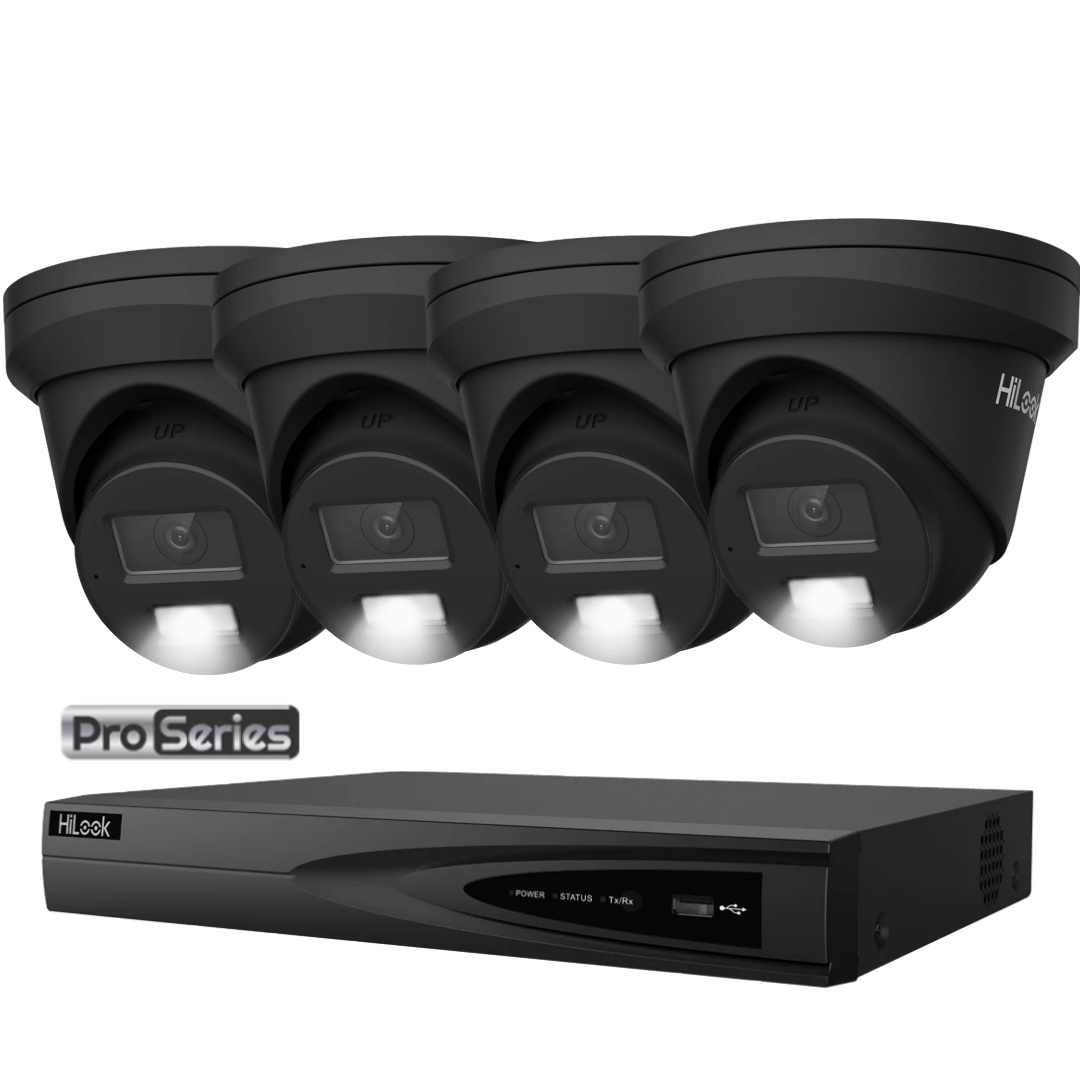

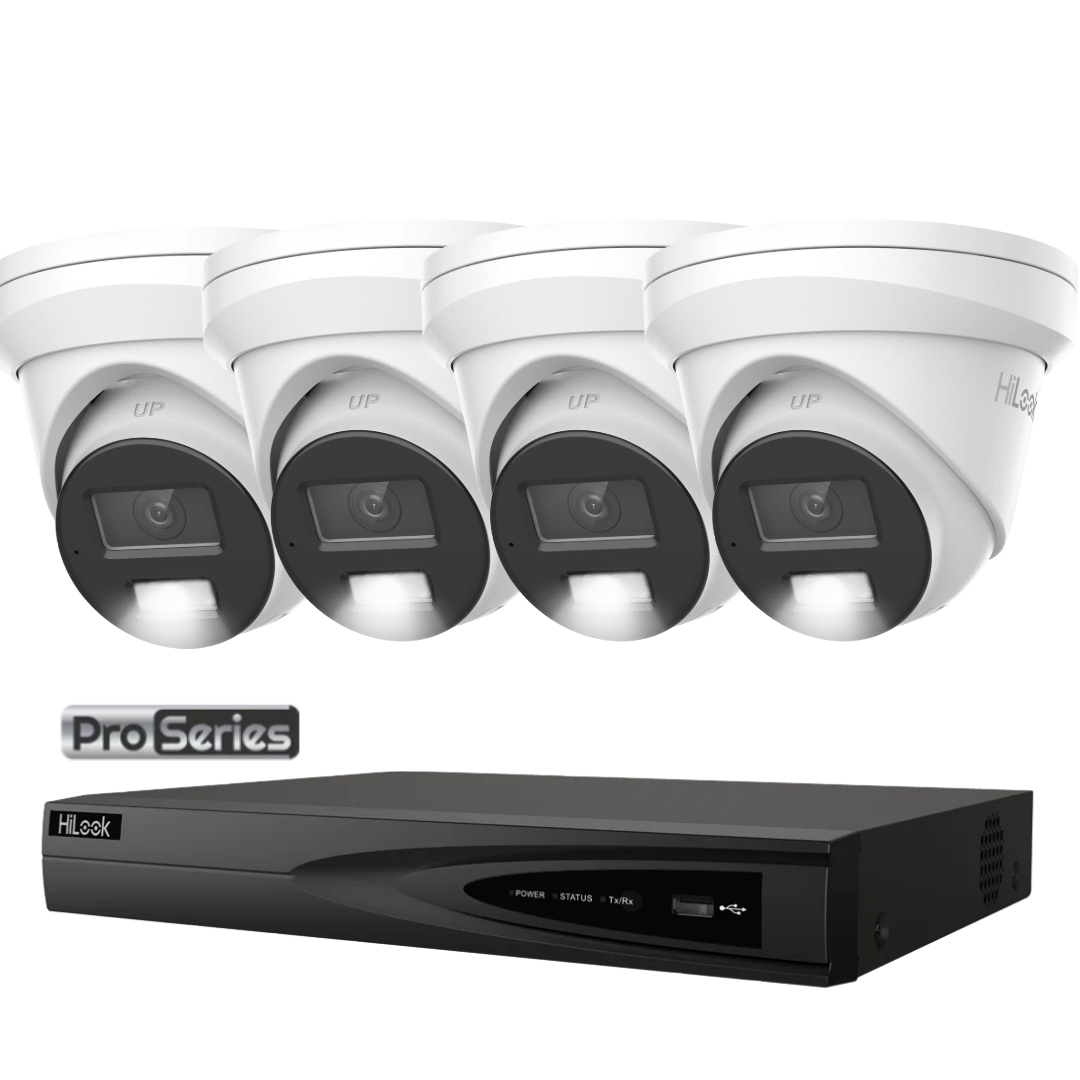

- 4 Camera Kit – 4 × IPC-T363H-MU + 1 × NVR-104MH-K/4P
The 4-channel NVR supports a maximum of four IP camera inputs.
What's Included in the Box
Depending on the selected configuration:
- 1, 2, 3 or 4 × HiLook IPC-T363H-MU 6MP Intelligent Fixed Turret Network Cameras
- 1 × HiLook NVR-104MH-K/4P 4-Channel 4 PoE 4K Network Video Recorder
Important: HDD storage, Ethernet cabling, monitor, installation accessories, and other components are not included.
Main Features
6MP High-Resolution Surveillance
Capture detailed security footage at up to 3200 × 1800 pixels using the camera's 6MP Progressive Scan CMOS sensor.
Smart Hybrid Light Night Vision
Integrated infrared and white supplementary lighting provides flexible night monitoring, with colour imaging available when configured events occur.
Up to 30m Supplementary Light
Suitable for monitoring driveways, building entrances, yards, warehouses and other indoor or outdoor areas.
Intelligent Human & Vehicle Detection
Specified target classification helps distinguish human and vehicle activity from other general movement.
Line Crossing & Intrusion Detection
Configure intelligent monitoring zones and virtual boundaries for more targeted security alerts.
Built-In Microphone
Each IPC-T363H-MU includes an integrated microphone for real-time audio capture alongside compatible video recordings.
120dB Wide Dynamic Range
Helps preserve image detail in scenes containing both bright and dark areas, such as entrances facing daylight.
IP67 Weather Protection
The metal turret camera is rated IP67 for resistance to water and dust.
Efficient H.265+ Compression
Reduces network bandwidth and storage requirements compared with less efficient video compression formats.
Power over Ethernet
The NVR provides four PoE network interfaces, allowing power and data transmission over compatible Ethernet cabling.
4K Video Output
Connect a suitable monitor or television through HDMI for local viewing at up to 3840 × 2160 / 30 Hz.
Up to 16TB HDD Support
The NVR provides one SATA interface supporting a hard drive capacity of up to 16TB.

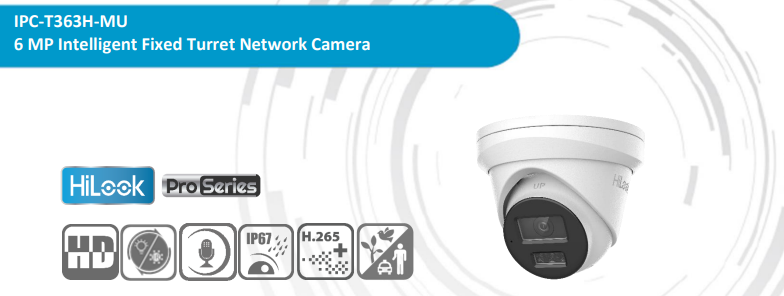

IPC-T363H-MU Camera Specifications
| Specification | Details |
|---|---|
| Product Code | IPC-T363H-MU |
| Camera Type | Intelligent Fixed Turret Network Camera |
| Resolution | 6MP |
| Maximum Resolution | 3200 × 1800 |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Minimum Illumination | Colour: 0.001 Lux @ F1.2, AGC On |
| B/W Illumination | 0 Lux with IR |
| Shutter Speed | 1/3 sec to 1/100,000 sec |
| Day/Night | IR cut filter |
| Lens | Fixed focal |
| Lens Options | 2.8mm or 4mm |
| Lens Mount | M12 |
| Aperture | F1.2 |
| 2.8mm Horizontal FOV | 119.6° |
| 2.8mm Vertical FOV | 60° |
| 2.8mm Diagonal FOV | 149° |
| 4mm Horizontal FOV | 96.8° |
| 4mm Vertical FOV | 50° |
| 4mm Diagonal FOV | 115° |
| Supplementary Lighting | Infrared + White Light |
| Supplementary Light Range | Up to 30m |
| IR Wavelength | 850nm |
| Smart Supplement Light | Yes |
| Main Stream | Up to 20fps at 3200 × 1800 |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Built-In Microphone | Yes |
| Audio Type | Mono |
| Environment Noise Filtering | Yes |
| WDR | 120dB |
| SNR | ≥52dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon masks |
| Motion Detection | Yes, with specified human/vehicle targets |
| Line Crossing Detection | Yes |
| Intrusion Detection | Yes |
| Ethernet | 1 × RJ45 10/100 Mbps |
| PoE | IEEE 802.3af, Class 3 |
| DC Power | 12V DC ±25% |
| Maximum DC Consumption | 5W |
| Maximum PoE Consumption | 6.5W |
| Housing | Metal |
| Weather Protection | IP67 |
| Camera Dimensions | Ø127.3 × 95.9mm |
| Camera Weight | Approx. 600g |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤95%, non-condensing |
| ONVIF | Profile S, Profile T, Profile G |
| Client Software | iVMS-4200, HiLookVision |
| Simultaneous Live View | Up to 6 channels |
| User Accounts | Up to 32 users |
Camera Position Adjustment
- Pan: 0°–360°
- Tilt: 0°–75°
- Rotate: 0°–360°
DORI – 2.8mm Lens
- Detect: 76m
- Observe: 30m
- Recognise: 15m
- Identify: 7m
DORI – 4mm Lens
- Detect: 115m
- Observe: 45m
- Recognise: 23m
- Identify: 11m
Available Camera Variants
- IPC-T363H-MU 2.8mm – White
- IPC-T363H-MU 4mm – White
- IPC-T363H-MU 2.8mm – Black
Variant availability should be confirmed at the time of ordering.

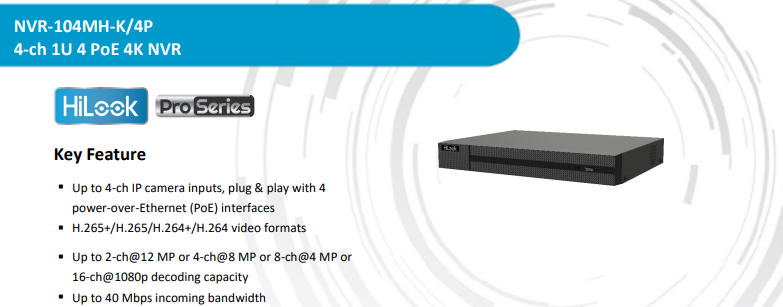

NVR-104MH-K/4P NVR Specifications
| Specification | Details |
| Product Code | NVR-104MH-K/4P |
| Recorder Type | 4-Channel 1U PoE 4K Network Video Recorder |
| IP Camera Inputs | 4 Channels |
| Integrated PoE Ports | 4 |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Recording Resolution | Up to 12MP supported |
| Kit Camera Resolution | 6MP |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Synchronous Playback | 4 Channels |
| HDMI Output | 1 |
| Maximum HDMI Output | 4K 3840 × 2160 / 30Hz |
| VGA Output | 1 |
| HDMI/VGA | Simultaneous output |
| Audio Output | 1 × RCA |
| Two-Way Audio | 1 × RCA |
| SATA Interfaces | 1 |
| Maximum HDD Capacity | Up to 16TB |
| LAN Interface | 1 × RJ45 10/100/1000 Mbps |
| PoE Interfaces | 4 × RJ45 10/100 Mbps |
| PoE Standard | IEEE 802.3af/at |
| Maximum PoE Power | ≤50W |
| USB | 1 × USB 2.0 front + 1 × USB 2.0 rear |
| Remote Connections | Up to 128 |
| ONVIF | Profile S/G |
| Power Supply | 48V DC, 1.35A |
| Recorder Consumption | ≤10W without HDD and with PoE off |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10%–90% |
| Dimensions | 320 × 240 × 48mm |
| Weight | ≤1kg without HDD |
Intelligent NVR Functions
The NVR supports intelligent analytics by the recorder and compatible connected cameras, including:
- Motion Detection 2.0
- Perimeter protection
- Human and vehicle recognition
- Facial recognition functionality
- Smart video search
- Smart playback
- Compatible camera-side intelligent analytics
Availability of individual analytics functions depends on the connected camera, recorder configuration, firmware and processing mode.
Network & Remote Viewing
The IPC-T363H-MU and NVR-104MH-K/4P support standard IP surveillance protocols and remote management functionality.
Supported technologies include TCP/IP, DHCP, DNS, HTTP/HTTPS, RTP, RTSP, NTP, IPv4/IPv6 and ONVIF on applicable devices.
HiLookVision can be used for compatible remote security system management and viewing.
Remote access requires suitable network connectivity and correct system configuration.
Warranty Information
HiLook products are listed under a 36-month default warranty period in Hikvision's Australian RMA policy.
Warranty eligibility, commencement date, exclusions and return procedures remain subject to the applicable Hikvision/HiLook warranty terms, proof of purchase, serial number and authorized sales channel.
Always retain your invoice and product serial number for warranty support.
Brand Description – HiLook
HiLook provides IP surveillance products designed to combine reliable security performance, straightforward operation and strong value. Its range includes network cameras, network video recorders, transmission products and related surveillance solutions suitable for residential and small-to-medium commercial security projects.
SKU / Product Codes
Camera: IPC-T363H-MU
NVR: NVR-104MH-K/4P
Practical Use Scenarios
Residential Security
Monitor entrances, driveways, garages, yards and outdoor areas with high-resolution video and intelligent human/vehicle detection.
Small Business CCTV
Suitable for shops, offices, reception areas, workshops and small commercial sites requiring up to four cameras.
Warehouse & Storage Monitoring
Use intelligent intrusion and line-crossing events to monitor designated access areas and storage spaces.
Building Perimeter Surveillance
IP67 turret cameras can be positioned around suitable external building areas while recording centrally to the PoE NVR.
Entry & Exit Monitoring
The built-in microphone and high-resolution video provide additional incident context around entrances and access points.
Upgradeable CCTV Installations
Start with one, two or three cameras and add compatible cameras later, up to the four-channel capacity of the recorder.
Datasheets & Downloadable Resources
Recommended resources to attach to this product page:
- IPC-T363H-MU Camera Datasheet
- NVR-104MH-K/4P NVR Datasheet
Excellence for the Australian and New Zealand Market
The IPC-T363H-MU is documented with RCM EMC compliance to AS/NZS CISPR 32:2015, supporting its suitability for the Australian and New Zealand regulatory environment. The camera also carries IP67 protection certification to IEC 60529 and other listed international EMC, safety and environmental approvals.
HiLook's Australian product material specifically lists the IPC-T363H-MU and NVR-104MH-K/4P within the HiLook Pro Series product range.
For maximum manufacturer support, products should be sourced through authorized HiLook/Hikvision distribution channels. Hikvision advises that authorized distributors and partners provide product supply, support and warranty services, while products obtained outside authorized channels may affect access to full support.
Hikvision also maintains dedicated support and sales operations for both Australia and New Zealand.
The Australian Hikvision RMA policy lists HiLook products with a default 36-month warranty, subject to the policy terms and proof-of-purchase requirements.
NDSS approval is not claimed for this product, as no applicable NDSS certification or approval was provided or verified for IPC-T363H-MU or NVR-104MH-K/4P.
FAQs
Is the IPC-T363H-MU + NVR-104MH-K/4P CCTV kit available with different numbers of cameras?
Yes. The IPC-T363H-MU + NVR-104MH-K/4P kit can be configured with one, two, three or four IPC-T363H-MU cameras. The NVR supports a maximum of four IP camera channels.
Does the IPC-T363H-MU + NVR-104MH-K/4P CCTV kit provide colour night vision?
The IPC-T363H-MU + NVR-104MH-K/4P kit uses Smart Hybrid Light technology combining infrared and white supplementary light. It can provide infrared night monitoring and colour imagery when configured events trigger the white light.
How far can the IPC-T363H-MU + NVR-104MH-K/4P cameras see at night?
Each camera in the IPC-T363H-MU + NVR-104MH-K/4P system provides supplementary IR and white-light illumination with a specified range of up to 30 metres.
Does the IPC-T363H-MU + NVR-104MH-K/4P support human and vehicle detection?
Yes. The IPC-T363H-MU + NVR-104MH-K/4P system supports intelligent human and vehicle target detection through compatible motion, line-crossing and intrusion detection functions.
Does the IPC-T363H-MU + NVR-104MH-K/4P record audio?
Yes. Each IPC-T363H-MU camera in the IPC-T363H-MU + NVR-104MH-K/4P kit has a built-in microphone and supports compatible video-and-audio recording.
Are the IPC-T363H-MU + NVR-104MH-K/4P cameras weatherproof?
Yes. The IPC-T363H-MU cameras supplied with the IPC-T363H-MU + NVR-104MH-K/4P system carry an IP67 water- and dust-resistance rating.
Does the IPC-T363H-MU + NVR-104MH-K/4P use PoE?
Yes. The IPC-T363H-MU + NVR-104MH-K/4P recorder has four independent PoE network ports, allowing compatible cameras to receive power and network connectivity through Ethernet cabling.
What resolution does the IPC-T363H-MU + NVR-104MH-K/4P record?
The IPC-T363H-MU cameras in the IPC-T363H-MU + NVR-104MH-K/4P kit provide up to 6MP resolution at 3200 × 1800 pixels, and the NVR supports 6MP recording.
What lens options are available for the IPC-T363H-MU + NVR-104MH-K/4P CCTV system?
The IPC-T363H-MU used with the IPC-T363H-MU + NVR-104MH-K/4P is available with fixed 2.8mm and 4mm lens options. The 2.8mm model provides the wider field of view.
How much storage can the IPC-T363H-MU + NVR-104MH-K/4P support?
The NVR in the IPC-T363H-MU + NVR-104MH-K/4P kit provides one SATA interface supporting a hard drive capacity of up to 16TB.
Is a hard drive included with the IPC-T363H-MU + NVR-104MH-K/4P CCTV kit?
An HDD has not been specified as a standard inclusion for the IPC-T363H-MU + NVR-104MH-K/4P kit. Storage should only be advertised as included when a specific HDD option is selected or confirmed by the seller.
Can I view the IPC-T363H-MU + NVR-104MH-K/4P remotely?
Yes. The IPC-T363H-MU + NVR-104MH-K/4P supports compatible remote network management and viewing through HiLookVision when the recorder is correctly connected and configured for network access.
Does the IPC-T363H-MU + NVR-104MH-K/4P support 4K monitor output?
Yes. The NVR supplied with the IPC-T363H-MU + NVR-104MH-K/4P supports HDMI output at up to 3840 × 2160 resolution at 30Hz.
Is the IPC-T363H-MU + NVR-104MH-K/4P suitable for Australia and New Zealand?
The IPC-T363H-MU used in the IPC-T363H-MU + NVR-104MH-K/4P system is listed with RCM EMC compliance to AS/NZS CISPR 32:2015. Installation must still comply with applicable local requirements.
What warranty applies to the IPC-T363H-MU + NVR-104MH-K/4P?
Hikvision's Australian RMA policy lists HiLook products, including the product family applicable to the IPC-T363H-MU + NVR-104MH-K/4P, with a default 36-month warranty. Actual warranty eligibility remains subject to the applicable policy, authorized sales channel, serial number and proof of purchase.
FREE SHIPPING ON ORDERS OVER $400 AUSTRALIA WIDE, except for large and heavy items such as cabinets, racks, Cable reels, and bollards, etc.
All orders are delivered using the Australia Post shipping method and this is the most efficient method of delivery.
A flat rate of $12 applies to all orders under $400, excluding heavy and large items, which will incur a specific shipping cost displayed at checkout.
Delivery typically takes 3-5 business days all over Australia, including Tasmania.
New Zealand: 10-15 business days.
Processing Times
We process orders from Monday to Friday, ensuring they are shipped within 24 hours of placement, excluding weekends and public holidays.
Tracking Your Order
Once your order is packed and dispatched from our warehouse, you will receive an email with a tracking number. This tracking number can be used to monitor your parcel's progress.
For your convenience, if you are not home at the time of delivery, the delivery driver will leave your parcel in a secure place if deemed safe. If it is not safe to leave the parcel, or if the parcel is too large, a card will be left with instructions on how to retrieve your parcel from the local depot.
Warranty period is given in the product description.
CCTV Tradie’s Products come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure of the Product and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Products repaired or replaced if the Products fail to be of acceptable quality and the failure does not amount to a major failure.
Return and refund
Quick Return Guide
- ✅ Change of mind returns: Accepted within 7 days of receiving your order.
- ✅ Products must be unused, uninstalled, and returned in their original packaging with all accessories.
- ✅ A completed Return Form must be included with every return.
- ✅ 7–30 Days: Approved change-of-mind returns are eligible for store credit only. A $30 restocking fee applies, depending on the value of the returned item.
- ❌ Used, installed, or damaged products are not eligible for return unless covered under warranty or Australian Consumer Law.
- ❌ Hard drives can only be returned if they have a confirmed major defect or failure.
- 🚚 Customers are responsible for return shipping costs unless the item has a major fault covered by Australian Consumer Law.
- 🔍 All returned items are inspected before any refund, replacement, or store credit is approved.
Read our full Return & Refund Policy:
https://cctvimporters.com.au/policies/refund-policy
- CCTV kits do not include hard drives, cables, junction boxes, mounting brackets, or other accessories unless specifically stated in the product description.
- Some CCTV kits feature "Pick & Choose" options, allowing you to customise your system by selecting the cameras and accessories that best suit your requirements.
- Please refer to the individual product description to see exactly what is included with each kit before placing your order.
Payment & Security
भुगतान की विधि
आपकी भुगतान जानकारी सुरक्षित रूप से संसाधित की जाती है। हम क्रेडिट कार्ड विवरण संग्रहीत नहीं करते हैं और न ही आपके क्रेडिट कार्ड की जानकारी तक हमारी पहुंच है।
सुरक्षा
Choose your Storage
पश्चिमी डिजिटल
View all
SEAGATE
View all
निगरानी एसडी कार्ड
View all
Powered by WD Purple™
Surveillance Storage Capacity Estimator Tool
Click the link to access the tool and calculate your required capacity for your recording duration
Access CalculatorGoogle Reviews
Neel and Panduka are friendly, helpful and knowledgeable. Fair prices and good range of products. Happy with my TP-Link VIGI camera system and PSS UPS battery.
Very good service. Item arrived as described, trusted them with $5k of gear shipped to New Zealand. They did not disappoint. Thank you
Neelen was super helpful from start to finish and never tried to upsell me on things I didn’t need. Very fair pricing and honest advice. Would definitely recommend this shop. Thank you! ☺️
