Brand: Inner Range
Product Code / SKU: IR-996423-RXWO
Manufacturer Part Number: 996423RXWO
Category: Access Control > Wireless Access Control > RF Receivers & Accessories

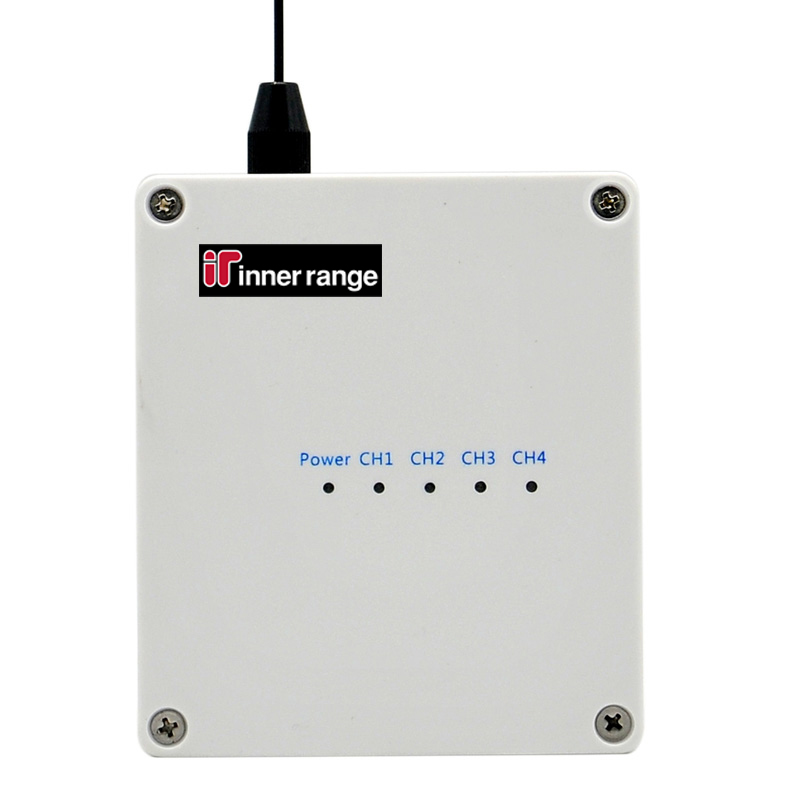

The Inner Range IR-996423-RXWO Outdoor 4 Channel Wiegand Receiver is a weather-resistant 433MHz wireless access control receiver designed for secure remote operation of doors, gates, garage doors and auxiliary access control functions. Featuring four independent Wiegand output channels, 26-bit Wiegand communication, IP67-rated outdoor protection and site code verification options, this RF receiver offers a practical solution for commercial, industrial and residential security installations across Australia and New Zealand.
Designed for integration with compatible Inner Range access control systems, the IR-996423-RXWO receives wireless transmissions from supported RF remote controls and communicates credential information to the connected access control controller via standard Wiegand interfaces.
The receiver features four independent channels, each with its own LED indicator, enabling different remote-control buttons to be assigned to separate access control functions. This allows users to operate multiple access points or system functions from compatible wireless remotes, subject to controller programming.
For additional access control flexibility, the IR-996423-RXWO supports both site-code-verification and non-code-verification (pass-through) operating modes. These configuration options allow installers to determine how received credential information is processed before being passed to the access control system.
Built for outdoor applications, the receiver's IP67-rated enclosure provides protection against dust and temporary water immersion under specified test conditions, making it suitable for appropriately installed outdoor access control applications.
Operating on a 9–15V DC power supply with a low current consumption of just 15mA, the Inner Range IR-996423-RXWO is a convenient solution for wireless gate access, vehicle entry systems, secure facility entrances and remote-operated access control installations.
Main Features
-
Four Independent Wiegand Channels: Supports four separate remote-control button functions for flexible access control integration.
-
26-Bit Wiegand Communication: Provides a standard Wiegand interface for compatible security and access control controllers.
-
433MHz Wireless Operation: Receives transmissions from compatible RF remote-control devices.
-
IP67 Outdoor Protection: Weather-resistant construction designed for appropriate outdoor installations.
-
Individual Channel LED Indicators: Each of the four channels features an LED indicator to assist with operation and installation checks.
-
Site Code Verification: Supports site-code verification for additional credential processing control.
-
Pass-Through Operating Mode: Allows received credential information to be transmitted without receiver-side site code validation.
-
Low Power Consumption: Draws approximately 15mA under the specified operating conditions.
-
Wide DC Supply Range: Operates from a 9–15V DC power source.
-
Multi-Function Remote Access: Can be used for compatible doors, gates, garage doors and auxiliary access control applications.
-
Professional Access Control Integration: Designed for compatible Inner Range access control environments.
-
Outdoor Installation Design: Suitable for environments requiring a protected wireless receiver enclosure.
Technical Specifications
| Specification |
Details |
| Brand |
Inner Range |
| Product Code / SKU |
IR-996423-RXWO |
| Manufacturer Part Number |
996423RXWO |
| Product Type |
Outdoor Wireless Wiegand Receiver |
| Number of Channels |
4 |
| Wiegand Format |
26-bit |
| Wireless Frequency |
433MHz |
| Supply Voltage |
9–15V DC |
| Current Consumption |
15mA |
| Dimensions |
190mm (L) × 100mm (W) × 45mm (H) |
| Enclosure Protection |
IP67 |
| Channel Indicators |
4 individual LED indicators |
| Operating Modes |
Site Code Verification / Pass-Through |
| Output Interface |
Wiegand |
| Remote Compatibility |
Compatible Inner Range SIFER RF remotes, subject to model verification |
| Installation Environment |
Outdoor |
| Primary Application |
Wireless Access Control and Remote Entry |
| Country of Manufacture |
Not independently confirmed |
Technical Note: The dimensions listed above follow the supplied Australian distributor specifications. A separate SIFER receiver technical document lists different exterior enclosure dimensions; installers should confirm the physical dimensions against the supplied revision before finalising mounting arrangements.
What's Included in the Box
RF transmitters, remote controls, access control controllers and external power supplies are not confirmed as included and should be ordered separately where required.
Compatible Systems and Devices
The IR-996423-RXWO is designed for use with compatible wireless remotes and access control equipment that supports its Wiegand output format.
Applications may include:
-
Inner Range Integriti access control installations with suitable Wiegand interfaces
-
Compatible Inner Range SIFER RF remote controls
-
Access control controllers supporting the required Wiegand communication format
-
Automated gate access systems with compatible controllers
-
Garage door access systems integrated through supported access control equipment
-
Commercial entry and vehicle access management systems
Important: The receiver provides Wiegand data outputs rather than direct high-power motor switching. Appropriate access control controllers and interface equipment are required to operate connected doors, gates or other controlled devices.
Practical Applications and Use Scenarios
1. Commercial Gate Access Control
Integrate the IR-996423-RXWO with a compatible access control system to enable authorised personnel to operate gates using supported wireless remote controls.
2. Residential and Apartment Vehicle Entry
Provide convenient wireless credential input for compatible vehicle entry systems, shared garage access arrangements and secured residential parking facilities.
3. Industrial Warehouse Entry
Enable remote access requests for warehouse entrances, loading areas and industrial gates where a compatible access control controller manages authorisation and activation.
4. Multi-Door Access Control
Use the four independent Wiegand channels to assign supported remote-control buttons to different door or entry functions, depending on the connected controller configuration.
5. Outdoor Security Installations
Install the IP67-rated receiver in suitable outdoor locations where dust and moisture resistance are important. Cable entries, mounting and installation methods must preserve the required environmental protection.
6. Remote Auxiliary Access Functions
Configure compatible wireless remote buttons for additional access control or automation functions through the connected security system, subject to controller capabilities and programming.
Warranty Information
The Inner Range IR-996423-RXWO is supplied subject to applicable manufacturer or distributor warranty terms and Australian Consumer Law.
About Inner Range
Inner Range is an Australian electronic security technology company specialising in integrated access control, intrusion detection and enterprise security management solutions.
Its security product range includes the Integriti and Inception platforms, supporting a variety of professional access control, alarm monitoring and integrated security applications.
Datasheets and Downloadable Resources
Official Inner Range Product Information
The manufacturer's product page includes downloadable datasheets and installation documentation for the SIFER RF receiver range.
View Inner Range 996423RXWO Product Page
Australian Distributor Product Specifications
Includes the locally published voltage, current consumption, enclosure dimensions, Wiegand format and IP rating.
View IR-996423-RXWO Product Specifications – CSD
Always refer to the documentation corresponding to the actual receiver revision and connected RF remote model.
Excellence for the Australian and New Zealand Market
The Inner Range IR-996423-RXWO Outdoor 4 Channel Wiegand Receiver is designed to support professional wireless access control applications in Australia and New Zealand.
Australian Security System Integration: The receiver offers Wiegand connectivity for compatible access control systems commonly used in Australian commercial, industrial and residential security installations.
Outdoor Environmental Protection: Its published IP67 enclosure rating supports installation in suitable outdoor environments, provided installation procedures preserve the enclosure protection.
Quality and Regulatory Considerations: Professional installers should confirm that the supplied receiver variant, RF operating frequency and installation satisfy applicable Australian and New Zealand radio communications and electrical requirements. Specific RCM certification documentation has not been independently verified.
Genuine Product Sourcing: Globlelink prioritises genuine Inner Range equipment sourced through authorised brand representatives and established Australian security distribution channels. The authorisation status of the actual supply channel should be confirmed before publication.
Manufacturer Warranty Coordination: Applicable warranty enquiries can be managed through the supplying distributor and, where necessary, referred directly to Inner Range or the relevant manufacturer.
Professional Installation Applications: Suitable for security integrators and access control professionals implementing compatible wireless gate, door and vehicle access applications throughout Australia and New Zealand.
FAQs
Q1. What is the Inner Range IR-996423-RXWO Outdoor Wiegand Receiver used for?
The Inner Range IR-996423-RXWO is a four-channel outdoor RF receiver that accepts transmissions from compatible wireless remote controls and sends credential information to a connected access control system using Wiegand communication.
Q2. How many channels does the IR-996423-RXWO Wiegand Receiver support?
The IR-996423-RXWO supports four independent Wiegand output channels, each with an individual LED indicator. These channels can be configured for separate functions through compatible access control equipment.
Q3. Is the IR-996423-RXWO suitable for outdoor installation?
Yes. The IR-996423-RXWO features an IP67-rated outdoor enclosure, providing dust protection and resistance to temporary water immersion under specified conditions. Correct installation is required to maintain environmental protection.
Q4. What voltage does the Inner Range IR-996423-RXWO require?
The IR-996423-RXWO requires a 9–15V DC power supply and has a published current consumption of 15mA.
Q5. What frequency does the IR-996423-RXWO wireless receiver operate on?
The IR-996423-RXWO is listed by Australian distributors as a 433MHz wireless receiver. Compatible remote controls must use the appropriate frequency and supported transmission format.
Q6. Does the IR-996423-RXWO support 26-bit Wiegand communication?
Yes. The IR-996423-RXWO supports 26-bit Wiegand output for integration with compatible access control controllers.
Q7. Can the IR-996423-RXWO be used for automated gate access?
Yes. The IR-996423-RXWO can provide wireless credential input to a compatible gate access control system. The connected controller and gate automation equipment perform the actual gate activation.
Q8. What are the dimensions of the Inner Range IR-996423-RXWO receiver?
The Australian distributor lists the IR-996423-RXWO as 190mm long, 100mm wide and 45mm high. Confirm the dimensions of the supplied hardware revision before preparing mounting arrangements.
Q9. Does the IR-996423-RXWO support site code verification?
Yes. The IR-996423-RXWO supports site-code-verification and pass-through modes, allowing installers to configure how received credential information is processed.
Q10. Can the IR-996423-RXWO control four different access functions?
The IR-996423-RXWO provides four independent Wiegand output channels. With appropriate remote-control configuration and controller programming, these can support different access functions such as separate doors, gates or auxiliary requests.
Q11. Is the IR-996423-RXWO compatible with Inner Range Integriti?
The IR-996423-RXWO can be integrated with supported Inner Range access control equipment using compatible Wiegand inputs. Specific Integriti controller, remote and configuration compatibility should be confirmed before installation.
Q12. Does the IR-996423-RXWO include wireless key fobs or remote controls?
No remote controls are confirmed as part of the standard IR-996423-RXWO receiver package. Compatible RF remotes should be selected and ordered separately as required.
Q13. What is the difference between the IR-996423-RXWO and IR-996423-RXWI?
The IR-996423-RXWO is the outdoor receiver variant with an IP67-rated enclosure, while the IR-996423-RXWI is intended for indoor applications. Confirm the dimensional and environmental specifications for each model.
Q14. Where can I download the IR-996423-RXWO datasheet?
The official Inner Range website provides product information and downloadable documentation for the IR-996423-RXWO SIFER RF receiver range, including installation and technical resources.
