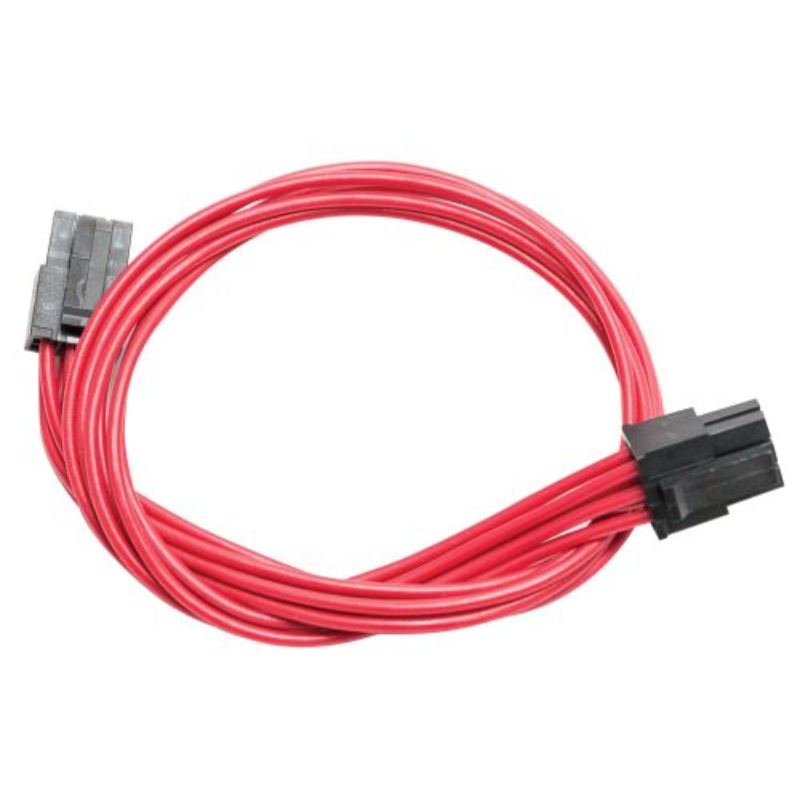

The Inner Range IR-996791L UniBus Patch Cable 270mm is a genuine 6-way interconnection cable designed for compatible Inner Range Integriti security and access control systems. This 270mm UniBus patch lead provides a reliable connection between Integriti host controllers and compatible UniBus expansion modules, making it an essential accessory for professional security system installations, upgrades, maintenance and module expansion across Australia and New Zealand.
Engineered for the Inner Range Integriti UniBus architecture, the IR-996791L allows compatible expansion modules to connect directly to their host module or to other UniBus devices through supported loop-through connections.
The standard 270mm cable length is ideal for connecting expansion boards mounted within the same security equipment enclosure, providing sufficient reach for supported module arrangements while minimising unnecessary cabling.
Designed for use with compatible UniBus zone expanders, relay expansion modules, door and reader interfaces, UART modules and other Integriti UniBus devices, this cable simplifies internal system connectivity.
Whether replacing an existing UniBus connection lead or adding compatible expansion equipment, the Inner Range IR-996791L offers a purpose-designed cabling solution for professional Integriti installations.
Main Features
-
270mm Cable Length: Standard-length UniBus patch cable for compatible Integriti equipment.
-
6-Way UniBus Connection: Designed for compatible Inner Range UniBus interfaces.
-
Integriti System Compatibility: Supports approved Inner Range Integriti host and UniBus expansion modules.
-
Direct Module Connectivity: Connects compatible UniBus expansion devices to their designated host module.
-
Loop-Through Support: Enables approved UniBus interconnections between compatible expansion modules.
-
Compact Cable Length: Helps maintain organised internal wiring within security system enclosures.
-
Replacement and Expansion Accessory: Suitable for replacing existing patch leads or connecting additional compatible expansion boards.
-
Manufacturer-Specified Cable: Identified by Inner Range as the standard 270mm UniBus interconnection accessory.
-
Professional Security Applications: Suitable for compatible access control, intrusion detection and integrated security installations.
Technical Specifications
| Specification |
Details |
| Brand |
Inner Range |
| Product Code / SKU |
IR-996791L |
| Manufacturer Part Number |
996791L |
| Product Name |
UniBus Patch Cable 270mm |
| Product Type |
UniBus Interconnection Cable |
| Cable Length |
270mm (27cm) |
| Connection Type |
6-Way UniBus |
| Compatible Platform |
Inner Range Integriti |
| Primary Application |
UniBus Host and Expansion Module Interconnection |
| Connection Arrangement |
Direct Connection / Supported Loop-Through |
| Installation Environment |
Compatible Security Equipment Enclosure |
| Product Category |
Security System Cables & Accessories |
Compatibility Note: The IR-996791L is a dedicated Inner Range UniBus cable and is not interchangeable with standard Ethernet or RS-485 LAN patch cables. Verify the relevant host module and expansion device requirements before installation.
What's Included in the Box
Expansion modules, controllers, mounting accessories and additional cables are not included unless separately specified by the supplier.
Compatible Inner Range UniBus Equipment
The IR-996791L can be used with compatible Inner Range Integriti UniBus expansion equipment, including supported:
-
UniBus 8 Zone Input Expanders
-
UniBus 8 Relay Auxiliary Expanders
-
UniBus 2 Door / 2 Reader Expanders
-
UniBus 2 Port UART Modules
-
UniBus Analogue Input Expanders
-
UniBus Lift Interface Modules
-
Integriti Host Modules with compatible UniBus connections
Actual compatibility and supported module quantities depend on the host module, expansion equipment and system configuration.
Practical Applications and Use Scenarios
1. Integriti Security System Expansion
Connect compatible UniBus expansion boards to an Inner Range Integriti host module when expanding security zone capacity, relay outputs or other supported system functions.
2. Access Control Cabinet Installation
Provide internal connectivity between compatible Integriti access control host modules and UniBus expansion devices located within the same enclosure.
3. Replacement of Existing UniBus Cables
Replace a damaged or unsuitable UniBus patch lead with the manufacturer-specified 270mm cable, restoring the intended connection between compatible modules.
4. UniBus Module Loop-Through Connections
Connect compatible UniBus boards through their designated connection ports, following the manufacturer’s supported module arrangement and system limits.
5. Security System Maintenance and Upgrades
Keep the IR-996791L available as a replacement accessory for professional Integriti service, installation and expansion work.
Available UniBus Patch Cable Lengths
| Product Code |
Description |
| IR-996791SS |
UniBus Patch Cable, 150mm |
| IR-996791S |
UniBus Patch Cable, 220mm |
| IR-996791L |
UniBus Patch Cable, 270mm |
| IR-996791LL |
UniBus Patch Cable, 475mm |
| IR-996791XL |
UniBus Patch Cable, 675mm |
Select the appropriate cable length based on the module positioning and the manufacturer's installation requirements.
Warranty Information
The Inner Range IR-996791L is supplied subject to the applicable manufacturer or distributor warranty conditions and Australian Consumer Law.
About Inner Range
Inner Range is an Australian electronic security manufacturer specialising in integrated access control, intrusion detection and security management solutions.
Its Integriti platform supports scalable security installations through a range of dedicated controllers, expansion modules and interconnection accessories.
Inner Range equipment is widely used by professional security integrators for commercial, industrial and multi-site security applications.
Datasheets and Downloadable Resources
Official Inner Range Integriti Product Catalogue
Contains UniBus cable ordering codes, available lengths and information about compatible Integriti expansion modules.
Download Inner Range Integriti Product Catalogue (PDF)
Inner Range Official Website
Visit Inner Range
Australian Distributor Product Listing
View IR-996791L Product Information – CSD
A dedicated standalone manufacturer datasheet for the IR-996791L patch cable has not been confirmed.
Excellence for the Australian and New Zealand Market
The Inner Range IR-996791L UniBus Patch Cable 270mm is a purpose-designed connectivity accessory for compatible Inner Range Integriti security and access control systems used throughout Australia and New Zealand.
Australian Security System Compatibility: Designed for the Inner Range Integriti product ecosystem, the IR-996791L provides a manufacturer-specified cable option for supported UniBus connections.
Quality and Installation Standards: Using the specified cable helps maintain the intended UniBus interconnection arrangement. Installation must follow Inner Range requirements and applicable Australian and New Zealand electrical and security installation standards.
Genuine Product Sourcing: Globlelink prioritises sourcing genuine Inner Range equipment through authorised brand representatives and established security distribution channels, subject to verification of the actual supply arrangements.
Manufacturer Warranty Support: Warranty claims and technical enquiries can be coordinated with the supplying distributor, including direct communication with Inner Range where required.
Professional Security Installations: Suitable for security installers, system integrators and maintenance professionals working with compatible Integriti security and access control equipment.
FAQs
Q1. What is the Inner Range IR-996791L UniBus Patch Cable used for?
The Inner Range IR-996791L is a 270mm, 6-way UniBus cable designed to connect compatible Inner Range Integriti host modules and UniBus expansion devices within professional security and access control installations.
Q2. How long is the IR-996791L UniBus Patch Cable?
The IR-996791L measures 270mm, or 27cm, and is the standard UniBus cable length supplied with various compatible Inner Range Integriti expansion modules.
Q3. Is the IR-996791L compatible with Inner Range Integriti systems?
Yes. The IR-996791L is specifically designed for compatible Inner Range Integriti UniBus host and expansion module connections.
Q4. Can the IR-996791L connect UniBus zone and relay expanders?
Yes. The IR-996791L can be used with supported Inner Range UniBus zone and relay expanders that specify a compatible 6-way UniBus connection.
Q5. Can the IR-996791L connect multiple UniBus expansion modules?
Yes. The IR-996791L supports appropriate module-to-module loop-through connections where supported by the host and expansion devices. The permitted number of modules depends on the manufacturer's system configuration requirements.
Q6. Is the IR-996791L an Ethernet cable?
No. The IR-996791L is a dedicated Inner Range 6-way UniBus interconnection cable and is not a standard RJ45 Ethernet patch cable.
Q7. What is the difference between the IR-996791L and IR-996791LL UniBus cables?
The IR-996791L is 270mm long, while the IR-996791LL is 475mm long. Both are Inner Range UniBus patch cables intended for compatible security system interconnections.
Q8. Does the IR-996791L require an external power supply?
No separate power supply is required for the IR-996791L cable itself. The electrical requirements of connected UniBus devices are managed according to the host module's power capabilities and manufacturer specifications.
Q9. Can the IR-996791L be used as a replacement UniBus cable?
Yes. The IR-996791L can replace an existing 270mm UniBus cable where the connected Inner Range modules use the same compatible connection interface.
Q10. Is the IR-996791L suitable for door access control systems?
Yes. The IR-996791L is suitable for connecting supported UniBus door and reader expansion modules within compatible Inner Range Integriti access control systems.
Q11. Can the IR-996791L be used with Inner Range Inception controllers?
The IR-996791L is documented for compatible Integriti UniBus equipment. Compatibility with a particular Inception controller or accessory should not be assumed without explicit manufacturer confirmation.
Q12. Where can I download technical documentation for the IR-996791L?
The IR-996791L appears in the official Inner Range Integriti product catalogue, which identifies the cable length, product code and related UniBus equipment. Installation manuals for compatible expansion modules also explain UniBus cable connection requirements.
Q13. Does the IR-996791L include any UniBus expansion boards?
No. The IR-996791L is supplied as a UniBus patch cable accessory. Expansion boards and other equipment are purchased separately unless specifically offered as part of a kit.
