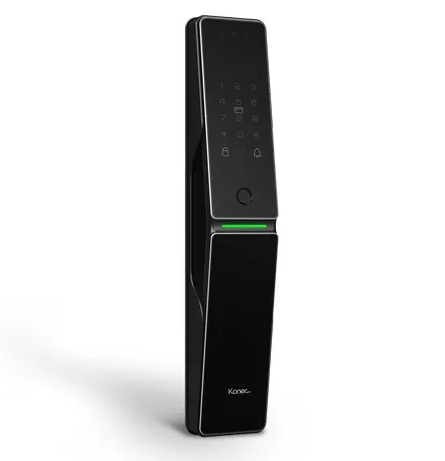

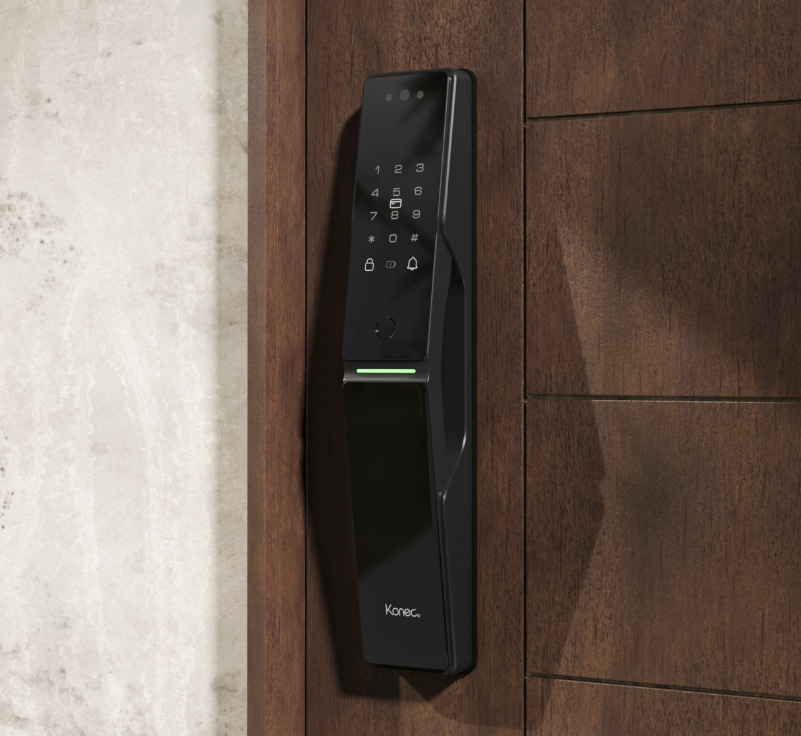

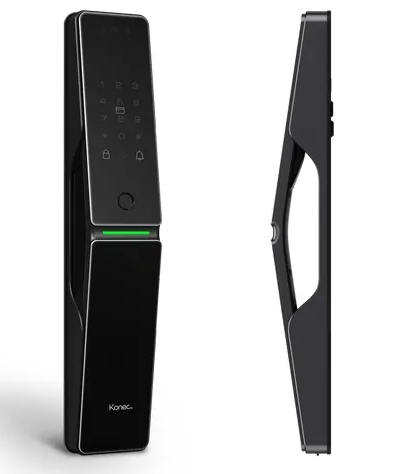

The KONEC KLL-T01P-BL-Z-KC T01 Pro Zigbee Smart Lock is a premium black smart door lock combining fingerprint, PIN/password, proximity card/fob, mechanical key and app-controlled access in one integrated locking solution. Designed for compatible 35–65mm wooden and aluminium doors, it features a 5000mAh rechargeable lithium battery, IP55-rated front panel and capacity for up to 300 credentials, making it well suited to modern residential and smart-home installations.
Built from 6 Series aviation-grade aluminium alloy, the T01 Pro combines a substantial, contemporary push-and-pull design with flexible electronic access control. Users can unlock the door using a fingerprint, password, access card/fob or mechanical key, while app-based functionality is available through a compatible KONEC Zigbee gateway.
The lock accommodates up to 100 fingerprints, 100 passwords and 100 access cards/fobs, with a maximum combined credential capacity of 300. Fingerprint recognition is specified at ≤0.5 seconds, with a false acceptance rate below 0.001% and false rejection rate below 1.5%.
Important: A compatible KONEC Zigbee gateway is required for smart/app functionality.
Main Features
-
Multiple unlocking methods: fingerprint, PIN/password, proximity card/fob, mechanical key and app control
-
Zigbee smart-home connectivity
-
App control via compatible KONEC Zigbee gateway
-
Up to 100 fingerprints
-
Up to 100 PINs/passwords
-
Up to 100 access cards/fobs
-
Maximum combined credential capacity of 300
-
Fast fingerprint recognition of ≤0.5 seconds
-
5000mAh rechargeable lithium battery
-
USB-C emergency power connection
-
Temporary password functionality through the smart ecosystem
-
Scene-control capability for smart-home automation
-
Incorrect-entry alarm
-
Low-battery alarm
-
IP55-rated front panel
-
IP52-rated rear panel
-
6 Series aviation-grade aluminium alloy construction
-
Suitable for compatible 35–65mm thick doors
-
Compatible with wooden and aluminium doors
-
6068 mortise
-
Premium black finish
-
Mechanical key override for backup access
Detailed Specifications
| Specification |
Details |
| Brand |
KONEC |
| Model / Part Number |
KLL-T01P-BL-Z-KC |
| KONEC SKU |
KSL00229 |
| Product |
T01 Pro Zigbee Smart Lock |
| Colour |
Black |
| Housing Material |
6 Series Aviation Grade Aluminium Alloy |
| Connectivity |
Zigbee |
| Unlocking Methods |
Fingerprint, Password/PIN, Access Card/Fob, Mechanical Key, App Control via Gateway |
| Total Credential Capacity |
≤300 |
| Fingerprint Capacity |
≤100 |
| Password/PIN Capacity |
≤100 |
| Card/Fob Capacity |
≤100 |
| Fingerprint Recognition Speed |
≤0.5 seconds |
| False Acceptance Rate (FAR) |
<0.001% |
| False Rejection Rate (FRR) |
<1.5% |
| Battery |
5000mAh Rechargeable Lithium Battery |
| Battery Voltage |
7.4V |
| Emergency Power |
USB-C / Type-C emergency power connection |
| Front Panel IP Rating |
IP55 |
| Rear Panel IP Rating |
IP52 |
| Door Thickness |
35–65mm |
| Compatible Door Materials |
Wooden and Aluminium |
| Mortise Type |
6068 |
| Operating Temperature |
-25°C to +70°C |
| Operating Humidity |
0–93% ±3% RH, Non-Condensing |
| Alarm Functions |
Incorrect Entry Alarm, Low Battery Alarm |
| Low Battery Warning |
Alert for up to 100 door openings |
| Net Weight |
5.6kg |
| Front Dimensions |
79mm (W) × 413mm (H) × 56.3mm (D) |
| Rear Dimensions |
79mm (W) × 413mm (H) × 73mm (D) |
| Gateway Requirement |
Yes – required for app/smart functionality |
Specifications are based on KONEC product information and published documentation.
What's Included in the Box
1x KONEC T01 Pro KLL-T01P-BL-Z-KC smart lock system.
Practical Use Scenarios
Residential Front Doors: Provides households with a choice of fingerprint, PIN, card/fob, key or connected app access instead of relying solely on conventional keys.
Family Access Management: Different fingerprints, PINs or access cards can be registered for household members while retaining mechanical key access as a backup.
Visitor Access: Temporary password functionality can be used through the compatible smart-home setup to provide time-limited visitor access without issuing a permanent physical key.
Smart Homes: Zigbee connectivity allows the lock to participate in a compatible KONEC smart-home installation, including scene-control applications when configured with the required gateway.
Wooden and Aluminium Door Installations: Designed for compatible wooden and aluminium doors measuring between 35mm and 65mm thick.
Gateway Requirement
The KLL-T01P-BL-Z-KC uses Zigbee connectivity and requires a compatible KONEC Zigbee gateway to enable its smart/app functionality. Buyers planning to use remote or connected features should ensure that the appropriate gateway is included elsewhere in the installation or purchased separately.
Warranty Information
1 year Warranty
About KONEC
KONEC provides connected smart-home products spanning areas including access control, security, networking and home automation. Its Australian product range includes smart locks, gateways, control panels and other connected devices designed to operate within a broader smart-home ecosystem.
Datasheets & Downloadable Resources
Product Datasheet:
Download KLL-T01P-BL-Z-KC Datasheet
Installation Manual:
Download KLL-T01P-BL-Z-KC Installation Manual
User Manual:
Download KLL-T01P-BL-Z-KC User Manual
Technical Notes:
Download KLL-T01P-BL-Z-KC Technical Notes
Manufacturer Product Information:
KONEC T01 Pro Zigbee Smart Lock
Excellence for the Australian and New Zealand Market
The KONEC KLL-T01P-BL-Z-KC T01 Pro Zigbee Smart Lock is offered within KONEC's Australian smart-home product ecosystem. The manufacturer lists RCM certification for this model.
Its broad operating temperature range, rechargeable power system, flexible access methods and compatibility with both wooden and aluminium doors make it adaptable to a variety of suitable Australian and New Zealand residential installations.
KONEC's documentation also expressly notes that users should verify installation suitability and compliance with applicable local requirements. The manufacturer's documentation preserves applicable consumer rights under the Australian Consumer Law and New Zealand Consumer Guarantees Act 1993.
No NDSS approval has been identified for KLL-T01P-BL-Z-KC, and this listing does not claim such approval. Likewise, this specific T01 Pro model should not be represented as fire-rated unless separate certification applicable to this exact model and installation is provided.
For warranty claims and product support, purchasers should follow the warranty process provided by the authorised seller and/or KONEC representative applicable to their purchase.
FAQs
Does the KONEC KLL-T01P-BL-Z-KC support fingerprint unlocking?
Yes. The KONEC KLL-T01P-BL-Z-KC supports fingerprint access and can store up to 100 fingerprints, with fingerprint recognition specified at ≤0.5 seconds.
How many PIN codes can the KONEC KLL-T01P-BL-Z-KC store?
The KONEC KLL-T01P-BL-Z-KC supports up to 100 passwords/PIN credentials as part of its maximum combined capacity of 300 credentials.
How many proximity cards or access fobs does the KONEC KLL-T01P-BL-Z-KC support?
The KONEC KLL-T01P-BL-Z-KC supports up to 100 compatible access cards/fobs.
Does the KONEC KLL-T01P-BL-Z-KC require a Zigbee gateway?
Yes. The KONEC KLL-T01P-BL-Z-KC requires a compatible KONEC Zigbee gateway to enable its smart/app functionality.
Can the KONEC KLL-T01P-BL-Z-KC be controlled through an app?
Yes. The KONEC KLL-T01P-BL-Z-KC supports app control when connected and configured with the required compatible Zigbee gateway.
What battery does the KONEC KLL-T01P-BL-Z-KC use?
The KONEC KLL-T01P-BL-Z-KC uses a 7.4V 5000mAh rechargeable lithium battery.
Does the KONEC KLL-T01P-BL-Z-KC have emergency power?
Yes. The KONEC KLL-T01P-BL-Z-KC provides a USB-C/Type-C emergency power connection for low-battery situations.
Is the KONEC KLL-T01P-BL-Z-KC weather resistant?
The KONEC KLL-T01P-BL-Z-KC has an IP55-rated front panel and an IP52-rated rear panel. Installation conditions must remain consistent with the manufacturer's instructions and IP-rating limitations.
What door thickness is compatible with the KONEC KLL-T01P-BL-Z-KC?
The KONEC KLL-T01P-BL-Z-KC is specified for compatible doors between 35mm and 65mm thick.
What types of doors can use the KONEC KLL-T01P-BL-Z-KC?
The KONEC KLL-T01P-BL-Z-KC is specified for compatible wooden and aluminium doors using the appropriate installation and 6068 mortise configuration.
Does the KONEC KLL-T01P-BL-Z-KC include a mechanical key override?
Yes. The KONEC KLL-T01P-BL-Z-KC includes mechanical key unlocking as one of its supported access methods.
What are the dimensions of the KONEC KLL-T01P-BL-Z-KC?
The KONEC KLL-T01P-BL-Z-KC front panel measures approximately 79mm wide × 413mm high × 56.3mm deep. Published KONEC documentation specifies the rear panel at approximately 79mm × 413mm × 73mm.
What is the operating temperature of the KONEC KLL-T01P-BL-Z-KC?
The KONEC KLL-T01P-BL-Z-KC has a specified operating temperature range of -25°C to +70°C.
Is the KONEC KLL-T01P-BL-Z-KC suitable for Australian installations?
The KONEC KLL-T01P-BL-Z-KC is listed by KONEC Australia with RCM certification. Door compatibility, installation requirements and any project-specific regulatory requirements should still be verified before installation.
Is the KONEC KLL-T01P-BL-Z-KC a fire-rated smart lock?
The supplied and manufacturer-published specifications for the KONEC KLL-T01P-BL-Z-KC do not identify this T01 Pro model as fire-rated. Fire-rating claims for other KONEC lock models should not be applied to KLL-T01P-BL-Z-KC without certification specifically covering this product and installation.
