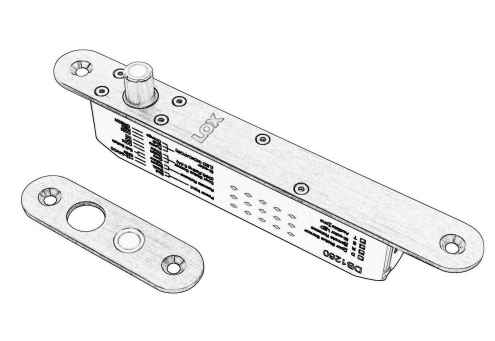

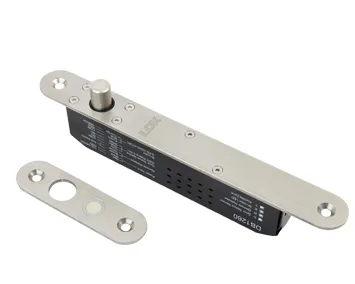

The LOX DB1260PTO Electric Drop Bolt is a professional-grade fail secure (power-to-open) electromechanical locking solution designed for commercial access control systems, narrow stile aluminium frames, glass doors, and swing-through door applications. Featuring a robust 300kg holding force, integrated door status monitoring (DSS), dual-voltage 12/24VDC operation, and 4-hour fire rating, the DB1260PTO delivers reliable security and controlled access for demanding installations. Its slim 25mm faceplate allows installation in narrow frame applications while maintaining strong locking performance and long-term durability. Tested to 400,000 operating cycles, the DB1260PTO is ideal for access-controlled commercial environments.
The DB1260 Series has been specifically engineered for double-action (swing-through) doors and can also be used as an additional locking device alongside an electric strike in single-door applications. The lock incorporates intelligent internal circuitry to protect the drop bolt mechanism from damage, built-in MOV surge protection, auto-lock functionality, and selectable relock delay settings of 0, 3, 6, or 10 seconds for flexible installation requirements. It is not recommended for emergency egress door applications.
What's Included in the Box
- 1 x LOX DB1260PTO Electric Drop Bolt
- 1 x Strike Plate
- Installation Hardware
- Installation Instructions
Main Features
- Power to Open (Fail Secure) operation
- Mortice mount design
- Narrow stile compatible 25mm faceplate
- Holding strength up to 300kg
- Door Status Sensor (DSS) monitoring via reed switch
- Dual voltage 12/24VDC operation
- Tested to 400,000 cycles
- Auto-lock function
- Adjustable relock delay: 0 / 3 / 6 / 10 seconds
- Internal control circuitry protects bolt mechanism
- Built-in MOV surge protection

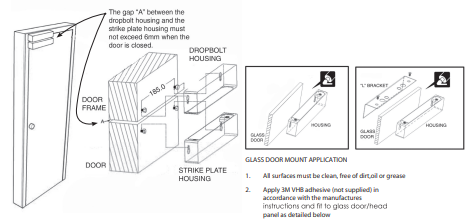

- Suitable for glass door mounting accessories
- 4-hour fire rated to Australian Standards
- CE and C-Tick approved
- Operational temperature range: -20°C to +60°C
Detailed Specifications
| Specification |
Details |
| Brand |
LOX |
| Model |
DB1260PTO |
| Product Type |
Electric Drop Bolt |
| Mounting Style |
Mortice Mount |
| Locking Mode |
Power to Open (Fail Secure) |
| Holding Force |
Up to 300kg |

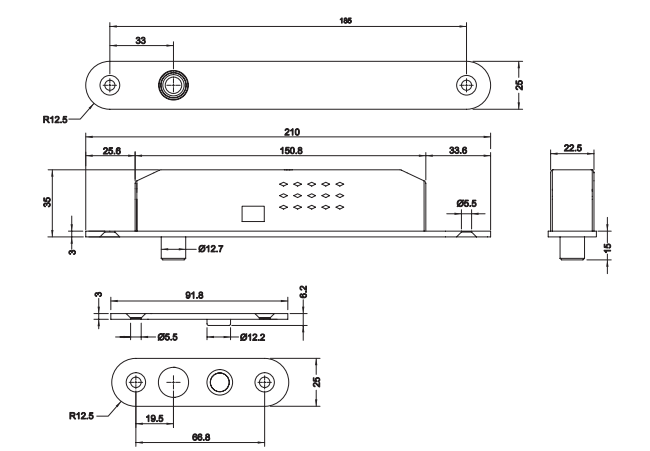

| Faceplate Width |
25mm |
| Voltage |
12/24VDC |
| Current Draw @ 12VDC |
Initial 1.15A, Standby 250mA |
| Current Draw @ 24VDC |
Initial 620mA, Standby 140mA |
| Door Monitoring |
DSS Reed Switch |
| Fire Rating |
Up to 4 Hours |
| Certifications |
CE, C-Tick |
| Time Delay |
0, 3, 6, 10 Seconds |
| Operating Temperature |
-20°C to +60°C |
| Tested Cycles |
400,000 Cycles |
| Suitable Applications |
Swing Through Doors, Narrow Frames, Glass Doors |
| Warranty |
1 Year Manufacturer Warranty |
Warranty Information
Manufacturer Warranty covering defects in materials and workmanship under normal operating conditions.
Brand Description
LOX Locking is a specialist supplier of electromechanical locking solutions designed specifically for the Australian security market. The company offers a comprehensive range of electric strikes, electromagnetic locks, drop bolts, and access control hardware engineered for commercial and industrial security applications.
SKU
DB1260PTO
Practical Use Scenarios
- Commercial office access control systems
- Narrow stile aluminium door installations
- Glass door security applications
- Double-action swing-through doors
- Secondary locking alongside electric strikes
- Retail and shopping centre entrances
- Educational facilities
- Government and corporate buildings
- Healthcare facilities
- Controlled access internal security zones
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The LOX DB1260PTO has been designed to meet the demands of Australian and New Zealand commercial security installations. Featuring a fire rating of up to 4 hours and approvals including CE and C-Tick, it is suitable for professional access control projects requiring compliance, reliability, and long-term performance. LOX products are widely specified throughout Australia and are engineered for compatibility with local installation requirements. Products sourced through authorised distribution channels ensure genuine manufacturer support and warranty coverage. Warranty claims and technical support are handled directly through authorised LOX representatives and approved distribution partners.
FAQs
What is the locking mode of the LOX DB1260PTO?
The LOX DB1260PTO operates in Power to Open (Fail Secure) mode, meaning the door remains locked during power loss for enhanced security.
What is the holding force of the LOX DB1260PTO?
The LOX DB1260PTO provides a holding force of up to 300kg, making it suitable for commercial access control applications.
Does the LOX DB1260PTO include door monitoring?
Yes, the LOX DB1260PTO includes a built-in Door Status Sensor (DSS) using a reed switch for monitoring door position.
Is the LOX DB1260PTO suitable for narrow aluminium frames?
Yes, the LOX DB1260PTO features a slim 25mm faceplate specifically designed for narrow stile and restricted-space installations.
Can the LOX DB1260PTO operate on both 12VDC and 24VDC?
Yes, the LOX DB1260PTO supports dual-voltage operation at both 12VDC and 24VDC.
Is the LOX DB1260PTO fire rated?
Yes, the LOX DB1260PTO is fire rated for up to 4 hours when installed in accordance with applicable standards.
What doors are suitable for the LOX DB1260PTO?
The LOX DB1260PTO is ideal for swing-through doors, glass door installations with suitable accessories, and as an auxiliary lock with electric strikes.
Does the LOX DB1260PTO support delayed relocking?
Yes, the LOX DB1260PTO offers adjustable relock delays of 0, 3, 6, or 10 seconds.
How many operating cycles has the LOX DB1260PTO been tested for?
The LOX DB1260PTO has been tested to 400,000 operating cycles, ensuring reliable long-term performance.
Is the LOX DB1260PTO recommended for emergency egress doors?
No, the LOX DB1260PTO is not recommended for emergency egress door applications
