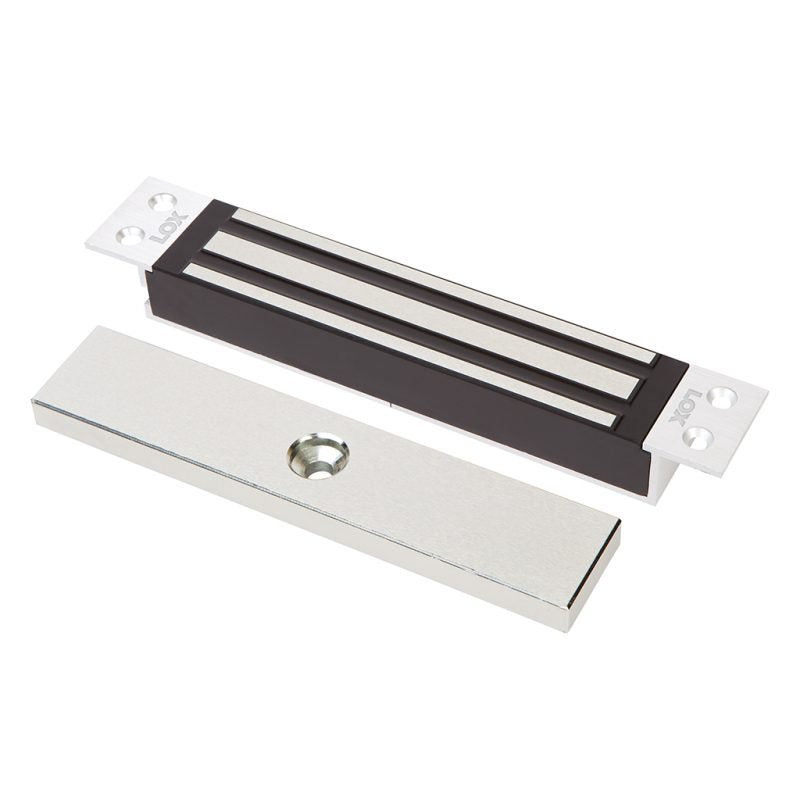

The LOX EM3500FM is a high-performance flush mount electro magnetic lock designed for securing single-leaf internal sliding doors. With a robust holding force of up to 280kg and tested for 400,000+ operational cycles, this monitored lock delivers exceptional reliability and security.

The lock integrates LSS (Lock Status Sensor) monitoring using Hall-Effect technology, allowing real-time feedback on the locked/unlocked status. It also includes built-in varistor (MOV) surge protection, ensuring long-term durability and stable performance. Designed for mortise installation within the door frame, the EM3500FM offers a clean, tamper-resistant appearance.

Engineered for professional security installations, the EM3500FM is CE & RCM approved, features no residual magnetism, and is backed by a lifetime warranty from LOX Locking.

What's Included in the Box

• LOX EM3500FM Flush Mount Electro Magnetic Lock

• Security Dome Nuts

• Mounting Tabs

• Installation Instructions

Main Features

• Flush mount design for a sleek, tamper-resistant installation

• Up to 280kg holding strength, tested to 400,000+ cycles

• Dual voltage operation: 12VDC (500mA) / 24VDC (250mA)

• LSS monitoring with Hall-Effect sensor for lock/unlock status

• Built-in varistor surge protection

• No residual magnetism

• CE and RCM certified

• Lifetime warranty for peace of mind

Technical Specifications

• Model: EM3500FM

• Holding Force: Up to 280kg

• Cycle Life: 400,000+ operations tested

• Voltage: 12/24VDC

• Current Draw: 12VDC – 500mA, 24VDC – 250mA

• Monitoring: LSS (Hall-Effect) lock status sensor

• Operating Temperature: -20°C to 60°C

• Certifications: CE, RCM (C-Tick)

• Design: Mortise flush mount

• Manufacturer: LOX Locking Pty Ltd

Warranty Information

manufactures warranty applied

Brand Description

LOX Locking Pty Ltd is an Australian security hardware manufacturer specializing in high-quality locking solutions for commercial, industrial, and residential applications. With a focus on durability, compliance, and innovation, LOX products are trusted by security professionals nationwide.

SKU: EM3500FM

Practical Use Scenarios

• Commercial Offices: Secure internal sliding doors between office zones.

• Retail Stores: Control access to storerooms or restricted areas.

• Healthcare Facilities: Manage secure access to sensitive rooms or wards.

• Educational Institutions: Protect internal doorways in administration areas.

• Residential Complexes: Provide additional security for private sliding entry points.

Datasheets & Downloadable Resources

• LOX EM3500FM Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The EM3500FM is RCM approved and fully compliant with Australian and New Zealand electrical and safety standards. Designed with local building regulations in mind, it provides robust performance in a wide range of indoor environments. Distributed exclusively through authorized ANZ security suppliers, this model is supported by direct manufacturer warranty services, ensuring seamless integration for regional security projects.

Frequently Asked Questions (FAQs) – EM3500FM

Q1: What type of doors is the EM3500FM suitable for?
The EM3500FM is designed specifically for single-leaf internal sliding doors requiring flush mount installation.

Q2: Does the EM3500FM provide lock status monitoring?
Yes, the EM3500FM features an LSS (Lock Status Sensor) with Hall-Effect technology for real-time lock/unlock feedback.

Q3: Can the EM3500FM operate on both 12VDC and 24VDC?
Yes, it supports dual voltage operation – 12VDC (500mA) and 24VDC (250mA).

Q4: Is the EM3500FM compliant with Australian standards?
Yes, it is CE and RCM certified, meeting AS/NZS compliance requirements.

Q5: What warranty does the EM3500FM include?
The EM3500FM is backed by a lifetime manufacturer warranty from LOX Locking.
