Paradox PDX-ZX16PWR 16-Zone Powered Bus Expander Kit is a complete expansion solution designed to add 16 hardwired zones to compatible Paradox alarm control panels. Combining two ZX8 8-zone expansion modules, a metal enclosure base kit with battery and tamper protection, and a 1.7A switching power supply, this kit provides reliable, powered zone expansion for professional residential and commercial security installations.

Product Description

The PDX-ZX16PWR Powered Bus Expander Kit delivers scalable system growth by integrating two ZX8 expansion modules into a single powered enclosure solution. Each ZX8 module connects to the control panel’s combus (4-wire bus) and provides 8 additional hardwired inputs and one 50mA on-board PGM output.

Together, the two modules expand the system by 16 zones, allowing installers to significantly increase detection capacity without replacing the existing control panel. The included KIT1 metal enclosure houses the modules securely and includes a backup battery, 16VAC plug pack, and tamper protection. The PS817 1.7A switching power supply ensures stable and consistent operation.

This powered expansion kit is ideal for larger residential properties, commercial sites, and system upgrades requiring additional hardwired inputs while maintaining professional installation standards.

What’s Included in the Box

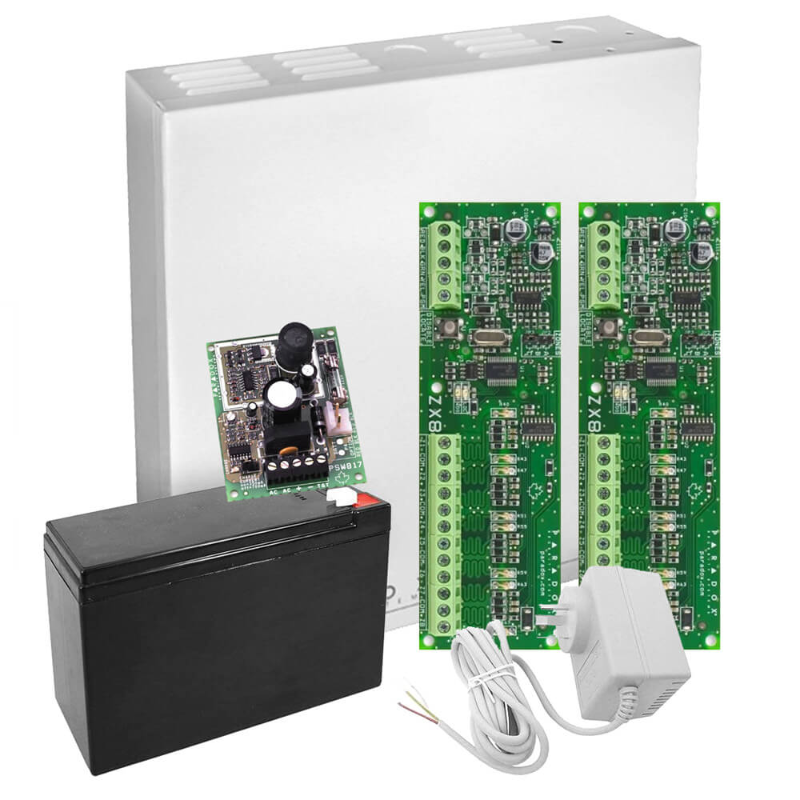

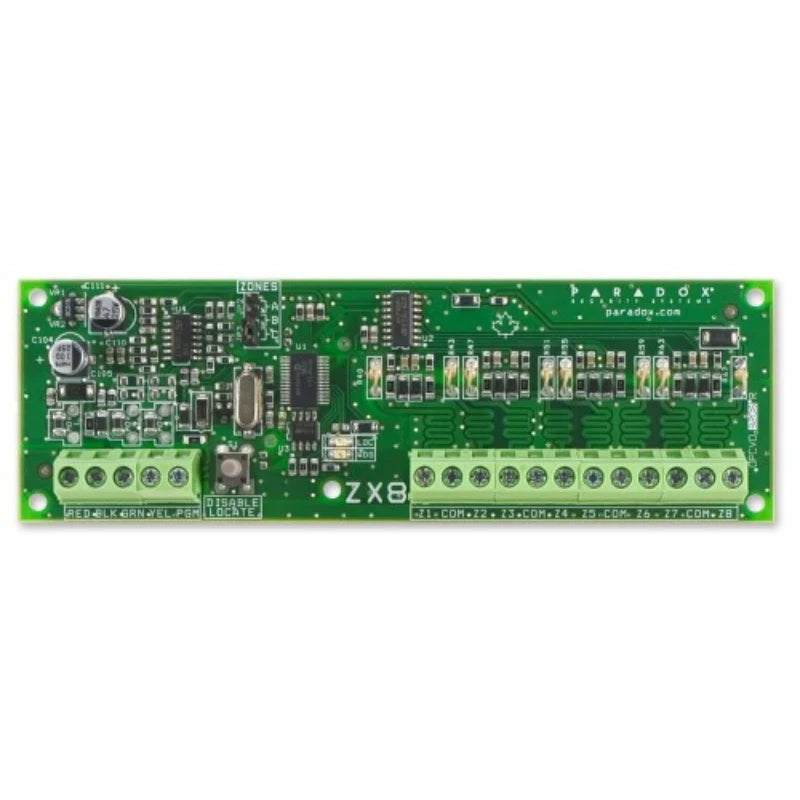

• 2 × Paradox ZX8 8-Zone Expander Module PCBs

• 1 × Paradox KIT1 Metal Enclosure

  • Metal cabinet

  • Backup battery

  • 16VAC plug pack

  • Tamper switch

• 1 × Paradox PS817 1.7A Switching Power Supply

• Installation documentation (if supplied by manufacturer)

Main Features

• Adds 16 hardwired zones (2 × 8-zone modules)

• Each ZX8 provides 8 zone inputs

• One 50mA PGM output per ZX8 module

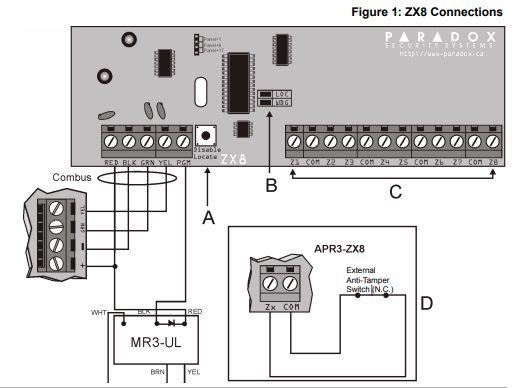

• 4-wire combus connection

• Powered expansion with 1.7A switching power supply

• Metal enclosure with integrated tamper protection

• Backup battery support

• Zone input configurable as anti-tamper switch input

Detailed Specifications (Per ZX8 Module)

• Product Code: PDX-ZX16PWR

• Expansion Modules: 2 × ZX8

• Total Zones Added: 16

• Inputs per Module: 8 hardwired inputs

• PGM Output: 1 × 50mA per module

• Input Voltage: Typically 12 to 16 VDC

• Current Consumption: 28mA per module

• Operating Temperature: -20°C to 50°C (-4°F to 122°F)

• Connection Type: 4-wire combus

• Power Supply: PS817 1.7A switching power supply

• Enclosure: Metal box with tamper protection

Compatibility

• Paradox MG5000 / MG5050 (V2.0 or higher)

• Paradox SP Series (V2.0 or higher)

• Paradox Digiplex

• Paradox Digiplex EVO

• WinLoad Software V2.03 or higher

Warranty Information

This kit is supplied with manufacturer-backed warranty coverage. Warranty support is handled in accordance with official Paradox policies through authorised distribution channels.

About the Brand – Paradox

Paradox Security Systems is a globally recognised manufacturer of professional alarm and security solutions. Known for scalable system architecture and advanced programming capabilities, Paradox products are widely used in residential, commercial, and high-security applications.

SKU

PDX-ZX16PWR

Practical Use Scenarios

• Expanding mid-to-large residential alarm systems

• Commercial site upgrades requiring additional detection zones

• Warehouses and retail premises requiring extended perimeter protection

• Structured system upgrades without replacing the main control panel

• Professional multi-zone hardwired alarm installations

Datasheets & Downloadable Resources

• ZX8 Installation Instructions


Excellence for the Australian and New Zealand Market

The Paradox PDX-ZX16PWR is well-suited for Australian and New Zealand security installations requiring reliable and scalable zone expansion. Supplied through authorised representatives, this kit ensures genuine components, compliant power solutions, and dependable warranty handling. The metal enclosure with tamper protection and dedicated switching power supply supports stable performance in local residential and commercial environments, meeting professional installation standards across the region.

Frequently Asked Questions (FAQs)

Q1: How many zones does the PDX-ZX16PWR add to my system?
The PDX-ZX16PWR adds a total of 16 hardwired zones using two ZX8 expansion modules.

Q2: Does the PDX-ZX16PWR include a power supply?
Yes, the PDX-ZX16PWR includes a PS817 1.7A switching power supply for powered expansion.

Q3: How many PGM outputs are included in the PDX-ZX16PWR?
The PDX-ZX16PWR includes one 50mA PGM output per ZX8 module (two in total).

Q4: Can a zone input on the PDX-ZX16PWR be used as a tamper input?
Yes, a designated zone input on each ZX8 within the PDX-ZX16PWR can be configured as an anti-tamper switch input according to panel programming.

Q5: Is the PDX-ZX16PWR compatible with MG and SP Series panels?
Yes, the PDX-ZX16PWR is compatible with MG Series, SP Series, Digiplex, and Digiplex EVO control panels (version requirements apply).

Q6: Is the PDX-ZX16PWR suitable for commercial alarm systems?
Yes, the PDX-ZX16PWR is suitable for both residential and commercial installations requiring expanded hardwired zone capacity.
