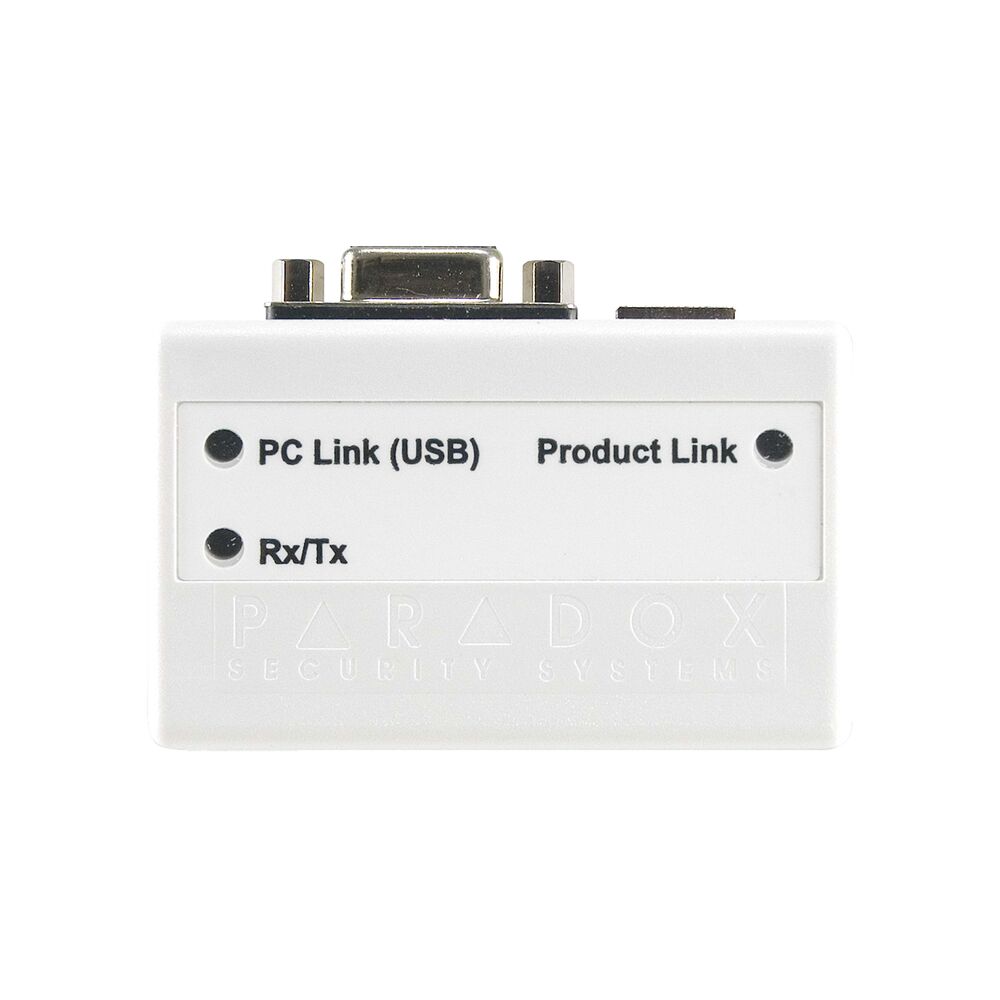

The Paradox Direct Connect Interface (PDX-307USB) is a high-performance communication tool designed for security professionals and installers who require reliable, direct connectivity between their computer systems and Paradox control panels. With support for both USB and DB9 connections, this versatile interface simplifies on-site programming, diagnostics, and firmware upgrades. Whether you're configuring a new system or performing maintenance on existing setups, the 307USB provides a seamless and efficient communication link.

This interface is compatible with a wide range of Paradox panels, including Digiplex, EVO, Magellan, and Spectra series, and integrates flawlessly with both NEware and WinLoad software. Designed for plug-and-play usability, it features intuitive LED indicators to clearly display connection status and data transmission activity.

What’s Included in the Box:

• 1 x Paradox Direct Connect Interface (PDX-307USB)

• 1 x USB Cable

• 1 x User Manual (Instruction Sheet 307USB-TI08)

Main Features:

• Provides direct communication between PC and control panels

• Compatible with multiple Paradox series (Digiplex, EVO, Magellan, Spectra)

• Supports both USB and DB9 serial connections

• Enables firmware upgrades for Paradox control panels

• LED indicators for PC link, product link, and data transmission

• Maximum cable length: USB (8m/25ft), DB9 (5m/15ft)

• Seamless integration with NEware and WinLoad software

• Compact, plug-and-play design for quick installation

Detailed Specifications:

• Product Code: PDX-307USB

• Connection Types: USB or DB9 serial

• Max USB Cable Length: 8m (25ft)

• Max DB9 Cable Length: 5m (15ft)

• Compatible Software: NEware, WinLoad

• Compatible Panels:

  • Digiplex and Digiplex EVO

  • MG-6060 / MG-6030 / MG-6160 / MG-6130

  • MG5000 / MG5050

  • Spectra Series

• LED Indicators:

  • PC Link USB (green) – indicates active connection with PC

  • Product Link (green) – indicates panel connection status

  • Rx/Tx (green flashing) – shows data transmission

• Driver Requirement: USB driver installation required (included on CD or downloadable from paradox.com)

• Certifications: Meets international safety and performance standards

Warranty Information:
This product is backed by a 2-year limited warranty provided by Paradox Security Systems. Warranty covers defects in materials and workmanship under normal use. For claims, contact Paradox or your authorized distributor.

Brand Description:
Paradox Security Systems is a global leader in the design and manufacturing of high-end security solutions. Known for innovation, reliability, and ease of use, Paradox products are trusted by professionals in residential, commercial, and industrial security applications worldwide.

SKU: PDX-307USB

Practical Use Scenarios:

• On-site firmware updates for Paradox control panels

• Real-time configuration and troubleshooting of security systems

• Ideal tool for security system installers and technicians

• Used by system integrators to streamline commissioning of security setups

• Simplifies communication setup in remote or offline environments

Datasheets and Downloadable Resources:

• USB Driver Downloads


Excellence for the Australian and New Zealand Market:
The Paradox PDX-307USB Direct Connect Interface is optimized for use in Australia and New Zealand, ensuring full compatibility with local Paradox panel models and software. All units are sourced exclusively from authorized Paradox distributors, guaranteeing authentic hardware and firmware support. This product adheres to Australian quality standards and is eligible for local technical support and warranty processing directly through Paradox or its appointed partners. Its compatibility with NEware and WinLoad ensures it meets the professional requirements of system installers and security experts in ANZ.

Frequently Asked Questions (FAQs):

Q1: Is the Paradox PDX-307USB compatible with Spectra SP series panels?
A1: Yes, the PDX-307USB supports direct communication with Spectra SP series panels. (Product Code: PDX-307USB)

Q2: Do I need to install a USB driver for the Paradox 307USB to work?
A2: Yes, a USB driver must be installed before using the interface with a USB connection. Drivers are available on the NEware/WinLoad CD or at paradox.com. (Product Code: PDX-307USB)

Q3: Can I use the 307USB with both NEware and WinLoad?
A3: Absolutely, the PDX-307USB is fully compatible with both NEware and WinLoad software tools. (Product Code: PDX-307USB)

Q4: What is the maximum cable length supported by the 307USB?
A4: The USB connection supports up to 8 meters (25 ft), while the DB9 connection supports up to 5 meters (15 ft). (Product Code: PDX-307USB)

Q5: How do I confirm if the 307USB is communicating properly with the panel?
A5: LED indicators on the unit provide real-time status: a steady green light for PC and product link and a flashing light for Rx/Tx activity. (Product Code: PDX-307USB)
