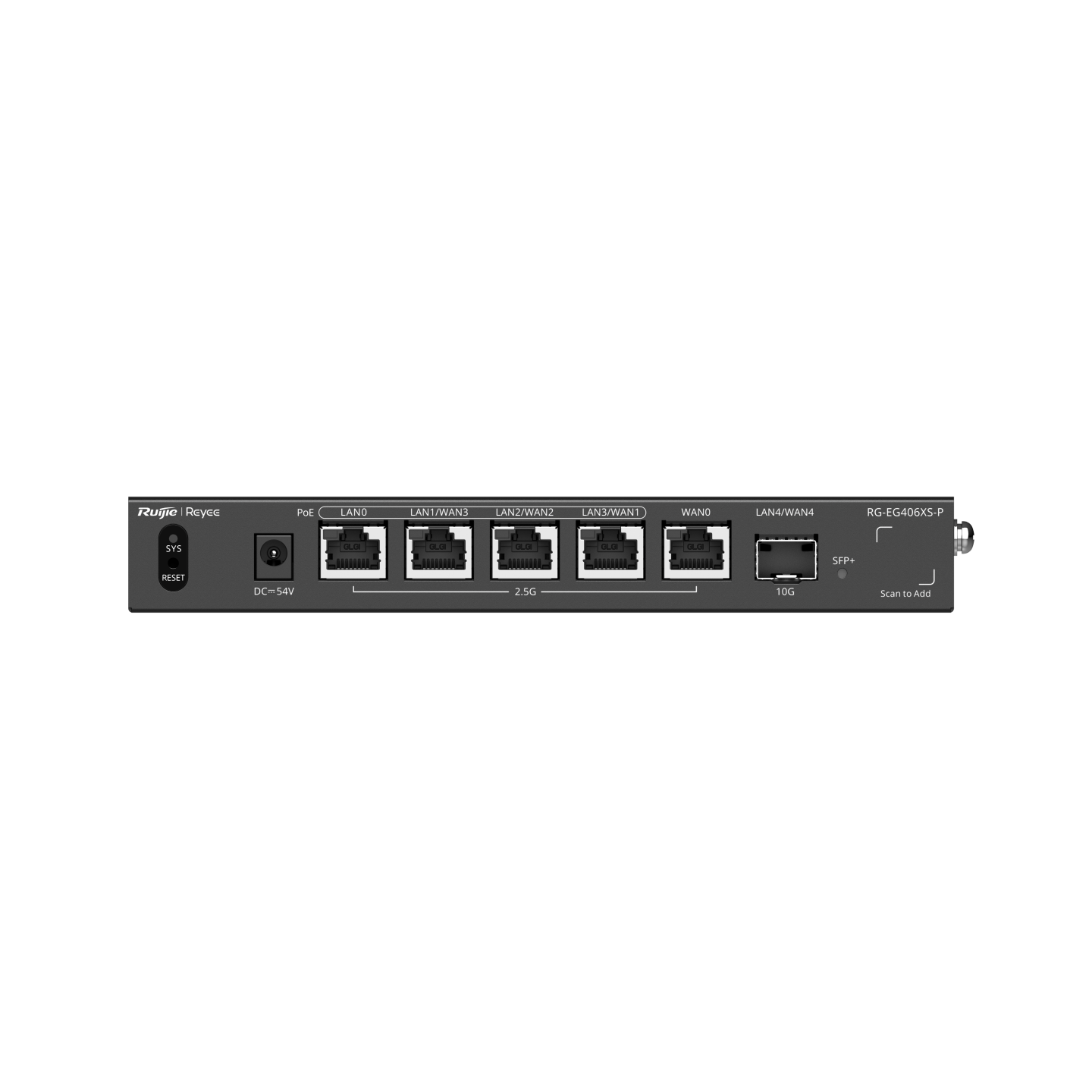

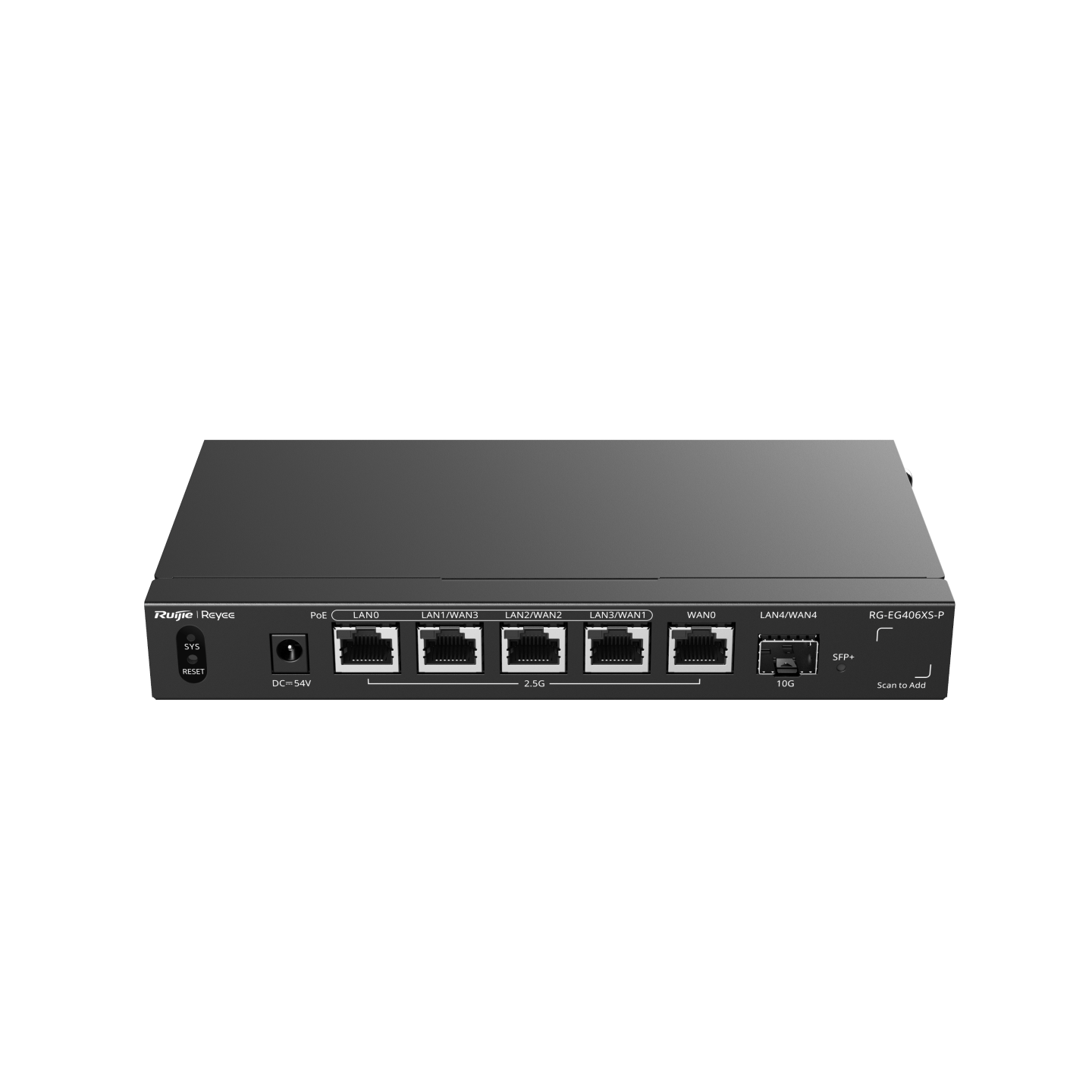

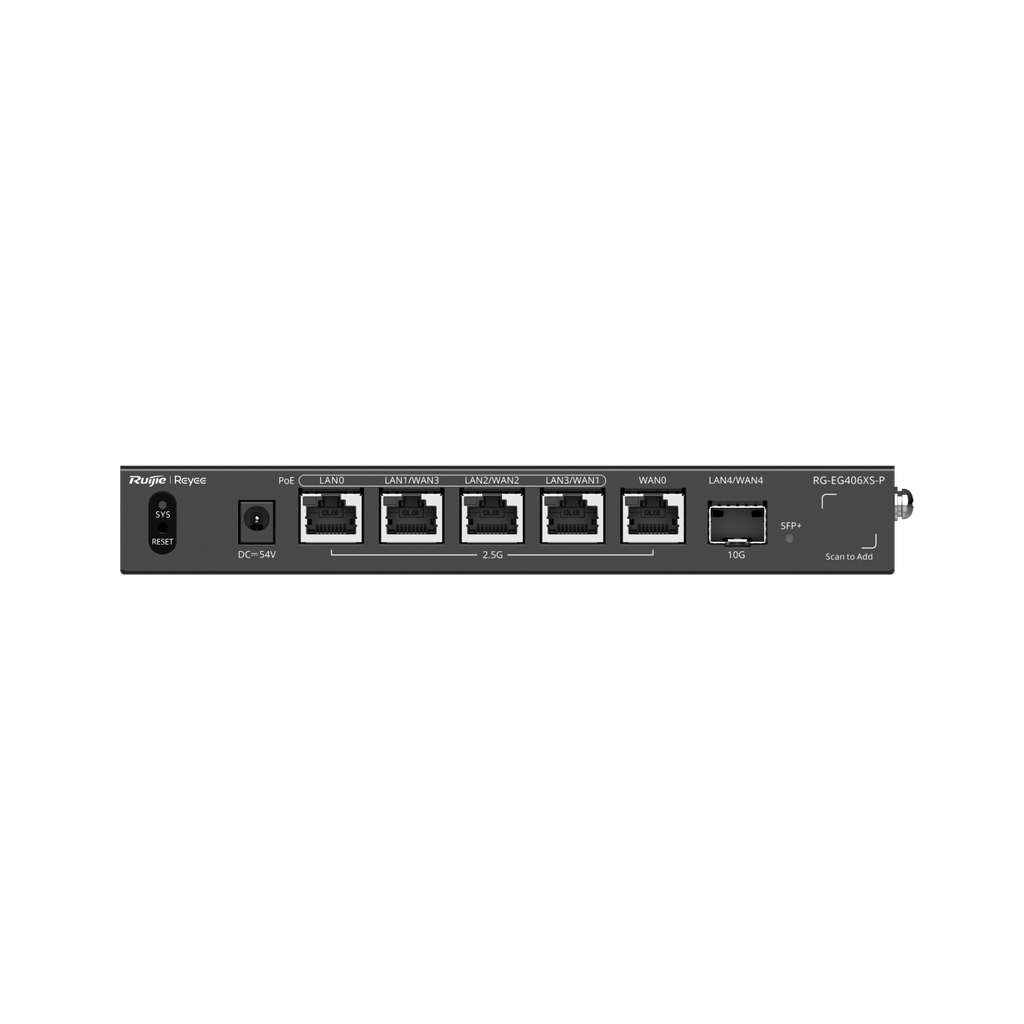

The RG-EG406XS-P Reyee 5-Port 2.5G Cloud Managed PoE Router is a high-performance Multi-Gig business gateway designed for modern offices, Wi-Fi 7 networks, surveillance systems, smart homes, branch networks, and high-speed fibre deployments. With 2.5Gbps throughput, five 2.5GbE ports, four PoE/PoE+ output ports, a 10G SFP+ port, Multi-WAN load balancing, and Ruijie Cloud management, the RG-EG406XS-P delivers powerful routing, simplified administration, and future-ready connectivity.
Built with a quad-core 2.0GHz processor, 1GB RAM, and 256MB flash storage, the RG-EG406XS-P supports up to 400 concurrent clients and up to 100 VPN tunnels for branch offices and remote employees. Its 110W PoE budget allows compatible access points, IP cameras, VoIP phones, and other PoE-powered devices to be connected directly, reducing cabling complexity while maintaining reliable Multi-Gig network performance.
What's Included in the Box
Package contents may vary by region and distributor. Please refer to the supplied product packaging or official documentation for the confirmed in-box accessories.
Main Features
-
5-port 2.5G cloud-managed router
-
5 × 10/100/1000/2500BASE-T ports
-
1 × 10GE SFP+ port
-
4 × PoE/PoE+ output ports
-
110W total PoE power budget
-
Up to 2.5Gbps routing throughput
-
Supports up to 400 concurrent clients
-
Supports up to 100 VPN tunnels
-
Multi-WAN smart load balancing
-
Efficient bandwidth management
-
Application-based traffic control
-
User-based bandwidth management
-
Client recognition and flow control
-
Easy NAT traversal for intranet access
-
One-click access to internal device web interfaces
-
Ruijie Cloud remote management
-
Scenario-based configuration guide
-
Quick service setup via app
-
Marketing portal authentication
-
Self-organising network support
-
Lifetime free cloud management during the supported product lifecycle
Detailed Specifications
Hardware Specifications
Network Interfaces
Processor
Memory
-
RAM: 1GB
-
Flash Memory: 256MB
PoE Specifications
-
Total PoE Budget: 110W
-
PoE/PoE+ Output Ports: 4
Physical Specifications
Installation
Environmental Specifications
-
Operating Temperature:
-
0°C to 40°C
-
32°F to 104°F
Software Features
WAN & Routing Features
VPN Features
-
Supports Up to 100 VPN Tunnels
-
VPN Support for Branch Offices
-
VPN Support for Remote Employees
-
Secure Remote Access Capabilities
Bandwidth & Traffic Management
-
Application-Based Bandwidth Management
-
User-Based Bandwidth Management
-
Client Recognition
-
Flow Control
-
Traffic Optimisation for Diverse Network Scenarios
Cloud Management
-
Ruijie Cloud Management
-
Remote Monitoring
-
Remote Configuration
-
App-Based Quick Service Setup
-
Scenario-Based Configuration Guide
-
Self-Organising Network Support
-
Marketing Portal Authentication
-
Lifetime Free Cloud Management During Product Lifecycle
Performance Capacity
Throughput
Concurrent Clients
VPN Capacity
Practical Use Scenarios
Wi-Fi 7 Network Deployments
The RG-EG406XS-P is well suited for full-link 2.5G network environments, helping businesses and advanced home users unlock the performance potential of Wi-Fi 7 access points.
PoE Access Point Installations
With four PoE/PoE+ output ports and a 110W PoE budget, the RG-EG406XS-P can power compatible access points directly, reducing the need for separate power adapters or PoE injectors.
IP Camera & Surveillance Networks
The router can support compatible PoE-powered IP cameras while providing cloud-based monitoring, NAT traversal, and secure remote access features for surveillance environments.
Fibre Internet & Multi-Gig Networks
The 10GE SFP+ port and 2.5GbE interfaces make the RG-EG406XS-P a strong option for high-speed fibre services, Multi-Gig switching, and business-grade connectivity.
Branch Office Connectivity
Support for up to 100 VPN tunnels makes the RG-EG406XS-P suitable for connecting remote branches, mobile teams, and distributed business locations.
Smart Homes & High-Performance Residential Networks
Designed for full-link 2.5G connectivity, the RG-EG406XS-P can support demanding home networks with Wi-Fi 7, NAS systems, streaming, gaming, and smart device environments.
Warranty Information
-
Manufacturer warranty applies according to the official Ruijie/Reyee warranty policy for the relevant region.
-
Lifetime free Ruijie Cloud management applies for the supported lifespan of the product and is subject to manufacturer End-of-Life policies.
-
Warranty support should be handled through authorised distributors, resellers, or official manufacturer support channels.
Brand Description
Reyee by Ruijie Networks
Reyee, a networking brand from Ruijie Networks, provides cloud-managed networking solutions for business, hospitality, education, retail, residential, and enterprise environments. Reyee products are designed to simplify deployment, centralise management, and deliver reliable networking performance across a wide range of modern connectivity scenarios.
Datasheets & Resources
Available resources may include:
Excellence for the Australian and New Zealand Market
The RG-EG406XS-P is a strong networking solution for Australian and New Zealand businesses, installers, managed service providers, and advanced residential deployments requiring Multi-Gig performance, PoE connectivity, and simplified cloud management.
Key advantages for Australian and New Zealand customers include:
-
Suitable for high-speed fibre, business broadband, and Multi-Gig network environments
-
2.5GbE ports designed for modern high-performance wired networks
-
10G SFP+ connectivity for advanced uplink and fibre-based deployments
-
4 PoE/PoE+ output ports for compatible access points, cameras, and network devices
-
110W PoE budget to simplify power and data cabling
-
Supports Wi-Fi 7 infrastructure and full-link 2.5G network designs
-
Ruijie Cloud management for remote monitoring and configuration
-
VPN tunnel support for branches and remote employees
-
Products should be sourced through authorised brand representatives and distribution channels
-
Warranty handling should be completed through direct communication with the authorised supplier or brand support pathway
FAQs
Q1: What is the maximum throughput of the RG-EG406XS-P?
The RG-EG406XS-P supports routing throughput of up to 2500Mbps, making it suitable for Multi-Gig business, office, and advanced residential networks.
Q2: How many 2.5G ports does the RG-EG406XS-P include?
The RG-EG406XS-P includes five 10/100/1000/2500BASE-T Multi-Gig Ethernet ports.
Q3: Does the RG-EG406XS-P include PoE ports?
Yes, the RG-EG406XS-P includes four PoE/PoE+ output ports for powering compatible network devices.
Q4: What is the PoE budget of the RG-EG406XS-P?
The RG-EG406XS-P provides a total PoE budget of 110W.
Q5: Does the RG-EG406XS-P include a 10G port?
Yes, the RG-EG406XS-P includes one 10GE SFP+ port for high-speed uplink or fibre connectivity.
Q6: How many concurrent clients can the RG-EG406XS-P support?
The RG-EG406XS-P is recommended for networks with up to 400 concurrent clients.
Q7: How many VPN tunnels does the RG-EG406XS-P support?
The RG-EG406XS-P supports up to 100 VPN tunnels for branches, remote employees, and secure remote connectivity.
Q8: Does the RG-EG406XS-P support Multi-WAN load balancing?
Yes, the RG-EG406XS-P supports Multi-WAN smart load balancing for improved internet availability and performance.
Q9: Is the RG-EG406XS-P suitable for Wi-Fi 7 networks?
Yes, the RG-EG406XS-P is designed for full-link 2.5G network solutions and is suitable for supporting Wi-Fi 7 access point deployments.
Q10: Does the RG-EG406XS-P support Ruijie Cloud management?
Yes, the RG-EG406XS-P supports Ruijie Cloud management, allowing remote monitoring, configuration, and administration anytime and anywhere during the supported product lifecycle.
Q11: Can the RG-EG406XS-P help manage application and user bandwidth?
Yes, the RG-EG406XS-P supports efficient bandwidth management based on applications and users, helping optimise network performance.
Q12: Does the RG-EG406XS-P support NAT traversal?
Yes, the RG-EG406XS-P supports easy NAT traversal, allowing simplified intranet access and one-click access to third-party device web interfaces from the management console.
