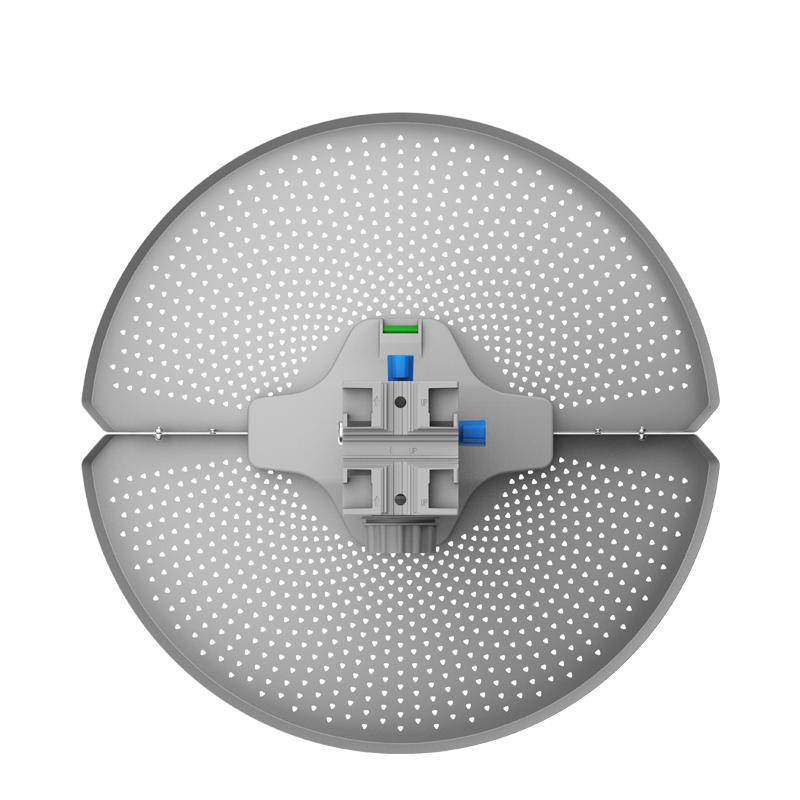

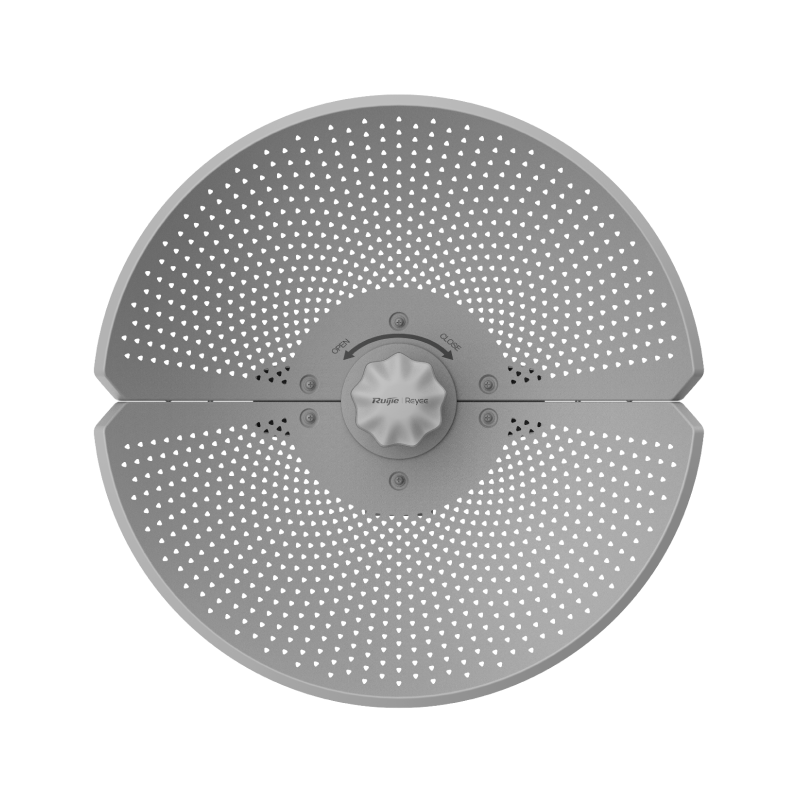

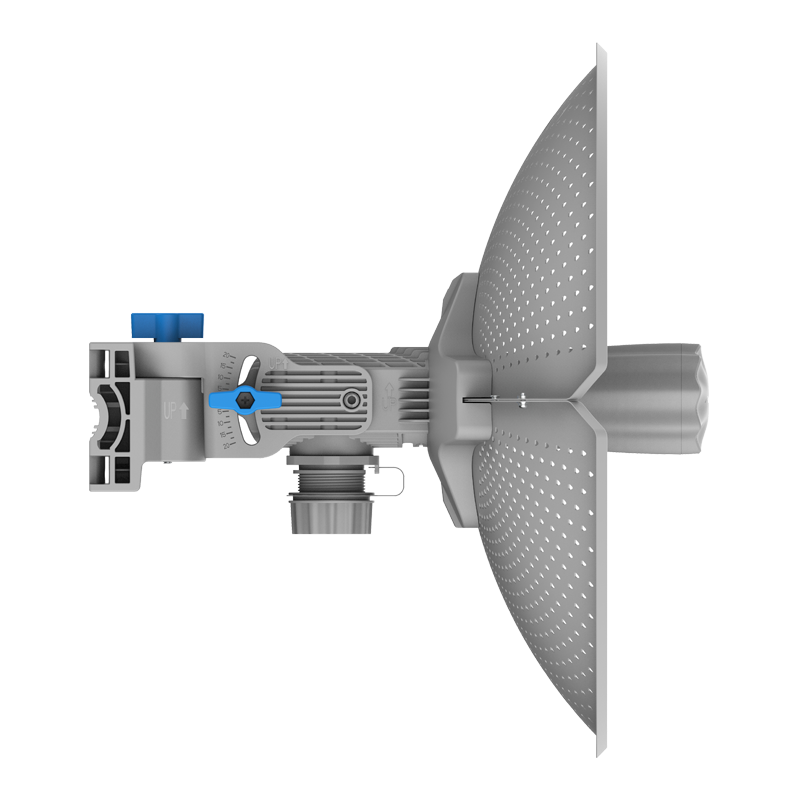

The Ruijie RG-AirMetro460G is a high-performance outdoor wireless bridge CPE from the RG-AirMetro Series, purpose-built for WISPs, CCTV backhaul, industrial facilities, and urban infrastructure deployments. Supporting both Point-to-Point (PTP) and Point-to-MultiPoint (PTMP) modes, it delivers 867 Mbps capacity over the 5 GHz band, ensuring reliable long-distance connectivity of up to 15 km.
With 23 dBi high-gain antennas, rugged IP65-rated housing, and protection against ±24 kV ESD and 6 kV surges, the RG-AirMetro460G is engineered for robust outdoor performance in harsh climates. The unit offers 24 V Passive PoE power supply, one-touch pairing in 30 seconds, and all-in-one cloud-based management, making deployment simple and efficient for service providers and enterprises alike.
What’s Included in the Box
Key Features
-
Long-Range Wireless Connectivity – Supports PTP working distances up to 15 km.
-
High Capacity – 5 GHz band with speeds up to 867 Mbps.
-
Fast Deployment – One-touch pairing (30 sec) or app-based pairing (2 mins).
-
Industrial Durability – IP65-rated, withstands –40℃ to +70℃ and winds up to 220.32 km/h (137 mph).
-
Robust Protection – ±24 kV ESD and 6 kV surge protection.
-
Cloud Management – Centralized configuration, monitoring, and management.
-
Flexible Powering – Powered via 24 V Passive PoE.
-
LED Indicators – Includes signal strength, LAN, and system LEDs for quick diagnostics.
Technical Specifications
-
Model: RG-AirMetro460G
-
Wireless Capacity: 5 GHz, up to 867 Mbps
-
Antenna Gain: 23 dBi
-
Beam Angle: H: 9°, V: 9°
-
Working Distance: Max. 15 km
-
Ports: 1 × 10/100/1000 Mbps GE port
-
Power Supply: 24 V Passive PoE
-
LEDs: 3 Signal LEDs, 1 LAN LED, 1 System LED
-
Dimensions: Ø368.5 mm × 271 mm (including mounting kit)
-
Operation Temperature: –40℃ to +70℃ (–40°F to +158°F)
-
Wind Resistance: Up to 220.32 km/h (137 mph)
-
Environmental Rating: IP65
-
ESD Protection: ±24 kV Contact/Air
-
Surge Protection: 6 kV
-
Pairing Options: One-touch or app pairing
-
Certification: CE
Warranty Information
The Ruijie RG-AirMetro460G comes with a limited manufacturer’s warranty, covering material and workmanship defects. Warranty claims and service are supported through authorized Ruijie distribution partners.
Brand Overview
Ruijie Networks is a leading provider of networking and communication solutions, offering advanced products for wireless, cloud, and security infrastructure. With a strong focus on performance, durability, and simplified management, Ruijie delivers solutions trusted by enterprises, ISPs, and government sectors worldwide.
SKU
RG-AirMetro460G
Practical Use Scenarios
-
WISP Operators: Extend connectivity to rural and suburban customers.
-
CCTV Networks: Backhaul video streams across long distances with low latency.
-
Factories & Industrial Sites: Provide high-speed wireless links for monitoring and automation.
-
City Surveillance & Roads: Connect cameras and sensors for smart city infrastructure.
-
Campus Networks: Interconnect multiple buildings without expensive cabling.
Technical Documents & Downloads
Excellence for the Australian and New Zealand Market
-
Certified to CE Standards, suitable for ANZ deployments.
-
Engineered for Harsh Outdoor Conditions – Survives extreme weather and wind loads.
-
Optimized for WISP & CCTV Applications in AU/NZ – Reliable long-distance wireless bridging.
-
Available via Authorized Ruijie Distributors – Ensuring authenticity and warranty support.
-
Local Warranty Support – Fast resolution via official Ruijie service channels.
Frequently Asked Questions (FAQs) – SKU: RG-AirMetro460G
Q1: What is the maximum working distance of the RG-AirMetro460G?
A1: The RG-AirMetro460G supports Point-to-Point wireless links up to 15 km, ensuring stable long-distance connectivity.
Q2: What power method is used in the RG-AirMetro460G?
A2: The device is powered by 24 V Passive PoE, simplifying installation with single-cable power and data.
Q3: How weatherproof is the RG-AirMetro460G?
A3: With an IP65 rating, the RG-AirMetro460G withstands rain, dust, and extreme temperatures from –40℃ to +70℃.
Q4: Does the RG-AirMetro460G support fast installation?
A4: Yes, the unit allows one-touch pairing in 30 seconds or app-based pairing within 2 minutes, streamlining setup.
Q5: What is the maximum capacity of the RG-AirMetro460G?
A5: It supports 867 Mbps throughput on the 5 GHz band, ideal for CCTV and data-heavy applications.
Q6: What protection does the RG-AirMetro460G provide against surges and ESD?
A6: It includes ±24 kV ESD protection and 6 kV surge protection for reliable outdoor use.
Q7: Can the RG-AirMetro460G be managed remotely?
A7: Yes, it supports all-in-one cloud management, simplifying configuration and monitoring across multiple sites.
