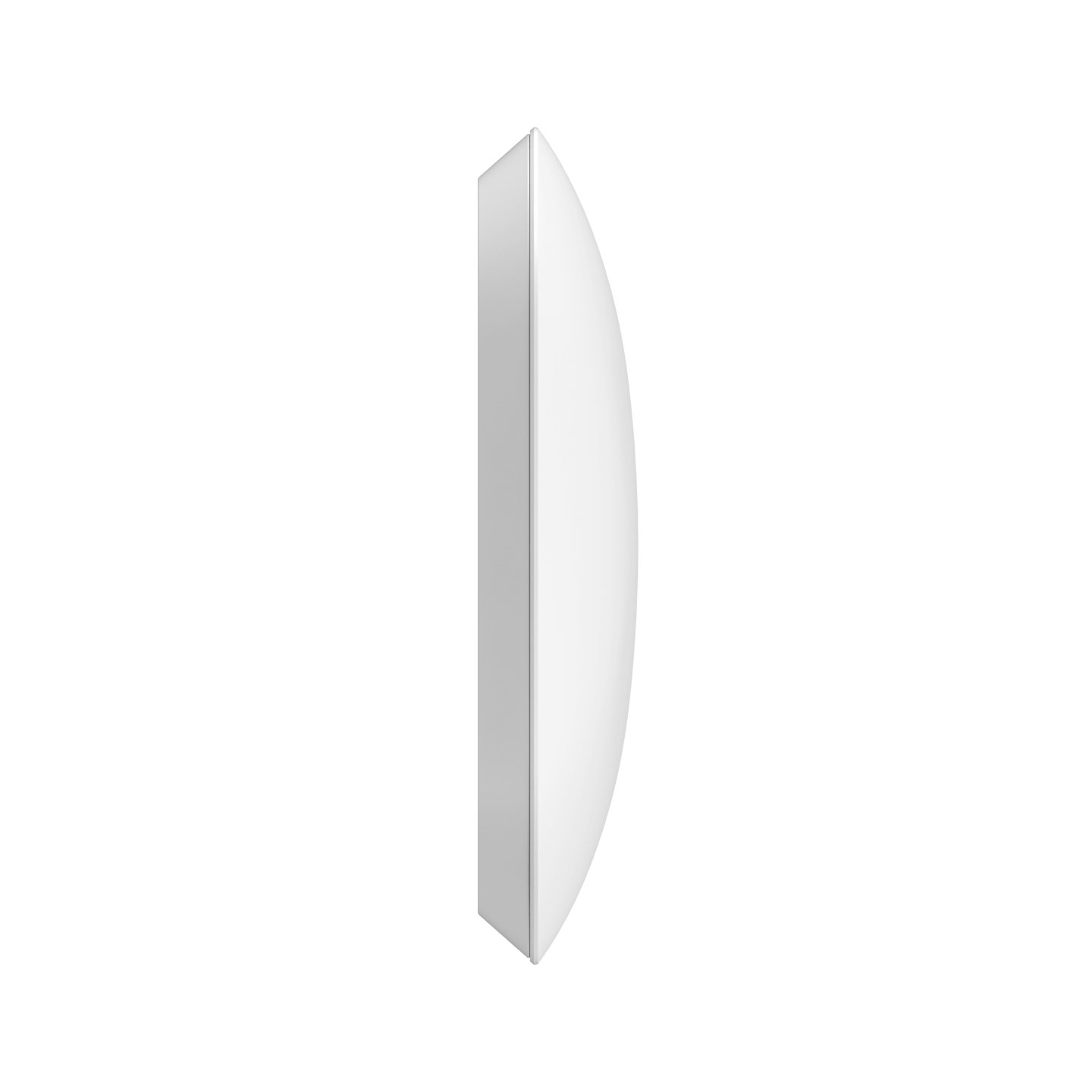

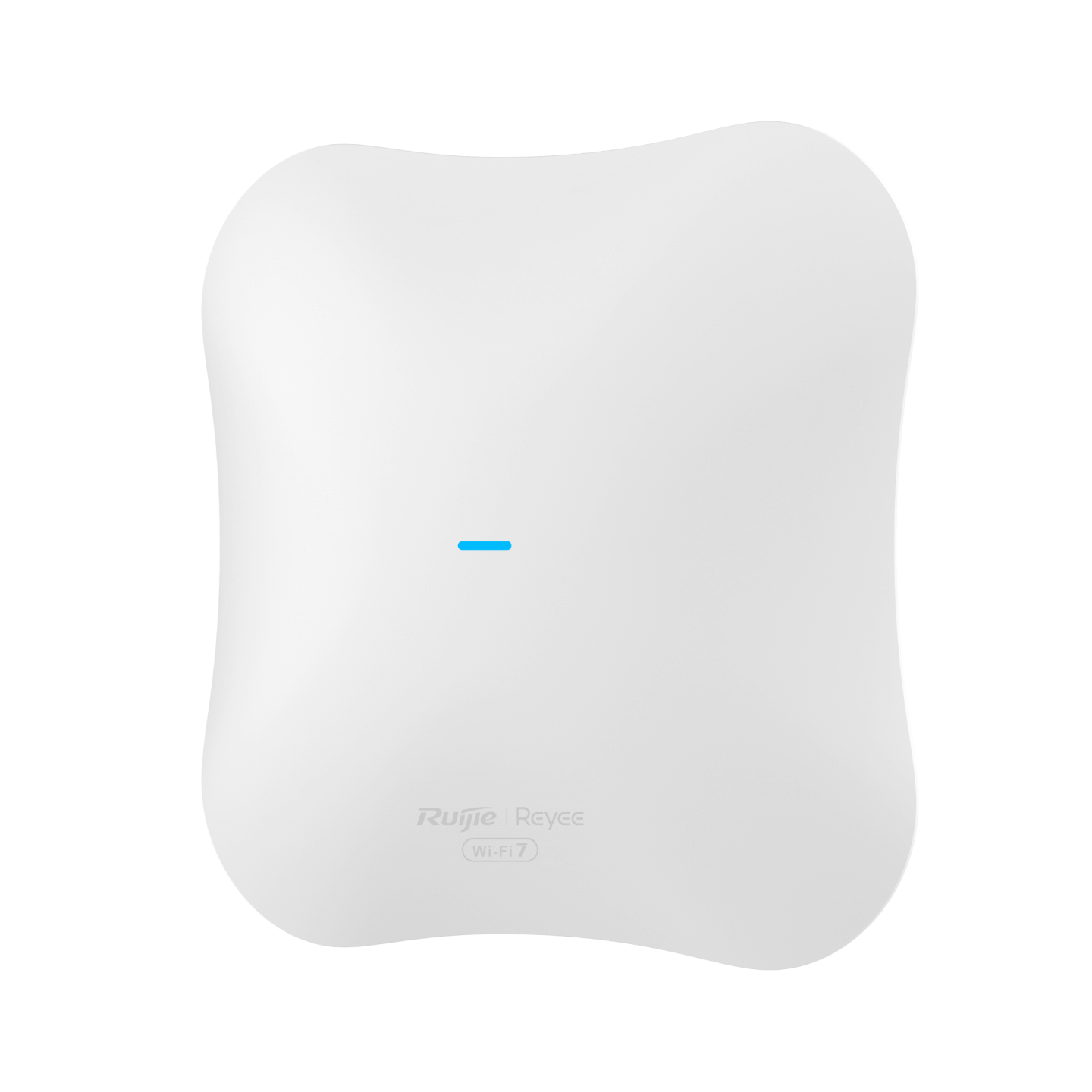

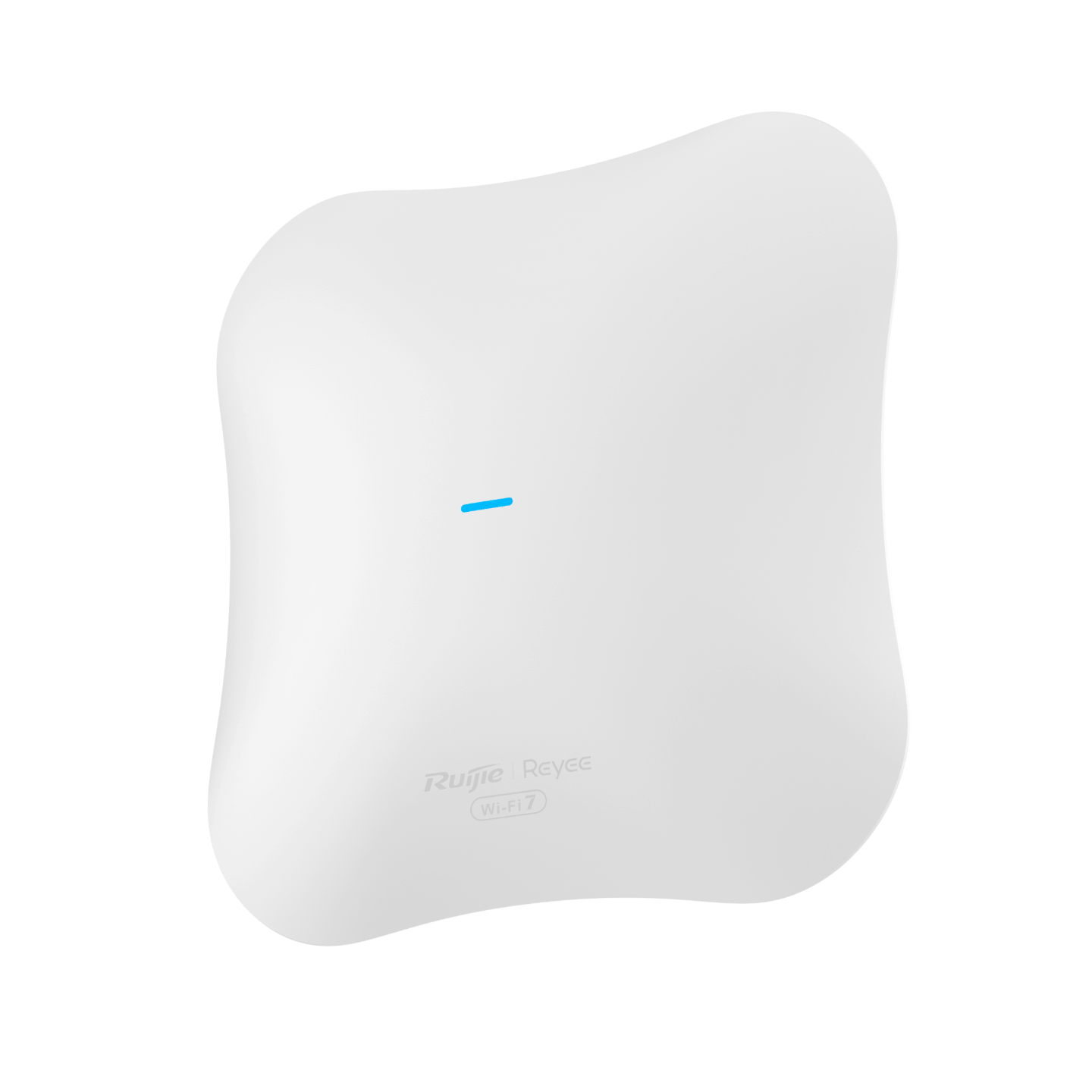

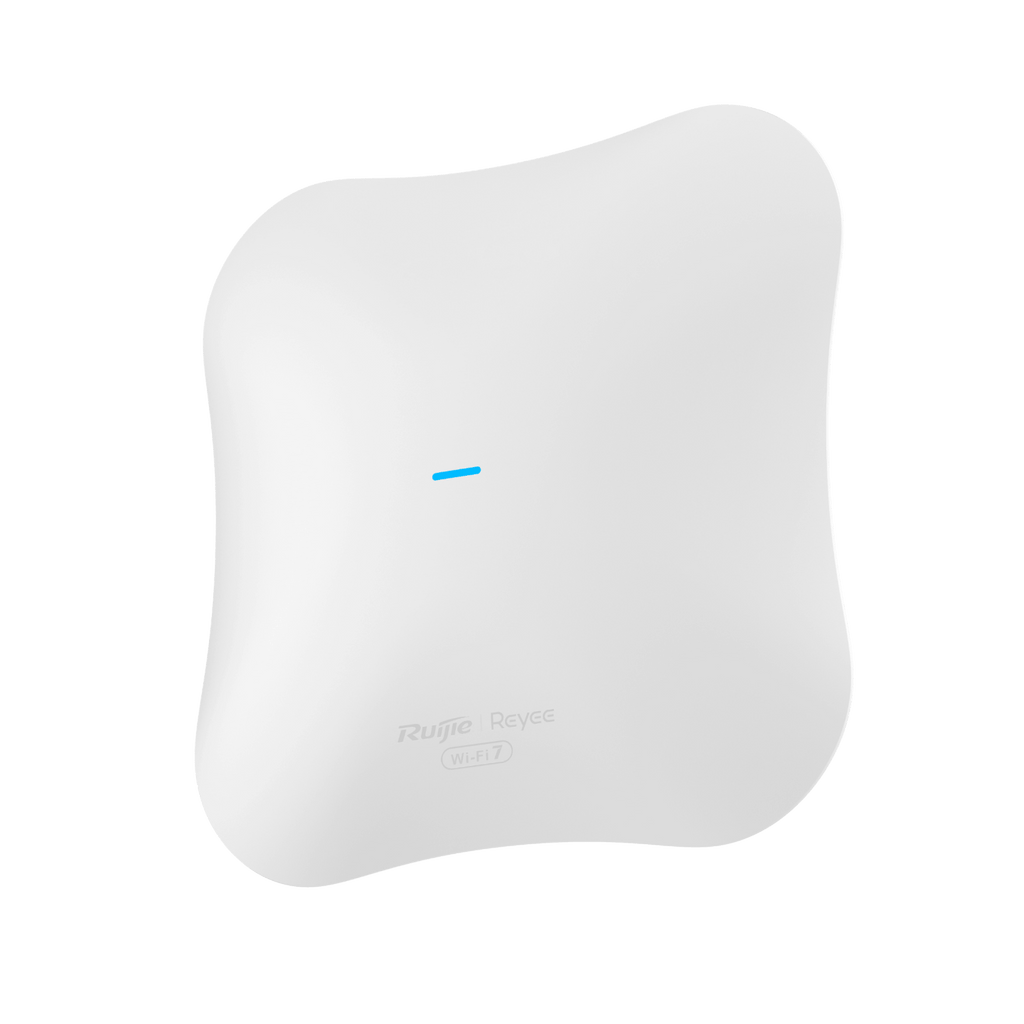

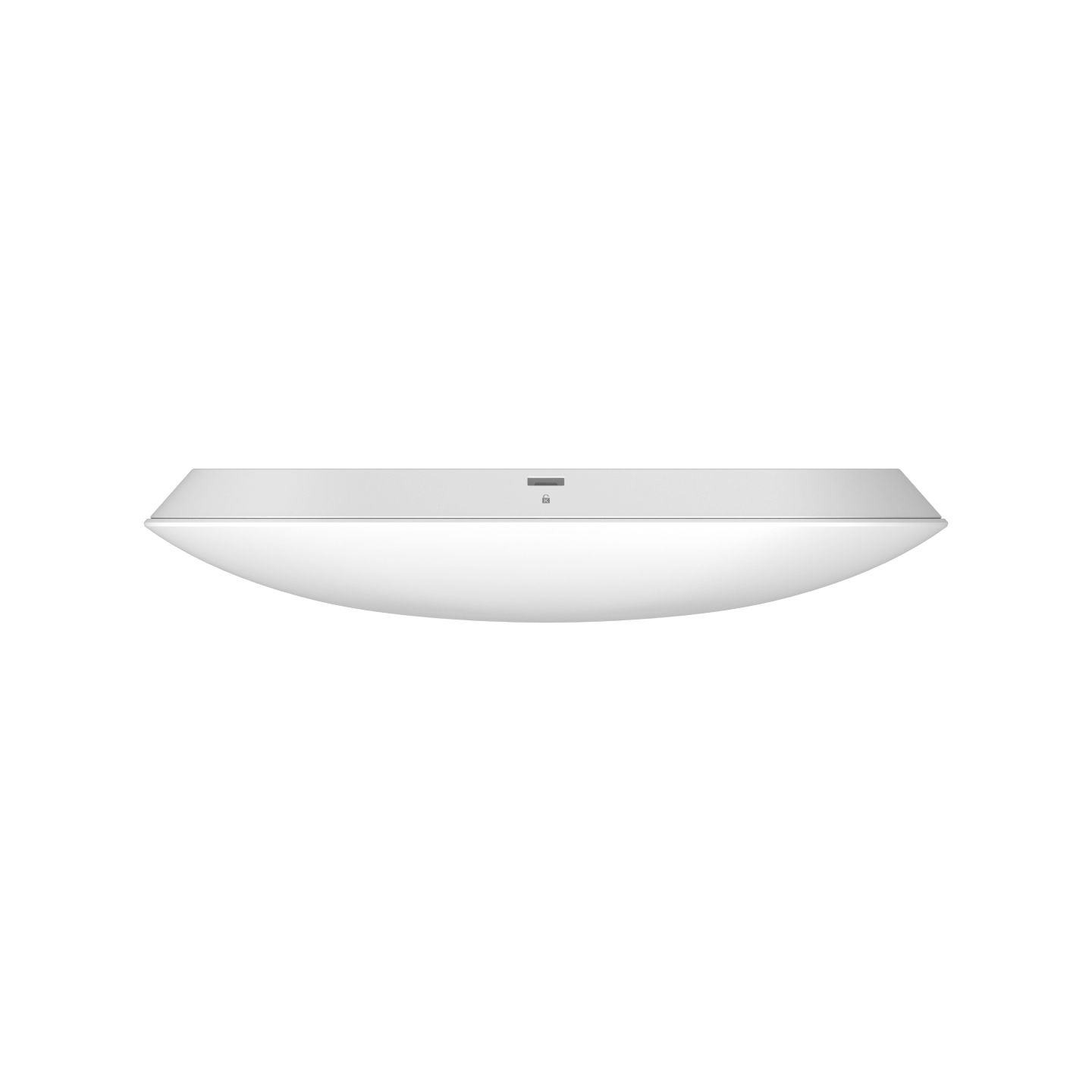

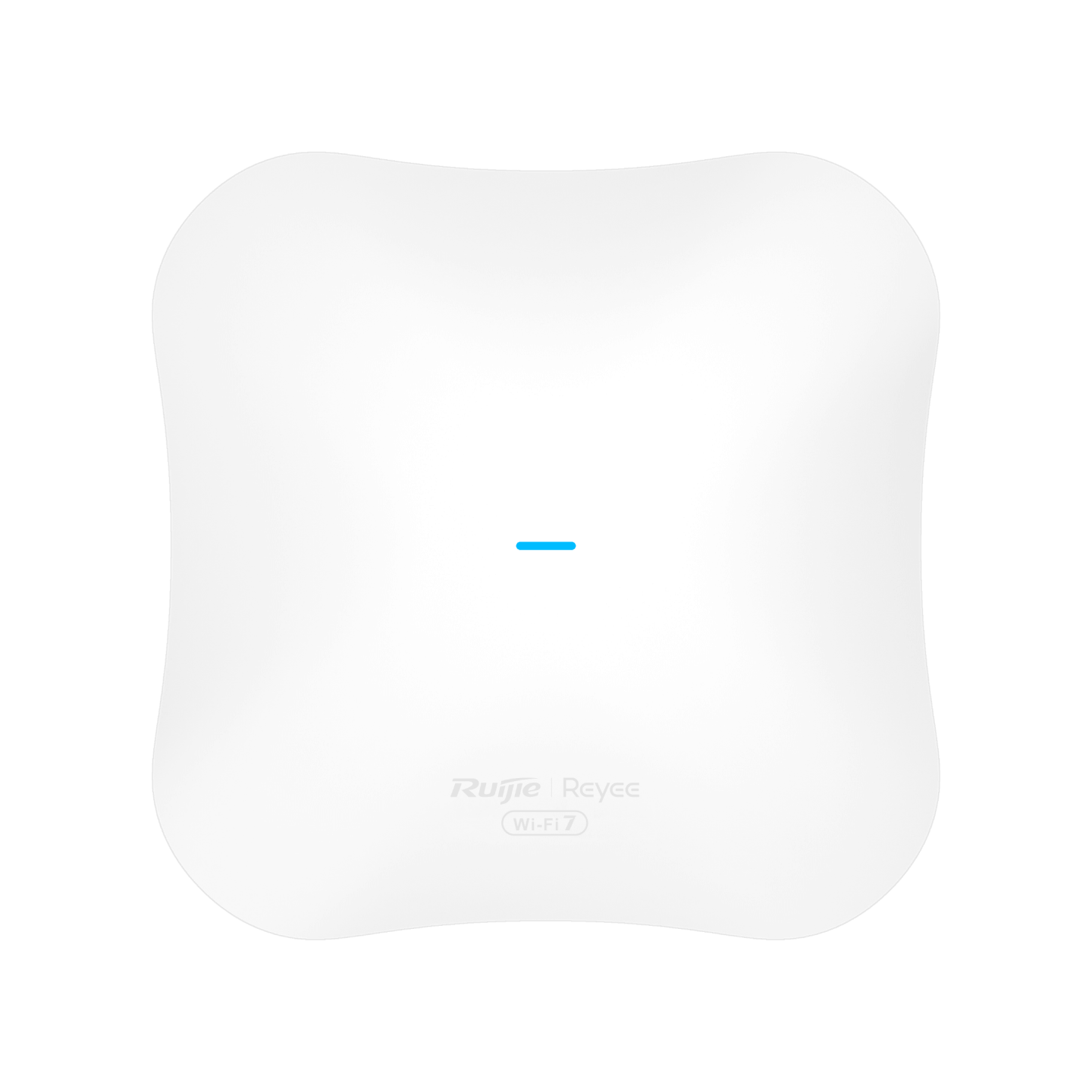

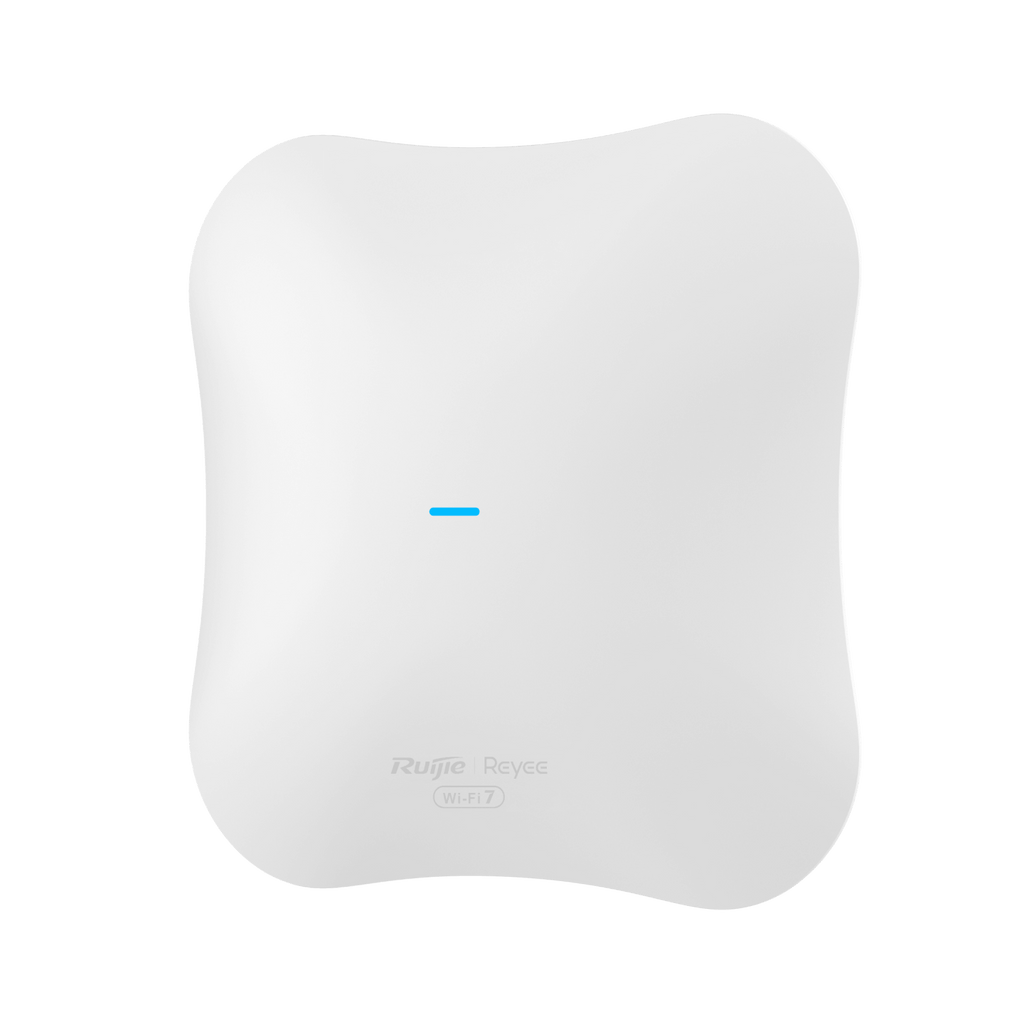

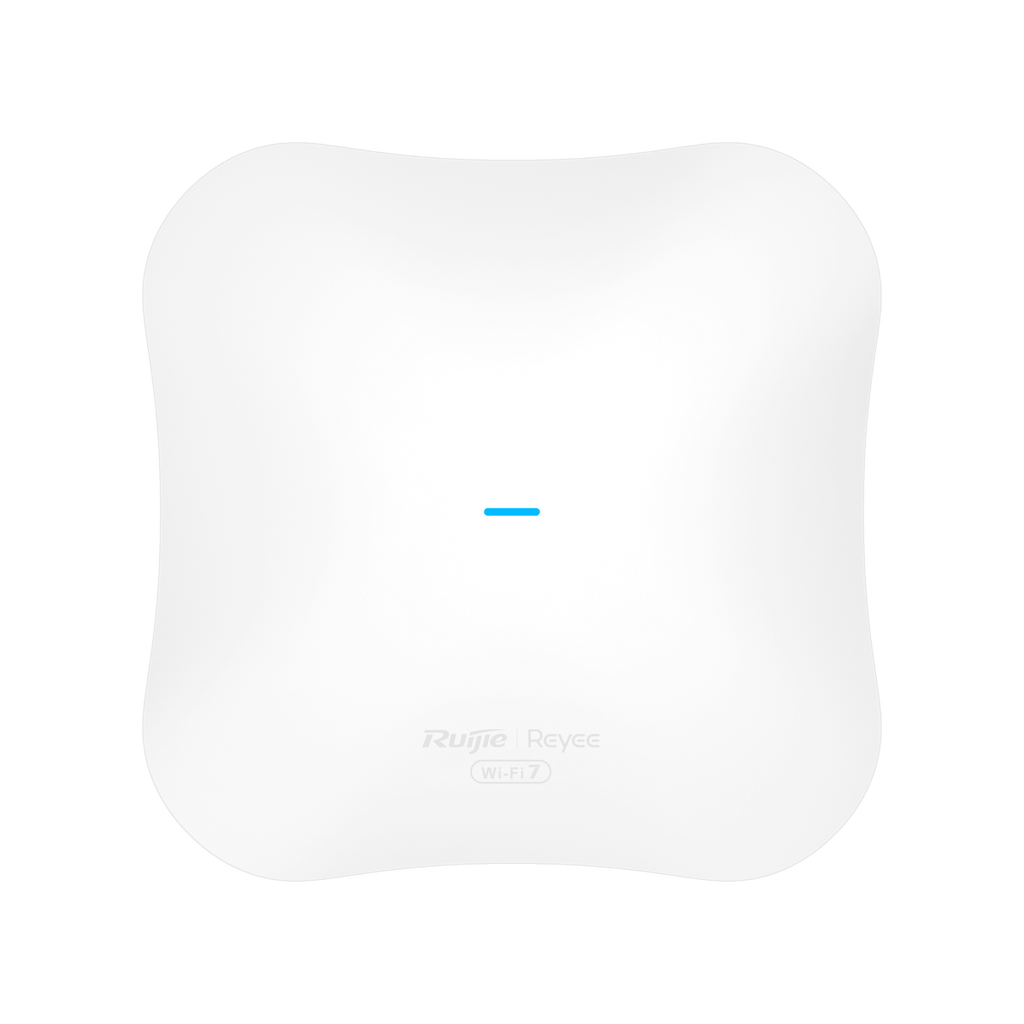

The RG-RAP72Pro is Ruijie’s high-performance Wi-Fi 7 (802.11be) ceiling-mount access point, delivering a massive 5011 Mbps wireless throughput. Ideal for demanding environments such as enterprise offices, hotels, conference centres, and smart campuses, this AP provides rock-solid coverage, ultra-low latency, and advanced multi-device support.
Featuring Multi-Link Operation (MLO) and 4K-QAM modulation, the RG-RAP72Pro ensures faster-than-ever data delivery with consistent connectivity across multiple frequency bands. Combined with a 2.5GE uplink, AI Wireless Optimization, and Reyee Mesh, it’s engineered for next-generation enterprise networking.
Highlights & Benefits
-
🚀 True Wi-Fi 7 Performance – BE5040 Class
-
🔄 MLO – Multi-Link Operation for Stability
-
🌐 Dual-Band MIMO Connectivity
-
⚙️ AI Wireless Optimization (WIO 3.0)
-
🧠 Smart Networking with Reyee Mesh
-
🔌 Flexible Uplink with 2.5GE Port
-
🛡️ Enterprise-Grade Security
-
Supports WPA3, VLANs, ACL, captive portal, and seamless Ruijie Cloud integration.
Technical Specifications
| Category |
Details |
| Model |
RG-RAP72Pro |
| Wi-Fi Protocols |
2.4 GHz: 802.11b/g/n/ax/be
5 GHz: 802.11a/n/ac/ax/be |
| MIMO |
2×2 @ 2.4 GHz
3×3 @ 5 GHz |
| Total Data Rate |
Up to 5011 Mbps
|
| Wireless Features |
OFDMA, BSS Coloring, MU-MIMO, Beamforming, MLO, 4K-QAM |
| Client Capacity |
Max 511 clients
Recommended: 110 concurrent devices |

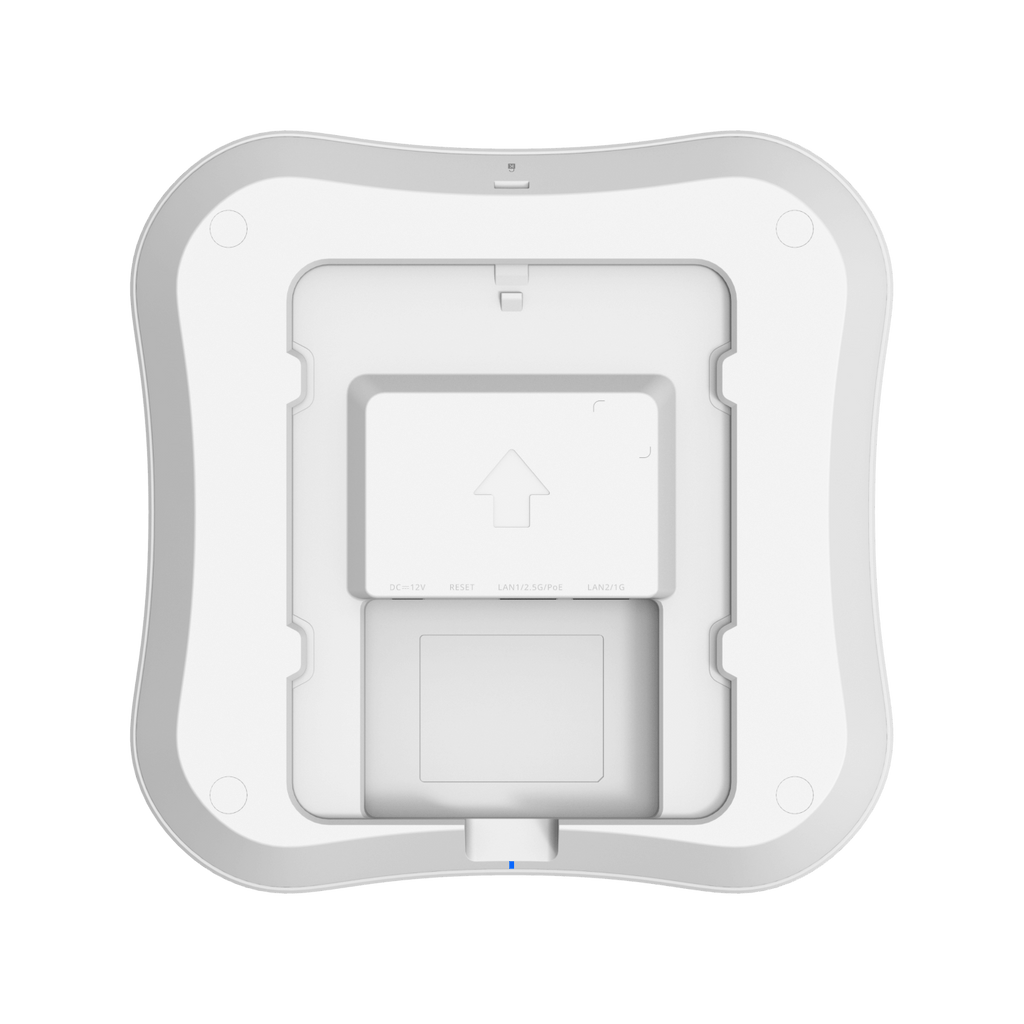

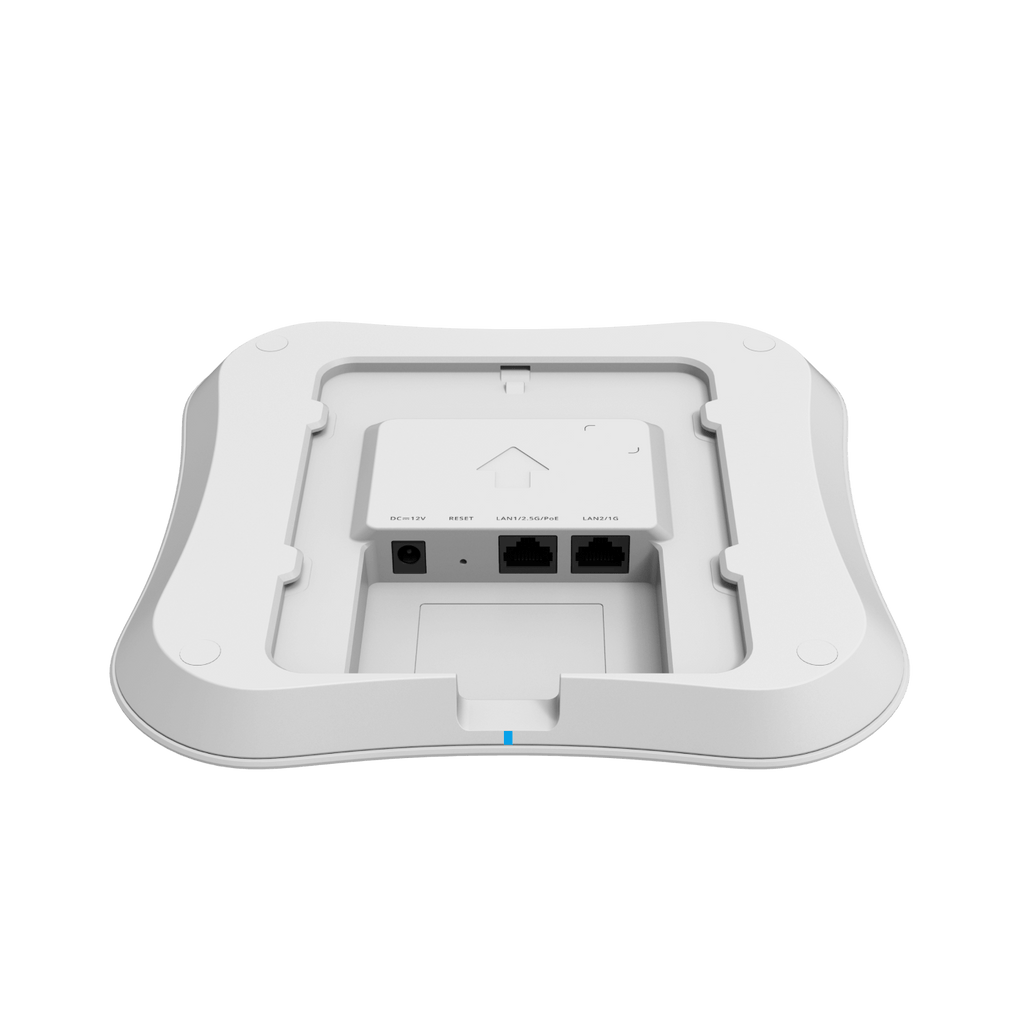

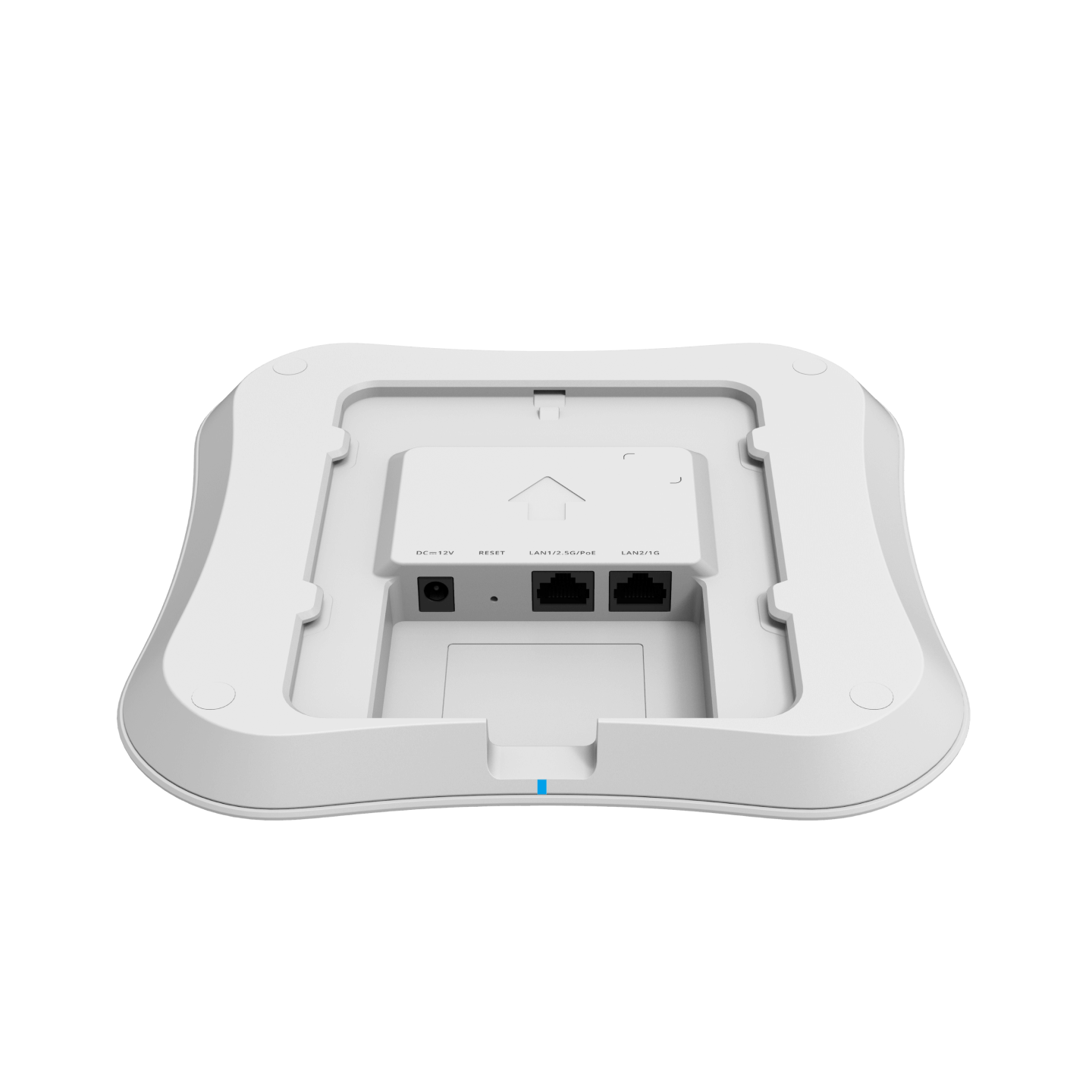

| Ethernet Ports |
1 × GE port
1 × 2.5GE port |
| PoE Standard |
IEEE 802.3at (PoE+) |
| Power Options |
802.3at PoE or 12V/2.5A DC input |
| Max. Power Consumption |
< 30 W |

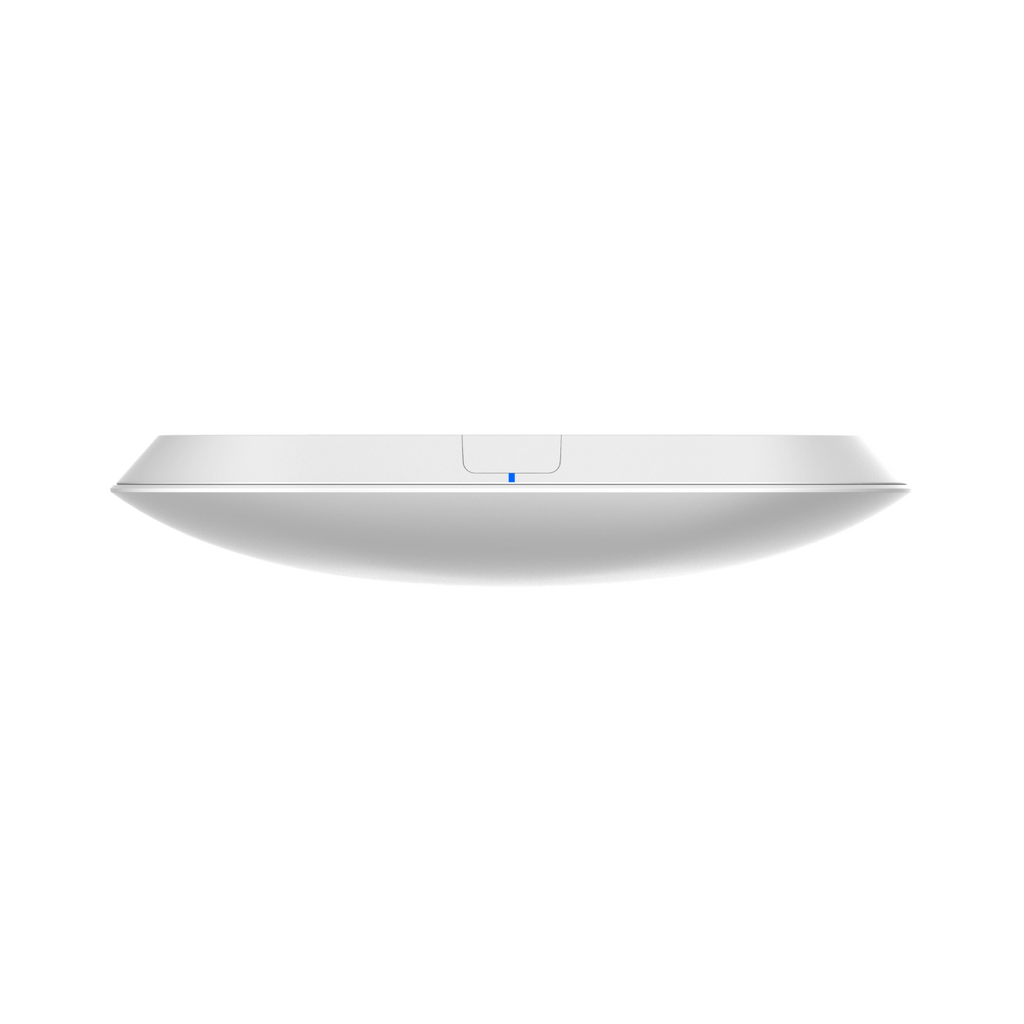

| Dimensions |
208 × 208 × 40 mm (8.19 × 8.19 × 1.57 in.) |
| Weight |
≤ 0.65 kg (1.43 lbs) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| IP Rating |
IP41 – Indoor use |
| Certifications |
CE, RoHS, FCC, ISED, cTUVus |
| Warranty |
3-Year Manufacturer Warranty |
What’s in the Box
-
1 × RG-RAP72Pro Access Point
-
Mounting Bracket & Screw Set
-
Quick Start Guide
-
Regulatory Compliance Information
Use Case Scenarios
| Environment |
Use Case |
| Hotels & Hospitality |
High-speed internet in guest rooms, lounges, conference rooms |
| Enterprise Offices |
Ultra-fast wireless for hybrid workspaces and heavy video conferencing |
| Smart Education |
Stable Wi-Fi for digital classrooms and faculty collaboration |
| Coworking Spaces |
Multiple device support with isolated SSIDs and roaming support |
| High-Density Areas |
Support for hundreds of simultaneous client connections |
Management Platforms
-
Ruijie Cloud – Free centralized cloud-based management
-
Reyee App – Remote configuration and monitoring via mobile
-
Standalone Portal – Built-in captive portal for guest access
-
Reyee Mesh – Seamless wireless meshing and smart handoff
Excellence for the Australian and New Zealand Market
✅ Complies with ANZ Standards – CE, FCC, ISED, RoHS, cTUVus
✅ Optimized for Dense Urban and Enterprise Deployments
✅ PoE-ready for Local Building Infrastructure
✅ Locally Distributed via Authorized ANZ Resellers
✅ Full Warranty Handling through Authorized Channels
✅ Designed for Easy Integration into ANZ Hospitality and Business Venues
Downloadable Resources
📄 Download RG-RAP72Pro Datasheet – PDF
FAQs – RG-RAP72Pro (Product Code: RG-RAP72Pro)
Q1: What is the maximum wireless speed of the RG-RAP72Pro (Product Code: RG-RAP72Pro)?
The RG-RAP72Pro delivers an impressive 5011 Mbps, utilizing Wi-Fi 7 (802.11be) with 4K-QAM and MLO enhancements.
Q2: Does RG-RAP72Pro (Product Code: RG-RAP72Pro) support Multi-Link Operation (MLO)?
Yes, MLO is supported for simultaneous multi-band transmission, enhancing throughput and reducing latency.
Q3: What is the difference between RG-RAP72 and RG-RAP72Pro (Product Code: RG-RAP72Pro)?
The RG-RAP72Pro offers higher speed (BE5040 vs BE3060), 3x3 MIMO at 5 GHz, and MLO support, making it ideal for heavier workloads.
Q4: How is RG-RAP72Pro (Product Code: RG-RAP72Pro) powered?
It supports both 802.3at PoE and 12V/2.5A DC power, offering flexibility in deployment.
Q5: Is RG-RAP72Pro (Product Code: RG-RAP72Pro) approved for the Australian and New Zealand market?
Yes, it holds CE, FCC, ISED, RoHS, and cTUVus certifications, making it suitable for use in Australia and New Zealand.
