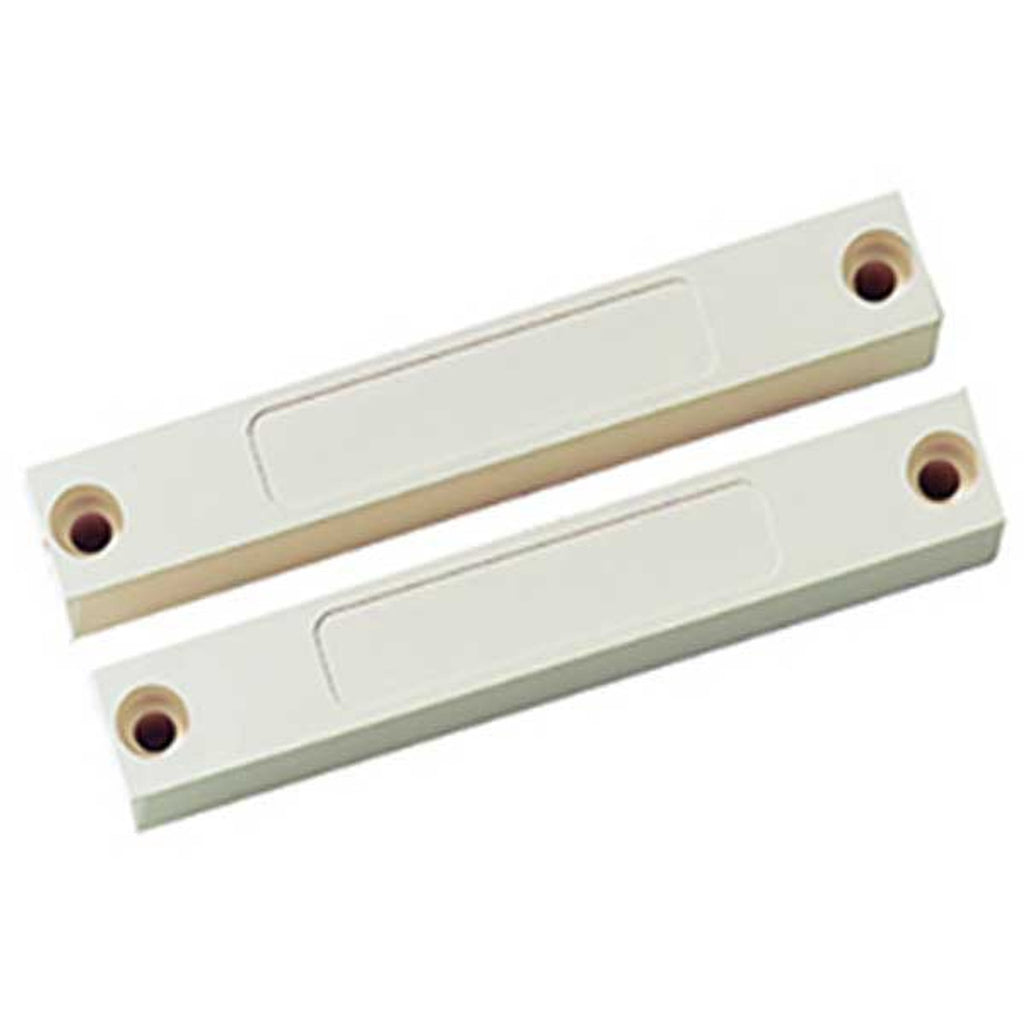

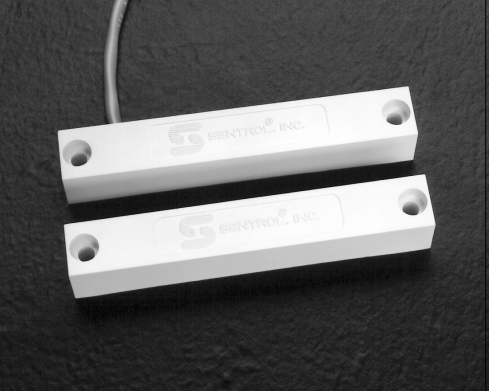

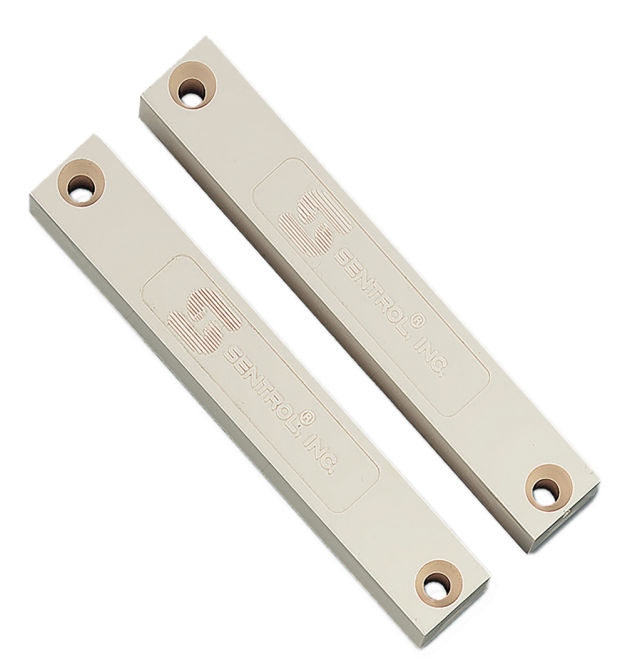

The Sentrol 1045T-N Hardwired Reed Switch is a premium-grade industrial surface mount magnetic contact designed for rigorous commercial and industrial security applications. With a robust 32mm detection gap and dry contact (1x N/C output), this unit provides consistent and reliable intrusion detection for critical access points. Engineered to function seamlessly on steel surfaces without the need for mounting brackets, it ensures easier, faster installation and superior adaptability in challenging environments.
This durable contact switch features concealed terminals to prevent tampering and accidental shorts, along with rugged casing to withstand harsh industrial conditions. Trusted by security professionals, the 1045T-N is the optimal solution for protecting metal entry/exit doors, overhead doors, hatches, and skylights.
What’s Included in the Box
Main Features
-
Industrial-grade surface mount magnetic contact
-
Wide 32mm detection gap for installation flexibility
-
1x Normally Closed (N/C) dry contact output
-
No need for brackets when installed on steel surfaces
-
Tamper-resistant concealed screw terminals
-
Rugged ABS plastic construction for long-term reliability
-
Hand-soldered reed connections, factory tested 100% of the time
Specifications
| Specification |
Details |
| Product Code (SKU) |
1045T-N |
| Color |
White |
| Mount Type |
Surface Mount |
| Detection Gap (Max) |
32mm |
| Contact Type |
Normally Closed (N/C) |
| Supervised Loop |
No |
| Connection Type |
Screw Terminals |
| Dimensions (L x W x H) |
99 x 15 x 18 mm |
| Material |
Plastic |
| Cycle Rating |
10,000,000+ cycles |
Warranty Information
All Sentrol 1045T-N units come with a manufacturer-backed limited warranty. Warranty claims and servicing are handled through authorized channels to ensure fast and reliable support.
Brand Description – Sentrol (GE Interlogix)
Sentrol, a trusted brand under GE Interlogix, has been delivering high-quality intrusion detection solutions for decades. Known for their durability, innovation, and precision engineering, Sentrol products are widely used in government, commercial, and industrial security installations globally.
SKU
1045T-N
Practical Use Scenarios
-
Warehouse Entrances: Secures high-traffic steel doors against unauthorized access.
-
Commercial Loading Bays: Ideal for protecting rolling shutter doors with wide detection gaps.
-
Roof Access Hatches: Ensures added security on less frequently accessed points.
-
Industrial Plants: Provides dependable monitoring for heavy-duty doors and access points exposed to environmental stressors.
Excellence for the Australian and New Zealand Market
-
Fully compatible with Australian industrial and commercial installations
-
Engineered to meet rigorous ANZ quality and reliability standards
-
Directly sourced through authorized Australian brand representatives
-
Warranty support and technical assistance are handled locally
-
Trusted by leading ANZ security integrators and installers
-
Ideal for use in NDSS-compliant installations where applicable
FAQs – Sentrol 1045T-N
Q1: What is the maximum detection gap of the Sentrol 1045T-N?
A1: The Sentrol 1045T-N supports a wide detection gap of up to 32mm, allowing for greater installation flexibility. (Product Code: 1045T-N)
Q2: Can the 1045T-N be mounted directly on steel doors?
A2: Yes, the 1045T-N is specifically designed to work on steel surfaces without the need for mounting brackets. (Product Code: 1045T-N)
Q3: Is this contact supervised?
A3: No, the 1045T-N does not feature a supervised loop. It uses a single Normally Closed (N/C) dry contact. (Product Code: 1045T-N)
Q4: How durable is the Sentrol 1045T-N in terms of lifecycle?
A4: It is conservatively rated at over 10,000,000 cycles, making it one of the most durable options in its class. (Product Code: 1045T-N)
Q5: Are the terminals on the 1045T-N exposed?
A5: No, the terminals are concealed to resist tampering and accidental shorts, enhancing installation security. (Product Code: 1045T-N)
